第 28 章 ggplot2之从图层到几何形状

用ggplot2，大多是从几何形状出发，总有“只见树木不见森林”的感觉。我尝试从图层结构出发，去思考ggplot2绘图原理。欢迎大家批评指正。

28.1 图层的五大元素

ggplot2中每个图层都要有的五大元素：

1. 数据data
2. 美学映射mapping

3. 几何形状geom
4. 统计变换stat
5. 位置调整position

数据映射后，需要指定一种数据统计变换的方式，统计计算数据（不进行统计变换可以理解为是等值变换），最后通过某种几何形状geom来对其进行可视化的展现。

我们现在按照layer() -> stat_*() -> geom_*()这个思路来，理解各种图形。

一般情况下，统计变换会生成新的数据列，在ggplot2里称之为Computed variables，如果想要这些新变量映射到图形属性，就需要使用 after_stat()或者stage()函数，具体见下面的案例。

28.2 加载宏包

library(tidyverse)
library(palmerpenguins)
penguins <- penguins %>% drop_na()

28.3 stat_identity()

就是什么也不干，即等值变换。

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  layer(
    stat = "identity",
    geom = "point",
    params = list(na.rm = FALSE),
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  stat_identity(
    geom = "point"
  )

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  geom_point()

28.4 stat_count()

统计 落在x(离散)位置上，点的个数

Computed variables

• count: number of points in bin
• prop: groupwise proportion

默认几何形状

• geom_bar()

适用几何形状

• geom_point() / geom_bar()

penguins %>%
  ggplot(aes(x = species)) +
  layer(
    stat = "count",
    geom = "bar",
    mapping = aes(y = after_stat(count)),
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = species)) +
  layer(
    stat = "count",
    geom = "point",
    mapping = aes(y = after_stat(count)),
    position = "identity"
  )

这里aes(y = after_stat(count)) 可以看作是aes(y = stage(start = NULL, after_stat = count))的简写

penguins %>%
  ggplot(aes(x = species)) +
  layer(
    stat = "count",
    geom = "bar",
    mapping = aes(y = stage(start = NULL, after_stat = count)),
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = species, y = after_stat(count))) +
  stat_count(
    geom = "bar"
  )

penguins %>%
  ggplot(aes(x = species, y = after_stat(count))) +
  geom_bar(
    stat = "count"
  )

penguins %>%
  ggplot(aes(x = species, y = after_stat(count))) +
  stat_count(
    geom = "point"
  )

penguins %>%
  ggplot(aes(x = species, y = after_stat(count))) +
  geom_point(
    stat = "count"
  )

28.5 stat_bin()

统计 落在x(连续)区间上，点的个数

Computed variables

• count: number of points in bin
• density: density of points in bin, scaled to integrate to 1
• ncount: count, scaled to maximum of 1
• ndensity: density, scaled to maximum of 1

默认几何形状

• geom_bar()

适用几何形状

• geom_bar() / geom_histogram() / geom_freqpoly

penguins %>%
  ggplot(aes(x = bill_length_mm)) +
  layer(
    stat = "bin",
    geom = "bar",
    mapping = aes(y = after_stat(count)),
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = bill_length_mm)) +
  layer(
    stat = "bin",
    geom = "point",
    mapping = aes(x = stage(start = bill_length_mm, after_stat = x),
                  y = after_stat(count)
                 ),
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = bill_length_mm, y = after_stat(count))) +
  stat_bin(
    geom = "point"
  )

penguins %>%
  ggplot(aes(x = bill_length_mm, y = after_stat(count))) +
  geom_bar(
    stat = "bin"
  )

geom_histogram 本质实际上是 geom_bar，都依赖stat_bin

penguins %>%
  ggplot(aes(x = bill_length_mm)) +
  layer(
    stat = "bin",
    geom = "bar",
    mapping = aes(y = after_stat(count)),
    position = 'identity'
  )

penguins %>%
  ggplot(aes(x = bill_length_mm)) +
  layer(
    stat = "bin",
    geom = "bar",
    mapping = aes(y = after_stat(ncount)),
    position = 'identity'
  )

penguins %>%
  ggplot(aes(x = bill_length_mm)) +
  stat_bin(
    mapping = aes(y = after_stat(count)),
    geom = "bar",
    position = 'identity'
  )

penguins %>%
  ggplot(aes(x = bill_length_mm)) +
  geom_histogram(
    mapping = aes(y = after_stat(count)),
    stat = "bin",
    position = 'identity'
  )

复杂点的geom_histogram()

penguins %>%
  ggplot(aes(x = bill_length_mm, fill = sex)) +
  layer(
    mapping = aes(y = after_stat(density)),
    geom = "bar",
    stat = "bin",
    position = 'dodge'
  ) +
  facet_wrap(vars(species))

penguins %>%
  ggplot(aes(x = bill_length_mm, fill = sex)) +
  layer(
    mapping = aes(y = stage(NULL, after_stat = density)),
    geom = "bar",
    stat = "bin",
    position = 'dodge'
  ) +
  facet_wrap(vars(species))

penguins %>%
  ggplot(aes(x = bill_length_mm, fill = sex)) +
  stat_bin(
    mapping = aes(y = after_stat(density)),
    geom = "bar",
    position = 'dodge'
  ) +
  facet_wrap(vars(species))

penguins %>%
  ggplot(aes(x = bill_length_mm, fill = sex)) +
  geom_histogram(
    aes(y = after_stat(density)),
    position = 'dodge'
  ) +
  facet_wrap(vars(species))

28.6 stat_density()

x(连续)核密度估计，可以看作是直方图的平滑版本

kernel = c("gaussian", "epanechnikov", "rectangular",
           "triangular", "biweight",   "cosine",
           "optcosine")

Computed variables

• density: density estimate
• count: density * number of points - useful for stacked density plots
• scaled: density estimate, scaled to maximum of 1
• ndensity: alias for scaled, to mirror the syntax of stat_bin()

默认几何形状

• geom_area()

适用几何形状

• geom_area()/ geom_line()/ geom_point()/ geom_density()

penguins %>%
  ggplot(aes(x = bill_length_mm)) +
  layer(
        stat = "density",
        geom = "area",
      params = list(kernel = "gaussian"),
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = bill_length_mm)) +
  layer(
        stat = "density",
        geom = "line",
      params = list(kernel = "gaussian"),
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = bill_length_mm)) +
  layer(
        stat = "density",
        geom = "point",
      params = list(kernel = "gaussian"),
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = bill_length_mm)) +
  stat_density(
        geom = "point",
      kernel = "gaussian"
  )

28.7 stat_boxplot()

计算连续变量的五个统计值 (the median, two hinges and two whiskers), 以及outlier

• Aesthetics

  • x or y; lower; upper; middle; ymin ; ymax

• Computed variables

  • width: width of boxplot
  • ymin: lower whisker = smallest observation greater than or equal to lower hinge - 1.5 * IQR
  • lower: lower hinge, 25% quantile
  • notchlower: lower edge of notch = median - 1.58 * IQR / sqrt(n)
  • middle: median, 50% quantile
  • notchupper: upper edge of notch = median + 1.58 * IQR / sqrt(n)
  • upper: upper hinge, 75% quantile
  • ymax: upper whisker = largest observation less than or equal to upper hinge + 1.5 * IQR

默认几何形状

• geom_boxplot()

适用几何形状

• geom_boxplot() / geom_point()

penguins %>%
  ggplot(aes(x = species, y = bill_length_mm))+
  layer(
    stat = "boxplot",
    geom = "boxplot",
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = species, y = bill_length_mm)) +
  stat_boxplot(
    geom = "boxplot"
  )

penguins %>%
  ggplot(aes(x = species, y = bill_length_mm)) +
  geom_boxplot()

可以根据 Computed variables 画出更多的几何形状

penguins %>%
  ggplot(aes(x = species, y = bill_length_mm)) +
  layer(
    stat = "boxplot",
    geom = "boxplot",
    mapping = aes(color = after_stat(middle)),
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = species, y = bill_length_mm)) +
  layer(
    stat = "boxplot",
    geom = "point",
    mapping = aes(y = after_stat(width)),
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = species, y = bill_length_mm)) +
  layer(
    stat = "boxplot",
    geom = "point",
    mapping = aes(y = stage(bill_length_mm, after_stat = notchupper)),
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = species, y = bill_length_mm)) +
  layer(
    stat = "boxplot",
    geom = "point",
    mapping = aes(y = stage(bill_length_mm, after_stat = ymax)),
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = species, y = bill_length_mm)) +
  stat_boxplot()

penguins %>%
  ggplot(aes(x = species, y = bill_length_mm)) +
  layer(
    stat = "boxplot",
    geom = "point",
    mapping = aes(y = stage(bill_length_mm, after_stat = middle)),
    params = list(color = "red", size = 5),
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = species, y = bill_length_mm)) +
  geom_boxplot(
    aes(colour = species,
        fill = after_scale(alpha(colour, 0.4)))
  )

28.8 stat_ydensity()

可以看作是箱线图的密度图呈现

Computed variables

• density: density estimate
• scaled: density estimate, scaled to maximum of 1
• count: density * number of points - probably useless for violin plots
• violinwidth: density scaled for the violin plot, according to area, counts or to a constant maximum width
• n: number of points
• width: width of violin bounding box

默认几何形状

• geom_violin()

适用几何形状

• geom_violin() / geom_point()

penguins %>%
  ggplot(aes(x = species, y = bill_length_mm)) +
  geom_point() +
  layer(
    geom     = "violin",
    stat     = "ydensity",
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = species, y = bill_length_mm)) +
  geom_point() +
  layer(
    geom     = "point",
    stat     = "ydensity",
    position = "identity"
  )

28.9 stat_bindot()

圆点图，是直方图的另外一种形式

Computed variables

• x: center of each bin, if binaxis is “x”
• y: center of each bin, if binaxis is “x”
• binwidth: max width of each bin if method is “dotdensity”;width of each bin if method is “histodot”
• count: number of points in bin
• ncount: count, scaled to maximum of 1
• density: density of points in bin, scaled to integrate to 1, if method is “histodot”
• ndensity: density, scaled to maximum of 1, if method is “histodot”

默认几何形状

• geom_dotplot()

适用几何形状

• geom_dotplot()

penguins %>%
  ggplot(aes(x = bill_length_mm)) +
  layer(
    stat = "bindot",
    geom = "dotplot",
    mapping = aes(y = stage(start = NULL, after_stat = count)),
    params = list(binwidth = 1, dotsize = 0.5),
    position = position_nudge(-0.025)
  )

penguins %>%
  ggplot(aes(x = bill_length_mm)) +
  layer(
    stat = "bindot",
    geom = "point",
    mapping = aes(y = stage(start = NULL, after_stat = count)),
    params = list(binwidth = 1),
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = bill_length_mm)) +
  geom_dotplot(
    binwidth = 1,
    dotsize = 0.5)

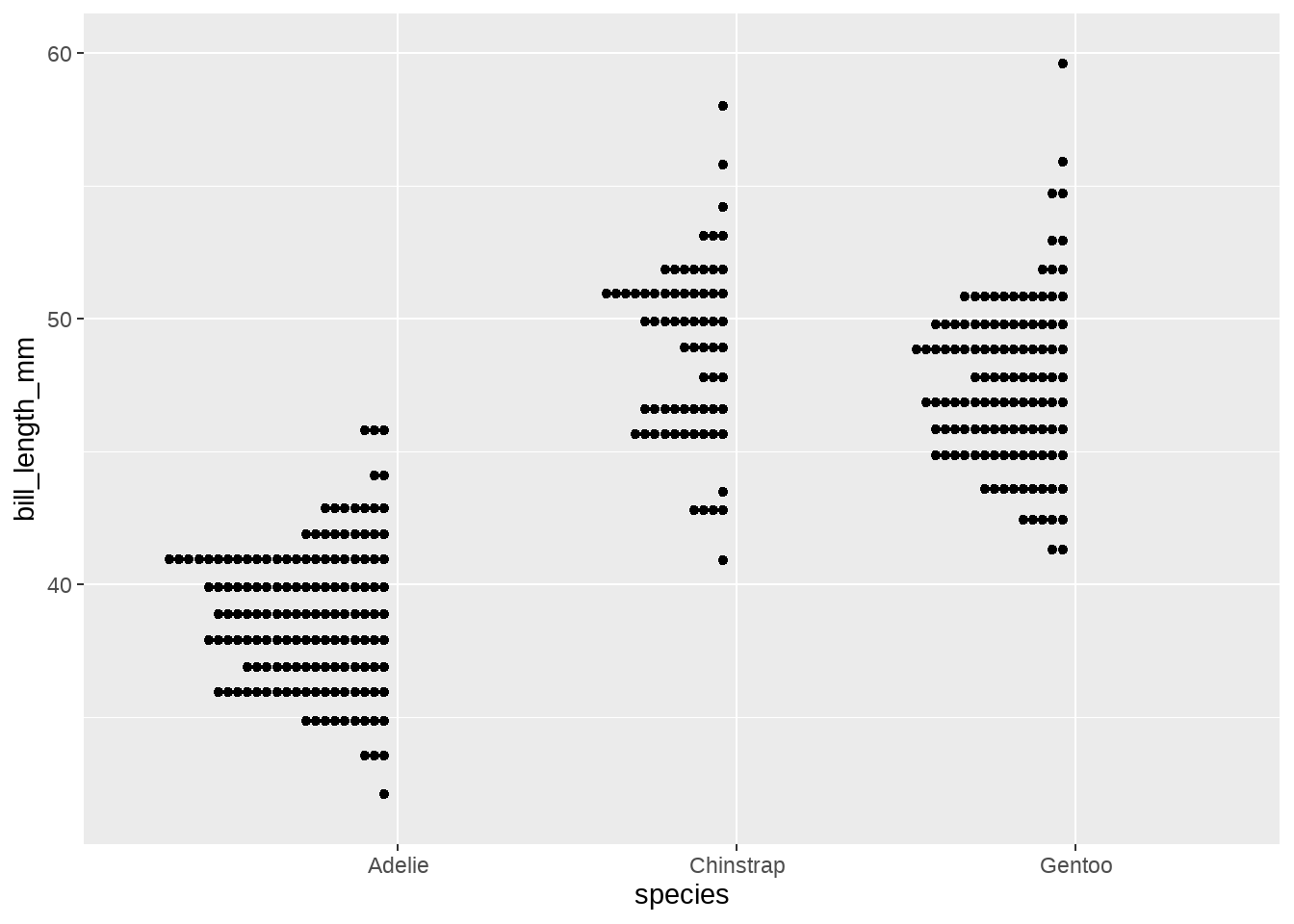

penguins %>%
  ggplot(aes(x = species, y = bill_length_mm)) +
  geom_dotplot(
    binaxis = "y",
    stackdir = "down",
    dotsize = 0.4,
    position = position_nudge(-0.025)
    )

28.10 stat_sum()

统计落在x(离散或者连续), y(离散或者连续)位置上，点的个数

Computed variables

• n : number of observations at position
• prop : percent of points in that panel at that position

默认几何形状

• geom_point()

适用几何形状

• geom_point() / geom_count() / geom_bar()

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  layer(
    stat = "sum",
    geom = "point",
    mapping = aes(size = after_stat(n)),
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  stat_sum(
    geom = "point"
  )

28.11 stat_smooth()

根据x,y数据和拟合公式，计算每个点位置的拟合值以及标准误

Computed variables

• y: predicted value
• ymin: lower pointwise confidence interval around the mean
• ymax: upper pointwise confidence interval around the mean
• se: standard error

默认几何形状

• geom_smooth()

适用几何形状

• geom_smooth() / geom_line() / geom_point()

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  layer(
    geom = "smooth",
    stat = "smooth",
    params = list(se = TRUE),
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  stat_smooth(
    geom = "smooth",
    se = TRUE
  )

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  geom_smooth(
    se = TRUE
  )

统计转换后，可以根据 Computed variables 画出更多的几何形状

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  layer(
    geom = "point",
    stat = "smooth",
    mapping = aes(size = after_stat(ymax), color = after_stat(ymin)),
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  layer(
    geom = "point",
    stat = "smooth",
    mapping = aes(color = after_stat(ymin)),
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  layer(
    geom = "point",
    stat = "smooth",
    mapping = aes(color = stage(NULL, after_stat = ymin)),
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  layer(
    geom = "line",
    stat = "smooth",
    mapping = aes(color = after_stat(ymin)),
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  layer(
    geom = "pointrange",
    stat = "smooth",
    mapping = aes(color = after_stat(se)),
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  layer(
        stat = "smooth",
     mapping = aes(color = after_stat(y)),
        geom = "point",
      params = list(method  = "lm", formula = y ~ splines::ns(x, 2)),
    position = "identity"
  )

28.12 stat_bin_2d()

统计 落在x和y(长方形)区域上，点的个数

Computed variables

• count: number of points in bin
• density: density of points in bin, scaled to integrate to 1
• ncount: count, scaled to maximum of 1
• ndensity: density, scaled to maximum of 1

默认几何形状

• geom_tile()

适用几何形状

• geom_tile() / geom_point()/ geom_bin2d()

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  layer(
    geom = "tile",
    stat = "bin_2d",
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  layer(
    geom = "point",
    stat = "bin_2d",
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  stat_bin_2d(
    geom = "point"
  )

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  geom_point(
    stat = "bin_2d"
  )

可以根据 Computed variables 画出更多的几何形状

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  layer(
    geom = "point",
    stat = "bin_2d",
    mapping = aes(size = after_stat(count)),
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  layer(
    geom = "tile",
    stat = "bin_2d",
    mapping = aes(fill = after_stat(count)),
    position = "identity"
  )

28.13 stat_bin_hex()

stat_bin2d()的六边形版本

Computed variables

• count: number of points in bin
• density: density of points in bin, scaled to integrate to 1
• ncount: count, scaled to maximum of 1
• ndensity: density, scaled to maximum of 1

默认几何形状

• geom_hex()

适用几何形状

• geom_hex()

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  layer(
    geom = "hex",
    stat = "binhex",
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  stat_bin_hex(
    geom = "hex"
  )

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  geom_hex(
    stat = "binhex"
  )

可以根据 Computed variables 画出更多的几何形状

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  layer(
    geom = "text",
    stat = "binhex",
    mapping = aes(label = stage(NULL, after_stat = count)),
    position = "identity"
  )

28.14 stat_density_2d()

二维核密度估计，二维版本的stat_density()

• 不计算等高线 (contour = FALSE)
  • count: number of points in bin

  • density: density of points in bin, scaled to integrate to 1

  • ncount: count, scaled to maximum of 1

  • ndensity: density, scaled to maximum of 1
• 计算等高线 (contour = TRUE)
  • contour lines, for stat_contour() 等高线
  • contour bands, for stat_contour_filled() 等高带
  • Contours line types by contour_var = (density, ndensity, and count)

适用几何形状

• geom_density_2d() / geom_raster() / goem_tile() / geom_path() / geom_point() / geom_polygon()

28.14.1 先看看有等高线的情形

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  layer(
    stat =  "density_2d",
    geom =  "path",
    params = list(contour = TRUE),
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  stat_density_2d(
    contour = TRUE
  )

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  geom_density_2d()

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  geom_path(
    stat = "density_2d",
    contour = TRUE
  )

可以根据 Computed variables 画出更多的几何形状

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  layer(
    stat =  "density_2d",
    geom =  "point",
    params = list(contour = TRUE),
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  layer(
    stat = "density_2d",
    geom = "polygon",
    mapping = aes(fill = after_stat(level)),
    params = list(contour = TRUE),
    position = "identity"
  )

28.14.2 看看无等高线的情形

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  layer(
    stat = "density_2d",
    geom = "raster",
    mapping = aes(fill = after_stat(density)),
    params = list(contour = FALSE),
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  layer(
    stat = "density_2d",
    geom = "tile",
    mapping = aes(fill = after_stat(count)),
    params = list(contour = FALSE),
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  stat_density_2d(
    geom = "tile",
    mapping = aes(fill = after_stat(density)),
    contour = FALSE
  )

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  geom_tile(
    stat = "density_2d",
    mapping = aes(fill = after_stat(density)),
    contour = FALSE
  )

可以根据 Computed variables 画出更多的几何形状

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  layer(
    stat = "density_2d",
    geom = "point",
    mapping = aes(size = after_stat(count)),
    params = list(n = 20, contour = FALSE),
    position = "identity"
  )

28.15 stat_ellipse()

假定数据服从多元分布，计算椭圆图形需要的参数

Computed variables

• x
• y

默认几何形状

• geom_path()

适用几何形状

• geom_path() /geom_polygon()

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  geom_point() +
  layer(
    stat = "ellipse",
    geom = "path",
    params = list(type = "norm", linetype = 2),
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  geom_point() +
  stat_ellipse(
    geom = "path",
    type = "norm",
    linetype = 2
  )

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm, color = species)) +
  geom_point() +
  geom_path(
    stat = "ellipse",
    type = "norm",
    linetype = 2
  )

可以根据 Computed variables 画出更多的几何形状

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  geom_point() +
  layer(
    stat = "ellipse",
    geom = "path",
    mapping = aes(color = after_stat(y)),
    params = list(type = "norm"),
    position = "identity"
  )

28.16 stat_summary

每一个x位置上, summary on y

说明

• stat_summary() operates on unique x or y;
• stat_summary_bin() operates on binned x or y.

Summary functions

• fun.data : Complete summary function. Should take numeric vector as input and return data frame as output

• fun.min : min summary function (should take numeric vector and return single number)

• fun : main summary function (should take numeric vector and return single number)

• fun.max : max summary function (should take numeric vector and return single number)

适用几何形状

• geom_errorbar() / geom_pointrange() /geom_linerange() / geom_crossbar() /geom_point()

penguins %>%
  ggplot(aes(x = species, y = bill_length_mm)) +
  layer(
    stat = "summary",
    params = list(fun.data = "mean_cl_normal"),
    geom = "errorbar",
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = species, y = bill_depth_mm)) +
  stat_summary(
    fun.data = mean_cl_normal,
        geom = "errorbar"
  )

penguins %>%
  ggplot(aes(x = sex, y = bill_length_mm)) +
  layer(
    stat     = "summary",
    geom     = "point",
    mapping  = aes(size = after_stat(ymin)),
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = species, y = bill_length_mm)) +
  geom_point() +
  layer(
    geom     = "point",
    stat     = "summary",
    params   = list(fun = "mean", color = "red", size = 5),
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = species, y = bill_length_mm)) +
  layer(
    geom = "point",
    stat = "summary",
    params = list(fun = median),
    mapping = aes(y = stage(start = bill_length_mm, after_stat = y)),
    position = "identity"
    )

penguins %>%
  ggplot(aes(x = sex, y = bill_length_mm)) +
  geom_point() +
  layer(
    geom = "pointrange",
    stat = "summary",
    params = list(fun.data = ~mean_se(., mult = 5), color = "red", size = 2),
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = species, y = bill_length_mm)) +
  geom_point() +
  stat_summary(
    geom  = "point",
    fun   = "mean",
    color = "red",
    size  = 5
  )

penguins %>%
  ggplot(aes( x = body_mass_g, y = species)) +
  geom_jitter() +
  stat_summary(
    fun = mean,
    geom = "point",
    size = 5,
    color = "red",
    alpha = 1
  )

penguins %>%
  ggplot(aes(x = sex, y = bill_length_mm)) +
  geom_point() +
  stat_summary(
    fun.data = ~mean_se(., mult = 5),
    color = "red",
    geom = "pointrange",
    size = 2
  )

penguins %>%
  ggplot(aes(x = sex, y = bill_length_mm)) +
  geom_point() +
  geom_pointrange(
    stat = "summary",
    fun.data = ~mean_se(., mult = 5),
    color = "red",
    size = 2
  )

penguins %>%
  ggplot(aes(x = sex, y = bill_length_mm)) +
  geom_point() +
  stat_summary(
    fun.data = mean_cl_boot,
    color = "red",
    geom = "pointrange"
  )

penguins %>%
  ggplot(aes(x = sex, y = bill_length_mm)) +
  geom_point() +
  stat_summary(
    fun = mean,
    fun.min = min,
    fun.max = max,
    geom = "pointrange",
    color = "red",
    size = 5
  )

penguins %>%
  ggplot(aes(x = sex, y = bill_length_mm)) +
  geom_point() +
  stat_summary(
    fun.data = ~mean_se(., mult = 5),
    color = "red",
    geom = "pointrange"
  )

penguins %>%
  ggplot(aes(x = species, y = bill_length_mm, group = sex)) +
  geom_point() +
  stat_summary(
    fun.data = ~mean_se(., mult = 2),
    color = "red",
    geom = "pointrange"
  )

penguins %>%
  ggplot(aes(x = species, y = bill_length_mm, group = sex)) +
  stat_summary(fun = mean,
               fun.min = function(x) mean(x) - sd(x),
               fun.max = function(x) mean(x) + sd(x),
               geom = "pointrange") +
  stat_summary(fun = mean,
               geom = "line") +
  facet_wrap(~ sex)

28.16.1 自定义函数

my_count <- function(x){
  tibble(
    y = length(x),
  )
}


penguins %>%
  ggplot(aes(x = species, y = bill_length_mm)) +
  stat_summary(
    geom = "bar",
    fun.data = my_count
  )

penguins %>%
  ggplot(aes(x = species, y = bill_length_mm)) +
  geom_bar(
    stat = "summary",
    fun.data = my_count,
  )

penguins %>%
  ggplot(aes(x = species, y = bill_length_mm)) +
  layer(
    geom = "bar",
    stat = "summary",
    params = list(fun.data = my_count),
    position = "identity"
  )

28.16.2 添加文本

penguins %>%
  ggplot(aes(x = species, y = bill_length_mm)) +
  geom_point() +
  stat_summary(
    geom = "point",
    fun = "mean",
    color = "red",
    size = 5
  ) +
  stat_summary(
    aes(label = after_stat(y)),
    geom = "text",
    fun.data = "mean_se",
    color = "red",
    size = 5
  )

n_fun <- function(x) {
  data.frame(y = 62,
            label = length(x),
            color = ifelse(length(x) > 100, "red", "blue")
            )
}


penguins %>%
  ggplot(aes(x = species, y = bill_length_mm)) +
  geom_boxplot() +
  geom_jitter() +
  stat_summary(
    fun.data = n_fun,
    geom = "text"
  )

penguins %>%
  ggplot(aes(x = species, y = bill_length_mm)) +
  geom_point() +
  stat_summary(
    geom = "pointrange",
    fun.data = "mean_cl_boot",
    color = "red"
  )

penguins %>%
  ggplot(aes(x = species, y = bill_length_mm)) +
  geom_point() +
  stat_summary(
    geom = "pointrange",
    fun.data = ~ mean_se(., mult = 5),
    color = "red",
    size = 1
  ) +
  stat_summary(
    fun = "mean",
    geom = "text",
    mapping = aes(y = stage(bill_length_mm, after_stat = 30),
                  label = round(after_stat(y), 2)),
    color = "blue",
    size = 5
  ) +
  stat_summary(
    fun = "length",
    geom = "text",
    mapping = aes(y = stage(bill_length_mm, after_stat = 62),
                  label = after_stat(y)
                  ),
    color = "black",
    size = 5
  )

28.16.3 更多

calc_median_and_fill <- function(x, threshold = 40) {
  tibble(
    y = median(x),
    fill = if_else(y < threshold, "red", "gray50")
  )
}

penguins %>%
  ggplot(aes(x = species, y = bill_length_mm)) +
  stat_summary(
    fun.data = calc_median_and_fill,
    geom = "bar"
  )

calc_median_and_color <- function(x, threshold = 40) {
  tibble(
    y = median(x),
    color = if_else(y < threshold, "red", "gray50")
  )
}

penguins %>%
  ggplot(aes(x = species, y = bill_length_mm)) +
  stat_summary(
    fun.data = calc_median_and_color,
    geom = "point",
    size = 5
  )

penguins %>%
  ggplot(aes(species, bill_depth_mm)) +
  stat_summary(
    fun.data = function(x) {

      scaled_size <- length(x)/nrow(penguins)

      mean_se(x) %>%
        mutate(size = scaled_size)
    }
  )

penguins %>%
  ggplot(aes(species, bill_depth_mm)) +
  geom_point(position = position_jitter(width = .2), alpha = .3) +
  stat_summary(fun = mean,
               na.rm = TRUE,
               geom = "point",
               color = "dodgerblue",
               size = 4,
               shape = "diamond") +
  stat_summary(fun.data = mean_cl_normal,
               na.rm = TRUE,
               geom = "errorbar",
               width = .2,
               color = "dodgerblue") +
  stat_summary(fun = mean,
               na.rm = TRUE,
               aes(group = 1),
               geom = "line",
               color = "dodgerblue",
               size = .75)

penguins %>%
  ggplot(aes(species, bill_depth_mm, group = sex, color = sex)) +
  geom_point(
    position = position_jitterdodge(
      jitter.width = .2,
      dodge.width = .7
    ),
    alpha = .1
  ) +
  stat_summary(
    fun = mean,
    na.rm = TRUE,
    geom = "point",
    shape = "diamond",
    size = 4,
    color = "black",
    position = position_dodge(width = .7)
  ) +
  stat_summary(
    fun.data = mean_cl_normal,
    na.rm = TRUE,
    geom = "errorbar",
    width = .2,
    color = "black",
    position = position_dodge(width = .7)
  ) +
  scale_color_brewer(palette = "Set1")

penguins %>%
  ggplot(aes(species, bill_depth_mm, group = sex, color = sex)) +
  geom_point(
    position = position_jitterdodge(
      jitter.width = .2,
      dodge.width = .7
    ),
    alpha = .1
  ) +
  stat_summary(
    fun = mean,
    na.rm = TRUE,
    geom = "point",
    shape = "diamond",
    size = 4,
    color = "black",
    position = position_dodge(width = .7)
  ) +
  stat_summary(
    fun.data = mean_cl_normal,
    na.rm = TRUE,
    geom = "errorbar",
    width = .2,
    color = "black",
    position = position_dodge(width = .7)
  ) +
  scale_color_brewer(palette = "Set1") +
  facet_wrap(~sex)

28.17 stat_summary_bin

在落入x区间位置上的y，设定函数（也可以调整方向，对落入y区间位置的每个x，设定函数）

penguins %>%
  ggplot(aes(x = bill_depth_mm, y = bill_length_mm)) +
  layer(
    stat = "summary_bin",
    geom = "bar",
    params = list(fun = mean, color = "red", orientation = 'x'),
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = bill_depth_mm, y = bill_length_mm)) +
  stat_summary_bin(
    fun = mean,
    color = "red",
    geom = "bar",
    orientation = 'x'     # bin on x axis, summary mean on y
  )

penguins %>%
  ggplot(aes(x = bill_depth_mm, y = bill_length_mm)) +
  stat_summary_bin(
    fun = mean,
    color = "red",
    geom = "bar",
    orientation = 'y'
  )

penguins %>%
  ggplot(aes(x = bill_depth_mm, y = bill_length_mm)) +
  geom_bar(
    stat = "summary_bin",
    fun = mean,
    color = "red"
  )

penguins %>%
  ggplot(aes(x = bill_depth_mm, y = bill_length_mm)) +
  stat_summary_bin(
    fun = mean,
    color = "red",
    geom = "bar",
    orientation = 'y'  # bin on y axis, summary mean on x
  )

28.18 stat_function()

函数曲线

Computed variables

• x: x values along a grid
• y: value of the function evaluated at corresponding x

默认几何形状

• geom_line()

适用几何形状

• geom_line() / geom_point() /geom_function()

tibble(x = runif(n = 100, min = -5, max = 5)) %>%
  ggplot() +
  layer(
    stat = "function",
    geom = "point",
    params = list(fun = dnorm, args = list(mean = 0, sd = 0.5)),
    position = "identity"
  ) +
  xlim(-2, 2)

tibble(x = runif(n = 100, min = -5, max = 5)) %>%
  ggplot() +
  layer(
    stat = "function",
    geom = "point",
    params = list(fun =  ~ 0.5*exp(-abs(.x))),
    position = "identity"
  ) +
  xlim(-2, 2)

28.19 stat_spoke()

将角度和半径转换为xend和yend，可以看作是geom_segment()另外一种形式

penguins %>%
  mutate(angle = flipper_length_mm / (2*pi) ) %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  layer(
    stat = "identity",
    geom = "spoke",
    mapping = aes(angle = angle),
    params = list(radius = 0.5),
    position = "identity"
  )

penguins %>%
  mutate(angle = flipper_length_mm / (2*pi) ) %>%

  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  geom_spoke(
    mapping = aes(angle = angle),
    radius = 0.5
  )

28.20 stat_quantile()

分位数回归

quantreg::rq(bill_depth_mm ~ bill_length_mm,
             data = penguins,
             tau = c(0.25, 0.5, 0.75)
             )

Computed variables

• quantile: quantile of distribution

默认几何形状

• geom_quantile()

适用几何形状

• geom_line() / geom_point() / geom_quantile()

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  layer(
    stat = "quantile",
    geom = "quantile",
    params = list(quantiles = c(0.25, 0.5, 0.75)),
    position = "identity"
)

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  layer(
    stat = "quantile",
    geom = "point",
    mapping = aes(color = after_stat(quantile)),
    params = list(quantiles = c(0.25, 0.5, 0.75)),
    position = "identity"
)

28.21 stat_summary_2d()

落在x和y(长方形)区域上, summary on z

文档说stat_summary_2d() is a 2d variation of stat_summary(). 个人觉得不完全准确

• 看参数stat_summary() 是对每一个x统计汇总summary，有多少个唯一的x, 就有多少个value.

• 而stat_summary_2d() 有 bin的参数，它是对落在(x，y)构成的具有一定binwidth的长方形区域内的z统计汇总. 有多少个长方形，就有多少个value.

离散变量是正确的，但对应连续变量不准确。

Aesthetics

• x: horizontal position
• y: vertical position
• z: value passed to the summary function

Computed variables

• x, y : Location
• value : Value of summary statistic.

默认几何形状

• geom_tile() for stat_summary_2d()

• geom_hex() for stat_summary_hex()

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm, z = body_mass_g)) +
  layer(
    stat = "summary_2d",
    geom = "tile",
    params = list(fun = ~ sum(.x^2)),
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm, z = body_mass_g)) +
  stat_summary_2d(
    geom = "point",
    fun = ~ sum(.x^2),  # summary statistic for z
    mapping = aes(size = after_stat(value))
  )

28.21.1 测试

penguins %>%
  distinct(bill_length_mm, bill_depth_mm)

## # A tibble: 329 × 2
##    bill_length_mm bill_depth_mm
##             <dbl>         <dbl>
##  1           39.1          18.7
##  2           39.5          17.4
##  3           40.3          18
##  4           36.7          19.3
##  5           39.3          20.6
##  6           38.9          17.8
##  7           39.2          19.6
##  8           41.1          17.6
##  9           38.6          21.2
## 10           34.6          21.1
## # ℹ 319 more rows

说明有4个重叠的点。

sum是一个点一个位置

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  layer(
    geom = "text",
    stat = "sum",
    mapping = aes(label = after_stat(n), color = as.factor(after_stat(n)) ),
    params = list(size = 4),
    position = "identity"
  )

bin_2d是一个bin一个统计

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm)) +
  layer(
    geom = "text",
    stat = "bin_2d",
    mapping = aes(label = stage(NULL, after_stat = count)),
    position = "identity"
  )

stat_summary_2d也是一个bin一个位置

n_fun <- function(z) {
      length(z)
  }

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm, z = body_mass_g)) +
  stat_summary_2d(
    fun = n_fun,
    geom = "text",
    mapping = aes(label = after_stat(value))
  )

28.22 stat_summary_hex()

落在x和y(六边形)区域上, summary on z

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm, z = body_mass_g)) +
  layer(
    stat = "summary_hex",
    geom = "tile",
    params = list(fun = ~ sum(.x^2), binwidth = c(0.5, 0.2)),
    position = "identity"
  )

penguins %>%
  ggplot(aes(x = bill_length_mm, y = bill_depth_mm, z = body_mass_g)) +
  stat_summary_hex(
    geom = "tile",
    fun = ~ sum(.x^2),         # summary statistic for z
    binwidth = c(0.5, 0.2)     # Numeric vector giving bin width in both vertical and horizontal directions
  )

28.23 stat_contour() and stat_contour_filled()

等高线、等高面，需要提供x,y,z映射

Computed variables

• level: Height of contour. For contour lines, this is numeric vector that represents bin boundaries. For contour bands, this is an ordered factor that represents bin ranges.
• level_low: level_high, level_mid (contour bands only) Lower and upper bin boundaries for each band, as well the mid point between the boundaries.
• nlevel: Height of contour, scaled to maximum of 1.
• piece: Contour piece (an integer).

默认几何形状

• geom_contour() / geom_contour_filled()

适用几何形状

• geom_contour() / geom_contour_filled()

penguins %>%
  mutate(
    flipper_length_mm = flipper_length_mm %/% 10,
    body_mass_g = body_mass_g %/% 10
  ) %>%
  ggplot(aes(x = flipper_length_mm, y = body_mass_g, z = bill_length_mm)) +
  layer(
    stat = "contour",
    geom = "path",
    mapping = aes(colour = after_stat(level)),
    position = "identity"
  )

penguins %>%
  mutate(
    flipper_length_mm = flipper_length_mm %/% 10,
    body_mass_g = body_mass_g %/% 10
  ) %>%
  ggplot(aes(x = flipper_length_mm, y = body_mass_g, z = bill_length_mm)) +
  stat_contour(
    geom = "path",
    mapping = aes(colour = after_stat(level))
  )

penguins %>%
  mutate(
    flipper_length_mm = flipper_length_mm %/% 10,
    body_mass_g = body_mass_g %/% 10
  ) %>%
  ggplot(aes(x = flipper_length_mm, y = body_mass_g, z = bill_length_mm)) +
  geom_contour(
    aes(colour = after_stat(level))
  )

28.24 课后作业

• 写成对应的stat_***() 版本和geom_***()版本

library(tidyverse)
library(palmerpenguins)

penguins <- penguins %>% drop_na()

ggplot() +
  layer(
      data       = penguins,
      mapping    = aes(x = species, y = bill_length_mm, color = fct_rev(sex)),
      stat       = "summary",
      params     = list(fun = "mean"),
      geom       = "point",
      position   = position_dodge(width = 0.5)
  )

• 写出对应的stat_***() 版本和layer()版本

penguins %>%
  ggplot(aes(species, island)) +
  geom_count(aes(size = after_stat(n)), show.legend = FALSE)

• 上题用layer写，但要求不用stat = "sum", 而用stat = "summary"
