4.8 Optional: Interpreting and drawing boxplots

This question is optional; for example, if you need more practice, or you are studying for the exam.

(Answers are available in Sect. A.4)

Environmentally-friendly buildings are often assumed to have a better indoor environmental quality (when occupants rate the comfort) than conventional buildings; in turn, this is assumed to have a positive impact on productivity.

One group of researchers decided to test this assertion. Figure 4.6 is taken from a study of office temperatures (Paul and Taylor 2008) in an environmentally-friendly building at Charles Sturt University.

Operative temperatures were measured in three offices between 8am to 6pm during four weeks near the end of summer; Office A is located on the ground floor, while Offices B and C are located on the top floor. The building is not air conditioned.

  1. Use this information to construct a boxplot of the range of office temperatures for the three offices.
  2. In words, describe the relationship.
  3. Do the offices appear to provide a 'comfortable' temperature?

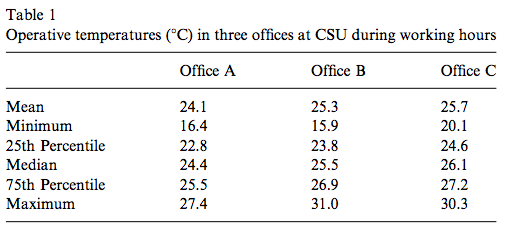

Table 1 from Paul et al. (2008)

FIGURE 4.6: Table 1 from Paul et al. (2008)


Paul WL, Taylor PA. A comparison of occupant comfort and satisfaction between a green building and a conventional building. Building and Environment. 2008;43:1858–70.
