17 Day 17 (June 27)

17.1 Announcements

• Read Ch. 4 in linear models with R
• Wednesday will be the first project work day

17.2 Bootstrap confidence intervals

• Live example
  • Research publication
  • Data
  • R Script

17.3 Prediction

• My definition of inference and prediction
  • Inference = Learning about what you can’t observe given what you did observe (and some assumptions)
  • Prediction = Learning about what you didn’t observe given what you did observe (and some assumptions)
• Prediction (Ch. 4 in Faraway (2014))
  • Derived quantity
    • $\mathbf{x}^{\prime}_0$ is a $1\times p$ matrix of covariates (could be a row $\mathbf{X}$ or completely new values of the predictors)
    • Use $\widehat{\text{E}(y_0)}=\mathbf{x}^{\prime}_0\hat{\boldsymbol{\beta}}$

  • Example
    • Predicting the number of whooping cranes

  url <- "https://www.dropbox.com/s/8grip274233dr9a/Butler%20et%20al.%20Table%201.csv?dl=1"
  df1 <- read.csv(url)

  plot(df1$Winter, df1$N, xlab = "Year", ylab = "Population size",
  xlim=c(1940,2021),ylim = c(0, 300), typ = "b", lwd = 1.5, pch = "*")


  • What model should we use?

  m1 <- lm(N ~ Winter + I(Winter^2),data=df1)
  Ey.hat <- predict(m1)

  plot(df1$Winter, df1$N, xlab = "Year", ylab = "Population size",
  xlim=c(1940,2021),ylim = c(0, 300), typ = "b", lwd = 1.5, pch = "*")
  points(df1$Winter,Ey.hat,typ="l",col="red")



17.4 Intervals for predictions

• Expected value and variance of $\mathbf{x}^{\prime}_0\hat{\boldsymbol{\beta}}$
• Confidence interval $\text{P}\left(\mathbf{x}^{\prime}_0\hat{\boldsymbol{\beta}}-t_{\alpha/2,n-p}\sqrt{\hat{\sigma^{2}}\mathbf{x}_{0}^{'}(\mathbf{X}^{'}\mathbf{X})^{-1}\mathbf{x}_{0}}<\mathbf{x}^{\prime}_0\boldsymbol{\beta}<\mathbf{x}^{\prime}_0\hat{\boldsymbol{\beta}}+t_{\alpha/2,n-p}\sqrt{\hat{\sigma^{2}}\mathbf{x}_{0}^{'}(\mathbf{X}^{'}\mathbf{X})^{-1}\mathbf{x}_{0}}\right)\\=1-\alpha$
  • The 95% CI is $\mathbf{x}^{\prime}_0\hat{\boldsymbol{\beta}}\pm t_{\alpha/2,n-p}\sqrt{\hat{\sigma^{2}}\mathbf{x}_{0}^{'}(\mathbf{X}^{'}\mathbf{X})^{-1}\mathbf{x}_{0}}$
  • In R

  Ey.hat <- predict(m1,interval="confidence")
  head(Ey.hat)

  ##        fit      lwr      upr
  ## 1 29.35980 21.43774 37.28186
  ## 2 28.84122 21.42928 36.25315
  ## 3 28.47610 21.54645 35.40575
  ## 4 28.26444 21.78812 34.74075
  ## 5 28.20624 22.15308 34.25940
  ## 6 28.30150 22.64000 33.96300

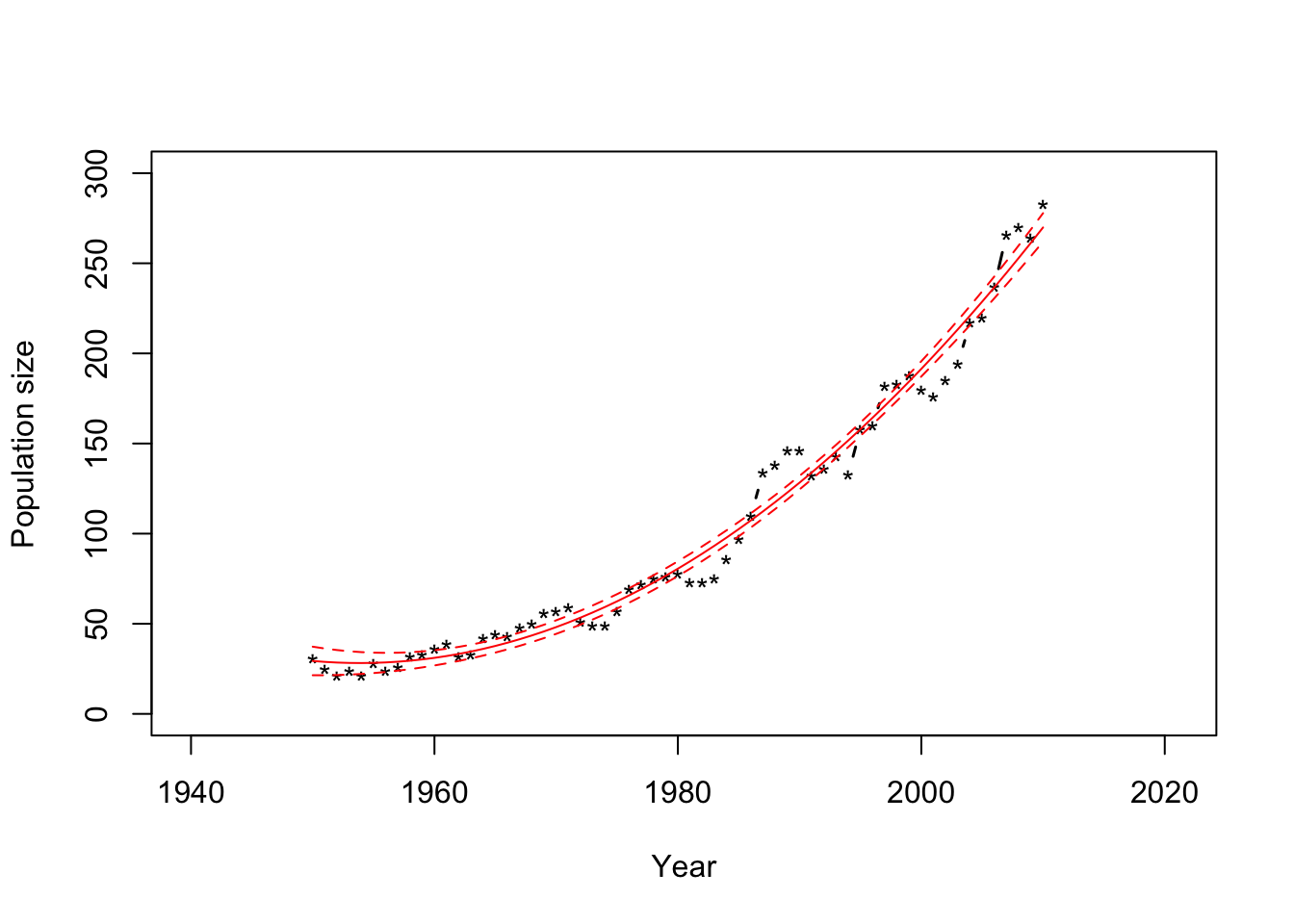

  plot(df1$Winter, df1$N, xlab = "Year", ylab = "Population size",
  xlim=c(1940,2021),ylim = c(0, 300), typ = "b", lwd = 1.5, pch = "*")
  points(df1$Winter,Ey.hat[,1],typ="l",col="red")
  points(df1$Winter,Ey.hat[,2],typ="l",col="red",lty=2)
  points(df1$Winter,Ey.hat[,3],typ="l",col="red",lty=2)


  • Why are there so many data points that fall outside of the 95% CIs?
• Prediction intervals vs. Confidence intervals

  • CIs for $\widehat{\text{E}(y_0)}=\mathbf{x}^{\prime}_0\hat{\boldsymbol{\beta}}$

  • How to interpret $\widehat{\text{E}(y_0)}$

  • What if I wanted to predict $y_0$?

    • $y_0\sim\text{N}(\mathbf{x}^{\prime}_0\hat{\boldsymbol{\beta}},\hat{\sigma}^2)$

  • Expected value and variance of $y_0$

  • Prediction interval $\text{P}\left(\mathbf{x}^{\prime}_0\hat{\boldsymbol{\beta}}-t_{\alpha/2,n-p}\sqrt{\hat{\sigma^{2}}(1+\mathbf{x}_{0}^{'}(\mathbf{X}^{'}\mathbf{X})^{-1}\mathbf{x}_{0})}<y_0<\mathbf{x}^{\prime}_0\hat{\boldsymbol{\beta}}+t_{\alpha/2,n-p}\sqrt{\hat{\sigma^{2}}(\mathbf{x}_{0}^{'}(\mathbf{X}^{'}\mathbf{X})^{-1}\mathbf{x}_{0})}\right)=\\1-\alpha$

  • The 95% PI is $\mathbf{x}^{\prime}_0\hat{\boldsymbol{\beta}}\pm t_{\alpha/2,n-p}\sqrt{\hat{\sigma^{2}}(1+\mathbf{x}_{0}^{'}(\mathbf{X}^{'}\mathbf{X})^{-1}\mathbf{x}_{0})}$

  • Example in R

y.hat <- predict(m1,interval="prediction")
head(y.hat)

##        fit      lwr      upr
## 1 29.35980 6.630220 52.08938
## 2 28.84122 6.284368 51.39807
## 3 28.47610 6.073089 50.87910
## 4 28.26444 5.997480 50.53139
## 5 28.20624 6.058655 50.35382
## 6 28.30150 6.257741 50.34526

plot(df1$Winter, df1$N, xlab = "Year", ylab = "Population size",
xlim=c(1940,2021),ylim = c(0, 300), typ = "b", lwd = 1.5, pch = "*")
points(df1$Winter,y.hat[,1],typ="l",col="red")
points(df1$Winter,y.hat[,2],typ="l",col="red",lty=2)
points(df1$Winter,y.hat[,3],typ="l",col="red",lty=2)

• Live example
  • Research publication
  • Data
  • R Script

References

Faraway, J. J. 2014. Linear Models with r. CRC Press.
