40 Sensitivity Analysis/ Robustness Check

40.1 Specification curve

also known as Specification robustness graph or coefficient stability plot

Resources

40.1.1 starbility

Recommend

Installation

devtools::install_github('https://github.com/AakaashRao/starbility')
library(starbility)

Example by the package’s author

library(tidyverse)
library(starbility)
library(lfe)
data("diamonds")
set.seed(43)
indices = sample(1:nrow(diamonds),
                 replace = F,
                 size = round(nrow(diamonds) / 20))
diamonds = diamonds[indices, ]

Plot different combinations of controls


# If you want to make the diamond dimensions as base control
base_controls = c(
  'Diamond dimensions' = 'x + y + z' # include all variables under 1 dimension
)


perm_controls = c(
  'Depth' = 'depth',
  'Table width' = 'table'
)

nonperm_fe_controls = c(
  'Clarity FE (granular)' = 'clarity',
  'Clarity FE (binary)' = 'high_clarity'
)

# Adding fixed effects
nonperm_fe_controls = c(
  'Clarity FE (granular)' = 'clarity',
  'Clarity FE (binary)' = 'high_clarity'
)

# Adding instrumental variables
instruments = 'x+y+z'

# clustering and weights
diamonds$sample_weights = runif(n = nrow(diamonds))


# robust standard errors
starb_felm_custom = function(spec, data, rhs, ...) {
  spec = as.formula(spec)
  model = lfe::felm(spec, data=data) %>% broom::tidy()

  row = which(model$term==rhs)
  coef = model[row, 'estimate'] %>% as.numeric()
  se   = model[row, 'std.error'] %>% as.numeric()
  p    = model[row, 'p.value'] %>% as.numeric()

  # 99% confidence interval
  z = qnorm(0.995)
  # one-tailed test
  return(c(coef, p/2, coef+z*se, coef-z*se))
}

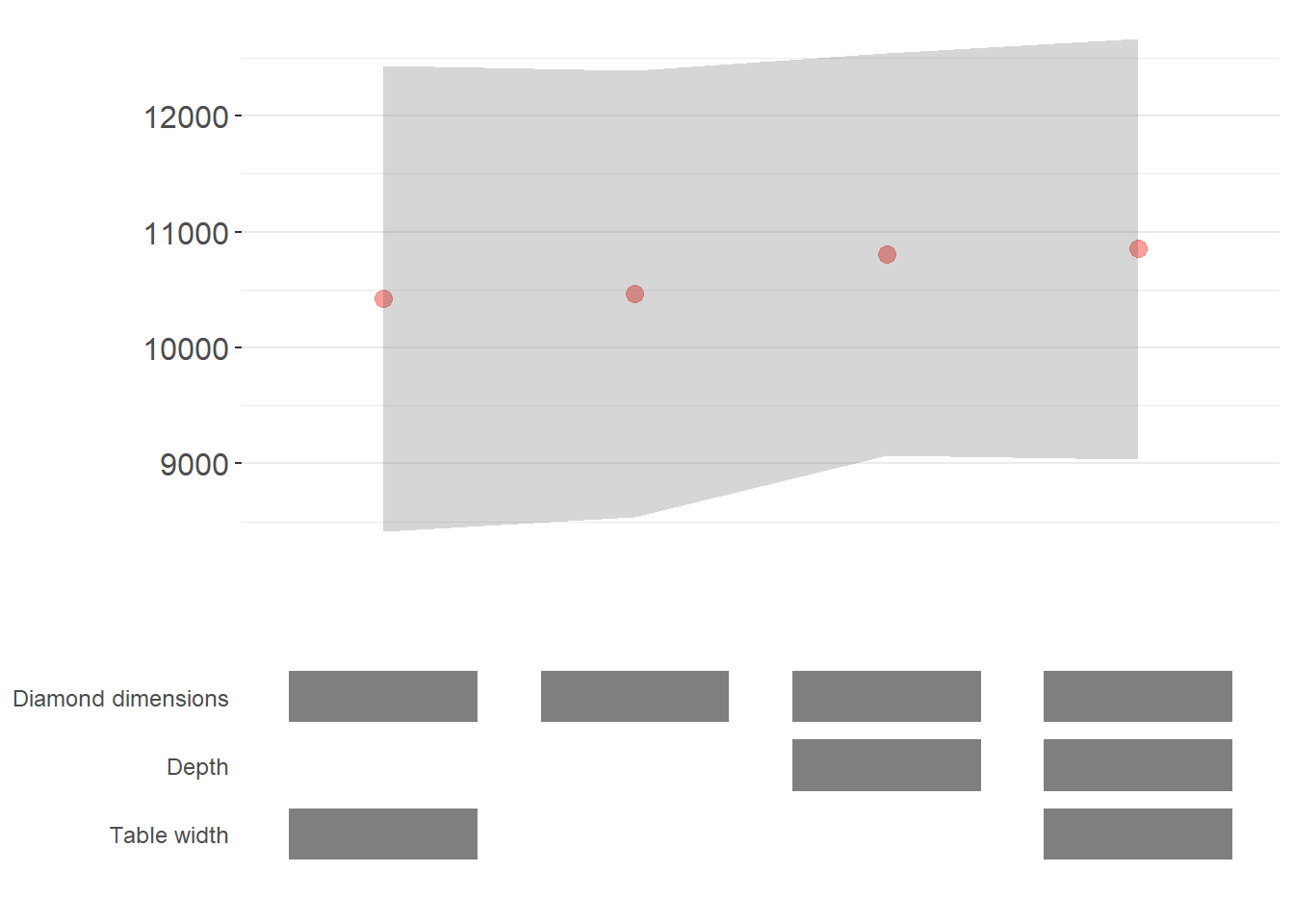

plots = stability_plot(
    data = diamonds,
    lhs = 'price',
    rhs = 'carat',
    error_geom = 'ribbon', # make the plot more aesthetics
    # error_geom = 'none', # if you don't want ribbon (i.e., error bar)
    model = starb_felm_custom,
    cluster = 'cut',
    weights = 'sample_weights',
    # iv = instruments,
    perm = perm_controls,
    base = base_controls,
    # perm_fe = perm_fe_controls,

    # if you want to include fixed effects sequentially (not all combinations)
    # (e.g., you want to test country or state fixed effect, not both )
    # nonperm_fe = nonperm_fe_controls,
    # fe_always = F,  # if you want to have a model without any Fixed Effects

    # sort "asc", "desc", or by fixed effects: "asc-by-fe" or "desc-by-fe"
    sort = "asc-by-fe",

    # if you have less variables and want more aesthetics
    # control_geom = 'circle',
    # point_size = 2,
    # control_spacing = 0.3,


    # error_alpha = 0.2, # change alpha of the error geom
    # point_size = 1.5, # change the size of the coefficient points
    # control_text_size = 10, # change the size of the control labels
    # coef_ylim = c(-5000, 35000), # change the endpoints of the y-axis
    # trip_top = 3, # change the spacing between the two panels

    rel_height = 0.6
)
plots


# add comments
# replacement_coef_panel = plots[[1]] +
#   scale_y_reverse() +
#   theme(panel.grid.minor = element_blank()) +
#   geom_vline(xintercept = 41,
#              linetype = 'dashed',
#              alpha = 0.4) +
#   annotate(
#     geom = 'label',
#     x = 52,
#     y = 30000,
#     label = 'What a great\nspecification!',
#     alpha = 0.75
#   )
#
# combine_plots(replacement_coef_panel,
#               plots[[2]],
#               rel_height = 0.6)

Note:

\(p < 0.01\): red
\(p < 0.05\): green
\(p < 0.1\): blue
\(p > 0.1\): black

More Advanced Stuff

# Step 1: Control Grid

diamonds$high_clarity = diamonds$clarity %in% c('VS1','VVS2','VVS1','IF')

base_controls = c(
  'Diamond dimensions' = 'x + y + z'
)

perm_controls = c(
  'Depth' = 'depth',
  'Table width' = 'table'
)

perm_fe_controls = c(
  'Cut FE' = 'cut',
  'Color FE' = 'color'
)
nonperm_fe_controls = c(
  'Clarity FE (granular)' = 'clarity',
  'Clarity FE (binary)' = 'high_clarity'
)

grid1 = stability_plot(data = diamonds,
                      lhs = 'price',
                      rhs = 'carat',
                      perm = perm_controls,
                      base = base_controls,
                      perm_fe = perm_fe_controls,
                      nonperm_fe = nonperm_fe_controls,
                      run_to=2)

knitr::kable(grid1 %>% head(10))

Diamond dimensions	Depth	Table width	Cut FE	Color FE
1	0	0	0	0
1	1	0	0	0
1	0	1	0	0
1	1	1	0	0
1	0	0	1	0
1	1	0	1	0
1	0	1	1	0
1	1	1	1	0
1	0	0	0	1
1	1	0	0	1


# Step 2: Get model expression

grid2 = stability_plot(grid = grid1,
                      data=diamonds,
                      lhs='price',
                      rhs='carat',
                      perm=perm_controls,
                      base=base_controls,
                      run_from=2,
                      run_to=3)


knitr::kable(grid2 %>% head(10))

Diamond dimensions	Depth	Table width	expr
1	0	0	price~carat+x+y+z\|0\|0\|0
1	1	0	price~carat+x+y+z+depth\|0\|0\|0
1	0	1	price~carat+x+y+z+table\|0\|0\|0
1	1	1	price~carat+x+y+z+depth+table\|0\|0\|0
1	0	0	price~carat+x+y+z\|0\|0\|0
1	1	0	price~carat+x+y+z+depth\|0\|0\|0
1	0	1	price~carat+x+y+z+table\|0\|0\|0
1	1	1	price~carat+x+y+z+depth+table\|0\|0\|0
1	0	0	price~carat+x+y+z\|0\|0\|0
1	1	0	price~carat+x+y+z+depth\|0\|0\|0


# Step 3: Estimate models
grid3 = stability_plot(grid = grid2,
                      data=diamonds,
                      lhs='price',
                      rhs='carat',
                      perm=perm_controls,
                      base=base_controls,
                      run_from=3,
                      run_to=4)

knitr::kable(grid3 %>% head(10))

Diamond dimensions	Depth	Table width	expr	coef	p	error_high	error_low
1	0	0	price~carat+x+y+z\|0\|0\|0	10461.86	p<0.01	11031.84	9891.876
1	1	0	price~carat+x+y+z+depth\|0\|0\|0	10808.25	p<0.01	11388.81	10227.683
1	0	1	price~carat+x+y+z+table\|0\|0\|0	10423.42	p<0.01	10992.00	9854.849
1	1	1	price~carat+x+y+z+depth+table\|0\|0\|0	10851.31	p<0.01	11428.58	10274.037
1	0	0	price~carat+x+y+z\|0\|0\|0	10461.86	p<0.01	11031.84	9891.876
1	1	0	price~carat+x+y+z+depth\|0\|0\|0	10808.25	p<0.01	11388.81	10227.683
1	0	1	price~carat+x+y+z+table\|0\|0\|0	10423.42	p<0.01	10992.00	9854.849
1	1	1	price~carat+x+y+z+depth+table\|0\|0\|0	10851.31	p<0.01	11428.58	10274.037
1	0	0	price~carat+x+y+z\|0\|0\|0	10461.86	p<0.01	11031.84	9891.876
1	1	0	price~carat+x+y+z+depth\|0\|0\|0	10808.25	p<0.01	11388.81	10227.683


# Step 4: Get dataframe to draw
dfs = stability_plot(grid = grid3,
                      data=diamonds,
                      lhs='price',
                      rhs='carat',
                      perm=perm_controls,
                      base=base_controls,
                      run_from=4,
                      run_to=5)

coef_grid = dfs[[1]]
control_grid = dfs[[2]]

knitr::kable(coef_grid %>% head(10))

Diamond dimensions	Depth	Table width	expr	coef	p	error_high	error_low	model
1	0	0	price~carat+x+y+z\|0\|0\|0	10461.86	p<0.01	11031.84	9891.876	1
1	1	0	price~carat+x+y+z+depth\|0\|0\|0	10808.25	p<0.01	11388.81	10227.683	2
1	0	1	price~carat+x+y+z+table\|0\|0\|0	10423.42	p<0.01	10992.00	9854.849	3
1	1	1	price~carat+x+y+z+depth+table\|0\|0\|0	10851.31	p<0.01	11428.58	10274.037	4
1	0	0	price~carat+x+y+z\|0\|0\|0	10461.86	p<0.01	11031.84	9891.876	5
1	1	0	price~carat+x+y+z+depth\|0\|0\|0	10808.25	p<0.01	11388.81	10227.683	6
1	0	1	price~carat+x+y+z+table\|0\|0\|0	10423.42	p<0.01	10992.00	9854.849	7
1	1	1	price~carat+x+y+z+depth+table\|0\|0\|0	10851.31	p<0.01	11428.58	10274.037	8
1	0	0	price~carat+x+y+z\|0\|0\|0	10461.86	p<0.01	11031.84	9891.876	9
1	1	0	price~carat+x+y+z+depth\|0\|0\|0	10808.25	p<0.01	11388.81	10227.683	10

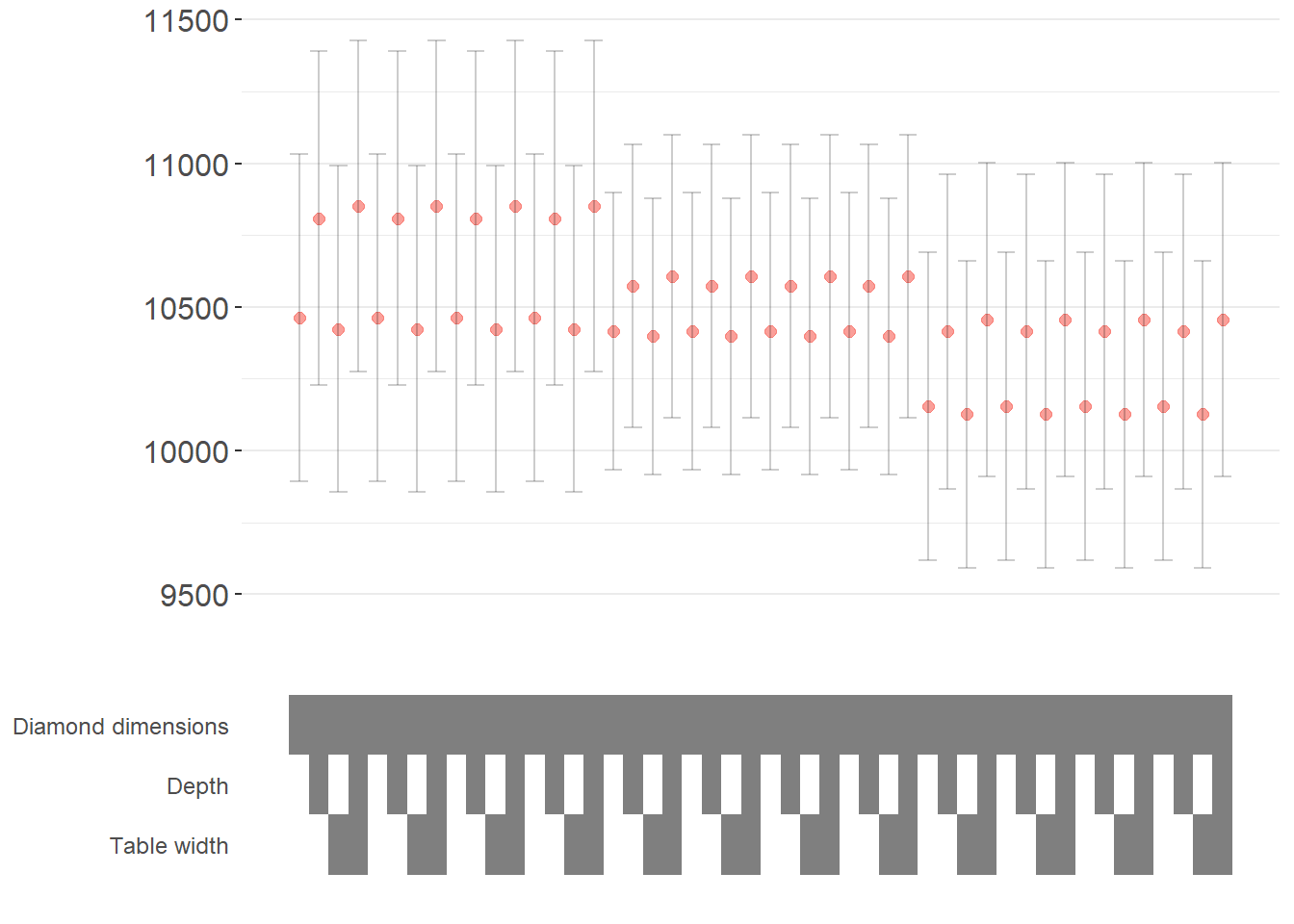

# Step 5: plot the sensitivity graph
panels = stability_plot(data = diamonds,
                      lhs='price',
                      rhs='carat',
                      coef_grid = coef_grid,
                      control_grid = control_grid,
                      run_from=5,
                      run_to=6)

stability_plot(data = diamonds,
               lhs='price',
               rhs='carat',
               coef_panel = panels[[1]],
               control_panel = panels[[2]],
               run_from = 6,
               run_to = 7)

In step 2, we can modify to use other function (e.g., glm)

diamonds$above_med_price = as.numeric(diamonds$price > median(diamonds$price))

base_controls = c('Diamond dimensions' = 'x + y + z')

perm_controls = c('Depth' = 'depth',
                  'Table width' = 'table',
                  'Clarity' = 'clarity')
lhs_var = 'above_med_price'
rhs_var = 'carat'

grid1 = stability_plot(
    data = diamonds,
    lhs = lhs_var,
    rhs = rhs_var,
    perm = perm_controls,
    base = base_controls,
    fe_always = F,
    run_to = 2
)

# Create control part of formula
base_perm = c(base_controls, perm_controls)
grid1$expr = apply(grid1[, 1:length(base_perm)], 1,
                   function(x)
                     paste(base_perm[names(base_perm)[which(x == 1)]],
                           collapse = '+'))

# Complete formula with LHS and RHS variables
grid1$expr = paste(lhs_var, '~', rhs_var, '+', grid1$expr, sep = '')

knitr::kable(grid1 %>% head(10))

Diamond dimensions	Depth	Table width	Clarity	expr
1	0	0	0	above_med_price~carat+x + y + z
1	1	0	0	above_med_price~carat+x + y + z+depth
1	0	1	0	above_med_price~carat+x + y + z+table
1	1	1	0	above_med_price~carat+x + y + z+depth+table
1	0	0	1	above_med_price~carat+x + y + z+clarity
1	1	0	1	above_med_price~carat+x + y + z+depth+clarity
1	0	1	1	above_med_price~carat+x + y + z+table+clarity
1	1	1	1	above_med_price~carat+x + y + z+depth+table+clarity


# customer function for the logit model
starb_logit = function(spec, data, rhs, ...) {
  spec = as.formula(spec)
  model = glm(spec, data=data, family='binomial', weights=data$weight) %>%
    broom::tidy()
  row = which(model$term==rhs)
  coef = model[row, 'estimate'] %>% as.numeric()
  se   = model[row, 'std.error'] %>% as.numeric()
  p    = model[row, 'p.value'] %>% as.numeric()

  return(c(coef, p, coef+1.96*se, coef-1.96*se))
}

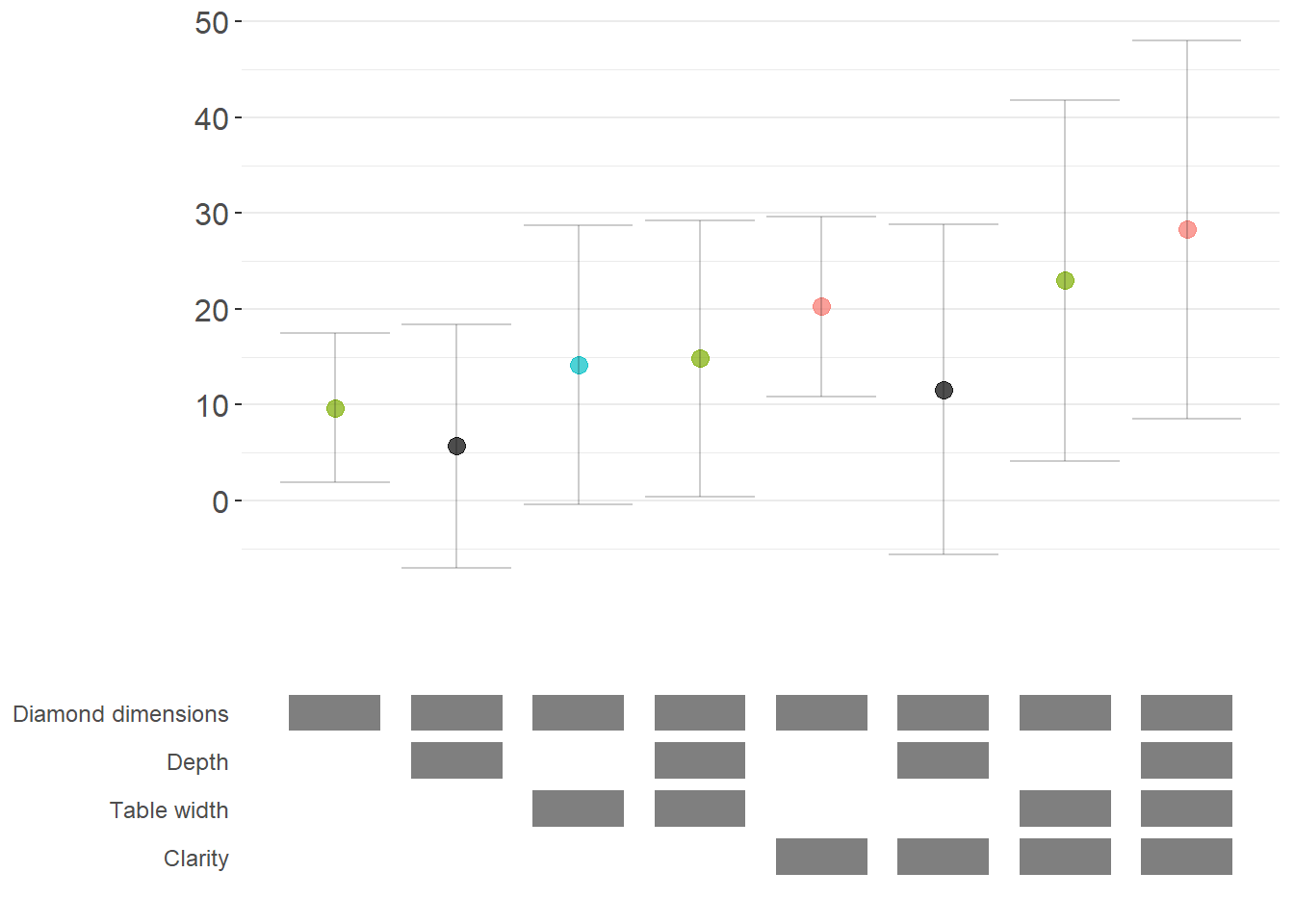

stability_plot(grid = grid1,
               data = diamonds,
               lhs = lhs_var,
               rhs = rhs_var,
               model = starb_logit,
               perm = perm_controls,
               base = base_controls,
               fe_always = F,
               run_from=3)

For getting other specification (e.g., different CI)

library(margins)
starb_logit_enhanced = function(spec, data, rhs, ...) {
  # Unpack ...
  l = list(...)
  get_mfx = ifelse(is.null(l$get_mfx), F, T) # Set a default to F

  spec = as.formula(spec)
  if (get_mfx) {
    model = glm(spec, data=data, family='binomial', weights=data$weight) %>%
      margins() %>%
      summary
    row = which(model$factor==rhs)
    coef = model[row, 'AME'] %>% as.numeric()
    se   = model[row, 'SE'] %>% as.numeric()
    p    = model[row, 'p'] %>% as.numeric()
  } else {
    model = glm(spec, data=data, family='binomial', weights=data$weight) %>%
      broom::tidy()
    row = which(model$term==rhs)
    coef = model[row, 'estimate'] %>% as.numeric()
    se   = model[row, 'std.error'] %>% as.numeric()
    p    = model[row, 'p.value'] %>% as.numeric()
  }

  z = qnorm(0.995)
  return(c(coef, p, coef+z*se, coef-z*se))
}

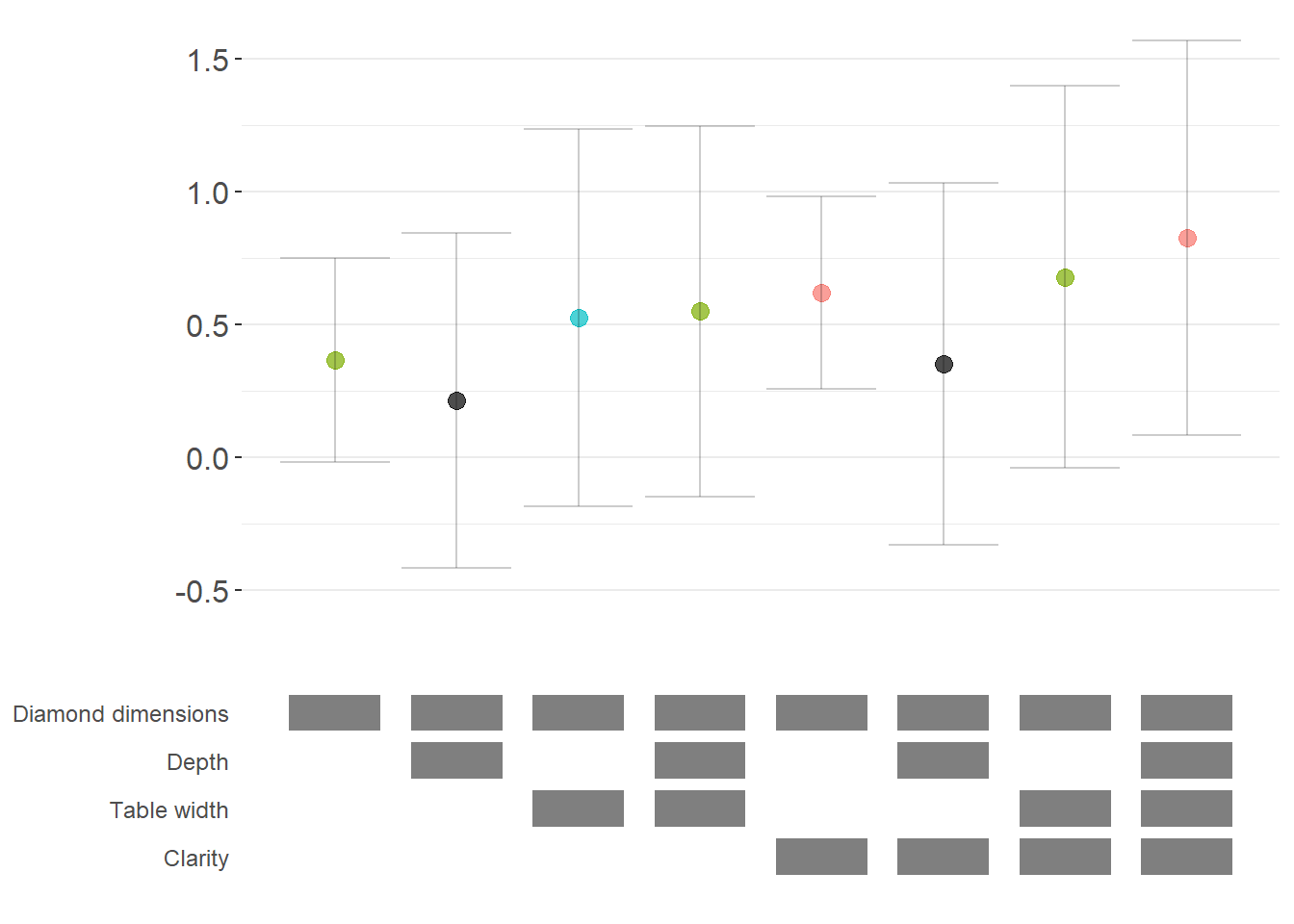

stability_plot(grid = grid1,
               data = diamonds,
               lhs = lhs_var,
               rhs = rhs_var,
               model = starb_logit_enhanced,
               get_mfx = T,
               perm = perm_controls,
               base = base_controls,
               fe_always = F,
               run_from = 3)

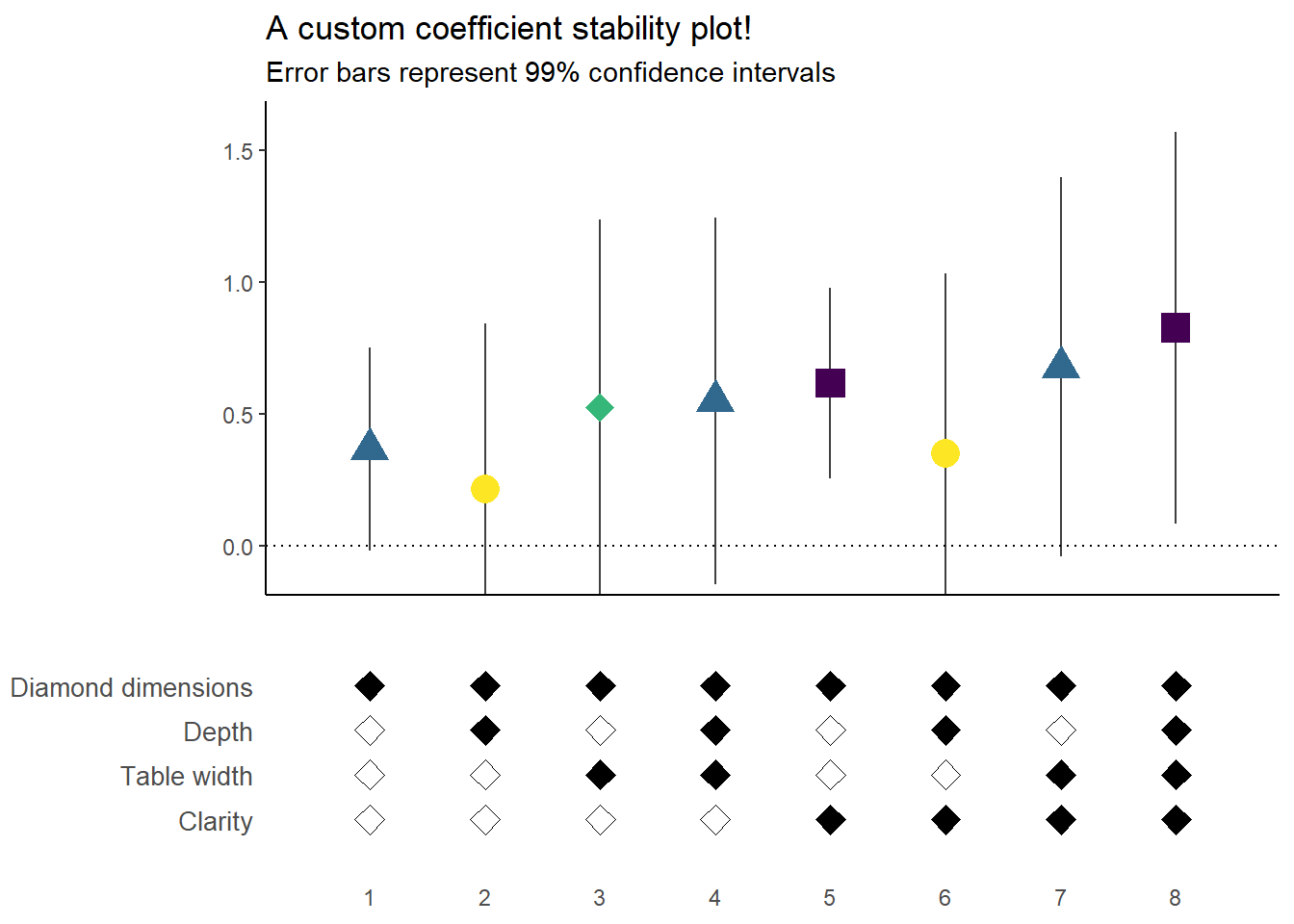

To get your customized plot

dfs = stability_plot(grid = grid1,
               data = diamonds,
               lhs = lhs_var,
               rhs = rhs_var,
               model = starb_logit_enhanced,
               get_mfx = T,
               perm = perm_controls,
               base = base_controls,
               fe_always = F,
               run_from = 3,
               run_to = 5)

coef_grid_logit = dfs[[1]]
control_grid_logit = dfs[[2]]

min_space = 0.5

coef_plot = ggplot2::ggplot(coef_grid_logit, aes(
  x = model,
  y = coef,
  shape = p,
  group = p
)) +
  geom_linerange(aes(ymin = error_low, ymax = error_high), alpha = 0.75) +
  geom_point(size = 5, aes(col = p, fill = p), alpha = 1) +
  viridis::scale_color_viridis(discrete = TRUE, option = "D") +
  scale_shape_manual(values = c(15, 17, 18, 19)) +
  theme_classic() +
  geom_hline(yintercept = 0, linetype = 'dotted') +
  ggtitle('A custom coefficient stability plot!') +
  labs(subtitle = "Error bars represent 99% confidence intervals") +
  theme(
    axis.text.x = element_blank(),
    axis.title = element_blank(),
    axis.ticks.x = element_blank()
  ) +
  coord_cartesian(xlim = c(1 - min_space, max(coef_grid_logit$model) + min_space),
                  ylim = c(-0.1, 1.6)) +
  guides(fill = F, shape = F, col = F)


control_plot = ggplot(control_grid_logit) +
  geom_point(aes(x = model, y = y, fill=value), shape=23, size=4) +
  scale_fill_manual(values=c('#FFFFFF', '#000000')) +
  guides(fill=F) +
  scale_y_continuous(breaks = unique(control_grid_logit$y),
                     labels = unique(control_grid_logit$key),
                     limits=c(min(control_grid_logit$y)-1, max(control_grid_logit$y)+1)) +
  scale_x_continuous(breaks=c(1:max(control_grid_logit$model))) +
  coord_cartesian(xlim=c(1-min_space, max(control_grid_logit$model)+min_space)) +
  theme_classic() +
  theme(panel.grid.major.y = element_blank(),
        panel.grid.minor.y = element_blank(),
        axis.title = element_blank(),
        axis.text.y = element_text(size=10),
        axis.ticks = element_blank(),
        axis.line = element_blank())

cowplot::plot_grid(coef_plot, control_plot, rel_heights=c(1,0.5),
                   align='v', ncol=1, axis='b')

To get different model specification (e.g., probit vs. logit)

starb_probit = function(spec, data, rhs, ...) {
    # Unpack ...
    l = list(...)
    get_mfx = ifelse(is.null(l$get_mfx), F, T) # Set a default to F

    spec = as.formula(spec)
    if (get_mfx) {
        model = glm(
            spec,
            data = data,
            family = binomial(link = 'probit'),
            weights = data$weight
        ) %>%
            margins() %>%
            summary
        row = which(model$factor == rhs)
        coef = model[row, 'AME'] %>% as.numeric()
        se   = model[row, 'SE'] %>% as.numeric()
        p    = model[row, 'p'] %>% as.numeric()
    } else {
        model = glm(
            spec,
            data = data,
            family = binomial(link = 'probit'),
            weights = data$weight
        ) %>%
            broom::tidy()
        row = which(model$term == rhs)
        coef = model[row, 'estimate'] %>% as.numeric()
        se   = model[row, 'std.error'] %>% as.numeric()
        p    = model[row, 'p.value'] %>% as.numeric()
    }

    z = qnorm(0.995)
    return(c(coef, p, coef + z * se, coef - z * se))
}

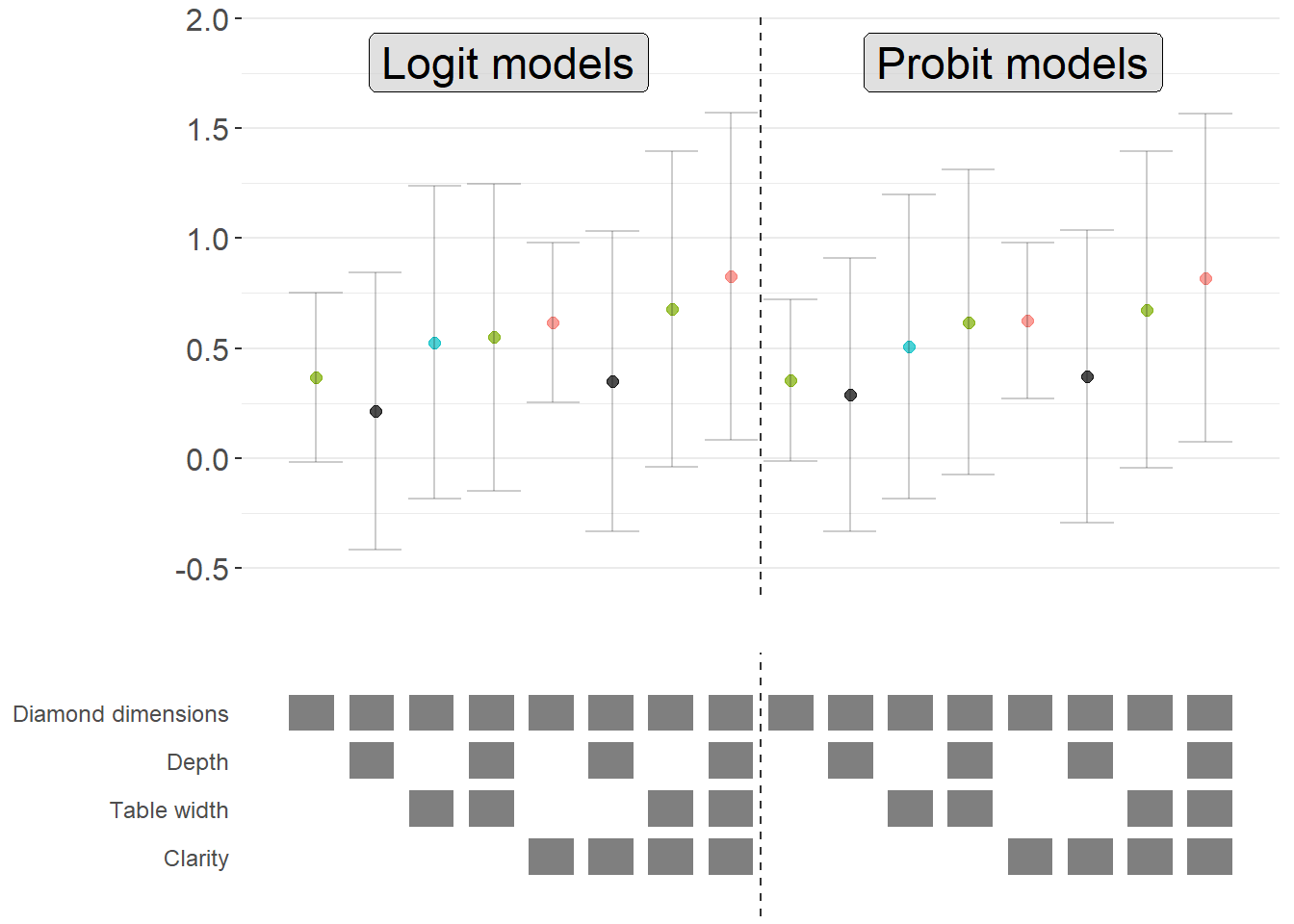

probit_dfs = stability_plot(
    grid = grid1,
    data = diamonds,
    lhs = lhs_var,
    rhs = rhs_var,
    model = starb_probit,
    get_mfx = T,
    perm = perm_controls,
    base = base_controls,
    fe_always = F,
    run_from = 3,
    run_to = 5
)

# We'll put the probit DFs on the left,
 #so we need to adjust the model numbers accordingly
# so the probit and logit DFs don't plot on top of one another!
coef_grid_probit = probit_dfs[[1]] %>%
    mutate(model = model + max(coef_grid_logit$model))

control_grid_probit = probit_dfs[[2]] %>%
    mutate(model = model + max(control_grid_logit$model))

coef_grid    = bind_rows(coef_grid_logit, coef_grid_probit)
control_grid = bind_rows(control_grid_logit, control_grid_probit)

panels = stability_plot(
    coef_grid = coef_grid,
    control_grid = control_grid,
    data = diamonds,
    lhs = lhs_var,
    rhs = rhs_var,
    perm = perm_controls,
    base = base_controls,
    fe_always = F,
    run_from = 5,
    run_to = 6
)

coef_plot = panels[[1]] + geom_vline(xintercept = 8.5,
                                     linetype = 'dashed',
                                     alpha = 0.8) +
    annotate(
        geom = 'label',
        x = 4.25,
        y = 1.8,
        label = 'Logit models',
        size = 6,
        fill = '#D3D3D3',
        alpha = 0.7
    ) +
    annotate(
        geom = 'label',
        x = 12.75,
        y = 1.8,
        label = 'Probit models',
        size = 6,
        fill = '#D3D3D3',
        alpha = 0.7
    ) +
    coord_cartesian(ylim = c(-0.5, 1.9))

control_plot = panels[[2]] + geom_vline(xintercept = 8.5,
                                        linetype = 'dashed',
                                        alpha = 0.8)

cowplot::plot_grid(
    coef_plot,
    control_plot,
    rel_heights = c(1, 0.5),
    align = 'v',
    ncol = 1,
    axis = 'b'
)

40.1.2 rdfanalysis

Not recommend

Installation

devtools::install_github("joachim-gassen/rdfanalysis")

Example by the package’s author

library(rdfanalysis)
load(url("https://joachim-gassen.github.io/data/rdf_ests.RData"))
plot_rdf_spec_curve(ests, "est", "lb", "ub")

Shiny app for readers to explore

design <- define_design(steps = c("read_data",
                                  "select_idvs",
                                  "treat_extreme_obs",
                                  "specify_model",
                                  "est_model"),
                        rel_dir = "vignettes/case_study_code")

shiny_rdf_spec_curve(ests, list("est", "lb", "ub"),
                     design, "vignettes/case_study_code",
                     "https://joachim-gassen.github.io/data/wb_new.csv")

40.2 Coefficient stability

(Oster 2019)

Coefficient stability can be evident against omitted variable bias.
But coefficient stability alone can be misleading, but combing with \(R^2\) movement, it can become informative.

Packages

mplot: graphical Model stability and Variable Selection
robomit: Robustness checks for omitted variable bias (implementation of

library(robomit)

# estimate beta
o_beta(
  y     = "mpg",       # dependent variable
  x     = "wt",        # independent treatment variable
  con   = "hp + qsec", # related control variables
  delta = 1,           # delta
  R2max = 0.9,         # maximum R-square
  type  = "lm",        # model type
  data  = mtcars       # dataset
)
#> # A tibble: 10 × 2
#>    Name                           Value
#>    <chr>                          <dbl>
#>  1 beta*                         -2.00
#>  2 (beta*-beta controlled)^2      5.56
#>  3 Alternative Solution 1        -7.01
#>  4 (beta[AS1]-beta controlled)^2  7.05
#>  5 Uncontrolled Coefficient      -5.34
#>  6 Controlled Coefficient        -4.36
#>  7 Uncontrolled R-square          0.753
#>  8 Controlled R-square            0.835
#>  9 Max R-square                   0.9
#> 10 delta                          1

40.3 Omitted Variable Bias Quantification

To quantify the bias needed to change the substantive conclusion from a causal inference study.

library(konfound)
pkonfound(
    est_eff = 5,
    std_err = 2,
    n_obs = 1000,
    n_covariates = 5
)
#> Robustness of Inference to Replacement (RIR):
#> To invalidate an inference,  21.506 % of the estimate would have to be due to bias.
#> This is based on a threshold of 3.925 for statistical significance (alpha = 0.05).
#>
#> To invalidate an inference,  215  observations would have to be replaced with cases
#> for which the effect is 0 (RIR = 215).
#>
#> See Frank et al. (2013) for a description of the method.
#>
#> Citation: Frank, K.A., Maroulis, S., Duong, M., and Kelcey, B. (2013).
#> What would it take to change an inference?
#> Using Rubin's causal model to interpret the
#>         robustness of causal inferences.
#> Education, Evaluation and
#>                        Policy Analysis, 35 437-460.

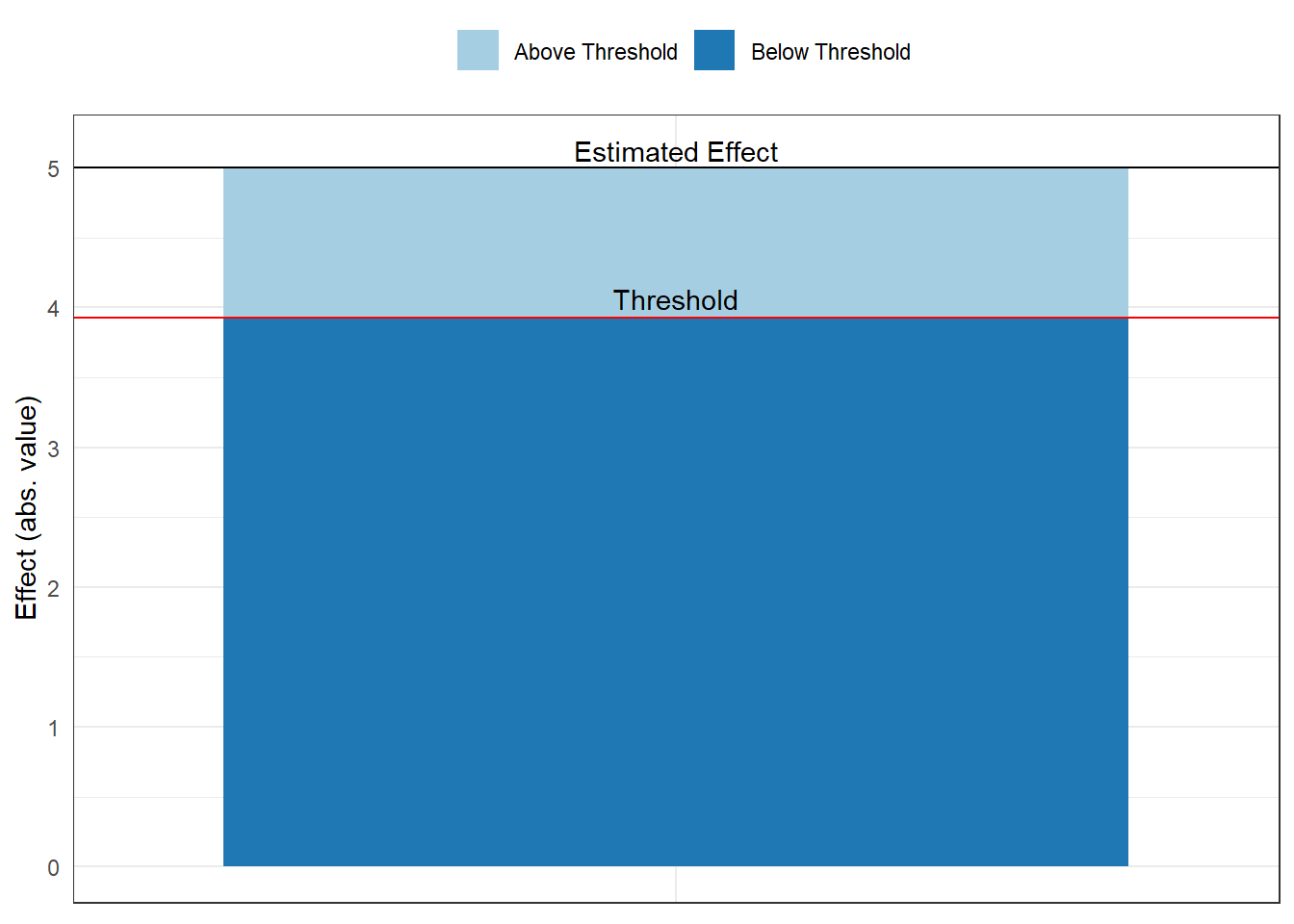

pkonfound(
    est_eff = 5,
    std_err = 2,
    n_obs = 1000,
    n_covariates = 5,
    to_return = "thresh_plot"
)

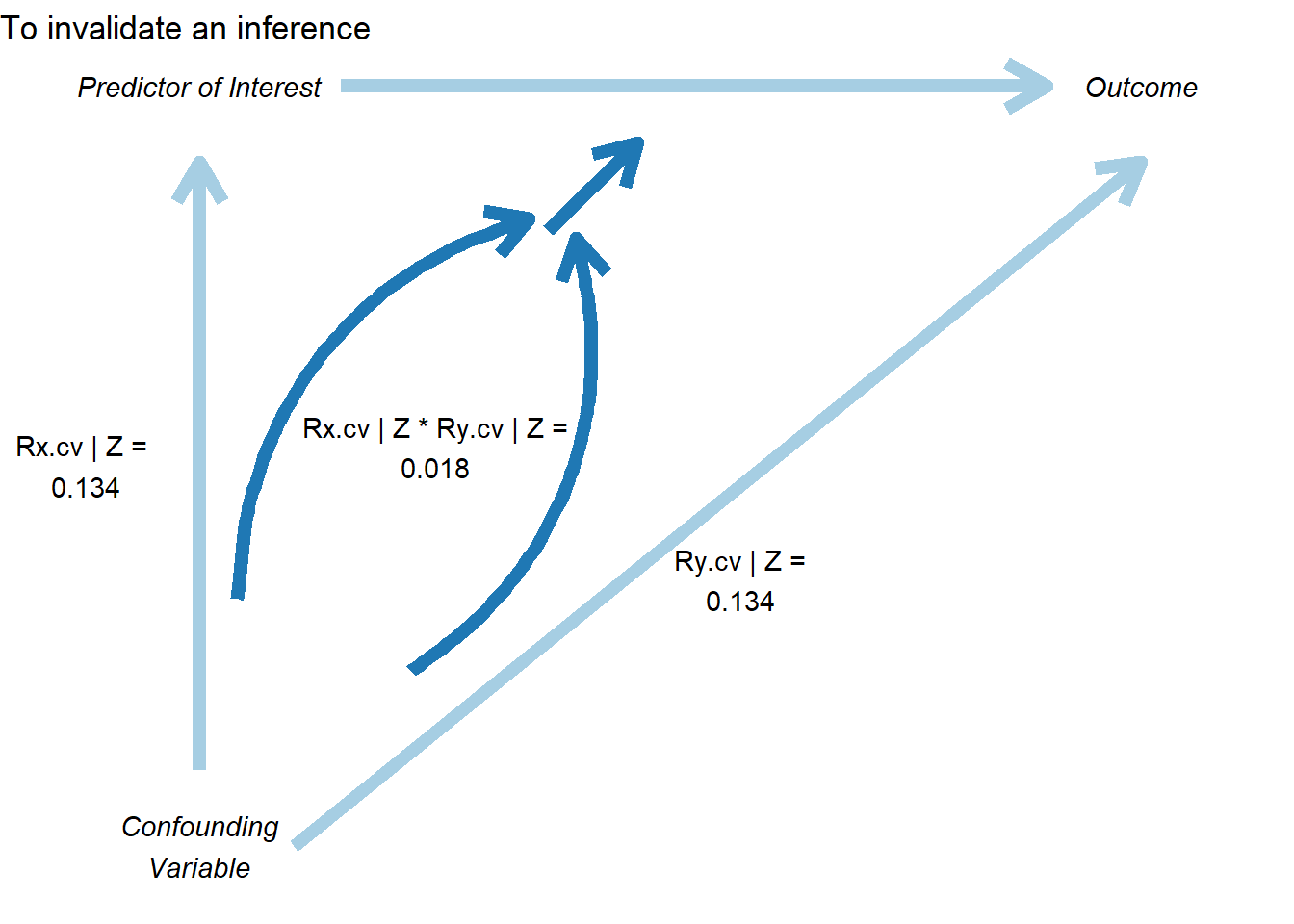

pkonfound(
    est_eff = 5,
    std_err = 2,
    n_obs = 1000,
    n_covariates = 5,
    to_return = "corr_plot"
)

39 Exploratory Data Analysis

41 Replication and Synthetic Data

Diamond dimensions	Depth	Table width	expr
1	0	0	price~carat+x+y+z\|0\|0\|0
1	1	0	price~carat+x+y+z+depth\|0\|0\|0
1	0	1	price~carat+x+y+z+table\|0\|0\|0
1	1	1	price~carat+x+y+z+depth+table\|0\|0\|0
1	0	0	price~carat+x+y+z\|0\|0\|0
1	1	0	price~carat+x+y+z+depth\|0\|0\|0
1	0	1	price~carat+x+y+z+table\|0\|0\|0
1	1	1	price~carat+x+y+z+depth+table\|0\|0\|0
1	0	0	price~carat+x+y+z\|0\|0\|0
1	1	0	price~carat+x+y+z+depth\|0\|0\|0
