25 Multivariate Methods

In the previous section on ANOVA, we examined how to compare means across multiple groups. However, ANOVA primarily deals with a single response variable. In many business and financial applications, we often need to analyze multiple interrelated variables simultaneously. For instance:

• In marketing, customer purchase behavior, brand perception, and loyalty scores are often studied together.
• In finance, portfolio risk assessment involves analyzing correlations between different asset returns.

To handle such cases, we use multivariate methods, which extend classical statistical techniques to multiple dependent variables. At the core of multivariate analysis lies the covariance matrix, which captures relationships between multiple random variables.

25.1 Basic Understanding

25.1.1 Multivariate Random Vectors

Let $y_1, \dots, y_p$ be random variables, possibly correlated, with means $\mu_1, \dots, \mu_p$. We define the random vector:

$$\mathbf{y} = \begin{bmatrix} y_1 \\ \vdots \\ y_p \end{bmatrix}$$

The expected value (mean vector) is:

$$E(\mathbf{y}) = \begin{bmatrix} \mu_1 \\ \vdots \\ \mu_p \end{bmatrix}$$

25.1.2 Covariance Matrix

The covariance between any two variables $y_i$ and $y_j$ is:

$$\sigma_{ij} = \text{cov}(y_i, y_j) = E[(y_i - \mu_i)(y_j - \mu_j)]$$

This leads to the variance-covariance matrix, also called the dispersion matrix:

$$\mathbf{\Sigma} = (\sigma_{ij}) = \begin{bmatrix} \sigma_{11} & \sigma_{12} & \dots & \sigma_{1p} \\ \sigma_{21} & \sigma_{22} & \dots & \sigma_{2p} \\ \vdots & \vdots & \ddots & \vdots \\ \sigma_{p1} & \sigma_{p2} & \dots & \sigma_{pp} \end{bmatrix}$$

where $\sigma_{ii} = \text{Var}(y_i)$ represents the variance of $y_i$. Since covariance is symmetric, we have:

$$\sigma_{ij} = \sigma_{ji}, \quad \forall i, j.$$

If we consider two random vectors $\mathbf{u}_{p \times 1}$ and $\mathbf{v}_{q \times 1}$ with means $\mu_u$ and $\mu_v$, their cross-covariance matrix is:

$$\mathbf{\Sigma}_{uv} = \text{cov}(\mathbf{u}, \mathbf{v}) = E[(\mathbf{u} - \mu_u)(\mathbf{v} - \mu_v)']$$

where $\mathbf{\Sigma}_{uv} \neq \mathbf{\Sigma}_{vu}$, but they satisfy:

$$\mathbf{\Sigma}_{uv} = \mathbf{\Sigma}_{vu}'.$$

25.1.2.1 Properties of Covariance Matrices

A valid covariance matrix $\mathbf{\Sigma}$ satisfies the following properties:

1. Symmetry:
   $$\mathbf{\Sigma}' = \mathbf{\Sigma}.$$

2. Non-negative definiteness:
   $$\mathbf{a}'\mathbf{\Sigma} \mathbf{a} \geq 0, \quad \forall \mathbf{a} \in \mathbb{R}^p,$$ which implies that the eigenvalues $\lambda_1, \dots, \lambda_p$ satisfy: $$\lambda_1 \geq \lambda_2 \geq \dots \geq \lambda_p \geq 0.$$

3. Generalized variance (determinant of $\mathbf{\Sigma}$):
   $$|\mathbf{\Sigma}| = \lambda_1 \lambda_2 \dots \lambda_p \geq 0.$$

4. Total variance (trace of $\mathbf{\Sigma}$):
   $$\text{tr}(\mathbf{\Sigma}) = \sum_{i=1}^{p} \lambda_i = \sum_{i=1}^{p} \sigma_{ii}.$$

5. Positive definiteness (a common assumption in multivariate analysis):

   • All eigenvalues of $\mathbf{\Sigma}$ are strictly positive.
   • $\mathbf{\Sigma}$ has an inverse $\mathbf{\Sigma}^{-1}$, satisfying: $$\mathbf{\Sigma}^{-1} \mathbf{\Sigma} = \mathbf{I}_{p \times p} = \mathbf{\Sigma} \mathbf{\Sigma}^{-1}.$$

25.1.2.2 Correlation Matrices

The correlation matrix provides a standardized measure of linear relationships between variables. The correlation between two variables $y_i$ and $y_j$ is defined as:

$$\rho_{ij} = \frac{\sigma_{ij}}{\sqrt{\sigma_{ii} \sigma_{jj}}}$$

where $\sigma_{ij}$ is the covariance and $\sigma_{ii}$ and $\sigma_{jj}$ are variances.

Thus, the correlation matrix $\mathbf{R}$ is:

$$\mathbf{R} = \begin{bmatrix} \rho_{11} & \rho_{12} & \dots & \rho_{1p} \\ \rho_{21} & \rho_{22} & \dots & \rho_{2p} \\ \vdots & \vdots & \ddots & \vdots \\ \rho_{p1} & \rho_{p2} & \dots & \rho_{pp} \end{bmatrix}$$

where $\rho_{ii} = 1$ for all $i$.

Alternatively, the correlation matrix can be expressed as:

$$\mathbf{R} = [\text{diag}(\mathbf{\Sigma})]^{-1/2} \mathbf{\Sigma} [\text{diag}(\mathbf{\Sigma})]^{-1/2}$$

where:

• $\text{diag}(\mathbf{\Sigma})$ is a diagonal matrix with elements $\sigma_{ii}$ on the diagonal and zeros elsewhere.
• $\mathbf{A}^{1/2}$ (the square root of a symmetric matrix) is a symmetric matrix satisfying $\mathbf{A} = \mathbf{A}^{1/2} \mathbf{A}^{1/2}$.

---

25.1.3 Equalities in Expectation and Variance

Let:

• $\mathbf{x}$ and $\mathbf{y}$ be random vectors with means $\mu_x$ and $\mu_y$ and covariance matrices $\mathbf{\Sigma}_x$ and $\mathbf{\Sigma}_y$.
• $\mathbf{A}$ and $\mathbf{B}$ be matrices of constants, and $\mathbf{c}$ and $\mathbf{d}$ be vectors of constants.

Then the following properties hold:

1. Expectation transformations: $$E(\mathbf{Ay + c}) = \mathbf{A} \mu_y + \mathbf{c}$$

2. Variance transformations: $$\text{Var}(\mathbf{Ay + c}) = \mathbf{A} \text{Var}(\mathbf{y}) \mathbf{A}' = \mathbf{A \Sigma_y A'}$$

3. Covariance of linear transformations: $$\text{Cov}(\mathbf{Ay + c}, \mathbf{By + d}) = \mathbf{A \Sigma_y B'}$$

4. Expectation of combined variables: $$E(\mathbf{Ay + Bx + c}) = \mathbf{A} \mu_y + \mathbf{B} \mu_x + \mathbf{c}$$

5. Variance of combined variables: $$\text{Var}(\mathbf{Ay + Bx + c}) = \mathbf{A \Sigma_y A' + B \Sigma_x B' + A \Sigma_{yx} B' + B\Sigma'_{yx}A'}$$

---

25.1.4 Multivariate Normal Distribution

The multivariate normal distribution (MVN) is fundamental in multivariate analysis. Let $\mathbf{y}$ be a multivariate normal random variable with mean $\mu$ and covariance matrix $\mathbf{\Sigma}$. Then its probability density function (PDF) is:

$$f(\mathbf{y}) = \frac{1}{(2\pi)^{p/2} |\mathbf{\Sigma}|^{1/2}} \exp \left(-\frac{1}{2} (\mathbf{y} - \mu)' \mathbf{\Sigma}^{-1} (\mathbf{y} - \mu) \right).$$

We denote this distribution as:

$$\mathbf{y} \sim N_p(\mu, \mathbf{\Sigma}).$$

---

25.1.4.1 Properties of the Multivariate Normal Distribution

The multivariate normal distribution has several important properties that are fundamental to multivariate statistical methods.

• Linear Transformations:
  Let $\mathbf{A}_{r \times p}$ be a fixed matrix. Then:

  $$\mathbf{Ay} \sim N_r (\mathbf{A \mu}, \mathbf{A \Sigma A'})$$

  where $r \leq p$. Additionally, for $\mathbf{A \Sigma A'}$ to be non-singular, the rows of $\mathbf{A}$ must be linearly independent.

• Standardization using Precision Matrix:
  Let $\mathbf{G}$ be a matrix such that:

  $$\mathbf{\Sigma}^{-1} = \mathbf{GG}'$$

  Then:

  $$\mathbf{G'y} \sim N_p(\mathbf{G' \mu}, \mathbf{I})$$

  and:

  $$\mathbf{G'(y-\mu)} \sim N_p (0,\mathbf{I}).$$

  This transformation whitens the data, converting it into an identity covariance structure.

• Linear Combinations:
  Any fixed linear combination of $y_1, \dots, y_p$, say $\mathbf{c'y}$, follows:

  $$\mathbf{c'y} \sim N_1 (\mathbf{c' \mu}, \mathbf{c' \Sigma c}).$$

---

25.1.4.2 Partitioning the MVN Distribution

Consider a partitioned random vector:

$$\mathbf{y} = \begin{bmatrix} \mathbf{y}_1 \\ \mathbf{y}_2 \end{bmatrix} \sim N_p \left( \begin{bmatrix} \mu_1 \\ \mu_2 \end{bmatrix}, \begin{bmatrix} \mathbf{\Sigma}_{11} & \mathbf{\Sigma}_{12} \\ \mathbf{\Sigma}_{21} & \mathbf{\Sigma}_{22} \end{bmatrix} \right).$$

where:

• $\mathbf{y}_1$ is $p_1 \times 1$,
• $\mathbf{y}_2$ is $p_2 \times 1$,
• $p_1 + p_2 = p$,
• and $p_1, p_2 \geq 1$.

The marginal distributions of $\mathbf{y}_1$ and $\mathbf{y}_2$ are:

$$\mathbf{y}_1 \sim N_{p_1}(\mathbf{\mu_1}, \mathbf{\Sigma_{11}}) \quad \text{and} \quad \mathbf{y}_2 \sim N_{p_2}(\mathbf{\mu_2}, \mathbf{\Sigma_{22}}).$$

Each component $y_i$ follows:

$$y_i \sim N_1(\mu_i, \sigma_{ii}).$$

The conditional distribution of $\mathbf{y}_1$ given $\mathbf{y}_2$ is also normal:

$$\mathbf{y}_1 | \mathbf{y}_2 \sim N_{p_1} \Big( \mathbf{\mu_1 + \Sigma_{12} \Sigma_{22}^{-1}(y_2 - \mu_2)}, \mathbf{\Sigma_{11} - \Sigma_{12} \Sigma_{22}^{-1} \Sigma_{21}} \Big).$$

This equation shows that knowing $\mathbf{y}_2$ adjusts the mean of $\mathbf{y}_1$, and the variance is reduced.
Similarly, the conditional distribution of $\mathbf{y}_2$ given $\mathbf{y}_1$ follows the same structure.

• $\mathbf{y}_1$ and $\mathbf{y}_2$ are independent if and only if:

  $$\mathbf{\Sigma}_{12} = 0.$$

If $\mathbf{y} \sim N(\mathbf{\mu}, \mathbf{\Sigma})$ and $\mathbf{\Sigma}$ is positive definite, then:

$$(\mathbf{y} - \mu)' \mathbf{\Sigma}^{-1} (\mathbf{y} - \mu) \sim \chi^2_p.$$

This property is essential in hypothesis testing and Mahalanobis distance calculations.

---

25.1.4.3 Summation of Independent MVN Variables

If $\mathbf{y}_i$ are independent random vectors following:

$$\mathbf{y}_i \sim N_p (\mathbf{\mu}_i , \mathbf{\Sigma}_i),$$

then for fixed matrices $\mathbf{A}_{i(m \times p)}$, the sum:

$$\sum_{i=1}^k \mathbf{A}_i \mathbf{y}_i$$

follows:

$$\sum_{i=1}^k \mathbf{A}_i \mathbf{y}_i \sim N_m \Big( \sum_{i=1}^{k} \mathbf{A}_i \mathbf{\mu}_i, \sum_{i=1}^k \mathbf{A}_i \mathbf{\Sigma}_i \mathbf{A}_i' \Big).$$

This property underpins multivariate regression and linear discriminant analysis.

---

25.1.4.4 Multiple Regression

In multivariate analysis, multiple regression extends simple regression to cases where multiple predictor variables influence a response variable. Suppose:

$$\left( \begin{array} {c} Y \\ \mathbf{x} \end{array} \right) \sim N_{p+1} \left( \left[ \begin{array} {c} \mu_y \\ \mathbf{\mu}_x \end{array} \right] , \left[ \begin{array} {cc} \sigma^2_Y & \mathbf{\Sigma}_{yx} \\ \mathbf{\Sigma}_{yx} & \mathbf{\Sigma}_{xx} \end{array} \right] \right)$$

where:

• $Y$ is a scalar response variable.
• $\mathbf{x}$ is a $p \times 1$ vector of predictors.
• $\mu_y$ and $\mathbf{\mu}_x$ are the respective means.
• $\sigma_Y^2$ is the variance of $Y$.
• $\mathbf{\Sigma}_{xx}$ is the covariance matrix of $\mathbf{x}$.
• $\mathbf{\Sigma}_{yx}$ is the covariance vector between $Y$ and $\mathbf{x}$.

From the properties of the multivariate normal distribution, the conditional expectation of $Y$ given $\mathbf{x}$ is:

$$\begin{aligned} E(Y| \mathbf{x}) &= \mu_y + \mathbf{\Sigma}_{yx} \mathbf{\Sigma}_{xx}^{-1} (\mathbf{x}- \mathbf{\mu}_x) \\ &= \mu_y - \mathbf{\Sigma}_{yx} \mathbf{\Sigma}_{xx}^{-1} \mathbf{\mu}_x + \mathbf{\Sigma}_{yx} \mathbf{\Sigma}_{xx}^{-1} \mathbf{x} \\ &= \beta_0 + \mathbf{\beta' x}, \end{aligned}$$

where:

• $\beta_0 = \mu_y - \mathbf{\Sigma}_{yx} \mathbf{\Sigma}_{xx}^{-1} \mathbf{\mu}_x$ (intercept).
• $\mathbf{\beta} = (\beta_1, \dots, \beta_p)' = \mathbf{\Sigma}_{xx}^{-1} \mathbf{\Sigma}_{yx}'$ (regression coefficients).

This resembles the least squares estimator:

$$\mathbf{\beta} = (\mathbf{x'x})^{-1} \mathbf{x'y},$$

but differs when considering the theoretical covariance relationships rather than empirical estimates.

The conditional variance of $Y$ given $\mathbf{x}$ is:

$$\text{Var}(Y | \mathbf{x}) = \sigma^2_Y - \mathbf{\Sigma}_{yx} \mathbf{\Sigma}_{xx}^{-1} \mathbf{\Sigma'}_{yx}.$$

This shows that knowing $\mathbf{x}$ reduces uncertainty in predicting $Y$.

---

25.1.4.5 Samples from Multivariate Normal Populations

Suppose we have a random sample of size $n$, denoted as:

$$\mathbf{y}_1, \dots, \mathbf{y}_n \sim N_p (\mathbf{\mu}, \mathbf{\Sigma}).$$

Then:

1. Sample Mean: The sample mean is given by:

   $$\bar{\mathbf{y}} = \frac{1}{n} \sum_{i=1}^n \mathbf{y}_i.$$

   Since $\mathbf{y}_i$ are independent and identically distributed (iid), it follows that:

   $$\bar{\mathbf{y}} \sim N_p (\mathbf{\mu}, \mathbf{\Sigma} / n).$$

   This implies that $\bar{\mathbf{y}}$ is an unbiased estimator of $\mathbf{\mu}$.

2. Sample Covariance Matrix: The $p \times p$ sample variance-covariance matrix is:

   $$\mathbf{S} = \frac{1}{n-1} \sum_{i=1}^n (\mathbf{y}_i - \bar{\mathbf{y}})(\mathbf{y}_i - \bar{\mathbf{y}})'.$$

   Expanding this:

   $$\mathbf{S} = \frac{1}{n-1} \left( \sum_{i=1}^n \mathbf{y}_i \mathbf{y}_i' - n \bar{\mathbf{y}} \bar{\mathbf{y}}' \right).$$

   • $\mathbf{S}$ is symmetric.
   • $\mathbf{S}$ is an unbiased estimator of $\mathbf{\Sigma}$.
   • $\mathbf{S}$ contains $p(p+1)/2$ unique random variables.

3. Wishart Distribution: The scaled sample covariance matrix follows a Wishart distribution:

   $$(n-1) \mathbf{S} \sim W_p(n-1, \mathbf{\Sigma}).$$

   where:

   • $W_p(n-1, \mathbf{\Sigma})$ is a Wishart distribution with $n-1$ degrees of freedom.
   • $E[(n-1) \mathbf{S}] = (n-1) \mathbf{\Sigma}$.

   The Wishart distribution is a multivariate generalization of the chi-square distribution.

4. Independence of $\bar{\mathbf{y}}$ and $\mathbf{S}$: The sample mean $\bar{\mathbf{y}}$ and sample covariance matrix $\mathbf{S}$ are independent:

   $$\bar{\mathbf{y}} \perp \mathbf{S}.$$

   This result is crucial for inference in multivariate hypothesis testing.

5. Sufficiency of $\bar{\mathbf{y}}$ and $\mathbf{S}$: The pair $(\bar{\mathbf{y}}, \mathbf{S})$ are sufficient statistics for $(\mathbf{\mu}, \mathbf{\Sigma})$.
   That is, all the information about $\mathbf{\mu}$ and $\mathbf{\Sigma}$ in the sample is contained in $\bar{\mathbf{y}}$ and $\mathbf{S}$, regardless of sample size.

---

25.1.4.6 Large Sample Properties

Consider a random sample $\mathbf{y}_1, \dots, \mathbf{y}_n$ drawn from a population with mean $\mathbf{\mu}$ and variance-covariance matrix $\mathbf{\Sigma}$.

Key Properties

• Consistency of Estimators:

  • The sample mean $\bar{\mathbf{y}}$ is a consistent estimator of $\mathbf{\mu}$.
  • The sample covariance matrix $\mathbf{S}$ is a consistent estimator of $\mathbf{\Sigma}$.

• Multivariate Central Limit Theorem:

  • Similar to the univariate case, the sample mean follows approximately:

    $$\sqrt{n}(\bar{\mathbf{y}} - \mu) \dot{\sim} N_p (\mathbf{0}, \mathbf{\Sigma})$$

    This approximation holds when the sample size is large relative to the number of variables ($n \geq 25p$).

  • Equivalently, the sample mean follows:

    $$\bar{\mathbf{y}} \dot{\sim} N_p (\mathbf{\mu}, \mathbf{\Sigma} / n).$$

• Wald’s Theorem:

  • When $n$ is large relative to $p$:

    $$n(\bar{\mathbf{y}} - \mathbf{\mu})' \mathbf{S}^{-1} (\bar{\mathbf{y}} - \mathbf{\mu}) \sim \chi^2_p.$$

  This is useful for hypothesis testing about $\mathbf{\mu}$.

---

25.1.4.7 Maximum Likelihood Estimation for MVN

Suppose $\mathbf{y}_1, \dots, \mathbf{y}_n$ are iid random vectors from:

$$\mathbf{y}_i \sim N_p (\mathbf{\mu}, \mathbf{\Sigma}).$$

The likelihood function for the sample is:

$$\begin{aligned} L(\mathbf{\mu}, \mathbf{\Sigma}) &= \prod_{j=1}^n \left[ \frac{1}{(2\pi)^{p/2}|\mathbf{\Sigma}|^{1/2}} \exp \left(-\frac{1}{2} (\mathbf{y}_j - \mathbf{\mu})' \mathbf{\Sigma}^{-1} (\mathbf{y}_j - \mathbf{\mu}) \right) \right] \\ &= \frac{1}{(2\pi)^{np/2}|\mathbf{\Sigma}|^{n/2}} \exp \left(-\frac{1}{2} \sum_{j=1}^n (\mathbf{y}_j - \mathbf{\mu})' \mathbf{\Sigma}^{-1} (\mathbf{y}_j - \mathbf{\mu}) \right). \end{aligned}$$

Taking the log-likelihood function and differentiating with respect to $\mathbf{\mu}$ and $\mathbf{\Sigma}$ leads to the maximum likelihood estimators:

The MLE for the mean is simply the sample mean:

$$\hat{\mathbf{\mu}} = \bar{\mathbf{y}}.$$

The MLE for the covariance matrix is:

$$\hat{\mathbf{\Sigma}} = \frac{n-1}{n} \mathbf{S}.$$

where:

$$\mathbf{S} = \frac{1}{n-1} \sum_{j=1}^n (\mathbf{y}_j - \bar{\mathbf{y}})(\mathbf{y}_j - \bar{\mathbf{y}})'.$$

This differs from $\mathbf{S}$ by the factor $\frac{n-1}{n}$, making $\hat{\mathbf{\Sigma}}$ a biased estimator of $\mathbf{\Sigma}$.

---

25.1.4.7.1 Properties of Maximum Likelihood Estimators

MLEs have several important theoretical properties:

1. Invariance:

   • If $\hat{\theta}$ is the MLE of $\theta$, then the MLE of any function $h(\theta)$ is:

     $$h(\hat{\theta}).$$

2. Consistency:
   • MLEs are consistent estimators, meaning they converge to the true parameter values as $n \to \infty$.
   • However, they can be biased for finite samples.
3. Efficiency:
   • MLEs are asymptotically efficient, meaning they achieve the Cramér-Rao lower bound for variance in large samples.
   • No other estimator has a smaller variance asymptotically.
4. Asymptotic Normality:

   • Suppose $\hat{\theta}_n$ is the MLE for $\theta$ based on $n$ independent observations.

   • Then, for large $n$:

     $$\hat{\theta}_n \dot{\sim} N(\theta, \mathbf{H}^{-1}),$$

     where $\mathbf{H}$ is the Fisher Information Matrix, defined as:

     $$\mathbf{H}_{ij} = -E\left(\frac{\partial^2 l(\mathbf{\theta})}{\partial \theta_i \partial \theta_j}\right).$$

     • The Fisher Information Matrix measures the amount of information in the data about $\theta$.
     • It can be estimated by evaluating the second derivatives of the log-likelihood function at $\hat{\theta}_n$.

---

25.1.4.7.2 Likelihood Ratio Testing

MLEs allow us to construct likelihood ratio tests for hypothesis testing.

• Suppose we test a null hypothesis $H_0$:

  $$H_0: \mathbf{\theta} \in \Theta_0 \quad \text{vs.} \quad H_A: \mathbf{\theta} \in \Theta.$$

• The likelihood ratio statistic is:

  $$\Lambda = \frac{\max_{\theta \in \Theta_0} L(\mathbf{\mu}, \mathbf{\Sigma} | \mathbf{Y})} {\max_{\theta \in \Theta} L(\mathbf{\mu}, \mathbf{\Sigma} | \mathbf{Y})}.$$

• Under large sample conditions, we use the Wilks’ theorem, which states:

  $$-2 \log \Lambda \sim \chi^2_v,$$

  where:

  • $v$ is the difference in the number of parameters between the unrestricted and restricted models.
  • This allows us to approximate the distribution of $-2 \log \Lambda$ using the chi-square distribution.

---

25.1.5 Test of Multivariate Normality

Assessing multivariate normality is essential for many statistical techniques, including multivariate regression, principal component analysis, and MANOVA. Below are key methods for testing MVN.

25.1.5.1 Univariate Normality Checks

Before testing for multivariate normality, it is useful to check for univariate normality in each variable separately:

• Normality Assessment: Visual and statistical tests can be used to check normality.
• Key Property: If any univariate distribution is not normal, then the joint multivariate distribution cannot be normal.
• Important Caveat: Even if all univariate distributions are normal, this does not guarantee multivariate normality.

Thus, univariate normality is a necessary but not sufficient condition for MVN.

---

25.1.5.2 Mardia’s Test for Multivariate Normality

Mardia (1970) proposed two measures for assessing MVN:

1. Multivariate Skewness

Defined as:

$$\beta_{1,p} = E[(\mathbf{y} - \mathbf{\mu})' \mathbf{\Sigma}^{-1} (\mathbf{x} - \mathbf{\mu})]^3,$$

where $\mathbf{x}$ and $\mathbf{y}$ are independent but identically distributed.

2. Multivariate Kurtosis

Defined as:

$$\beta_{2,p} = E[(\mathbf{y} - \mathbf{\mu})' \mathbf{\Sigma}^{-1} (\mathbf{x} - \mathbf{\mu})]^2.$$

For a true multivariate normal distribution:

$$\beta_{1,p} = 0, \quad \beta_{2,p} = p(p+2).$$

Sample Estimates

For a random sample of size $n$, we estimate:

$$\hat{\beta}_{1,p} = \frac{1}{n^2} \sum_{i=1}^{n} \sum_{j=1}^{n} g^2_{ij},$$

$$\hat{\beta}_{2,p} = \frac{1}{n} \sum_{i=1}^{n} g^2_{ii},$$

where:

• $g_{ij} = (\mathbf{y}_i - \bar{\mathbf{y}})' \mathbf{S}^{-1} (\mathbf{y}_j - \bar{\mathbf{y}})$,
• $g_{ii} = d_i^2$, which is the Mahalanobis distance.

Mardia (1970) derived the following large-sample approximations:

$$\kappa_1 = \frac{n \hat{\beta}_{1,p}}{6} \dot{\sim} \chi^2_{p(p+1)(p+2)/6},$$

$$\kappa_2 = \frac{\hat{\beta}_{2,p} - p(p+2)}{\sqrt{8p(p+2)/n}} \sim N(0,1).$$

Interpretation

• $\kappa_1$ and $\kappa_2$ are test statistics for the null hypothesis of MVN.
• Non-normality in means is associated with skewness ($\beta_{1,p}$).
• Non-normality in covariance is associated with kurtosis ($\beta_{2,p}$).

---

25.1.5.3 Doornik-Hansen Test

• This test transforms variables to approximate normality using skewness and kurtosis corrections (Doornik and Hansen 2008).
• Recommended when sample sizes are small.

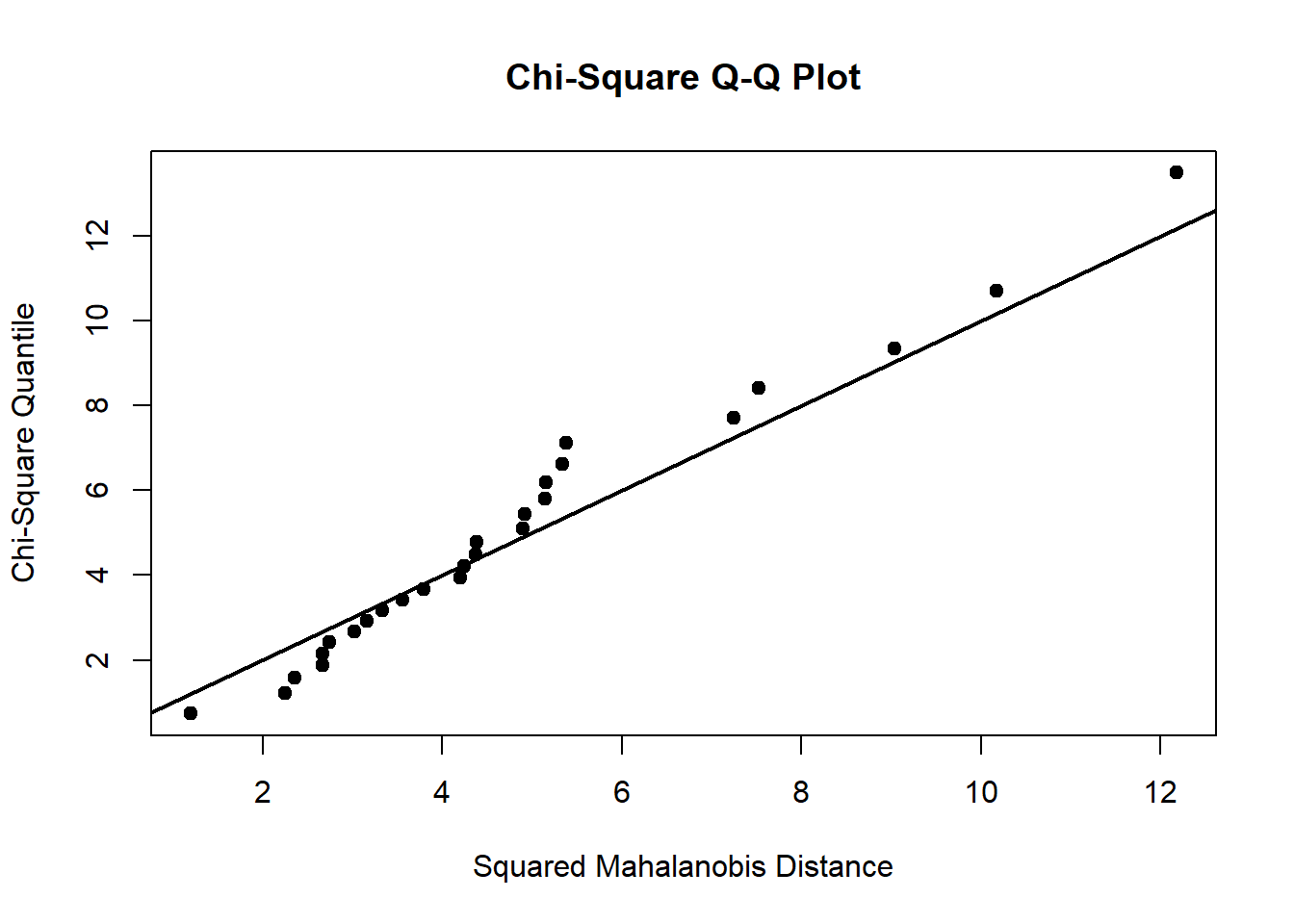

25.1.5.4 Chi-Square Q-Q Plot

The Chi-Square Q-Q plot is a graphical method for assessing MVN:

1. Compute Mahalanobis distances:

   $$d_i^2 = (\mathbf{y}_i - \bar{\mathbf{y}})' \mathbf{S}^{-1} (\mathbf{y}_i - \bar{\mathbf{y}}).$$

2. The transformed variables:

   $$\mathbf{z}_i = \mathbf{\Sigma}^{-1/2}(\mathbf{y}_i - \mathbf{\mu})$$

   are iid from $N_p(\mathbf{0}, \mathbf{I})$, and thus:

   $$d_i^2 \sim \chi^2_p.$$

3. Plot ordered $d_i^2$ values against the theoretical quantiles of the $\chi^2_p$ distribution.

Interpretation

• If the data are MVN, the plot should resemble a straight line at 45°.
• Deviations suggest non-normality, especially in the tails.

Limitations

• Requires a large sample size.
• Even when data are truly MVN, the tails may deviate.

---

25.1.5.5 Handling Non-Normality

If data fail the multivariate normality tests, possible approaches include:

1. Ignoring non-normality (acceptable for large samples due to the Central Limit Theorem).
2. Using nonparametric methods (e.g., permutation tests).
3. Applying approximate models (e.g., Generalized Linear Mixed Models).
4. Transforming the data (e.g., log, Box-Cox, or rank transformations 12).

---

# Load necessary libraries
library(heplots)      # Multivariate hypothesis tests
library(ICSNP)        # Multivariate tests
library(MVN)          # Multivariate normality tests
library(tidyverse)    # Data wrangling & visualization


# Load dataset
trees <- read.table("images/trees.dat")
names(trees) <-
    c("Nitrogen", "Phosphorous", "Potassium", "Ash", "Height")

# Structure of dataset
str(trees)
#> 'data.frame':    26 obs. of  5 variables:
#>  $ Nitrogen   : num  2.2 2.1 1.52 2.88 2.18 1.87 1.52 2.37 2.06 1.84 ...
#>  $ Phosphorous: num  0.417 0.354 0.208 0.335 0.314 0.271 0.164 0.302 0.373 0.265 ...
#>  $ Potassium  : num  1.35 0.9 0.71 0.9 1.26 1.15 0.83 0.89 0.79 0.72 ...
#>  $ Ash        : num  1.79 1.08 0.47 1.48 1.09 0.99 0.85 0.94 0.8 0.77 ...
#>  $ Height     : int  351 249 171 373 321 191 225 291 284 213 ...

# Summary statistics
summary(trees)
#>     Nitrogen      Phosphorous       Potassium           Ash
#>  Min.   :1.130   Min.   :0.1570   Min.   :0.3800   Min.   :0.4500
#>  1st Qu.:1.532   1st Qu.:0.1963   1st Qu.:0.6050   1st Qu.:0.6375
#>  Median :1.855   Median :0.2250   Median :0.7150   Median :0.9300
#>  Mean   :1.896   Mean   :0.2506   Mean   :0.7619   Mean   :0.8873
#>  3rd Qu.:2.160   3rd Qu.:0.2975   3rd Qu.:0.8975   3rd Qu.:0.9825
#>  Max.   :2.880   Max.   :0.4170   Max.   :1.3500   Max.   :1.7900
#>      Height
#>  Min.   : 65.0
#>  1st Qu.:122.5
#>  Median :181.0
#>  Mean   :196.6
#>  3rd Qu.:276.0
#>  Max.   :373.0

# Pearson correlation matrix
cor(trees, method = "pearson")
#>              Nitrogen Phosphorous Potassium       Ash    Height
#> Nitrogen    1.0000000   0.6023902 0.5462456 0.6509771 0.8181641
#> Phosphorous 0.6023902   1.0000000 0.7037469 0.6707871 0.7739656
#> Potassium   0.5462456   0.7037469 1.0000000 0.6710548 0.7915683
#> Ash         0.6509771   0.6707871 0.6710548 1.0000000 0.7676771
#> Height      0.8181641   0.7739656 0.7915683 0.7676771 1.0000000

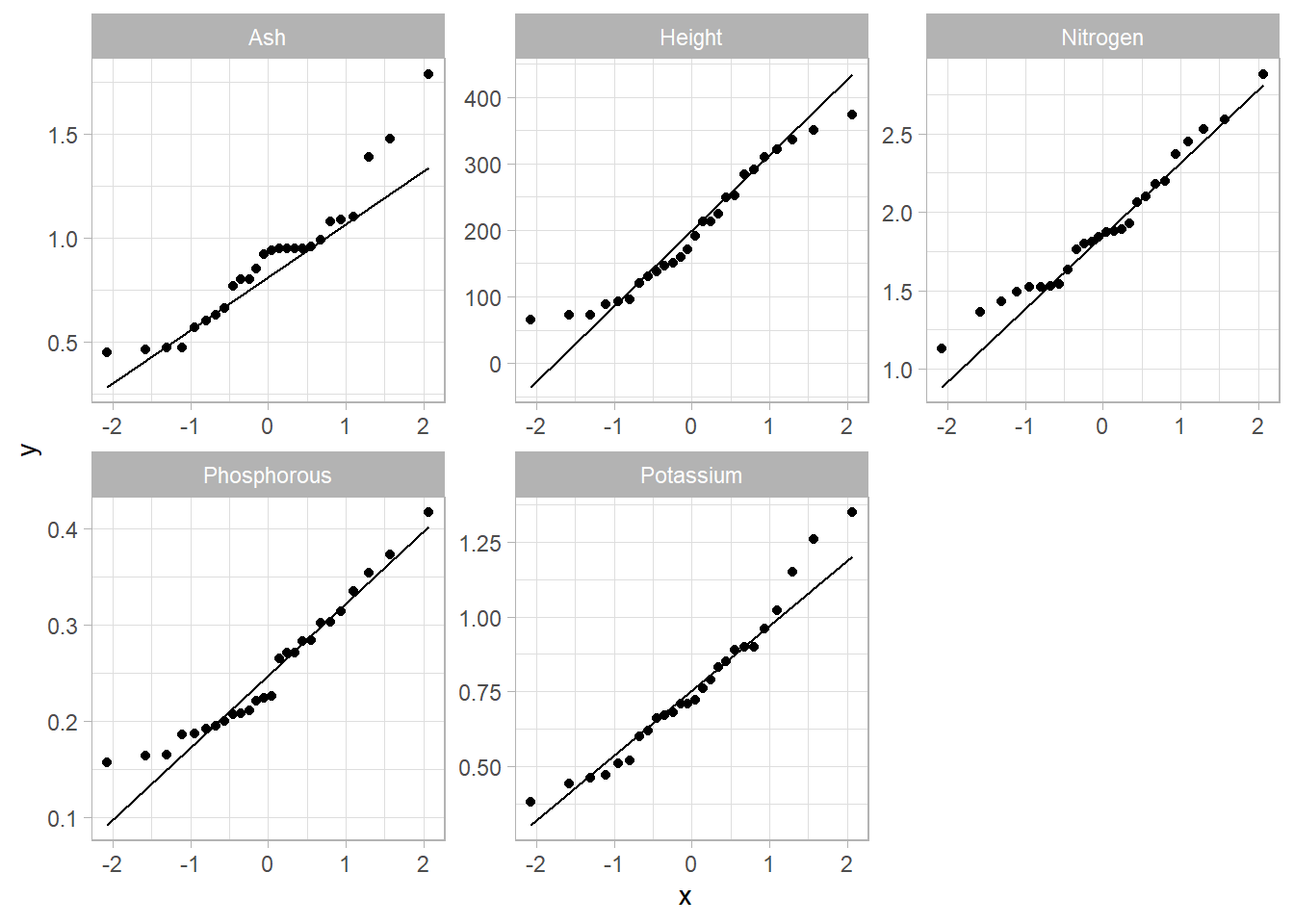

# Q-Q plots for each variable
gg <- trees %>%
    pivot_longer(everything(), names_to = "Var", values_to = "Value") %>%
    ggplot(aes(sample = Value)) +
    geom_qq() +
    geom_qq_line() +
    facet_wrap( ~ Var, scales = "free")

print(gg)

# Shapiro-Wilk test for univariate normality
sw_tests <- apply(trees, MARGIN = 2, FUN = shapiro.test)
sw_tests
#> $Nitrogen
#>
#>  Shapiro-Wilk normality test
#>
#> data:  newX[, i]
#> W = 0.96829, p-value = 0.5794
#>
#>
#> $Phosphorous
#>
#>  Shapiro-Wilk normality test
#>
#> data:  newX[, i]
#> W = 0.93644, p-value = 0.1104
#>
#>
#> $Potassium
#>
#>  Shapiro-Wilk normality test
#>
#> data:  newX[, i]
#> W = 0.95709, p-value = 0.3375
#>
#>
#> $Ash
#>
#>  Shapiro-Wilk normality test
#>
#> data:  newX[, i]
#> W = 0.92071, p-value = 0.04671
#>
#>
#> $Height
#>
#>  Shapiro-Wilk normality test
#>
#> data:  newX[, i]
#> W = 0.94107, p-value = 0.1424

# Kolmogorov-Smirnov test for normality
ks_tests <- map(trees, ~ ks.test(scale(.x), "pnorm"))
ks_tests
#> $Nitrogen
#>
#>  Asymptotic one-sample Kolmogorov-Smirnov test
#>
#> data:  scale(.x)
#> D = 0.12182, p-value = 0.8351
#> alternative hypothesis: two-sided
#>
#>
#> $Phosphorous
#>
#>  Asymptotic one-sample Kolmogorov-Smirnov test
#>
#> data:  scale(.x)
#> D = 0.17627, p-value = 0.3944
#> alternative hypothesis: two-sided
#>
#>
#> $Potassium
#>
#>  Asymptotic one-sample Kolmogorov-Smirnov test
#>
#> data:  scale(.x)
#> D = 0.10542, p-value = 0.9348
#> alternative hypothesis: two-sided
#>
#>
#> $Ash
#>
#>  Asymptotic one-sample Kolmogorov-Smirnov test
#>
#> data:  scale(.x)
#> D = 0.14503, p-value = 0.6449
#> alternative hypothesis: two-sided
#>
#>
#> $Height
#>
#>  Asymptotic one-sample Kolmogorov-Smirnov test
#>
#> data:  scale(.x)
#> D = 0.1107, p-value = 0.9076
#> alternative hypothesis: two-sided

# Mardia's test for multivariate normality
mardia_test <-
    mvn(
        trees,
        mvnTest = "mardia",
        covariance = FALSE,
        multivariatePlot = "qq"
    )

mardia_test$multivariateNormality
#>              Test         Statistic            p value Result
#> 1 Mardia Skewness  29.7248528871795   0.72054426745778    YES
#> 2 Mardia Kurtosis -1.67743173185383 0.0934580886477281    YES
#> 3             MVN              <NA>               <NA>    YES

# Doornik-Hansen test
dh_test <-
    mvn(
        trees,
        mvnTest = "dh",
        covariance = FALSE,
        multivariatePlot = "qq"
    )
dh_test$multivariateNormality
#>             Test        E df      p value MVN
#> 1 Doornik-Hansen 161.9446 10 1.285352e-29  NO

# Henze-Zirkler test
hz_test <-
    mvn(
        trees,
        mvnTest = "hz",
        covariance = FALSE,
        multivariatePlot = "qq"
    )
hz_test$multivariateNormality
#>            Test        HZ   p value MVN
#> 1 Henze-Zirkler 0.7591525 0.6398905 YES

# Royston's test (only for 3 < obs < 5000)
royston_test <-
    mvn(
        trees,
        mvnTest = "royston",
        covariance = FALSE,
        multivariatePlot = "qq"
    )
royston_test$multivariateNormality
#>      Test        H    p value MVN
#> 1 Royston 9.064631 0.08199215 YES

# Energy test
estat_test <-
    mvn(
        trees,
        mvnTest = "energy",
        covariance = FALSE,
        multivariatePlot = "qq"
    )
estat_test$multivariateNormality
#>          Test Statistic p value MVN
#> 1 E-statistic  1.091101   0.522 YES

25.1.6 Mean Vector Inference

25.1.6.1 Univariate Case

In the univariate normal distribution, we test:

$$H_0: \mu = \mu_0$$

using the t-test statistic:

$$T = \frac{\bar{y} - \mu_0}{s/\sqrt{n}} \sim t_{n-1}.$$

Decision Rule

• If $H_0$ is true, then $T$ follows a t-distribution with $n-1$ degrees of freedom.

• We reject $H_0$ if:

  $$|T| > t_{(1-\alpha/2, n-1)}$$

  because an extreme value suggests that observing $\bar{y}$ under $H_0$ is unlikely.

Alternative Formulation

Squaring $T$, we obtain:

$$T^2 = \frac{(\bar{y} - \mu_0)^2}{s^2/n} = n(\bar{y} - \mu_0) (s^2)^{-1} (\bar{y} - \mu_0).$$

Under $H_0$:

$$T^2 \sim f_{(1,n-1)}.$$

This formulation allows for a direct extension to the multivariate case.

---

25.1.6.2 Multivariate Generalization: Hotelling’s $T^2$ Test

For a p-dimensional mean vector, we test:

$$\begin{aligned} &H_0: \mathbf{\mu} = \mathbf{\mu}_0, \\ &H_a: \mathbf{\mu} \neq \mathbf{\mu}_0. \end{aligned}$$

Define the Hotelling’s $T^2$ test statistic:

$$T^2 = n(\bar{\mathbf{y}} - \mathbf{\mu}_0)' \mathbf{S}^{-1} (\bar{\mathbf{y}} - \mathbf{\mu}_0).$$

where:

• $\bar{\mathbf{y}}$ is the sample mean vector,

• $\mathbf{S}$ is the sample covariance matrix,

• $T^2$ can be interpreted as a generalized squared distance between $\bar{\mathbf{y}}$ and $\mathbf{\mu}_0$.

Under multivariate normality, the test statistic follows an F-distribution:

$$F = \frac{n-p}{(n-1)p} T^2 \sim f_{(p, n-p)}.$$

We reject $H_0$ if:

$$F > f_{(1-\alpha, p, n-p)}.$$

---

Key Properties of Hotelling’s $T^2$ Test

1. Invariance to Measurement Scale:

   • If we apply a linear transformation to the data:

     $$\mathbf{z} = \mathbf{C} \mathbf{y} + \mathbf{d},$$

     where $\mathbf{C}$ and $\mathbf{d}$ do not depend on $\mathbf{y}$, then:

     $$T^2(\mathbf{z}) = T^2(\mathbf{y}).$$

     This ensures that unit changes (e.g., inches to centimeters) do not affect the test results.

2. Likelihood Ratio Test:
   • The $T^2$ test can be derived as a likelihood ratio test for $H_0: \mathbf{\mu} = \mathbf{\mu}_0$.

---

# Load required packages
library(MASS)    # For multivariate analysis
library(ICSNP)   # For Hotelling's T^2 test

# Simulated dataset (5 variables, 30 observations)
set.seed(123)
n <- 30  # Sample size
p <- 5   # Number of variables
mu <- rep(0, p)  # Population mean vector
Sigma <- diag(p) # Identity covariance matrix

# Generate multivariate normal data
data <- mvrnorm(n, mu, Sigma)
colnames(data) <- paste0("V", 1:p)

# Compute sample mean and covariance
sample_mean <- colMeans(data)
sample_cov  <- cov(data)

# Perform Hotelling's T^2 test (testing against mu_0 = rep(0, p))
hotelling_test <- HotellingsT2(data, mu = rep(0, p))

# Print results
print(hotelling_test)
#>
#>  Hotelling's one sample T2-test
#>
#> data:  data
#> T.2 = 0.43475, df1 = 5, df2 = 25, p-value = 0.82
#> alternative hypothesis: true location is not equal to c(0,0,0,0,0)

25.1.6.3 Confidence Intervals

25.1.6.3.1 Confidence Region for the Mean Vector

An exact $100(1-\alpha)\%$ confidence region for the population mean vector $\mathbf{\mu}$ is the set of all vectors $\mathbf{v}$ that are “close enough” to the observed mean vector $\bar{\mathbf{y}}$ such that:

$$n(\bar{\mathbf{y}} - \mathbf{\mu}_0)' \mathbf{S}^{-1} (\bar{\mathbf{y}} - \mathbf{\mu}_0) \leq \frac{(n-1)p}{n-p} f_{(1-\alpha, p, n-p)}.$$

Interpretation

• The confidence region consists of all mean vectors $\mathbf{\mu}_0$ for which we fail to reject $H_0$ in the Hotelling’s $T^2$ test.
• If $p = 2$, this confidence region forms a hyper-ellipsoid.

Why Use Confidence Regions?

• They provide a joint assessment of plausible values for $\mathbf{\mu}$.
• However, in practice, we often prefer individual confidence intervals for each mean component.

---

25.1.6.3.2 Simultaneous Confidence Intervals

We want simultaneous confidence statements, ensuring that all individual confidence intervals hold simultaneously with high probability.

Simultaneous Confidence Intervals (General Form)

By projecting the confidence region onto the coordinate axes, we obtain simultaneous confidence intervals:

$$\bar{y}_{i} \pm \sqrt{\frac{(n-1)p}{n-p} f_{(1-\alpha, p, n-p)} \frac{s_{ii}}{n}}, \quad \text{for } i = 1, \dots, p.$$

• These intervals are conservative, meaning their actual confidence level is at least $100(1 - \alpha)\%$.

Simultaneous Confidence Intervals for Any Linear Combination

For any arbitrary linear combination $\mathbf{a'\mu}$:

$$\mathbf{a'\bar{y}} \pm \sqrt{\frac{(n-1)p}{n-p} f_{(1-\alpha, p, n-p)} \frac{\mathbf{a'Sa}}{n}}.$$

where:

• $\mathbf{a'\mu} = a_1 \mu_1 + \dots + a_p \mu_p$ is a projection onto the axis in the direction of $\mathbf{a}$.

• The probability that at least one interval fails to contain the corresponding $\mathbf{a'\mu}$ is no more than $\alpha$.

• These intervals are useful for “data snooping” (similar to Scheffé’s method in ANOVA

  24.1.1.5.4.2).

---

25.1.6.3.3 One-at-a-Time Confidence Intervals

A simpler alternative is to construct separate confidence intervals for each mean component individually:

$$\bar{y}_i \pm t_{(1 - \alpha/2, n-1)} \sqrt{\frac{s_{ii}}{n}}.$$

Limitations

• Each interval has a probability of $1-\alpha$ of covering the corresponding $\mu_i$.
• They ignore the covariance structure between the $p$ variables.

Bonferroni Correction for Multiple Comparisons

If we only care about $k$ specific intervals, we can adjust for multiple comparisons using the Bonferroni correction:

$$\bar{y}_i \pm t_{(1 - \alpha/(2k), n-1)} \sqrt{\frac{s_{ii}}{n}}.$$

• This ensures that the overall confidence level remains at $100(1 - \alpha)\%$.
• The method becomes more conservative as the number of comparisons $k$ increases.

---

# Load necessary libraries
library(MASS)    # For multivariate analysis
library(ICSNP)   # For Hotelling's T2 test
library(tidyverse)  # Data manipulation and plotting

# Simulated dataset (5 variables, 30 observations)
set.seed(123)
n <- 30  # Sample size
p <- 5   # Number of variables
alpha <- 0.05  # Significance level

# Population mean and covariance
mu <- rep(0, p)
Sigma <- diag(p)

# Generate multivariate normal data
data <- mvrnorm(n, mu, Sigma)
colnames(data) <- paste0("V", 1:p)

# Compute sample mean and covariance
sample_mean <- colMeans(data)
sample_cov  <- cov(data)

# Hotelling's T^2 statistic
T2 <-
    n * t(sample_mean - mu) %*% solve(sample_cov) %*% (sample_mean - mu)

# Critical value for Hotelling's T^2 test
F_crit <- ((n - 1) * p / (n - p)) * qf(1 - alpha, p, n - p)

# Confidence region check
T2 <= F_crit  # If TRUE, mean vector is within the confidence region
#>      [,1]
#> [1,] TRUE

# Simultaneous confidence intervals
CI_limits <-
    sqrt(((n - 1) * p) / (n - p) * qf(1 - alpha, p, n - p) * diag(sample_cov) / n)

# Construct confidence intervals
simultaneous_CI <- data.frame(
  Variable = colnames(data),
  Lower = sample_mean - CI_limits,
  Upper = sample_mean + CI_limits
)

print(simultaneous_CI)
#>    Variable      Lower     Upper
#> V1       V1 -0.9983080 0.6311472
#> V2       V2 -0.7372215 0.5494437
#> V3       V3 -0.5926088 0.6414496
#> V4       V4 -0.4140990 0.7707756
#> V5       V5 -0.7430441 0.6488366

# Bonferroni-corrected one-at-a-time confidence intervals
t_crit <- qt(1 - alpha / (2 * p), n - 1)

bonferroni_CI <- data.frame(
  Variable = colnames(data),
  Lower = sample_mean - t_crit * sqrt(diag(sample_cov) / n),
  Upper = sample_mean + t_crit * sqrt(diag(sample_cov) / n)
)

print(bonferroni_CI)
#>    Variable      Lower     Upper
#> V1       V1 -0.7615465 0.3943857
#> V2       V2 -0.5502678 0.3624900
#> V3       V3 -0.4132989 0.4621397
#> V4       V4 -0.2419355 0.5986122
#> V5       V5 -0.5408025 0.4465950

25.1.7 General Hypothesis Testing

25.1.7.1 One-Sample Multivariate Tests

We consider testing the hypothesis:

$$H_0: \mathbf{C \mu} = 0$$

where:

• $\mathbf{C}$ is a $c \times p$ contrast matrix of rank $c$, where $c \leq p$.

• $\mathbf{\mu}$ is the $p \times 1$ population mean vector.

The test statistic for this hypothesis is:

$$F = \frac{n - c}{(n-1)c} T^2$$

where:

$$T^2 = n(\mathbf{C\bar{y}})' (\mathbf{CSC'})^{-1} (\mathbf{C\bar{y}}).$$

This follows an F-distribution:

$$F \sim f_{(c, n-c)}.$$

---

Example: Testing Equal Means Across Variables

We test whether all mean components are equal:

$$H_0: \mu_1 = \mu_2 = \dots = \mu_p.$$

This can be rewritten as:

$$\begin{aligned} \mu_1 - \mu_2 &= 0, \\ \mu_2 - \mu_3 &= 0, \\ &\vdots \\ \mu_{p-1} - \mu_p &= 0. \end{aligned}$$

Since we are testing $p-1$ constraints, the contrast matrix $\mathbf{C}$ is a $(p-1) \times p$ matrix:

$$\mathbf{C} = \begin{bmatrix} 1 & -1 & 0 & \dots & 0 \\ 0 & 1 & -1 & \dots & 0 \\ \vdots & \vdots & \vdots & \ddots & \vdots \\ 0 & 0 & \dots & 1 & -1 \end{bmatrix}.$$

Alternatively, we can compare all other means to the first mean:

$$H_0: \mu_1 - \mu_2 = 0, \quad \mu_1 - \mu_3 = 0, \quad \dots, \quad \mu_1 - \mu_p = 0.$$

The contrast matrix $\mathbf{C}$ then becomes:

$$\mathbf{C} = \begin{bmatrix} -1 & 1 & 0 & \dots & 0 \\ -1 & 0 & 1 & \dots & 0 \\ \vdots & \vdots & \vdots & \ddots & \vdots \\ -1 & 0 & \dots & 0 & 1 \end{bmatrix}.$$

Key Property

• The value of $T^2$ is invariant to these different choices of $\mathbf{C}$.

---

Application: Repeated Measures Design

Repeated measures designs involve measuring each subject multiple times under different conditions or time points.

Let:

• $y_{ij}$ be the response of subject $i$ at time $j$, where $i = 1, \dots, n$ and $j = 1, \dots, T$.

• $\mathbf{y}_i = (y_{i1}, ..., y_{iT})'$ be a random sample from:

$$N_T (\mathbf{\mu}, \mathbf{\Sigma}).$$

---

Example: Testing Equal Means Over Time

Suppose we have:

• $n = 8$ subjects,

• $T = 6$ time points.

We test:

$$H_0: \mu_1 = \mu_2 = \dots = \mu_6.$$

This is equivalent to:

$$\begin{aligned} \mu_1 - \mu_2 &= 0, \\ \mu_2 - \mu_3 &= 0, \\ &\dots, \\ \mu_5 - \mu_6 &= 0. \end{aligned}$$

The corresponding contrast matrix is:

$$\mathbf{C} = \begin{bmatrix} 1 & -1 & 0 & 0 & 0 & 0 \\ 0 & 1 & -1 & 0 & 0 & 0 \\ 0 & 0 & 1 & -1 & 0 & 0 \\ 0 & 0 & 0 & 1 & -1 & 0 \\ 0 & 0 & 0 & 0 & 1 & -1 \end{bmatrix}.$$

If measurements occur at equally spaced time points, we can test for trend effects using orthogonal polynomials.

For example, testing whether quadratic and cubic trends are jointly zero, we use:

$$\mathbf{C} = \begin{bmatrix} 1 & -1 & -1 & 1 \\ -1 & 3 & -3 & 1 \end{bmatrix}.$$

---

# Load necessary libraries
library(MASS)    # For multivariate normal data
library(ICSNP)   # For Hotelling's T^2 test

# Simulated dataset (6 variables, 8 subjects)
set.seed(123)
n <- 8   # Number of subjects
p <- 6   # Number of time points

# Generate sample data
mu <- rep(5, p)  # Population mean
Sigma <- diag(p)  # Identity covariance matrix

data <- mvrnorm(n, mu, Sigma)
colnames(data) <- paste0("Time", 1:p)

# Compute sample mean and covariance
sample_mean <- colMeans(data)
sample_cov  <- cov(data)

# Define contrast matrix for equal means hypothesis
C <- matrix(0, nrow = p - 1, ncol = p)
for (i in 1:(p - 1)) {
  C[i, i] <- 1
  C[i, i + 1] <- -1
}

# Compute Hotelling's T^2 statistic
T2 <-
    n * t(C %*% sample_mean) %*% solve(C %*% sample_cov %*% t(C)) %*% (C %*% sample_mean)

# Compute F statistic
c <- nrow(C)
F_stat <- ((n - c) / ((n - 1) * c)) * T2

# Critical value
F_crit <- qf(0.95, c, n - c)

# Decision rule
decision <- F_stat > F_crit

# Print results
list(
  T2_statistic = T2,
  F_statistic = F_stat,
  F_critical_value = F_crit,
  Reject_H0 = decision
)
#> $T2_statistic
#>          [,1]
#> [1,] 22.54896
#>
#> $F_statistic
#>          [,1]
#> [1,] 1.932768
#>
#> $F_critical_value
#> [1] 9.013455
#>
#> $Reject_H0
#>       [,1]
#> [1,] FALSE

---

25.1.7.2 Two-Sample Multivariate Tests

Consider testing the equality of two multivariate population means. Suppose we have two independent random samples:

$$\begin{aligned} \mathbf{y}_{1i} &\sim N_p (\mathbf{\mu}_1, \mathbf{\Sigma}), \quad i = 1, \dots, n_1, \\ \mathbf{y}_{2j} &\sim N_p (\mathbf{\mu}_2, \mathbf{\Sigma}), \quad j = 1, \dots, n_2. \end{aligned}$$

We assume:

• Multivariate normality of both populations.

• Equal variance-covariance matrices: $\mathbf{\Sigma}_1 = \mathbf{\Sigma}_2 = \mathbf{\Sigma}$.

• Independence between samples.

---

We summarize our data using the sufficient statistics:

• Sample means: $\mathbf{\bar{y}}_1$, $\mathbf{\bar{y}}_2$.

• Sample covariance matrices: $\mathbf{S}_1$, $\mathbf{S}_2$.

• Sample sizes: $n_1, n_2$.

Since we assume equal variance-covariance matrices, we compute a pooled estimator:

$$\mathbf{S} = \frac{(n_1 - 1)\mathbf{S}_1 + (n_2 - 1)\mathbf{S}_2}{(n_1 -1) + (n_2 - 1)}$$

with $n_1 + n_2 - 2$ degrees of freedom.

We test:

$$\begin{aligned} &H_0: \mathbf{\mu}_1 = \mathbf{\mu}_2, \\ &H_a: \mathbf{\mu}_1 \neq \mathbf{\mu}_2. \end{aligned}$$

That is, we check whether at least one element of $\mathbf{\mu}_1 - \mathbf{\mu}_2$ is different.

We use:

• $\mathbf{\bar{y}}_1 - \mathbf{\bar{y}}_2$ to estimate $\mathbf{\mu}_1 - \mathbf{\mu}_2$.

• $\mathbf{S}$ to estimate $\mathbf{\Sigma}$.

Since the two populations are independent, the covariance is:

$$\text{Cov}(\mathbf{\bar{y}}_1 - \mathbf{\bar{y}}_2) = \text{Var}(\mathbf{\bar{y}}_1) + \text{Var}(\mathbf{\bar{y}}_2) = \mathbf{\Sigma} \left(\frac{1}{n_1} + \frac{1}{n_2} \right).$$

The Hotelling’s $T^2$ statistic is:

$$T^2 = (\mathbf{\bar{y}}_1 - \mathbf{\bar{y}}_2)' \left\{ \mathbf{S} \left(\frac{1}{n_1} + \frac{1}{n_2} \right) \right\}^{-1} (\mathbf{\bar{y}}_1 - \mathbf{\bar{y}}_2).$$

which simplifies to:

$$T^2 = \frac{n_1 n_2}{n_1 + n_2} (\mathbf{\bar{y}}_1 - \mathbf{\bar{y}}_2)' \mathbf{S}^{-1} (\mathbf{\bar{y}}_1 - \mathbf{\bar{y}}_2).$$

Reject $H_0$ if:

$$T^2 \geq \frac{(n_1 + n_2 - 2)p}{n_1 + n_2 - p - 1} f_{(1- \alpha, p, n_1 + n_2 - p - 1)}$$

or equivalently, using the F-statistic:

$$F = \frac{n_1 + n_2 - p -1}{(n_1 + n_2 -2)p} T^2.$$

Reject $H_0$ if:

$$F \geq f_{(1- \alpha, p , n_1 + n_2 - p -1)}.$$

---

A $100(1-\alpha)\%$ confidence region for $\mathbf{\mu}_1 - \mathbf{\mu}_2$ consists of all vectors $\mathbf{\delta}$ satisfying:

$$\frac{n_1 n_2}{n_1 + n_2} (\mathbf{\bar{y}}_1 - \mathbf{\bar{y}}_2 - \mathbf{\delta})' \mathbf{S}^{-1} (\mathbf{\bar{y}}_1 - \mathbf{\bar{y}}_2 - \mathbf{\delta}) \leq \frac{(n_1 + n_2 - 2)p}{n_1 + n_2 - p - 1} f_{(1-\alpha, p, n_1 + n_2 - p -1)}.$$

For all linear combinations of $\mathbf{\mu}_1 - \mathbf{\mu}_2$, the simultaneous confidence intervals:

$$\mathbf{a'}(\mathbf{\bar{y}}_1 - \mathbf{\bar{y}}_2) \pm \sqrt{\frac{(n_1 + n_2 -2)p}{n_1 + n_2 - p -1} f_{(1-\alpha, p, n_1 + n_2 - p -1)} \times \mathbf{a'Sa} \left(\frac{1}{n_1} + \frac{1}{n_2}\right)}.$$

For $k$ pairwise comparisons, Bonferroni intervals are:

$$(\bar{y}_{1i} - \bar{y}_{2i}) \pm t_{(1-\alpha/2k, n_1 + n_2 - 2)} \sqrt{\left(\frac{1}{n_1} + \frac{1}{n_2}\right) s_{ii}}.$$

---

# Load necessary libraries
library(MASS)    # For multivariate analysis
library(ICSNP)   # For Hotelling's T^2 test

# Simulated dataset (p = 4 variables, two groups)
set.seed(123)
n1 <- 20  # Sample size for group 1
n2 <- 25  # Sample size for group 2
p <- 4    # Number of variables

# Generate data for both groups
mu1 <- rep(0, p)  # Mean vector for group 1
mu2 <- rep(1, p)  # Mean vector for group 2
Sigma <- diag(p)  # Identity covariance matrix

data1 <- mvrnorm(n1, mu1, Sigma)
data2 <- mvrnorm(n2, mu2, Sigma)

# Compute sample means and covariance matrices
y1_bar <- colMeans(data1)
y2_bar <- colMeans(data2)
S1 <- cov(data1)
S2 <- cov(data2)

# Compute pooled covariance matrix
S_pooled <- ((n1 - 1) * S1 + (n2 - 1) * S2) / (n1 + n2 - 2)

# Compute Hotelling's T^2 statistic
T2 <- (y1_bar - y2_bar) %*% solve(S_pooled * (1/n1 + 1/n2)) %*% (y1_bar - y2_bar)

# Convert to F-statistic
F_stat <- ((n1 + n2 - p - 1) / ((n1 + n2 - 2) * p)) * T2
F_crit <- qf(0.95, p, n1 + n2 - p - 1)

# Decision rule
decision <- F_stat > F_crit

# Print results
list(
  T2_statistic = T2,
  F_statistic = F_stat,
  F_critical_value = F_crit,
  Reject_H0 = decision
)
#> $T2_statistic
#>          [,1]
#> [1,] 51.90437
#>
#> $F_statistic
#>          [,1]
#> [1,] 12.07078
#>
#> $F_critical_value
#> [1] 2.605975
#>
#> $Reject_H0
#>      [,1]
#> [1,] TRUE

25.1.7.3 Model Assumptions in Multivariate Tests

25.1.7.3.1 Effects of Unequal Covariance Matrices

We assume that the two population covariance matrices are equal ($\mathbf{\Sigma}_1 = \mathbf{\Sigma}_2$), but in reality, this assumption may not hold.

Impact on Type I Error and Power

• If $n_1 = n_2$ (large samples), the impact on Type I error rate and power is minimal.
• If $n_1 > n_2$ and eigenvalues of $\mathbf{\Sigma}_1 \mathbf{\Sigma}_2^{-1}$ are less than 1, the Type I error is inflated.
• If $n_1 > n_2$ and some eigenvalues of $\mathbf{\Sigma}_1 \mathbf{\Sigma}_2^{-1}$ are greater than 1, the Type I error is too small, reducing power.

---

25.1.7.3.2 Effects of Non-Normality

Multivariate tests often assume normality, but real-world data may not follow a normal distribution.

Impact on Test Performance

• Two-sample Hotelling’s $T^2$ test is robust to moderate departures from normality if both populations have similar distributions.
• One-sample Hotelling’s $T^2$ test is more sensitive to lack of normality, especially when the distribution is skewed.

Intuition

• A one-sample test depends on the distribution of individual variables, making it more sensitive to normality violations.
• A two-sample test depends on the distribution of differences, which may be less sensitive to non-normality if both groups have similar distributions.

Solutions

1. Transform the data (e.g., log or Box-Cox transformation 12) to improve normality.

2. Use large samples and rely on the Central Limit Theorem.

3. Use alternative tests that do not assume normality:

   • Wald’s Test (Chi-square-based test), which does not require:

     • Normality,
     • Equal sample sizes,
     • Equal covariance matrices.

   • Test:

     $$H_0: \mathbf{\mu}_1 - \mathbf{\mu}_2 = 0$$

     using:

     $$(\mathbf{\bar{y}}_1 - \mathbf{\bar{y}}_2)' \left( \frac{1}{n_1} \mathbf{S}_1 + \frac{1}{n_2} \mathbf{S}_2 \right)^{-1} (\mathbf{\bar{y}}_1 - \mathbf{\bar{y}}_2) \dot{\sim} \chi^2_p.$$

---

25.1.7.3.3 Testing Equality of Covariance Matrices

With $k$ independent groups, each having a $p$-dimensional vector, we test:

$$\begin{aligned} &H_0: \mathbf{\Sigma}_1 = \mathbf{\Sigma}_2 = \dots = \mathbf{\Sigma}_k = \mathbf{\Sigma}, \\ &H_a: \text{At least two are different}. \end{aligned}$$

If $H_0$ holds, we use a pooled covariance estimate:

$$\mathbf{S} = \frac{\sum_{i=1}^k (n_i -1)\mathbf{S}_i}{\sum_{i=1}^k (n_i - 1)}$$

with $\sum_{i=1}^k (n_i -1)$ degrees of freedom.

---

25.1.7.3.4 Bartlett’s Test for Equal Covariances

Bartlett’s test is a likelihood ratio test for equality of covariance matrices.

Define:

$$N = \sum_{i=1}^k n_i.$$

Compute:

$$M = (N - k) \log|\mathbf{S}| - \sum_{i=1}^k (n_i - 1) \log|\mathbf{S}_i|.$$

Correction factor:

$$C^{-1} = 1 - \frac{2p^2 + 3p - 1}{6(p+1)(k-1)} \left\{ \sum_{i=1}^k \left(\frac{1}{n_i - 1}\right) - \frac{1}{N-k} \right\}.$$

Reject $H_0$ if:

$$MC^{-1} > \chi^2_{1- \alpha, (k-1)p(p+1)/2}.$$

Limitations

• Sensitive to non-normality: If data are not normal, $MC^{-1}$ often follows a right-skewed distribution (i.e., shifted to the right of the nomial $\chi^2$ distriubtion), increasing false positives.
• Best practice: Check univariate and multivariate normality first before using Bartlett’s test.

---

# Load required packages
library(MASS)    # For multivariate normal data
library(ICSNP)   # Multivariate tests
library(car)     # Homogeneity of variance tests

# Simulated dataset (three groups, p = 4 variables)
set.seed(123)
n1 <- 20  # Group 1 sample size
n2 <- 25  # Group 2 sample size
n3 <- 30  # Group 3 sample size
p <- 4    # Number of variables

# Generate data from different covariance structures
mu1 <- rep(0, p)
mu2 <- rep(1, p)
mu3 <- rep(2, p)

Sigma1 <- diag(p)         # Identity covariance for group 1
Sigma2 <- 2 * diag(p)     # Scaled identity for group 2
Sigma3 <- matrix(0.5, p, p) + diag(0.5, p)  # Structured covariance for group 3

data1 <- mvrnorm(n1, mu1, Sigma1)
data2 <- mvrnorm(n2, mu2, Sigma2)
data3 <- mvrnorm(n3, mu3, Sigma3)

# Create a combined dataset
group_labels <- c(rep("Group1", n1), rep("Group2", n2), rep("Group3", n3))
data <- data.frame(Group = group_labels, rbind(data1, data2, data3))

# Compute covariance matrices
S1 <- cov(data1)
S2 <- cov(data2)
S3 <- cov(data3)

# Bartlett's Test for Equal Covariances
bartlett_test <- bartlett.test(data[,-1], g = data$Group)
print(bartlett_test)
#>
#>  Bartlett test of homogeneity of variances
#>
#> data:  data[, -1]
#> Bartlett's K-squared = 0.99333, df = 3, p-value = 0.8029

# Box’s M test (alternative for multivariate homogeneity)
box_test <- boxM(data[,-1], data$Group)
print(box_test)
#>
#>  Box's M-test for Homogeneity of Covariance Matrices
#>
#> data:  data[, -1]
#> Chi-Sq (approx.) = 51.039, df = 20, p-value = 0.000157

---

25.1.7.4 Two-Sample Repeated Measures Analysis

Define $\mathbf{y}_{hi}$ as the $t$-dimensional response vector for subject $i$ in group $h$:

$$\mathbf{y}_{hi} = (y_{hi1}, y_{hi2}, ..., y_{hit})'$$

Assume:

• Group 1: $\mathbf{y}_{11}, ..., \mathbf{y}_{1n_1} \sim N_t(\mathbf{\mu}_1, \mathbf{\Sigma})$ (i.e., iid from a common distribution).

• Group 2: $\mathbf{y}_{21}, ..., \mathbf{y}_{2n_2} \sim N_t(\mathbf{\mu}_2, \mathbf{\Sigma})$.

We test whether the mean response vectors are equal across groups:

$$H_0: \mathbf{C}(\mathbf{\mu}_1 - \mathbf{\mu}_2) = \mathbf{0}_c.$$

where:

• $\mathbf{C}$ is a contrast matrix of dimensions $c \times t$ (rank $c$, where $c \leq t$).

• If $H_0$ is true, the two groups have the same mean structure.

---

The Hotelling’s $T^2$ statistic for repeated measures is:

$$T^2 = \frac{n_1 n_2}{n_1 + n_2} (\mathbf{\bar{y}}_1 - \mathbf{\bar{y}}_2)' \mathbf{C}' (\mathbf{CSC'})^{-1} \mathbf{C} (\mathbf{\bar{y}}_1 - \mathbf{\bar{y}}_2).$$

where $\mathbf{S}$ is the pooled covariance matrix. The corresponding F-statistic follows:

$$F = \frac{n_1 + n_2 - c - 1}{(n_1 + n_2 - 2)c} T^2 \sim f_{(c, n_1 + n_2 - c - 1)}.$$

under the null hypothesis.

---

If we reject $H_0: \mathbf{\mu}_1 = \mathbf{\mu}_2$, we may test whether the profiles are parallel:

$$\begin{aligned} \mu_{11} - \mu_{21} &= \mu_{12} - \mu_{22}, \\ &\vdots \\ \mu_{1t-1} - \mu_{2t-1} &= \mu_{1t} - \mu_{2t}. \end{aligned}$$

This is expressed as:

$$H_0: \mathbf{C}(\mu_1 - \mu_2) = \mathbf{0}_c,$$

where:

• $c = t - 1$ (one fewer than the number of time points).
• The contrast matrix $\mathbf{C}$ is:

$$\mathbf{C} = \begin{bmatrix} 1 & -1 & 0 & \dots & 0 \\ 0 & 1 & -1 & \dots & 0 \\ \vdots & \vdots & \vdots & \ddots & \vdots \\ 0 & 0 & 0 & \dots & -1 \end{bmatrix}_{(t-1) \times t}.$$

---

1. One-Sample Hotelling’s $T^2$ Test

# Load necessary libraries
library(ICSNP)
library(dplyr)

# Data: Measurements on 3 variables
plants <- data.frame(
    y1 = c(2.11, 2.36, 2.13, 2.78, 2.17),
    y2 = c(10.1, 35.0, 2.0, 6.0, 2.0),
    y3 = c(3.4, 4.1, 1.9, 3.8, 1.7)
)

# Center the data with hypothesized means
plants_ctr <- plants %>%
    transmute(y1_ctr = y1 - 2.85,
              y2_ctr = y2 - 15.0,
              y3_ctr = y3 - 6.0) %>%
    as.matrix()

# Perform Wilks' Lambda test for one-sample Hotelling's T^2
onesamp_fit <- anova(lm(plants_ctr ~ 1), test = "Wilks")
print(onesamp_fit)
#> Analysis of Variance Table
#>
#>             Df    Wilks approx F num Df den Df  Pr(>F)
#> (Intercept)  1 0.054219   11.629      3      2 0.08022 .
#> Residuals    4
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

• If the p-value is large, we fail to reject $H_0$ and conclude that the hypothesized mean vector is plausible.

• If the p-value is small, we reject $H_0$ and infer that the sample mean significantly differs from the hypothesized values.

2. Paired-Sample Hotelling’s $T^2$ Test

Used when each subject has two sets of paired measurements.

# Data: Commercial vs. State Lab Waste Analysis
waste <- data.frame(
    case = 1:11,
    com_y1 = c(6, 6, 18, 8, 11, 34, 28, 71, 43, 33, 20),
    com_y2 = c(27, 23, 64, 44, 30, 75, 26, 124, 54, 30, 14),
    state_y1 = c(25, 28, 36, 35, 15, 44, 42, 54, 34, 29, 39),
    state_y2 = c(15, 13, 22, 29, 31, 64, 30, 64, 56, 20, 21)
)

# Compute differences between commercial and state labs
waste_diff <- waste %>%
    transmute(y1_diff = com_y1 - state_y1,
              y2_diff = com_y2 - state_y2)

# Perform Paired Hotelling’s T^2 test
paired_fit <- HotellingsT2(waste_diff)
print(paired_fit)
#>
#>  Hotelling's one sample T2-test
#>
#> data:  waste_diff
#> T.2 = 6.1377, df1 = 2, df2 = 9, p-value = 0.02083
#> alternative hypothesis: true location is not equal to c(0,0)

• Reject $H_0$: Measurements from the two labs significantly differ.

• Fail to reject $H_0$: No significant difference between the two labs.

3. Independent-Sample Hotelling’s $T^2$ Test with Bartlett’s Test

Used when comparing two independent groups.

# Read steel strength data
steel <- read.table("images/steel.dat")
names(steel) <- c("Temp", "Yield", "Strength")

# Scatter plot of Yield vs Strength
library(ggplot2)
ggplot(steel, aes(x = Yield, y = Strength)) +
    geom_text(aes(label = Temp), size = 5) +
    geom_segment(aes(x = 33, y = 57.5, xend = 42, yend = 65), col = "red")

# Bartlett's test for equality of covariances
bart_test <- boxM(steel[, -1], steel$Temp)
print(bart_test)  # If p > 0.05, fail to reject equal covariances
#>
#>  Box's M-test for Homogeneity of Covariance Matrices
#>
#> data:  steel[, -1]
#> Chi-Sq (approx.) = 0.38077, df = 3, p-value = 0.9442

# Multivariate analysis of variance (MANOVA) using Wilks' Lambda
twosamp_fit <-
    anova(lm(cbind(Yield, Strength) ~ factor(Temp), data = steel),
          test = "Wilks")
print(twosamp_fit)
#> Analysis of Variance Table
#>
#>              Df    Wilks approx F num Df den Df    Pr(>F)
#> (Intercept)   1 0.001177   3818.1      2      9 6.589e-14 ***
#> factor(Temp)  1 0.294883     10.8      2      9  0.004106 **
#> Residuals    10
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

# Independent-Sample Hotelling's T^2 Test
twosamp_fit2 <- HotellingsT2(cbind(steel$Yield, steel$Strength) ~ factor(steel$Temp))
print(twosamp_fit2)
#>
#>  Hotelling's two sample T2-test
#>
#> data:  cbind(steel$Yield, steel$Strength) by factor(steel$Temp)
#> T.2 = 10.76, df1 = 2, df2 = 9, p-value = 0.004106
#> alternative hypothesis: true location difference is not equal to c(0,0)

• Reject $H_0$: The two temperature groups have significantly different mean vectors.

• Fail to reject $H_0$: No significant difference between groups.

Summary of Repeated Measures Hypothesis Testing

Test	Hypothesis	Application
One-Sample Hotelling’s $T^2$	$H_0: \mathbf{\mu} = \mathbf{\mu}_0$	Single group mean vector test
Paired-Sample Hotelling’s $T^2$	$H_0: \mathbf{\mu}_d = 0$	Paired measurements comparison
Independent-Sample Hotelling’s $T^2$	$H_0: \mathbf{\mu}_1 = \mathbf{\mu}_2$	Two-group mean vector test
Parallel Profiles Test	$H_0: \mathbf{C}(\mathbf{\mu}_1 - \mathbf{\mu}_2) = \mathbf{0}$	Testing parallel time trends

---

25.2 Multivariate Analysis of Variance

Multivariate Analysis of Variance (MANOVA) is an extension of the univariate Analysis of Variance (ANOVA) that allows researchers to examine multiple dependent variables simultaneously. Unlike ANOVA, which evaluates differences in means for a single dependent variable across groups, MANOVA assesses whether there are statistically significant differences among groups across two or more correlated dependent variables.

By considering multiple dependent variables at once, MANOVA accounts for interdependencies between them, reducing the likelihood of Type I errors that may arise from conducting multiple separate ANOVA tests. It is particularly useful in fields such as psychology, marketing, and social sciences, where multiple outcome measures are often interrelated.

This technique is commonly applied in experimental and observational studies where researchers seek to determine the impact of categorical independent variables on multiple continuous dependent variables.

25.2.1 One-Way MANOVA

One-way MANOVA extends the univariate one-way ANOVA to multiple dependent variables. It is used to compare treatment means across $h$ different populations when the response consists of multiple correlated variables.

Let the populations be indexed by $i = 1, 2, \dots, h$, and the observations within each population be indexed by $j = 1, 2, \dots, n_i$. We assume:

Population 1: $\mathbf{y}_{11}, \mathbf{y}_{12}, \dots, \mathbf{y}_{1n_1} \sim \text{i.i.d. } N_p (\boldsymbol{\mu}_1, \boldsymbol{\Sigma})$

$\vdots$

Population $h$: $\mathbf{y}_{h1}, \mathbf{y}_{h2}, \dots, \mathbf{y}_{hn_h} \sim \text{i.i.d. } N_p (\boldsymbol{\mu}_h, \boldsymbol{\Sigma})$

where:

• $\mathbf{y}_{ij}$ is a $p$-dimensional response vector for the $j$th observation in the $i$th group.

• $\boldsymbol{\mu}_i$ is the population mean vector for the $i$th group.

• $\boldsymbol{\Sigma}$ is the common covariance matrix across all groups.

Assumptions

1. Independence: Observations within and across groups are independent.
2. Multivariate Normality: Each population follows a $p$-variate normal distribution.
3. Homogeneity of Covariance Matrices: The covariance matrix $\boldsymbol{\Sigma}$ is the same for all groups.

For each group $i$, we can compute:

• Sample mean vector: $\mathbf{\bar{y}}_i = \frac{1}{n_i} \sum_{j=1}^{n_i} \mathbf{y}_{ij}$

• Sample covariance matrix: $\mathbf{S}_i = \frac{1}{n_i - 1} \sum_{j=1}^{n_i} (\mathbf{y}_{ij} - \mathbf{\bar{y}}_i)(\mathbf{y}_{ij} - \mathbf{\bar{y}}_i)'$

• Pooled covariance matrix: $$\mathbf{S} = \frac{1}{\sum_{i=1}^{h} (n_i - 1)} \sum_{i=1}^{h} (n_i - 1) \mathbf{S}_i$$

25.2.1.1 Effects Model Formulation

Similar to the univariate one-way ANOVA, the effects model can be written as:

$$\boldsymbol{\mu}_i = \boldsymbol{\mu} + \boldsymbol{\tau}_i$$

where:

• $\boldsymbol{\mu}_i$ is the mean vector for group $i$.

• $\boldsymbol{\mu}$ is the overall mean effect.

• $\boldsymbol{\tau}_i$ is the treatment effect for group $i$.

The observational model is:

$$\mathbf{y}_{ij} = \boldsymbol{\mu} + \boldsymbol{\tau}_i + \boldsymbol{\epsilon}_{ij}$$

where $\boldsymbol{\epsilon}_{ij} \sim N_p(\mathbf{0}, \boldsymbol{\Sigma})$ represents the residual variation.

Since the model is overparameterized, we impose the constraint:

$$\sum_{i=1}^h n_i \boldsymbol{\tau}_i = \mathbf{0}$$

or equivalently, we may set $\boldsymbol{\tau}_h = \mathbf{0}$.

---

Analogous to univariate ANOVA, the total variability is partitioned as:

$$\sum_{i = 1}^h \sum_{j = 1}^{n_i} (\mathbf{y}_{ij} - \mathbf{\bar{y}})(\mathbf{y}_{ij} - \mathbf{\bar{y}})' = \sum_{i = 1}^h n_i (\mathbf{\bar{y}}_i - \mathbf{\bar{y}})(\mathbf{\bar{y}}_i - \mathbf{\bar{y}})' + \sum_{i=1}^h \sum_{j = 1}^{n_i} (\mathbf{y}_{ij} - \mathbf{\bar{y}}_i)(\mathbf{y}_{ij} - \mathbf{\bar{y}}_i)'$$

where:

• LHS: Total corrected sums of squares and cross-products (SSCP) matrix.

• RHS:

  • First term: Between-groups SSCP matrix (denoted $\mathbf{H}$).

  • Second term: Within-groups (residual) SSCP matrix (denoted $\mathbf{E}$).

The total within-group variation is:

$$\mathbf{E} = (n_1 - 1)\mathbf{S}_1 + \dots + (n_h -1) \mathbf{S}_h = (\sum_{i=1}^h n_i - h) \mathbf{S}$$

MANOVA Table

Source	SSCP	df
Treatment	$\mathbf{H}$	$h -1$
Residual (error)	$\mathbf{E}$	$\sum_{i= 1}^h n_i - h$
Total Corrected	$\mathbf{H + E}$	$\sum_{i=1}^h n_i -1$

25.2.1.1.1 Hypothesis Testing

The null hypothesis states:

$$H_0: \boldsymbol{\tau}_1 = \boldsymbol{\tau}_2 = \dots = \boldsymbol{\tau}_h = \mathbf{0}$$

which implies that all group mean vectors are equal.

To test $H_0$, we assess the relative sizes of $\mathbf{E}$ and $\mathbf{H + E}$ using Wilks’ Lambda:

Wilks’ Lambda is defined as:

$$\Lambda^* = \frac{|\mathbf{E}|}{|\mathbf{H + E}|}$$

Properties:

1. In the univariate case, Wilks’ Lambda reduces to the F-statistic.
2. The exact distribution of $\Lambda^*$ is known in special cases.
3. For large samples, we reject $H_0$ if:

$$-\left( \sum_{i=1}^h n_i - 1 - \frac{p+h}{2} \right) \log(\Lambda^*) > \chi^2_{(1-\alpha, p(h-1))}$$

# Load dataset
data(iris)

# Fit MANOVA model
manova_fit <-
    manova(cbind(Sepal.Length, Sepal.Width, Petal.Length, Petal.Width) ~ Species,
           data = iris)

# Summary of the MANOVA test
summary(manova_fit, test = "Wilks")
#>            Df    Wilks approx F num Df den Df    Pr(>F)
#> Species     2 0.023439   199.15      8    288 < 2.2e-16 ***
#> Residuals 147
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

25.2.1.2 Testing General Hypotheses in MANOVA

We consider $h$ different treatments, where the $i$-th treatment is applied to $n_i$ subjects, each observed for $p$ repeated measures. This results in a $p$-dimensional observation vector for each subject in a random sample from each of the $h$ different treatment populations.

The general MANOVA model can be written as:

$$\mathbf{y}_{ij} = \boldsymbol{\mu} + \boldsymbol{\tau}_i + \boldsymbol{\epsilon}_{ij}, \quad i = 1, \dots, h; \quad j = 1, \dots, n_i$$

Equivalently, in matrix notation:

$$\mathbf{Y} = \mathbf{XB} + \boldsymbol{\epsilon}$$

where:

• $\mathbf{Y}_{(n \times p)}$ is the matrix of response variables.

• $\mathbf{X}_{(n \times h)}$ is the design matrix. - $\mathbf{B}_{(h \times p)}$ contains the treatment effects.

• $\boldsymbol{\epsilon}_{(n \times p)}$ is the error matrix.

The response matrix:

$$\mathbf{Y}_{(n \times p)} = \begin{bmatrix} \mathbf{y}_{11}' \\ \vdots \\ \mathbf{y}_{1n_1}' \\ \vdots \\ \mathbf{y}_{hn_h}' \end{bmatrix}$$

The coefficient matrix:

$$\mathbf{B}_{(h \times p)} = \begin{bmatrix} \boldsymbol{\mu}' \\ \boldsymbol{\tau}_1' \\ \vdots \\ \boldsymbol{\tau}_{h-1}' \end{bmatrix}$$

The error matrix:

$$\boldsymbol{\epsilon}_{(n \times p)} = \begin{bmatrix} \boldsymbol{\epsilon}_{11}' \\ \vdots \\ \boldsymbol{\epsilon}_{1n_1}' \\ \vdots \\ \boldsymbol{\epsilon}_{hn_h}' \end{bmatrix}$$

The design matrix $\mathbf{X}$ encodes the treatment assignments:

$$\mathbf{X}_{(n \times h)} = \begin{bmatrix} 1 & 1 & 0 & \dots & 0 \\ \vdots & \vdots & \vdots & & \vdots \\ 1 & 1 & 0 & \dots & 0 \\ \vdots & \vdots & \vdots & \dots & \vdots \\ 1 & 0 & 0 & \dots & 0 \\ \vdots & \vdots & \vdots & & \vdots \\ 1 & 0 & 0 & \dots & 0 \end{bmatrix}$$

25.2.1.2.1 Estimation

The least squares estimate of $\mathbf{B}$ is given by:

$$\hat{\mathbf{B}} = (\mathbf{X'X})^{-1} \mathbf{X'Y}$$

Since the rows of $\mathbf{Y}$ are independent, we assume:

$$\operatorname{Var}(\mathbf{Y}) = \mathbf{I}_n \otimes \boldsymbol{\Sigma}$$

where $\otimes$ denotes the Kronecker product, resulting in an $np \times np$ covariance matrix.

25.2.1.2.2 Hypothesis Testing

The general hypothesis in MANOVA can be written as:

$$\begin{aligned} &H_0: \mathbf{LBM} = 0 \\ &H_a: \mathbf{LBM} \neq 0 \end{aligned}$$

where:

• $\mathbf{L}$ is a $(g \times h)$ matrix of full row rank ($g \le h$), specifying comparisons across groups.

• $\mathbf{M}$ is a $(p \times u)$ matrix of full column rank ($u \le p$), specifying comparisons across traits.

To evaluate the effect of treatments in the MANOVA framework, we compute the treatment corrected sums of squares and cross-product (SSCP) matrix:

$$\mathbf{H} = \mathbf{M'Y'X(X'X)^{-1}L'[L(X'X)^{-1}L']^{-1}L(X'X)^{-1}X'YM}$$

If we are testing the null hypothesis:

$$H_0: \mathbf{LBM} = \mathbf{D}$$

then the corresponding SSCP matrix is:

$$\mathbf{H} = (\mathbf{\hat{LBM}} - \mathbf{D})'[\mathbf{X(X'X)^{-1}L}]^{-1}(\mathbf{\hat{LBM}} - \mathbf{D})$$

Similarly, the residual (error) SSCP matrix is given by:

$$\mathbf{E} = \mathbf{M'Y'[I - X(X'X)^{-1}X']Y M}$$

which can also be expressed as:

$$\mathbf{E} = \mathbf{M'[Y'Y - \hat{B}'(X'X)^{-1} \hat{B}]M}$$

These matrices, $\mathbf{H}$ and $\mathbf{E}$, serve as the basis for assessing the relative treatment effect in a multivariate setting.

---

25.2.1.2.3 Test Statistics in MANOVA

To test whether treatment effects significantly impact the multivariate response, we examine the eigenvalues of $\mathbf{HE}^{-1}$, leading to several common test statistics:

1. Wilks’ Lambda: $$\Lambda^* = \frac{|\mathbf{E}|}{|\mathbf{H} + \mathbf{E}|}$$ A smaller $\Lambda^*$ indicates a greater difference among group mean vectors. The degrees of freedom depend on the ranks of $\mathbf{L}, \mathbf{M},$ and $\mathbf{X}$.

2. Lawley-Hotelling Trace: $$U = \operatorname{tr}(\mathbf{HE}^{-1})$$ This statistic sums the eigenvalues of $\mathbf{HE}^{-1}$, capturing the overall treatment effect.

3. Pillai’s Trace: $$V = \operatorname{tr}(\mathbf{H}(\mathbf{H} + \mathbf{E})^{-1})$$ This test is known for its robustness against violations of MANOVA assumptions.

4. Roy’s Maximum Root: The largest eigenvalue of $\mathbf{HE}^{-1}$. It focuses on the strongest treatment effect present in the data.

For large $n$, under $H_0$:

$$-\left(n - 1 - \frac{p + h}{2} \right) \ln \Lambda^* \sim \chi^2_{p(h-1)}$$

In certain cases, specific values of $p$ and $h$ allow for an exact $F$-distribution under $H_0$.

## One-Way MANOVA

library(car)
library(emmeans)
library(profileR)
library(tidyverse)

# Read in the data
gpagmat <- read.table("images/gpagmat.dat")

# Change the variable names
names(gpagmat) <- c("y1", "y2", "admit")

# Check the structure of the dataset
str(gpagmat)
#> 'data.frame':    85 obs. of  3 variables:
#>  $ y1   : num  2.96 3.14 3.22 3.29 3.69 3.46 3.03 3.19 3.63 3.59 ...
#>  $ y2   : int  596 473 482 527 505 693 626 663 447 588 ...
#>  $ admit: int  1 1 1 1 1 1 1 1 1 1 ...

# Plot the data
gg <- ggplot(gpagmat, aes(x = y1, y = y2)) +
    geom_text(aes(label = admit, col = as.character(admit))) +
    scale_color_discrete(name = "Admission",
                         labels = c("Admit", "Do not admit", "Borderline")) +
    scale_x_continuous(name = "GPA") +
    scale_y_continuous(name = "GMAT")

# Fit a one-way MANOVA model
oneway_fit <- manova(cbind(y1, y2) ~ admit, data = gpagmat)

# MANOVA test using Wilks' Lambda
summary(oneway_fit, test = "Wilks")
#>           Df  Wilks approx F num Df den Df    Pr(>F)
#> admit      1 0.6126   25.927      2     82 1.881e-09 ***
#> Residuals 83
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Since the Wilks’ Lambda test results in a small $p$-value, we reject the null hypothesis of equal multivariate mean vectors among the three admission groups.

Repeated Measures MANOVA

# Create dataset for repeated measures example
stress <- data.frame(
    subject = 1:8,
    begin = c(3, 2, 5, 6, 1, 5, 1, 5),
    middle = c(3, 4, 3, 7, 4, 7, 1, 2),
    final = c(6, 7, 4, 7, 6, 7, 3, 5)
)

Choosing the Correct Model

• If time (with three levels) is treated as an independent variable, we use univariate ANOVA (which requires the sphericity assumption, meaning the variances of all differences must be equal).

• If each time point is treated as a separate variable, we use MANOVA (which does not require the sphericity assumption).

# Fit the MANOVA model for repeated measures
stress_mod <- lm(cbind(begin, middle, final) ~ 1, data = stress)

# Define the within-subject factor
idata <- data.frame(time = factor(
    c("begin", "middle", "final"),
    levels = c("begin", "middle", "final")
))

# Perform repeated measures MANOVA
repeat_fit <- Anova(
    stress_mod,
    idata = idata,
    idesign = ~ time,
    icontrasts = "contr.poly"
)

# Summarize results
summary(repeat_fit)
#>
#> Type III Repeated Measures MANOVA Tests:
#>
#> ------------------------------------------
#>
#> Term: (Intercept)
#>
#>  Response transformation matrix:
#>        (Intercept)
#> begin            1
#> middle           1
#> final            1
#>
#> Sum of squares and products for the hypothesis:
#>             (Intercept)
#> (Intercept)        1352
#>
#> Multivariate Tests: (Intercept)
#>                  Df test stat approx F num Df den Df     Pr(>F)
#> Pillai            1  0.896552 60.66667      1      7 0.00010808 ***
#> Wilks             1  0.103448 60.66667      1      7 0.00010808 ***
#> Hotelling-Lawley  1  8.666667 60.66667      1      7 0.00010808 ***
#> Roy               1  8.666667 60.66667      1      7 0.00010808 ***
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
#>
#> ------------------------------------------
#>
#> Term: time
#>
#>  Response transformation matrix:
#>               time.L     time.Q
#> begin  -7.071068e-01  0.4082483
#> middle -7.850462e-17 -0.8164966
#> final   7.071068e-01  0.4082483
#>
#> Sum of squares and products for the hypothesis:
#>           time.L   time.Q
#> time.L 18.062500 6.747781
#> time.Q  6.747781 2.520833
#>
#> Multivariate Tests: time
#>                  Df test stat approx F num Df den Df   Pr(>F)
#> Pillai            1 0.7080717 7.276498      2      6 0.024879 *
#> Wilks             1 0.2919283 7.276498      2      6 0.024879 *
#> Hotelling-Lawley  1 2.4254992 7.276498      2      6 0.024879 *
#> Roy               1 2.4254992 7.276498      2      6 0.024879 *
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
#>
#> Univariate Type III Repeated-Measures ANOVA Assuming Sphericity
#>
#>             Sum Sq num Df Error SS den Df F value    Pr(>F)
#> (Intercept) 450.67      1    52.00      7 60.6667 0.0001081 ***
#> time         20.58      2    24.75     14  5.8215 0.0144578 *
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
#>
#>
#> Mauchly Tests for Sphericity
#>
#>      Test statistic p-value
#> time         0.7085 0.35565
#>
#>
#> Greenhouse-Geisser and Huynh-Feldt Corrections
#>  for Departure from Sphericity
#>
#>       GG eps Pr(>F[GG])
#> time 0.77429    0.02439 *
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
#>
#>         HF eps Pr(>F[HF])
#> time 0.9528433 0.01611634

The results indicate that we cannot reject the null hypothesis of sphericity, meaning that univariate ANOVA is also appropriate. The linear time effect is significant, but the quadratic time effect is not.

Polynomial Contrasts for Time Effects

To further explore the effect of time, we examine polynomial contrasts.

# Check the reference for the marginal means
ref_grid(stress_mod, mult.name = "time")
#> 'emmGrid' object with variables:
#>     1 = 1
#>     time = multivariate response levels: begin, middle, final

# Compute marginal means for time levels
contr_means <- emmeans(stress_mod, ~ time, mult.name = "time")

# Test for polynomial trends
contrast(contr_means, method = "poly")
#>  contrast  estimate    SE df t.ratio p.value
#>  linear        2.12 0.766  7   2.773  0.0276
#>  quadratic     1.38 0.944  7   1.457  0.1885

The results confirm that there is a significant linear trend over time but no quadratic trend.

MANOVA for Drug Treatments

We now analyze a multivariate response for different drug treatments.

# Read in the dataset
heart <- read.table("images/heart.dat")

# Assign variable names
names(heart) <- c("drug", "y1", "y2", "y3", "y4")

# Create a subject ID nested within drug groups
heart <- heart %>%
    group_by(drug) %>%
    mutate(subject = row_number()) %>%
    ungroup()

# Check dataset structure
str(heart)
#> tibble [24 × 6] (S3: tbl_df/tbl/data.frame)
#>  $ drug   : chr [1:24] "ax23" "ax23" "ax23" "ax23" ...
#>  $ y1     : int [1:24] 72 78 71 72 66 74 62 69 85 82 ...
#>  $ y2     : int [1:24] 86 83 82 83 79 83 73 75 86 86 ...
#>  $ y3     : int [1:24] 81 88 81 83 77 84 78 76 83 80 ...
#>  $ y4     : int [1:24] 77 82 75 69 66 77 70 70 80 84 ...
#>  $ subject: int [1:24] 1 2 3 4 5 6 7 8 1 2 ...

# Create means summary for a profile plot
heart_means <- heart %>%
    group_by(drug) %>%
    summarize_at(vars(starts_with("y")), mean) %>%
    ungroup() %>%
    pivot_longer(-drug, names_to = "time", values_to = "mean") %>%
    mutate(time = as.numeric(as.factor(time)))

# Generate the profile plot
gg_profile <- ggplot(heart_means, aes(x = time, y = mean)) +
    geom_line(aes(col = drug)) +
    geom_point(aes(col = drug)) +
    ggtitle("Profile Plot") +
    scale_y_continuous(name = "Response") +
    scale_x_discrete(name = "Time")

gg_profile

# Fit the MANOVA model
heart_mod <- lm(cbind(y1, y2, y3, y4) ~ drug, data = heart)

# Perform MANOVA test
man_fit <- car::Anova(heart_mod)

# Summarize results
summary(man_fit)
#>
#> Type II MANOVA Tests:
#>
#> Sum of squares and products for error:
#>        y1      y2      y3     y4
#> y1 641.00 601.750 535.250 426.00
#> y2 601.75 823.875 615.500 534.25
#> y3 535.25 615.500 655.875 555.25
#> y4 426.00 534.250 555.250 674.50
#>
#> ------------------------------------------
#>
#> Term: drug
#>
#> Sum of squares and products for the hypothesis:
#>        y1       y2       y3    y4
#> y1 567.00 335.2500  42.7500 387.0
#> y2 335.25 569.0833 404.5417 367.5
#> y3  42.75 404.5417 391.0833 171.0
#> y4 387.00 367.5000 171.0000 316.0
#>
#> Multivariate Tests: drug
#>                  Df test stat  approx F num Df den Df     Pr(>F)
#> Pillai            2  1.283456  8.508082      8     38 1.5010e-06 ***
#> Wilks             2  0.079007 11.509581      8     36 6.3081e-08 ***
#> Hotelling-Lawley  2  7.069384 15.022441      8     34 3.9048e-09 ***
#> Roy               2  6.346509 30.145916      4     19 5.4493e-08 ***
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Since we obtain a small $p$-value, we reject the null hypothesis of no difference in means between the treatments.

Contrasts Between Treatment Groups

To further investigate group differences, we define contrast matrices.

# Convert drug variable to a factor
heart$drug <- factor(heart$drug)

# Define contrast matrix L
L <- matrix(c(0, 2,
              1, -1,-1, -1), nrow = 3, byrow = TRUE)

colnames(L) <- c("bww9:ctrl", "ax23:rest")
rownames(L) <- unique(heart$drug)

# Assign contrasts
contrasts(heart$drug) <- L
contrasts(heart$drug)
#>      bww9:ctrl ax23:rest
#> ax23         0         2
#> bww9         1        -1
#> ctrl        -1        -1

Hypothesis Testing with Contrast Matrices

Instead of setting contrasts in heart$drug, we use a contrast matrix $\mathbf{M}$

# Define contrast matrix M for further testing
M <- matrix(c(1, -1, 0, 0,
              0, 1, -1, 0,
              0, 0, 1, -1), nrow = 4)

# Update model for contrast testing
heart_mod2 <- update(heart_mod)

# Display model coefficients
coef(heart_mod2)
#>                  y1         y2        y3    y4
#> (Intercept)   75.00 78.9583333 77.041667 74.75
#> drugbww9:ctrl  4.50  5.8125000  3.562500  4.25
#> drugax23:rest -2.25  0.7708333  1.979167 -0.75

Comparing Drug bww9 vs Control

bww9vctrl <-
    car::linearHypothesis(heart_mod2,
                          hypothesis.matrix = c(0, 1, 0),
                          P = M)
bww9vctrl
#>
#>  Response transformation matrix:
#>    [,1] [,2] [,3]
#> y1    1    0    0
#> y2   -1    1    0
#> y3    0   -1    1
#> y4    0    0   -1
#>
#> Sum of squares and products for the hypothesis:
#>          [,1]   [,2]     [,3]
#> [1,]  27.5625 -47.25  14.4375
#> [2,] -47.2500  81.00 -24.7500
#> [3,]  14.4375 -24.75   7.5625
#>
#> Sum of squares and products for error:
#>          [,1]     [,2]    [,3]
#> [1,]  261.375 -141.875  28.000
#> [2,] -141.875  248.750 -19.375
#> [3,]   28.000  -19.375 219.875
#>
#> Multivariate Tests:
#>                  Df test stat approx F num Df den Df Pr(>F)
#> Pillai            1 0.2564306 2.184141      3     19 0.1233
#> Wilks             1 0.7435694 2.184141      3     19 0.1233
#> Hotelling-Lawley  1 0.3448644 2.184141      3     19 0.1233
#> Roy               1 0.3448644 2.184141      3     19 0.1233

bww9vctrl <-
    car::linearHypothesis(heart_mod,
                          hypothesis.matrix = c(0, 1,-1),
                          P = M)
bww9vctrl
#>
#>  Response transformation matrix:
#>    [,1] [,2] [,3]
#> y1    1    0    0
#> y2   -1    1    0
#> y3    0   -1    1
#> y4    0    0   -1
#>
#> Sum of squares and products for the hypothesis:
#>          [,1]   [,2]     [,3]
#> [1,]  27.5625 -47.25  14.4375
#> [2,] -47.2500  81.00 -24.7500
#> [3,]  14.4375 -24.75   7.5625
#>
#> Sum of squares and products for error:
#>          [,1]     [,2]    [,3]
#> [1,]  261.375 -141.875  28.000
#> [2,] -141.875  248.750 -19.375
#> [3,]   28.000  -19.375 219.875
#>
#> Multivariate Tests:
#>                  Df test stat approx F num Df den Df Pr(>F)
#> Pillai            1 0.2564306 2.184141      3     19 0.1233
#> Wilks             1 0.7435694 2.184141      3     19 0.1233
#> Hotelling-Lawley  1 0.3448644 2.184141      3     19 0.1233
#> Roy               1 0.3448644 2.184141      3     19 0.1233

Since the $p$-value is not significant, we conclude that there is no significant difference between the control and bww9 drug treatment.

Comparing Drug ax23 vs Rest

axx23vrest <-
    car::linearHypothesis(heart_mod2,
                          hypothesis.matrix = c(0, 0, 1),
                          P = M)
axx23vrest
#>
#>  Response transformation matrix:
#>    [,1] [,2] [,3]
#> y1    1    0    0
#> y2   -1    1    0
#> y3    0   -1    1
#> y4    0    0   -1
#>
#> Sum of squares and products for the hypothesis:
#>           [,1]       [,2]      [,3]
#> [1,]  438.0208  175.20833 -395.7292
#> [2,]  175.2083   70.08333 -158.2917
#> [3,] -395.7292 -158.29167  357.5208
#>
#> Sum of squares and products for error:
#>          [,1]     [,2]    [,3]
#> [1,]  261.375 -141.875  28.000
#> [2,] -141.875  248.750 -19.375
#> [3,]   28.000  -19.375 219.875
#>
#> Multivariate Tests:
#>                  Df test stat approx F num Df den Df     Pr(>F)
#> Pillai            1  0.855364 37.45483      3     19 3.5484e-08 ***
#> Wilks             1  0.144636 37.45483      3     19 3.5484e-08 ***
#> Hotelling-Lawley  1  5.913921 37.45483      3     19 3.5484e-08 ***
#> Roy               1  5.913921 37.45483      3     19 3.5484e-08 ***
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

axx23vrest <-
    car::linearHypothesis(heart_mod,
                          hypothesis.matrix = c(2,-1, 1),
                          P = M)
axx23vrest
#>
#>  Response transformation matrix:
#>    [,1] [,2] [,3]
#> y1    1    0    0
#> y2   -1    1    0
#> y3    0   -1    1
#> y4    0    0   -1
#>
#> Sum of squares and products for the hypothesis:
#>           [,1]       [,2]      [,3]
#> [1,]  402.5208  127.41667 -390.9375
#> [2,]  127.4167   40.33333 -123.7500
#> [3,] -390.9375 -123.75000  379.6875
#>
#> Sum of squares and products for error:
#>          [,1]     [,2]    [,3]
#> [1,]  261.375 -141.875  28.000
#> [2,] -141.875  248.750 -19.375
#> [3,]   28.000  -19.375 219.875
#>
#> Multivariate Tests:
#>                  Df test stat approx F num Df den Df     Pr(>F)
#> Pillai            1  0.842450 33.86563      3     19 7.9422e-08 ***
#> Wilks             1  0.157550 33.86563      3     19 7.9422e-08 ***
#> Hotelling-Lawley  1  5.347205 33.86563      3     19 7.9422e-08 ***
#> Roy               1  5.347205 33.86563      3     19 7.9422e-08 ***
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Since we obtain a significant $p$-value, we conclude that the ax23 drug treatment significantly differs from the rest of the treatments.

---

25.2.2 Profile Analysis

Profile analysis is a multivariate extension of repeated measures ANOVA used to examine similarities between treatment effects in longitudinal data. The null hypothesis states that all treatments have the same average effect:

$$H_0: \mu_1 = \mu_2 = \dots = \mu_h$$

which is equivalent to testing:

$$H_0: \tau_1 = \tau_2 = \dots = \tau_h$$

This analysis helps determine the exact nature of similarities and differences between treatments by sequentially testing the following hypotheses:

1. Are the profiles parallel? No interaction between treatment and time.
2. Are the profiles coincidental? Identical profiles across treatments.
3. Are the profiles horizontal? No differences across any time points.

If the parallelism assumption is rejected, we can further investigate:

• Differences among groups at specific time points.

• Differences among time points within a particular group.

• Differences within subsets of time points across groups.

---

Example: Profile Analysis Setup

Consider an example with:

• 4 time points ($p = 4$)

• 3 treatments ($h = 3$)

We analyze whether the profiles for each treatment group are identical except for a mean shift (i.e., they are parallel).

---

25.2.2.1 Parallel Profile Hypothesis

We test whether the differences in treatment means remain constant across time:

$$\begin{aligned} H_0: \mu_{11} - \mu_{21} &= \mu_{12} - \mu_{22} = \dots = \mu_{1t} - \mu_{2t} \\ \mu_{11} - \mu_{31} &= \mu_{12} - \mu_{32} = \dots = \mu_{1t} - \mu_{3t} \\ &\vdots \end{aligned}$$

for $h-1$ equations. Equivalently, in matrix form:

$$H_0: \mathbf{LBM} = 0$$

where the cell means parameterization of $\mathbf{B}$ is:

$$\mathbf{LBM} = \left[ \begin{array} {ccc} 1 & -1 & 0 \\ 1 & 0 & -1 \end{array} \right] \left[ \begin{array} {ccc} \mu_{11} & \dots & \mu_{14} \\ \mu_{21} & \dots & \mu_{24} \\ \mu_{31} & \dots & \mu_{34} \end{array} \right] \left[ \begin{array} {ccc} 1 & 1 & 1 \\ -1 & 0 & 0 \\ 0 & -1 & 0 \\ 0 & 0 & -1 \end{array} \right] = \mathbf{0}$$

where:

• The first matrix compares treatments at each time point.

• The second matrix contains the mean responses for each treatment across time.

• The third matrix compares time points within each treatment.

---

The first multiplication, $\mathbf{LB}$, results in:

$$\left[ \begin{array} {cccc} \mu_{11} - \mu_{21} & \mu_{12} - \mu_{22} & \mu_{13} - \mu_{23} & \mu_{14} - \mu_{24}\\ \mu_{11} - \mu_{31} & \mu_{12} - \mu_{32} & \mu_{13} - \mu_{33} & \mu_{14} - \mu_{34} \end{array} \right]$$

This represents differences in treatment means at each time point.

Multiplying by $\mathbf{M}$ compares these differences across time:

$$\left[ \begin{array} {ccc} (\mu_{11} - \mu_{21}) - (\mu_{12} - \mu_{22}) & (\mu_{11} - \mu_{21}) - (\mu_{13} - \mu_{23}) & (\mu_{11} - \mu_{21}) - (\mu_{14} - \mu_{24}) \\ (\mu_{11} - \mu_{31}) - (\mu_{12} - \mu_{32}) & (\mu_{11} - \mu_{31}) - (\mu_{13} - \mu_{33}) & (\mu_{11} - \mu_{31}) - (\mu_{14} - \mu_{34}) \end{array} \right]$$

This matrix captures the changes in treatment differences over time.

---

Instead of using the cell means parameterization, we can express the model in terms of effects:

$$\mathbf{LBM} = \left[ \begin{array} {cccc} 0 & 1 & -1 & 0 \\ 0 & 1 & 0 & -1 \end{array} \right] \left[ \begin{array} {c} \mu' \\ \tau'_1 \\ \tau_2' \\ \tau_3' \end{array} \right] \left[ \begin{array} {ccc} 1 & 1 & 1 \\ -1 & 0 & 0 \\ 0 & -1 & 0 \\ 0 & 0 & -1 \end{array} \right] = \mathbf{0}$$

where:

• The first matrix compares treatment effects.

• The second matrix contains overall mean and treatment effects.

• The third matrix compares time points within each treatment.

In both parameterizations:

• $\operatorname{rank}(\mathbf{L}) = h-1$

• $\operatorname{rank}(\mathbf{M}) = p-1$

indicating that we are testing for differences across treatments ($\mathbf{L}$) and time points ($\mathbf{M}$).

---

Different choices of $\mathbf{L}$ and $\mathbf{M}$ still lead to the same hypothesis:

$$\mathbf{L} = \left[ \begin{array} {cccc} 0 & 1 & 0 & -1 \\ 0 & 0 & 1 & -1 \end{array} \right]$$

$$\mathbf{M} = \left[ \begin{array} {ccc} 1 & 0 & 0 \\ -1 & 1 & 0 \\ 0 & -1 & 1 \\ 0 & 0 & -1 \end{array} \right]$$

This choice yields the same profile comparison structure.

---

25.2.2.2 Coincidental Profiles

Once we establish that the profiles are parallel (i.e., we fail to reject the parallel profile test), we next ask:

Are the profiles identical?

If the sums of the components of $\boldsymbol{\mu}_i$ are equal across all treatments, then the profiles are coincidental (i.e., identical across groups).

Hypothesis for Coincidental Profiles

$$H_0: \mathbf{1'}_p \boldsymbol{\mu}_1 = \mathbf{1'}_p \boldsymbol{\mu}_2 = \dots = \mathbf{1'}_p \boldsymbol{\mu}_h$$

Equivalently, in matrix notation:

$$H_0: \mathbf{LBM} = \mathbf{0}$$

where, under the cell means parameterization:

$$\mathbf{L} = \begin{bmatrix} 1 & 0 & -1 \\ 0 & 1 & -1 \end{bmatrix}$$

and

$$\mathbf{M} = \begin{bmatrix} 1 & 1 & 1 & 1 \end{bmatrix}'$$

Multiplying $\mathbf{LBM}$ yields:

$$\begin{bmatrix} (\mu_{11} + \mu_{12} + \mu_{13} + \mu_{14}) - (\mu_{31} + \mu_{32} + \mu_{33} + \mu_{34}) \\ (\mu_{21} + \mu_{22} + \mu_{23} + \mu_{24}) - (\mu_{31} + \mu_{32} + \mu_{33} + \mu_{34}) \end{bmatrix} = \begin{bmatrix} 0 \\ 0 \end{bmatrix}$$

Thus, rejecting this hypothesis suggests that the treatments do not have identical effects over time.

As in previous cases, different choices of $\mathbf{L}$ and $\mathbf{M}$ can yield the same result.

---

25.2.2.3 Horizontal Profiles

If we fail to reject the null hypothesis that all $h$ profiles are the same (i.e., we confirm parallel and coincidental profiles), we then ask:

Are all elements of the common profile equal across time?

This question tests whether the profiles are horizontal, meaning no differences between any time points.

Hypothesis for Horizontal Profiles

$$H_0: \mathbf{LBM} = \mathbf{0}$$

where

$$\mathbf{L} = \begin{bmatrix} 1 & 0 & 0 \end{bmatrix}$$

and

$$\mathbf{M} = \begin{bmatrix} 1 & 0 & 0 \\ -1 & 1 & 0 \\ 0 & -1 & 1 \\ 0 & 0 & -1 \end{bmatrix}$$

Multiplication yields:

$$\begin{bmatrix} (\mu_{11} - \mu_{12}) & (\mu_{12} - \mu_{13}) & (\mu_{13} - \mu_{14}) \end{bmatrix} = \begin{bmatrix} 0 & 0 & 0 \end{bmatrix}$$

Thus, rejecting this hypothesis suggests that at least one time point differs significantly from the others in the common profile.

---

25.2.2.4 Summary of Profile Tests

If we fail to reject all three hypotheses, we conclude that:

• There are no significant differences between treatments.

• There are no significant differences between time points.

The three profile tests correspond to well-known univariate ANOVA components:

Test	Equivalent test for
Parallel profiles	Interaction effect (treatment × time)
Coincidental profiles	Main effect of treatment (between-subjects factor)
Horizontal profiles	Main effect of time (repeated measures factor)

# Profile analysis for heart dataset
profile_fit <- pbg(
    data = as.matrix(heart[, 2:5]),   # Response variables
    group = as.matrix(heart[, 1]),    # Treatment group
    original.names = TRUE,            # Keep original variable names
    profile.plot = FALSE              # Disable automatic plotting
)

# Summary of profile analysis results
summary(profile_fit)
#> Call:
#> pbg(data = as.matrix(heart[, 2:5]), group = as.matrix(heart[,
#>     1]), original.names = TRUE, profile.plot = FALSE)
#>
#> Hypothesis Tests:
#> $`Ho: Profiles are parallel`
#>   Multivariate.Test Statistic  Approx.F num.df den.df      p.value
#> 1             Wilks 0.1102861 12.737599      6     38 7.891497e-08
#> 2            Pillai 1.0891707  7.972007      6     40 1.092397e-05
#> 3  Hotelling-Lawley 6.2587852 18.776356      6     36 9.258571e-10
#> 4               Roy 5.9550887 39.700592      3     20 1.302458e-08
#>
#> $`Ho: Profiles have equal levels`
#>             Df Sum Sq Mean Sq F value  Pr(>F)
#> group        2  328.7  164.35   5.918 0.00915 **
#> Residuals   21  583.2   27.77
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
#>
#> $`Ho: Profiles are flat`
#>          F df1 df2      p-value
#> 1 14.30928   3  19 4.096803e-05

25.3 Statistical Test Selection for Comparing Means
