Chapter 19 Plot APA Heatmaps

19.1 Description

Plot heatmaps for loops APA

19.2 Load data

file.ls <- list.files('data/HiC/Pup-npfiles/', full.names = T)
file.ls <- file.ls[c(8,7,5,4,3,1)]
file.ls

## [1] "data/HiC/Pup-npfiles//WT_DM.allValidPairs.res5kb-5.0K_over_WT_DM_3k5k10kb_merged_loops_StSt_CBS_10-shifts_dist_0-inf.np.txt"
## [2] "data/HiC/Pup-npfiles//WT_DM.allValidPairs.res5kb-5.0K_over_WT_DM_3k5k10kb_merged_loops_SpeSpeANDSpeNON_CBS_10-shifts_dist_0-inf.np.txt"
## [3] "data/HiC/Pup-npfiles//WT_DM.allValidPairs.res5kb-5.0K_over_GSE98119_Vian-2018-activated_B_cells_24_hours_WT.hic_5k10kloops_onlyGSM3027985diffBDFDR01_SpeSpeANDSpeNON_CBS_10-shifts_dist_0-inf.np.txt"
## [4] "data/HiC/Pup-npfiles//GSE98119_Vian-2018-activated_B_cells_24_hours_WT.hic.5kb-5.0K_over_WT_DM_3k5k10kb_merged_loops_StSt_CBS_10-shifts_dist_0-inf.np.txt"
## [5] "data/HiC/Pup-npfiles//GSE98119_Vian-2018-activated_B_cells_24_hours_WT.hic.5kb-5.0K_over_WT_DM_3k5k10kb_merged_loops_SpeSpeANDSpeNON_CBS_10-shifts_dist_0-inf.np.txt"
## [6] "data/HiC/Pup-npfiles//GSE98119_Vian-2018-activated_B_cells_24_hours_WT.hic.5kb-5.0K_over_GSE98119_Vian-2018-activated_B_cells_24_hours_WT.hic_5k10kloops_onlyGSM3027985diffBDFDR01_SpeSpeANDSpeNON_CBS_10-shifts_dist_0-inf.np.txt"

mat.ls <- lapply(file.ls, function(f){
    mat <- fread(f, skip = 35)
    mat <- as.matrix(mat)
    mat[is.na(mat)] <- 0
    return(mat)
  })

19.3 Plot Function

plotSqure <- function(xdata.ls,  id.ls, quant, colind){

  ## Section: make diag as na and trim max value
  ##################################################
  xdata.ls <- map2(xdata.ls, quant, ~ {
    xdata <- .x
    quant <- .y
    qmax <- quantile(xdata, quant, na.rm = T)
    xdata[xdata>qmax] <- qmax
    xdata <- t(xdata)
    xdata <- as.matrix(xdata[,ncol(xdata):1])
    return(xdata)
  })


  ## Section: colour choice
  ##################################################
  csize <- 1 # dot size
  k <- 64
  col.ls1 <-  colorRampPalette(c('blue','white','red'))(k)
  col.ls2 <- coolwarm(k)
  col.ls3 <- tim.colors(k)

  if(colind == 1){
    mycol = col.ls1
  }

  if(colind == 2){
    mycol = col.ls2
  }

  if(colind == 3){
    mycol = col.ls3
  }

  ## Section: breaks
  ##################################################

  minv <- min(unlist(lapply(xdata.ls, function(f){
  quantile(unlist(f))
  })))
  maxv <- max(unlist(lapply(xdata.ls, function(f){
    quantile(unlist(f))
  })))
  myBreaks <- c(seq(minv, 1, length.out=ceiling(k/2) + 1),
                 seq(maxv/k+1, maxv, length.out=floor(k/2)))


  ## Section: plot
  ##################################################
  par(mfrow = c(2,3))
  seq_along(xdata.ls) %>% map(~ {
    xdata <- xdata.ls[[.x]]
    id <- id.ls[[.x]]

    par(mar = c(1,1,1,1))
    image.plot(x = 1:nrow(xdata), y = 1:nrow(xdata), z = xdata[nrow(xdata):1, nrow(xdata):1],
    breaks = myBreaks, axis = F, axes = F, legend.cex = .2, main = id, col = mycol)
    box()

  })

}

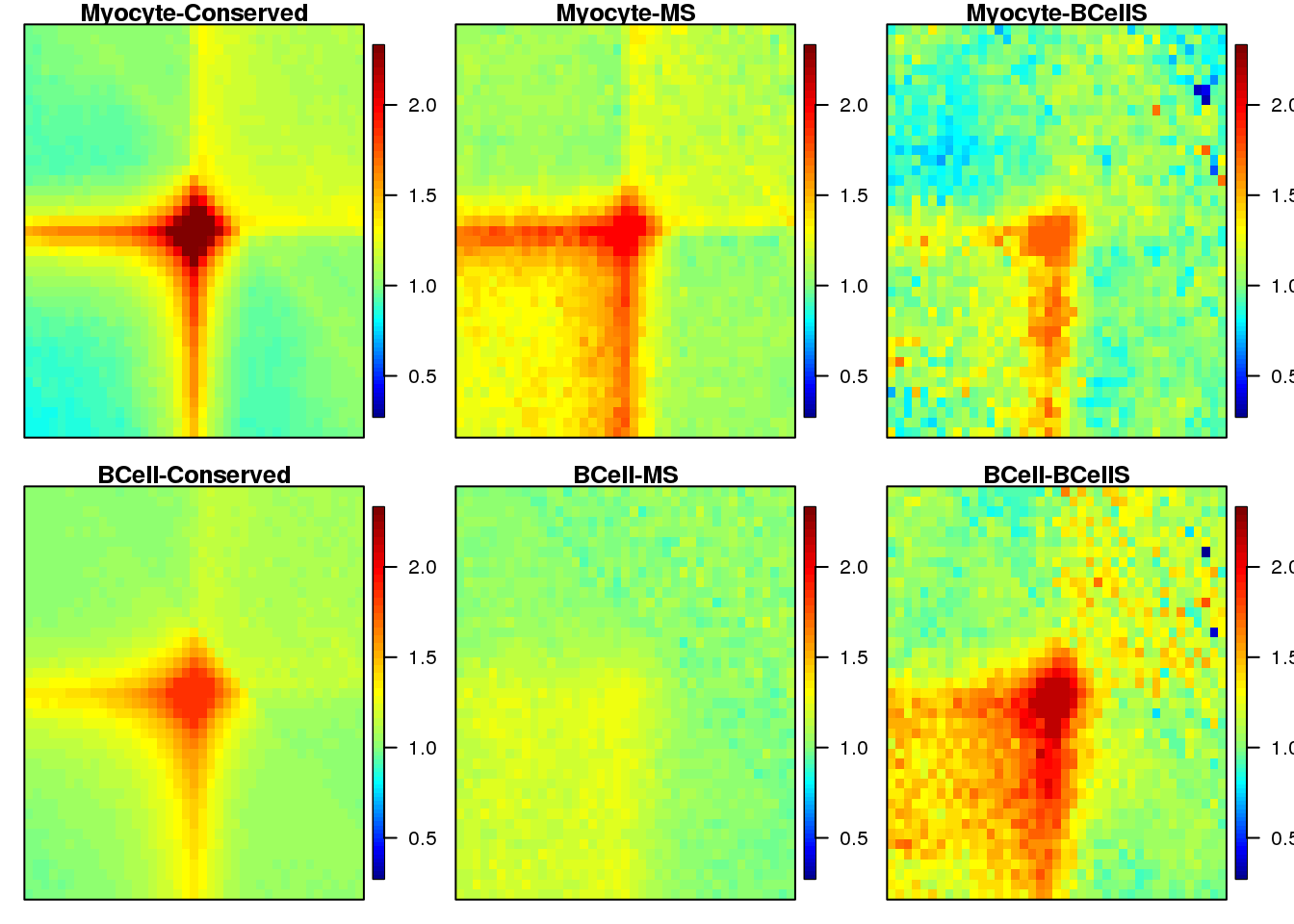

19.4 Plot

sample <- c("Myocyte-Conserved", "Myocyte-MS", "Myocyte-BCellS",
            "BCell-Conserved", "BCell-MS", "BCell-BCellS")
seq(1,3) %>% map(~ {
  plotSqure(mat.ls, id.ls = sample, quant = 0.99, colind = .x)
})

## [[1]]
## [[1]][[1]]
## NULL
##
## [[1]][[2]]
## NULL
##
## [[1]][[3]]
## NULL
##
## [[1]][[4]]
## NULL
##
## [[1]][[5]]
## NULL
##
## [[1]][[6]]
## NULL
##
##
## [[2]]
## [[2]][[1]]
## NULL
##
## [[2]][[2]]
## NULL
##
## [[2]][[3]]
## NULL
##
## [[2]][[4]]
## NULL
##
## [[2]][[5]]
## NULL
##
## [[2]][[6]]
## NULL
##
##
## [[3]]
## [[3]][[1]]
## NULL
##
## [[3]][[2]]
## NULL
##
## [[3]][[3]]
## NULL
##
## [[3]][[4]]
## NULL
##
## [[3]][[5]]
## NULL
##
## [[3]][[6]]
## NULL
