5.2 Boxplots

For this section, the data introduced in Sect. 4.1 are used.

  1. Use the jamovi menu: select Analyses: Exploration: Descriptives.

  2. Add the variables. Place the quantitive variable in the Variables area, and the qualitative variable in the Split by area.

  3. Then, click on the right-pointing arrow next to Plots, and select Box Plots, and then Box plot.

  4. You will have your graph in the jamovi Output window.

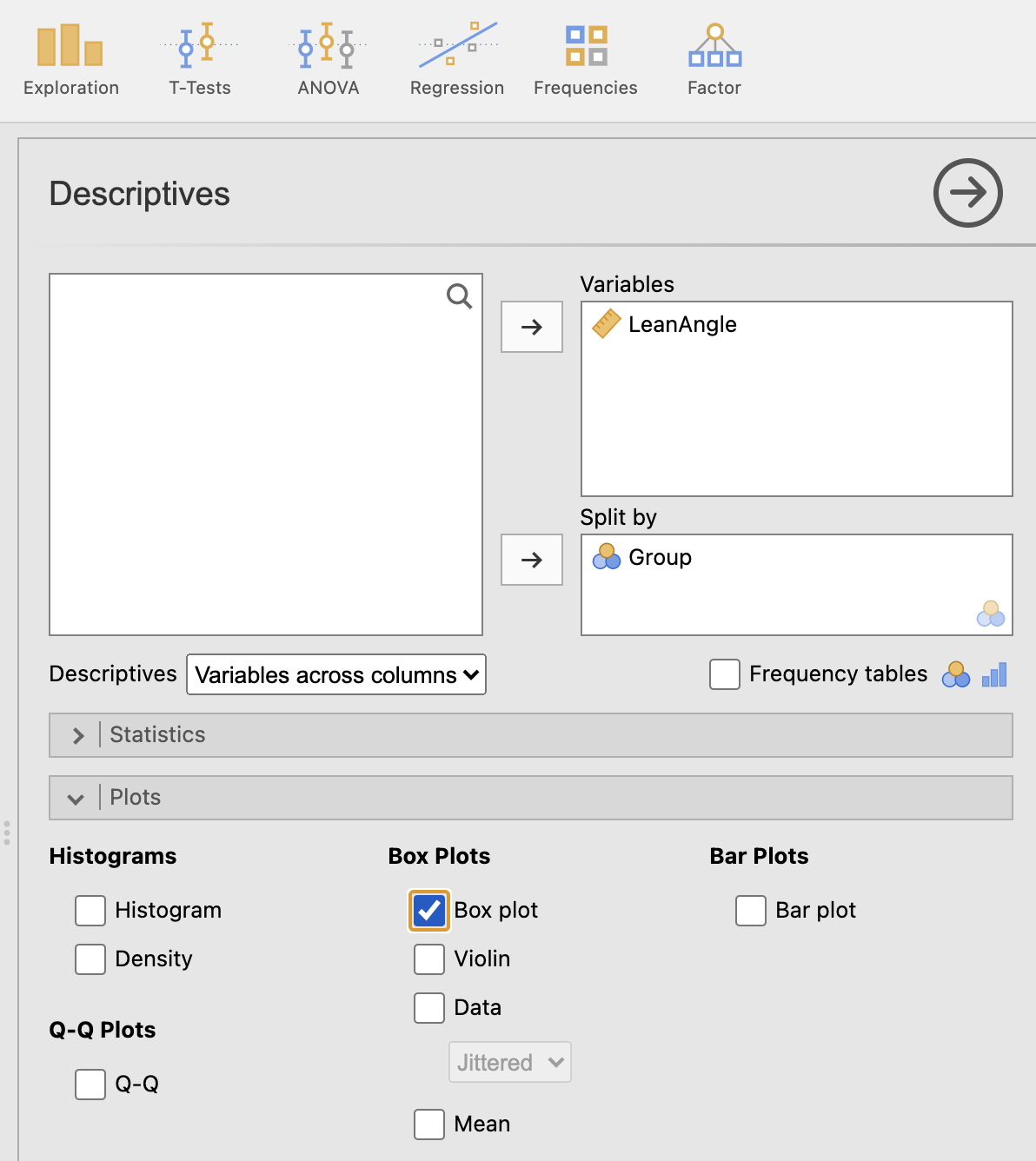

Selecting the variables for a boxplot

FIGURE 5.3: Selecting the variables for a boxplot
