9.2 Stacked bar charts

For this section, the data introduced in Sect. 7.1 are used.

Use the SPSS menu: select Graphs: Chart Builder…
Select the type of plot. Select Bar, then select the third template from the top row, and drag it to the canvas (Fig. 9.6).

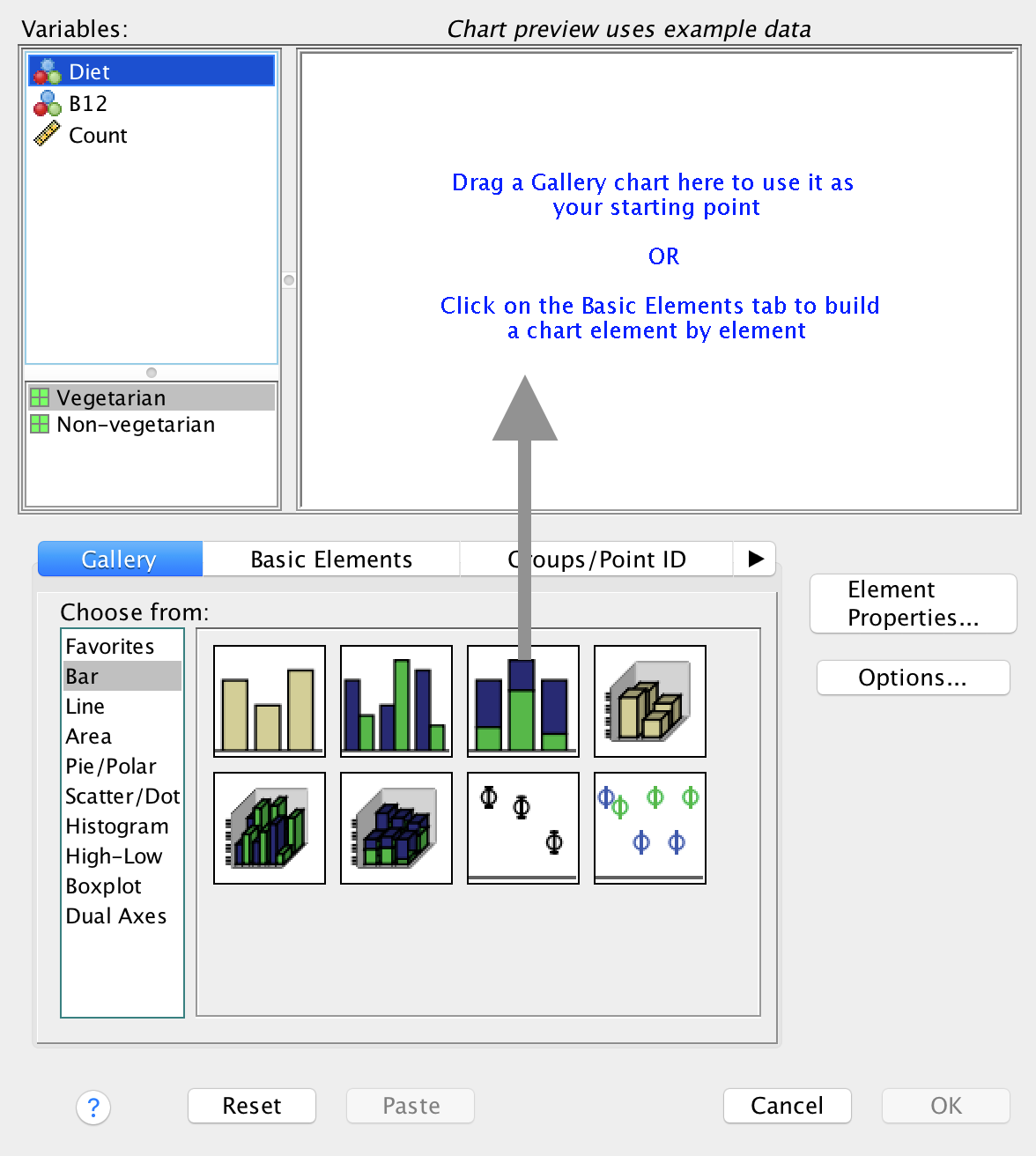

FIGURE 9.6: Selecting a stacked bar chart

Add the variables. Drag one qualitative variable to the bottom (left-to-right) axis; this can often be seen as the explanatory variable. Drag the other to the top right (where it says, cryptically, Stack: set color); Fig. 9.7.
Press OK. You will have your graph in the SPSS Output window.

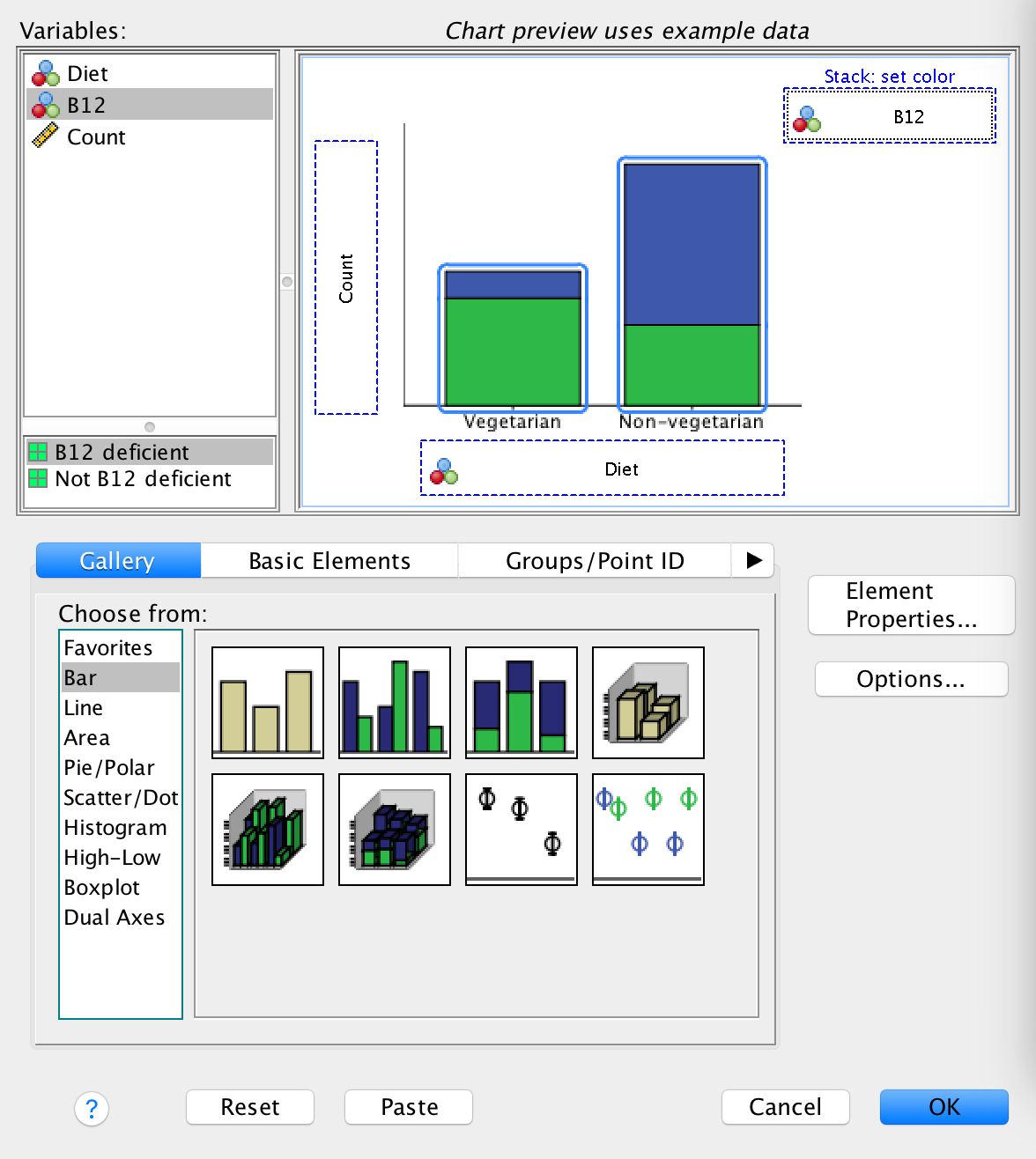

FIGURE 9.7: Adding the variables to create a stacked bar chart
