Profile plots
library(sf)
library(tmap)
library(topoDistance)
library(raster)
library(purrr)
library(dplyr)
library(ggplot2)
library(ggformula)
library(gridExtra)Load data
# data layers
load("1_data/manual/slope_clip.rdata")
load("1_data/manual/study_area.rdata")
load("3_pipeline/tmp/pp_s_clip_clus.rData")
load("1_data/manual/UPLVI_clip.rdata")
load("1_data/manual/corridors_clip.rData")
load("1_data/manual/can_poly_clip.rData")
# base layers
load("1_data/manual/nscr.rdata")
load("1_data/manual/v_road_clip.rdata")Define cross-section lines
I created routes falling trails along the north and south sides of the N. Saskatchewan river. These will be used as the basis for the profile plot.
r_north<-st_read("1_data/external/cross_section_route/river_north.gpx", layer="routes")
r_south<-st_read("1_data/external/cross_section_route/river_south.gpx", layer="routes")
r_north<-st_transform(r_north, crs = st_crs(3776))
r_south<-st_transform(r_south, crs = st_crs(3776))
#Clip line to study area
r_north<-st_intersection(r_north, study_area)
r_south<-st_intersection(r_south, study_area)
library(OpenStreetMap)
base<-read_osm(study_area, type="bing")
# plot
m1<-
tm_shape(base) + tm_rgb()+
tm_shape(study_area)+
tm_fill(col="white", alpha=.2)+
#tm_shape(v_road_clip)+tm_lines(col="white")+
#tm_layout(bg.col="#d9d9d9")+
tm_shape(nscr)+
tm_fill(col="white", alpha=.4)+
tm_borders(col = "#636363")+
tm_shape(r_north)+
tm_lines(col="blue")+
tm_shape(r_south)+
tm_lines(col="red")+
tm_layout(legend.outside = FALSE, legend.text.size = .6, legend.bg.color="white", legend.frame=TRUE, legend.frame.lwd=.8)
)
m1
tmap_save(m1, "4_output/maps/cross_lines_map.png", outer.margins=c(0,0,0,0))
Figure 4.32: Routes for cross-sectional map.
Extract north cross-section
Pinch points
# rasterize pinch-point polygons
pp<-rasterize(pp_s_clip_clus, slope_clip, 'group')
# transform to lat long (for calculating distance along the line)
r_north_t <- st_transform(r_north, "+proj=longlat +datum=WGS84")
slope_clip_t<- projectRaster(slope_clip, crs="+proj=longlat +datum=WGS84" )
pp<- projectRaster(pp, crs="+proj=longlat +datum=WGS84" )
pp_trans = raster::extract(pp, r_north, buffer=15, along = TRUE, cellnumbers = TRUE, na.rm=TRUE)
pp_trans_df = purrr::map_dfr(pp_trans, as_data_frame, .id = "ID")
pp_trans_coords = xyFromCell(slope_clip_t, pp_trans_df$cell)
# calculate distance between pairs of points
pair_dist = geosphere::distGeo(pp_trans_coords)[-nrow(pp_trans_coords)]
pp_trans_df$dist_km = c(0, cumsum(pair_dist/1000))
pp_trans_df<-distinct(pp_trans_df)
pp_trans_df<-rename(pp_trans_df, pp=layer)
pp_trans_df<-subset(pp_trans_df, !is.na(pp))
pp_trans_df$pp<-as.character(pp_trans_df$pp)
pp_trans_df_group <-
pp_trans_df %>%
group_by(pp) %>%
summarise(dist_km = median(dist_km))
custom_theme<-function(){theme(
panel.background = element_rect(fill = "white",
size = 0.5),
axis.line.y = element_blank(),
axis.text.y = element_blank(),
axis.ticks.y = element_blank(),
axis.title.y = element_blank(),
axis.line.x = element_line(colour = "#636363", arrow = arrow(angle = 15, length = unit(.15,"inches"),type = "closed") ),
axis.title.x = element_text(colour="#636363"),
legend.title = element_text(colour="#636363"),
legend.text = element_text(colour="#636363"),
panel.grid.major = element_line(size = 0.0),
panel.grid.minor = element_line(size = 0.0))}
ggplot(data = slope_trans_df, aes(x=dist_km))+
geom_area(data=pp_trans_df, aes(y=31, x=dist_km, fill=pp))+
scale_fill_brewer(palette="Pastel2")+
geom_text(data=pp_trans_df_group, aes(y=31, x=dist_km, label=pp),
position = position_stack(vjust = 1.04), check_overlap = TRUE, size=2.5, col="#636363")+
xlim(0, 21)+
xlab("distance (km)")+
labs(fill="pinch-point")+
custom_theme()
ggsave(filename=paste0("4_output/maps/cross_section/pp_n_fig.png"), width =12, height=4)
Figure 4.33: Pinch-points along northern cross-section line.
Slope
#### North side #######
# transform to lat long (for calculating distance along the line)
slope_clip_t<- projectRaster(slope_clip, crs="+proj=longlat +datum=WGS84" )
slope_trans = raster::extract(slope_clip_t, r_north_t, buffer=15, along = TRUE, cellnumbers = TRUE)
slope_trans_df = purrr::map_dfr(slope_trans, as_data_frame, .id = "ID")
slope_trans_coords = xyFromCell(slope_clip_t, slope_trans_df$cell)
pair_dist = geosphere::distGeo(slope_trans_coords)[-nrow(slope_trans_coords)]
slope_trans_df$dist_km = c(0, cumsum(pair_dist/1000))
slope_trans_df<-distinct(slope_trans_df)
#road_trans_df<-rename(road_trans_df, dist_road=layer)
save(slope_trans_df, file="3_pipeline/tmp/slope_trans_df")
# # add pinch point locations to data frame
# slope_trans_df<-left_join(slope_trans_df, pp_trans_df, by="cell")
# slope_trans_df$ppn<-as.numeric(slope_trans_df$pp)
# slope_trans_df$pp[is.na(slope_trans_df$pp)] <- ""
# slope_trans_df<-slope_trans_df[-c(5,7:8)]
# slope_sub<-subset(slope_trans_df, !is.na(pp))
pp_trans_df_group <-
pp_trans_df %>%
group_by(pp) %>%
summarise(dist_km = median(dist_km))
xSum<-as.data.frame(pp_s_clip_clus) %>%
group_by(group)%>%
summarize(mean=mean(area))%>%
mutate(proportion=as.numeric(mean/sum(mean)))
# get centroid of pp clusters. Centroid points will be used as text labels
cent_label<-sf::st_centroid(pp_s_clip_clus)
custom_theme<-function(){theme(
panel.background = element_rect(fill = "white",
size = 0.5),
axis.line.y=element_line(colour="#636363"),
axis.title.y = element_text(colour="#636363"),
axis.title.x = element_text(colour="#636363"),
axis.line.x = element_line(colour = "#636363", arrow = arrow(angle = 15, length = unit(.15,"inches"),type = "closed") ),
legend.title = element_text(colour="#636363"),
legend.text = element_text(colour="#636363"),
panel.grid.major = element_line(size = 0.0),
panel.grid.minor = element_line(size = 0.0))}
gSlope<-ggplot(data = slope_trans_df, aes(x=dist_km))+
stat_spline(aes(y=slope), geom="area", fill="#1c9099", col="#1c9099", alpha=0.6)+
geom_area(data=pp_trans_df, aes(y=31.8, x=dist_km, fill=pp), colour="black", linetype=1, position="stack", alpha=0,
outline.type = "full", show.legend=FALSE)+
#geom_area(data=pp_trans_df, aes(y=31, x=dist_km, fill=pp), show.legend=FALSE)+
#scale_fill_brewer(palette="Pastel2")+
geom_text(data=pp_trans_df_group, aes(y=32, x=dist_km, label=pp),
position = position_stack(vjust = 1.04), check_overlap = TRUE, size=2.5, col="#636363")+
#geom_spline(aes(y=slope), col="#1c9099")+
xlab("distance (km)")+
ylab("slope")+
labs(fill="pinch-point")+
xlim(0, 20)+
custom_theme()
gSlope
ggsave("4_output/maps/cross_section/slope_fig_N.png", gSlope, width =12, height=4)
m4<-
tm_shape(base) + tm_rgb()+
tm_shape(study_area)+
tm_fill(col="white", alpha=.2)+
# tm_shape(v_road_clip)+tm_lines(col="white")+
# tm_layout(bg.col="#d9d9d9")+
tm_shape(corridors_clip)+
tm_fill(col="#238b45", alpha = .5)+
tm_layout(bg.col="#d9d9d9")+
tm_shape(nscr)+
tm_fill(col="white", alpha=.4)+
tm_borders(col = "#636363")+
tm_shape(pp_s_clip_clus) +
tm_fill(col="#fb6a4a", alpha=.6)+
tm_borders(alpha=1)+
tm_shape(r_north)+
tm_lines(col="white", lwd=10, alpha = .4)+
tm_shape(r_north)+
tm_lines(col="#045a8d", lwd=2)+
tm_shape(cent_label)+
tm_text(text = "group",
col="black",
size = 1.1)+
tm_add_legend(type="fill",
group = "Charts",
labels = c("Grass", "Shrub-Dec", "Tree-Con", "Tree-Dec"),
col=c("#1b9e77", "#d95f02", "#7570b3", "#e7298a"),
title="Class")+
tm_layout(legend.show=FALSE, legend.outside = FALSE, legend.text.size = .8, legend.bg.color="white", legend.frame=TRUE, legend.frame.lwd=.8,
legend.position=c("left", "bottom"))
m4
t_grob<-tmap_grob(m4)
# convert map to grob object
g1<-arrangeGrob(t_grob)
lay2 <- rbind(c(1),
c(1),
c(1),
c(2))
g3<-arrangeGrob(g1, gSlope, layout_matrix =lay2)
ggsave("4_output/maps/cross_section/slope_map_N.png", g3, width=11, height=9)

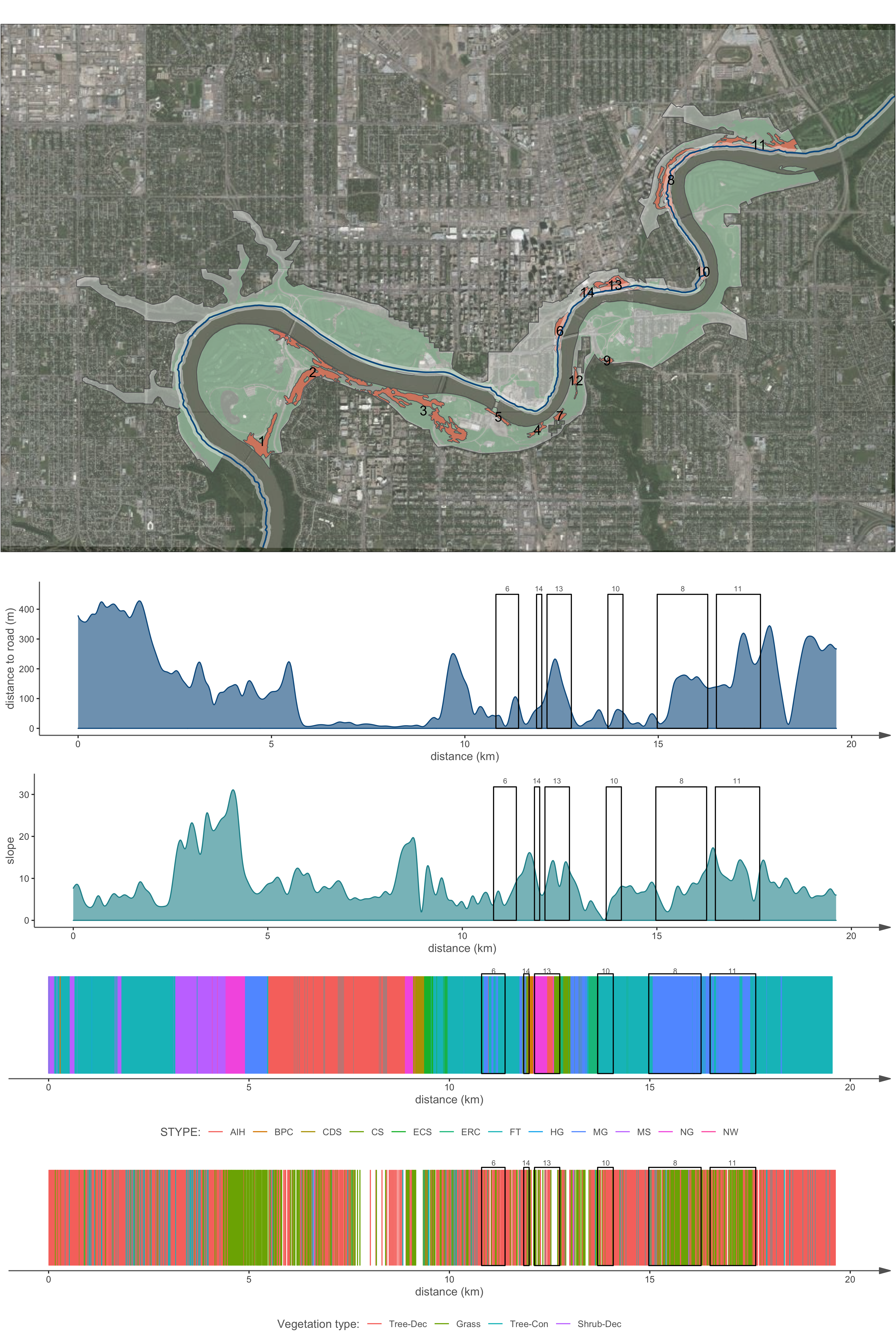

Figure 4.34: Profile of slope along northern the cross-section line.
Distance to road
load("3_pipeline/tmp/dist2road.rData")
road_clip_t<- projectRaster(r, crs="+proj=longlat +datum=WGS84" )
road_trans = raster::extract(road_clip_t, r_north_t, buffer=15, along = TRUE, cellnumbers = TRUE)
road_trans_df = purrr::map_dfr(road_trans, as_data_frame, .id = "ID")
road_trans_coords = xyFromCell(road_clip_t, road_trans_df$cell)
pair_dist = geosphere::distGeo(road_trans_coords)[-nrow(road_trans_coords)]
road_trans_df$dist_km = c(0, cumsum(pair_dist/1000))
road_trans_df<-distinct(road_trans_df)
road_trans_df<-rename(road_trans_df, dist_road=layer)
save(road_trans_df, file="3_pipeline/tmp/road_trans_df")
custom_theme<-function(){theme(
panel.background = element_rect(fill = "white",
size = 0.5),
axis.line.y=element_line(colour="#636363"),
axis.title.y = element_text(colour="#636363"),
axis.title.x = element_text(colour="#636363"),
axis.line.x = element_line(colour = "#636363", arrow = arrow(angle = 15, length = unit(.15,"inches"),type = "closed") ),
legend.title = element_text(colour="#636363"),
legend.text = element_text(colour="#636363"),
panel.grid.major = element_line(size = 0.0),
panel.grid.minor = element_line(size = 0.0))}
groad<-ggplot(data = road_trans_df, aes(x=dist_km))+
stat_spline(aes(y=dist_road), geom="area", fill="#045a8d",col="#045a8d", alpha=0.6)+
geom_area(data=pp_trans_df, aes(y=450, x=dist_km, fill=pp), colour="black", linetype=1, position="stack", alpha=0,
outline.type = "full", show.legend=FALSE)+
geom_text(data=pp_trans_df_group, aes(y=451, x=dist_km, label=pp),
position = position_stack(vjust = 1.04), check_overlap = TRUE, size=2.5, col="#636363")+
#geom_spline(aes(y=dist_road),col="#045a8d")+
xlab("distance (km)")+
ylab("distance to road (m)")+
labs(fill="pinch-point")+
xlim(0, 20)+
custom_theme()
groad
ggsave("4_output/maps/cross_section/road_fig_N.png", groad, width =12, height=4)
lay2 <- rbind(c(1),
c(1),
c(1),
c(2))
g3<-arrangeGrob(g1, groad, layout_matrix =lay2)
ggsave("4_output/maps/cross_section/road_map_N.png", g3, width=11, height=9)
Figure 4.35: Profile of distance to road along northern the cross-section line.
UPLVI
STYPE
##rasterize UPLVI shape file
# merge UPLVI STYPE layers
dat<-UPLVI_clip
# get names
nam <- unique(dat$STYPE1)
# create a data.frame
nam_df <- data.frame(ID = 1:length(nam), nam = nam)
# Place IDs
dat$ID <- nam_df$ID[match(dat$STYPE1, nam_df$nam)]
# Define RasterLayer object
r.raster <- raster()
# Define raster extent
extent(r.raster) <- extent(dat)
# Define pixel size
res(r.raster) <- 5
#define crs
crs(r.raster)<-crs(dat)
# rasterize
#ras <- rasterize(x = dat, y = slope_clip, field = "ID")
ras <- rasterize(x = dat, y = r.raster, field = "ID")
r<- projectRaster(ras, crs="+proj=longlat +datum=WGS84", method='ngb')
# ratify raster
r <- ratify(r)
# Create levels
rat <- levels(r)[[1]]
rat$names <- nam_df$nam
rat$IDs <- nam_df$ID
levels(r) <- rat
save(r, file="3_pipeline/tmp/UPLVI_STYPE_raster.rData")
UPLVI_trans = raster::extract(r, r_north_t, along = TRUE, factors=TRUE, cellnumbers = TRUE)
UPLVI_trans_df = purrr::map_dfr(UPLVI_trans, as_data_frame, .id = "ID")
UPLVI_trans_coords = xyFromCell(r, UPLVI_trans_df$cell)
# calculate distance between pairs of points
pair_dist = geosphere::distGeo(UPLVI_trans_coords)[-nrow(UPLVI_trans_coords)]
UPLVI_trans_df$dist_km = c(0, cumsum(pair_dist/1000))
#rename level column
UPLVI_trans_df<-rename(UPLVI_trans_df, STYPE_level=layer)
#join with fator names
UPLVI_trans_df<-left_join(UPLVI_trans_df, nam_df, by=c("STYPE_level"="ID"))
#rename nam column
UPLVI_trans_df<-rename(UPLVI_trans_df, STYPE=nam)
# remove duplicate rows
UPLVI_trans_df<-distinct(UPLVI_trans_df)
UPLVI_trans_df<-subset(UPLVI_trans_df, !is.na(STYPE))
# UPLVI_trans_df_group <-
# UPLVI_trans_df %>%
# group_by(STYPE) %>%
# summarise(dist_km = median(dist_km))
custom_theme<-function(){theme(
panel.background = element_rect(fill = "white",
size = 0.5),
axis.line.y = element_blank(),
axis.text.y = element_blank(),
axis.ticks.y = element_blank(),
axis.title.y = element_blank(),
axis.line.x = element_line(colour = "#636363", arrow = arrow(angle = 15, length = unit(.15,"inches"),type = "closed") ),
axis.title.x = element_text(colour="#636363"),
legend.title = element_text(colour="#636363"),
legend.text = element_text(colour="#636363"),
legend.background = element_blank(),
legend.key = element_blank(),
legend.position="bottom",
legend.box="horizontal",
legend.box.background = element_blank(),
panel.grid.major = element_line(size = 0.0),
panel.grid.minor = element_line(size = 0.0))}
gSTYPE<-ggplot(data = UPLVI_trans_df)+
#geom_area(data=UPLVI_trans_df, aes(y=31, x=dist_km, fill=STYPE))+
geom_segment(data=UPLVI_trans_df, aes(x=dist_km, y=31, xend= dist_km, yend = 0, col=STYPE))+
geom_area(data=pp_trans_df, aes(y=31.8, x=dist_km, fill=pp), colour="black", linetype=1, position="stack", alpha=0,
outline.type = "full", show.legend=FALSE)+
geom_text(data=pp_trans_df_group, aes(y=31.5, x=dist_km, label=pp),
position = position_stack(vjust = 1.04), check_overlap = TRUE, size=2.5, col="#636363")+
#geom_text(aes(y=36, x=14, label="pinch-point"),size=3, col="#636363")+
xlim(0, 21)+
xlab("distance (km)")+
guides(fill=guide_legend(nrow=2))+
labs(color ="STYPE:")+
custom_theme()+
xlim(0, 20)+
guides(color=guide_legend(nrow=1))#+
#ggtitle("UPVLI STYPE")
gSTYPE
ggsave("4_output/maps/cross_section/UPLVI_stype_trans_fig.png", gSTYPE, width =12, height=8)
lay2 <- rbind(c(1),
c(1),
c(2))
g3<-arrangeGrob(g1, gSTYPE, layout_matrix =lay2)
ggsave("4_output/maps/cross_section/UPLVI_stype_trans_map.png", g3, width=11, height=9)
Figure 4.36: UPLVI STYPE along northern cross-section line.
Canopy
##rasterize UPLVI shape file
# merge canopy STYPE layers
dat<-can_poly_clip
# to speed up processing clip to within buffer of cross line
dat<-st_intersection(dat, st_buffer(r_north, 20))
# get names
nam <- unique(dat$Class)
# create a data.frame
nam_df <- data.frame(ID = 1:length(nam), nam = nam)
# Place IDs
dat$ID <- nam_df$ID[match(dat$Class, nam_df$nam)]
# Define RasterLayer object
r.raster <- raster()
# Define raster extent
extent(r.raster) <- extent(dat)
# Define pixel size
res(r.raster) <- 10
#define crs
crs(r.raster)<-crs(dat)
# rasterize
#ras <- rasterize(x = dat, y = slope_clip, field = "ID")
ras <- rasterize(x = dat, y = r.raster, field = "ID")
# ratify raster
r <- ratify(ras)
# Create levels
rat <- levels(r)[[1]]
rat$names <- nam_df$nam
rat$IDs <- nam_df$ID
levels(r) <- rat
r<- projectRaster(r, crs="+proj=longlat +datum=WGS84", method='ngb' )
save(r, file="3_pipeline/tmp/canopy_n_r.rData")
#save(r, file="3_pipeline/tmp/canopy_r.rData")
canopy_trans = raster::extract(r, r_north_t, along = TRUE, factors=TRUE, cellnumbers = TRUE, na.rm=TRUE)
canopy_trans_df = purrr::map_dfr(canopy_trans, as_data_frame, .id = "ID")
canopy_trans_coords = xyFromCell(r, canopy_trans_df$cell)
# calculate distance between pairs of points
pair_dist = geosphere::distGeo(canopy_trans_coords)[-nrow(canopy_trans_coords)]
canopy_trans_df$dist_km = c(0, cumsum(pair_dist/1000))
#rename level column
canopy_trans_df<-rename(canopy_trans_df, Class_level=layer)
#join with fator names
canopy_trans_df<-left_join(canopy_trans_df, nam_df, by=c("Class_level"="ID"))
#rename nam column
canopy_trans_df<-rename(canopy_trans_df, Class=nam)
# remove duplicate rows
canopy_trans_df<-distinct(canopy_trans_df)
canopy_trans_df<-subset(canopy_trans_df, !is.na(Class))
# canopy_trans_df_group <-
# canopy_trans_df %>%
# group_by(Class) %>%
# summarise(dist_km = median(dist_km))
custom_theme<-function(){theme(
panel.background = element_rect(fill = "white",
size = 0.5),
axis.line.y = element_blank(),
axis.text.y = element_blank(),
axis.ticks.y = element_blank(),
axis.title.y = element_blank(),
# axis.text.y = element_text(colour = "white"),
# axis.ticks.y = element_line(colour="white"),
# axis.line.y=element_line(colour="white"),
# axis.title.y = element_text(colour = "white"),
axis.line.x = element_line(colour = "#636363", arrow = arrow(angle = 15, length = unit(.15,"inches"),type = "closed") ),
axis.title.x = element_text(colour="#636363"),
legend.title = element_text(colour="#636363"),
legend.text = element_text(colour="#636363"),
legend.background = element_blank(),
legend.key = element_blank(),
legend.box.background = element_blank(),
legend.position="bottom",
panel.grid.major = element_line(size = 0.0),
panel.grid.minor = element_line(size = 0.0))}
gClass<-ggplot(data = canopy_trans_df)+
geom_segment(data=canopy_trans_df, aes(x=dist_km, y=31, xend= dist_km, yend = 0, col=Class))+
geom_area(data=pp_trans_df, aes(y=31.8, x=dist_km, fill=pp), colour="black", linetype=1, position="stack", alpha=0,
outline.type = "full", show.legend=FALSE)+
geom_text(data=pp_trans_df_group, aes(y=32, x=dist_km, label=pp),
position = position_stack(vjust = 1.04), check_overlap = TRUE, size=2.5, col="#636363")+
#geom_text(aes(y=36, x=14, label="pinch-point"), size=3, col="#636363")+
xlim(0,21)+
xlab("distance (km)")+
labs(colour="Vegetation type:")+
xlim(0, 20)+
custom_theme()#+
#ggtitle("Vegetation type")
gClass
ggsave("4_output/maps/cross_section/canopy_Class_trans_fig.png", gClass, width =12, height=8)
lay2 <- rbind(c(1),
c(1),
c(2))
g3<-arrangeGrob(g1, gClass, layout_matrix =lay2)
ggsave("4_output/maps/cross_section/canopy_Class_trans_map.png", g3, width=11, height=9)
Figure 4.37: Vegetation classes along northern cross-section line.
