Chapter 12 Sources
In the all-time favourite book The voyages and adventures of Captain Hatteras, an intelligent second-in-command captain of the sturdy ship –The Forward, would receive letters on almost every morning of the instructions that he and the crew should follow. The instructions were from an unknown source but they would detail which bearings the ship should follow, or what to do to navigate the high seas. In dbt, sources are what make your data in the data warehouse be referenced in dbt operations such as running models, tests and checking the ‘freshness’ of your data.
Just like in the above anecdote where, if any person in the crew would ask Sir Richard Shandon, the second-in-command for justification of any task they were commanded to do, Richard would always refer to the authoratative letter from an anonymous source. Likewise, when working with sources, dbt will perform operations by referencing the sources using the source function ({{ source("schema", "table") }}).
Sources in dbt are defined inside YAML files, and they are referenced inside SQL files, just like regular models again!
12.1 Defining a source
To demonstrate defining sources, we will work with two tables already in our data warehouse. These are the 2014-tripdata and citi_trips_round tables under nyc_bikes_nyc_bikes2014 (nyc_bikes_nyc_bikes2014/2014-tripdata) and nyc_bikes tree structures in BigQuery respectively.
Create a new sibling directory next to the docs, example, and my_models folders. Inside it, create a new YAML file called sources_bikes.yml. The path to this file should be models/sources/sources_bikes.yml.
Copy paste these contents into the newly created YAML file.
version: 2
sources:
- name: nyc_bikes_nyc_bikes2014
schema: nyc_bikes_nyc_bikes2014
tables:
- name: 2014-tripdata
- name: nyc_bikes
schema: nyc_bikes
tables:
- name: citi_trips_round
If you’ve worked with YAML property files in the previous chapters, this should be all too familiar. Nevertheless, the name and schema values refer to the schema name in your data warehouse, but they can be different. For the tables dictionary, we refer to the names of those tables under a particular schema. For example, the citi_trips_round is definitely under the nyc_bikes schema.
12.2 Referencing sources
Sources in our data warehouse are referenced using the source() function. Remember when referencing other models within models we used the ref() function? When working with sources, the ref() is now source().
Below is a demonstration of referencing a source to only select male bike riders. Notice the arrangement of the schema and table names within quotation markes ('') and separated by a comman. This is how we reference other data acting as the source in our nyc_bikes_male.sql.
SELECT * FROM
{{ source('nyc_bikes', 'citi_trips_round') }}
WHERE gender = "male"
The same also works for data uploaded as a seed in our data warehouse as seen in the nyc_male_2014.sql.
SELECT * FROM
{{ source('nyc_bikes_nyc_bikes2014', '2014-tripdata') }}
WHERE gender = 1
We run these two specific models using dbt run --select sources and we get this output:
19:29:52 Concurrency: 1 threads (target='dev')
19:29:52
19:29:52 1 of 2 START sql view model nyc_bikes.nyc_bikes_male ........................... [RUN]
19:29:56 1 of 2 OK created sql view model nyc_bikes.nyc_bikes_male ...................... [CREATE VIEW (0 processed) in 3.74s]
19:29:56 2 of 2 START sql view model nyc_bikes.nyc_male_2014 ............................ [RUN]
19:29:59 2 of 2 OK created sql view model nyc_bikes.nyc_male_2014 ....................... [CREATE VIEW (0 processed) in 3.29s]
19:29:59
19:29:59 Finished running 2 view models in 0 hours 0 minutes and 12.75 seconds (12.75s).
19:30:00
19:30:00 Completed successfully
19:30:00
19:30:00 Done. PASS=2 WARN=0 ERROR=0 SKIP=0 TOTAL=2

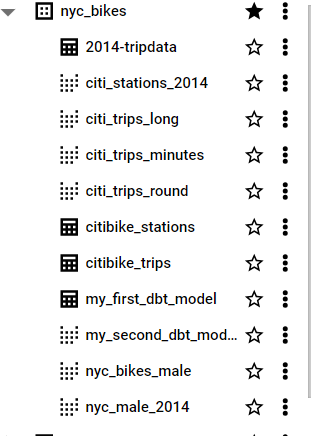

If you check under the nyc_bikes schema in your BigQuery, you will notice two new views have been created: nyc_bikes_male and nyc_male_2014.
One would have expected the nyc_male_2014 view to be under the nyc_bikes_nyc_bikes2014 schema because that’s the seed dataset. Our assumption is that we set the nyc_bikes as the dataset to work with when setting up dbt, and thus it’s very hard to deviate from this. But we stand to be corrected. One more thing, though its obvious –the dbt source can also work inside a WITH SQL statement like so in the nyc_female_2014 model.
WITH nyc_female_2014 AS (
SELECT * FROM
{{ source('nyc_bikes_nyc_bikes2014', '2014-tripdata') }}
WHERE gender = 2
)
SELECT * FROM nyc_female_201412.3 Defining properties in a sources file
Just like you would craft the properties for a given models YAML file, the same can likewise be done for the sources YAML file. You can define descriptions and tests for your fields in a sources file. Again, what’s good for the goose is good for the gander also applies here. Below is our enriched sources YAML file.
version: 2
sources:
- name: nyc_bikes_nyc_bikes2014
schema: nyc_bikes_nyc_bikes2014
tables:
- name: 2014-tripdata
description: '{{ doc("tripduration") }}'
columns:
- name: _id
description: 'Unique id'
tests:
- dbt_expectations.expect_column_values_to_not_be_null
- name: tripduration
description: '{{ doc("tripduration") }}'
- name: starttime
description: ''
- name: stoptime
description: ''
- name: start station id
description: ''
- name: start station name
description: ''
- name: start station latitude
description: ''
- name: start station longitude
description: ''
- name: end station id
description: ''
- name: end station name
description: ''
- name: end station latitude
description: ''
- name: end station longitude
description: ''
- name: bikeid
description: ''
- name: usertype
description: ''
- name: birth year
description: ''
- name: gender
description: ''
- name: nyc_bikes
schema: nyc_bikes
tables:
- name: citi_trips_roundLet’s start by running the sole test at the trusty tripduration key via our one liner slingshot code: dbt test --select sources.
Everything run fine meaning there were no null values in this field.
19:32:18 Concurrency: 1 threads (target='dev')
19:32:18
19:32:18 1 of 1 START test dbt_expectations_source_expect_column_values_to_not_be_null_nyc_bikes_nyc_bikes2014_2014-tripdata__id [RUN]

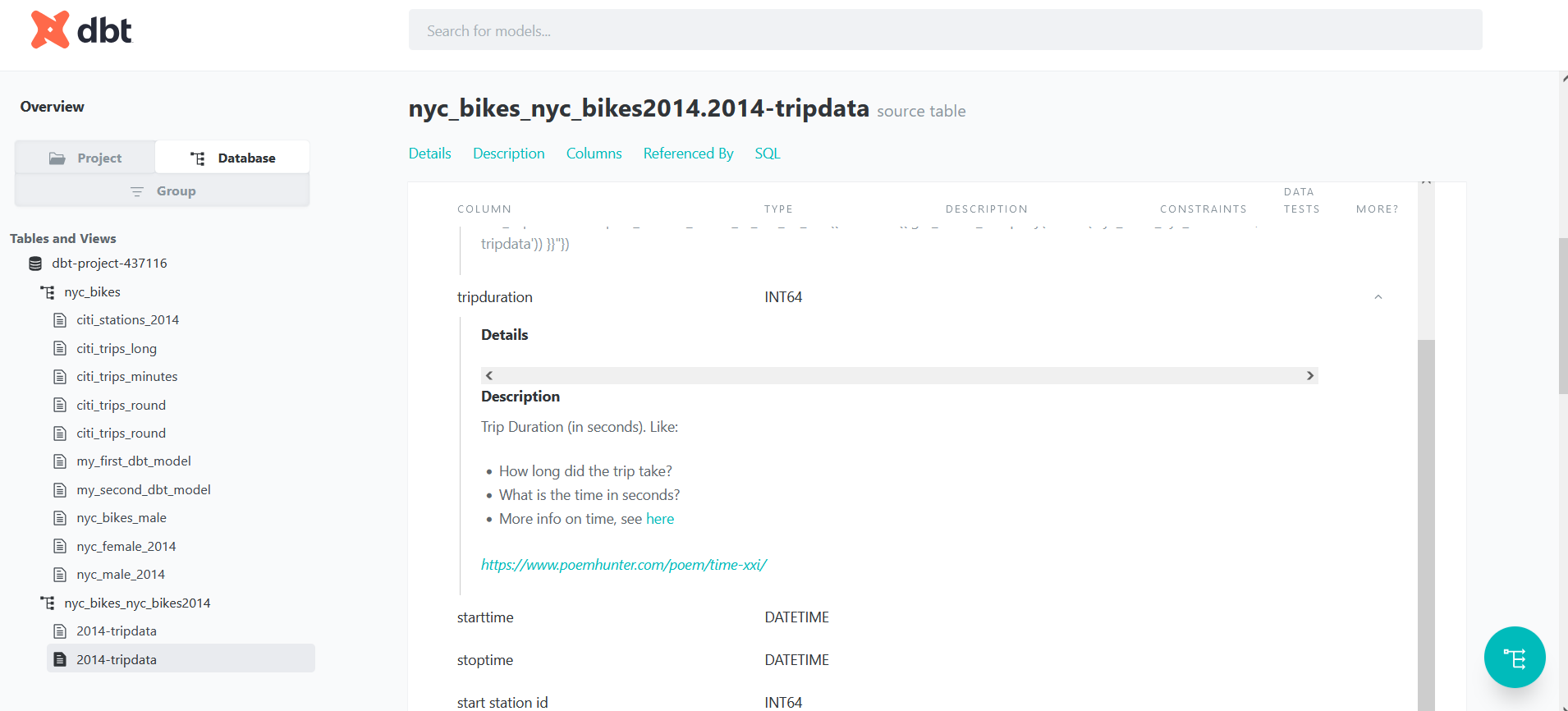

19:32:21 1 of 1 PASS dbt_expectations_source_expect_column_values_to_not_be_null_nyc_bikes_nyc_bikes2014_2014-tripdata__id [PASS in 3.24s]To see if our descriptions will be updated in the dbt documentation, simply run dbt docs generate followed by dbt docs serve to start the local server.
You should see your dbt documentation updated with the descriptions for nyc_bikes_nyc_bikes2014 table. Since the citi_trips_round table has been defined twice, once in the my_models YAML and now in the sources YAML, you will notice one of the citi_trips_round table does not have any definition. We can decide to copy paste the definitons of citi_trip_round table from my_models into the sources YAML file. The 2014-tripdata table inside the nyc_bikes_nyc_bikes2014 YAML also suffers from the same issue.
Below is our sources YAML file in full with additional descriptions and tests.
version: 2
sources:
- name: nyc_bikes_nyc_bikes2014
schema: nyc_bikes_nyc_bikes2014
tables:
- name: 2014-tripdata
description: '{{ doc("seed_2014_tripdata") }}'
columns:
- name: _id
description: 'Unique id'
tests:
- dbt_expectations.expect_column_values_to_not_be_null
- name: tripduration
description: '{{ doc("tripduration") }}'
- name: starttime
description: ''
- name: stoptime
description: ''
- name: start station id
description: ''
- name: start station name
description: ''
- name: start station latitude
description: ''
- name: start station longitude
description: ''
- name: end station id
description: ''
- name: end station name
description: ''
- name: end station latitude
description: ''
- name: end station longitude
description: ''
- name: bikeid
description: ''
- name: usertype
description: ''
- name: birth year
description: ''
- name: gender
description: ''
- name: nyc_bikes
schema: nyc_bikes
tables:
- name: citi_trips_round
description: '{{ doc("citi_trips_round") }}'
tests:
- dbt_expectations.expect_table_row_count_to_equal_other_table:
compare_model: ref("citi_trips_minutes")
- dbt_expectations.expect_column_pair_values_A_to_be_greater_than_B:
column_A: tripduration
column_B: trip_min_round
columns:
- name: tripduration
description: '{{ doc("tripduration") }}'
- name: starttime
description: '{{ doc("starttime") }}'
- name: stoptime
description: '{{ doc("stoptime") }}'
- name: start_station_id
description: "Start Station ID"
tests:
- dbt_expectations.expect_column_values_to_not_be_null
- name: start_station_name
description: "Start Station Name"
tests:
- dbt_expectations.expect_column_values_to_not_be_null
- dbt_expectations.expect_column_value_lengths_to_be_between:
min_value: 1 # (Optional)
max_value: 70 # (Optional)
- name: start_station_latitude
description: "Start Station Latitude"
- name: start_station_longitude
description: "Start Station Longitude"
- name: end_station_id
description: "End Station ID"
tests:
- dbt_expectations.expect_column_values_to_not_be_null
- name: end_station_name
description: "End Station Name"
tests:
- dbt_expectations.expect_column_values_to_not_be_null
- dbt_expectations.expect_column_value_lengths_to_be_between:
min_value: 1 # (Optional)
max_value: 70 # (Optional)
- name: end_station_latitude
description: "End Station Latitude"
- name: end_station_longitude
description: "End Station Longitude"
- name: bike_id
description: "Bike ID"
- name: usertype
description: "User Type (Customer = 24-hour pass or 7-day pass user, Subscriber = Annual Member)"
- name: birth_year
description: "Year of Birth"
- name: gender
description: "Gender (unknown, male, female)"
tests:
- dbt_expectations.expect_column_values_to_be_in_set:
value_set: ['unknown','male','female']
- name: customer_plan
description: "The name of the plan that determines the rate charged for the trip"
- name: trip_duration_min
description: '{{ doc("trip_duration_min") }}'
tests:
- dbt_expectations.expect_column_max_to_be_between:
min_value: 16 # (Optional)
max_value: 326000 # (Optional)
- name: trip_min_round
description: '{{ doc("trip_min_round") }}'
tests:
- dbt_expectations.expect_column_max_to_be_between:
min_value: 16 # (Optional)
max_value: 100000 # (Optional)
