15 Day 15 (June 24)

15.1 Announcements

  • Read Ch. 4 in linear models with R (prediction)

15.2 Confidence intervals for derived quantities

15.3 Bootstrap confidence intervals

  • Google scholar demonstration

  • Motivation (see section 3.6 in Faraway (2014))

    • Functions of parameters (i.e., “derived” quantities)
    • Difficult to obtain the sampling distribution for non-linear functions of estimated parameters
    • Further reading (Hesterberg 2015)
    • Example: When do we expect the population to go extinct?
    y <- c(63, 68, 61, 44, 103, 90, 107, 105, 76, 46, 60, 66, 58, 39, 64, 29, 37,
    27, 38, 14, 38, 52, 84, 112, 112, 97, 131, 168, 70, 91, 52, 33, 33, 27,
    18, 14, 5, 22, 31, 23, 14, 18, 23, 27, 44, 18, 19)
    year <- 1965:2011
    df <- data.frame(y = y, year = year)
    plot(x = df$year, y = df$y, xlab = "Year", ylab = "Annual count", main = "",
    col = "brown", pch = 20, xlim = c(1965, 2040))
    m1 <- lm(y~year)
    abline(m1)

  • Non-parametric bootstrap (see Efron and Tibshirani (1994)).

    1. From a data set with n observations, take a sample of size n with replacement. For a linear model, the sample should include both the observed response (\(y_{i}\)) and covariates (\(x_{1}\),\(x_{2}\),…,\(x_{p}\)).
    2. Estimate the parameters for a statistical model using the sampled data from step 1.
    3. Save the estimates of interest. This could be parameters of interest (e.g., \(\boldsymbol{\beta}\)) or a a derived quantity (e.g., \(R^{2}\), \(\frac{1}{\boldsymbol{\beta}}\)).
    4. Repeats steps (1)-(3) \(m\) times.
  • Inference

    • The \(m\) samples of the quantities of interest are samples from the empirical distribution.
    • The empirical distribution can summarized using sample statistics (e.g., quantiles, mean, variance, etc). Conceptually, this is similar to Monte Carlo integration.
  • Example in R

    library(latex2exp)
    # Number of bootstrap samples (m)
    m.boot <- 1000

    # Create matrix to save empirical distribution of -beta2.hat/beta1.hat (expected time of extinction)
    ed.extinct.hat <- matrix(,m.boot,1)

    # Set random seed so results are the same if we run it again
    # Results would be different due to random resampling of data
    set.seed(1940)

    # Start for loop for non-parametric boostrap
    for(m in 1:m.boot){

      # Sample data with replacement
      # boot.sample gives the rows of df that we use for estimation
      boot.sample <- sample(1:nrow(df),replace=TRUE)

      # Make temporary data frame that contains the resamples
      df.temp <- df[boot.sample,]

      # Estimate parameters for df.temp
      m1 <- lm(y~year,data=df.temp)

      # Save estimate of -beta0.hat/beta1.hat (expected time of extinction)
      ed.extinct.hat[m,] <- -coef(m1)[1]/coef(m1)[2]
    }
    par(mar=c(5,4,7,2))
    hist(ed.extinct.hat,col="grey",xlab="Year",main=TeX('Empirical distribuiton of $$-$$\\hat{\\frac{$\\beta_0}{$\\beta_1}}'),freq=FALSE,breaks=20)

    # 95% equal-tailed CI based on percentiles of the empirical distribution
    quantile(ed.extinct.hat,prob=c(0.025,0.975))
    ##     2.5%    97.5%
    ## 2021.203 2077.168
  • Example in R using the mosaic package

    library(mosaic)

    set.seed(1940)
    bootstrap <- do(1000)*coef(lm(y~year,data=resample(df)))
    head(bootstrap)
    ##   Intercept       year
    ## 1  1703.401 -0.8291862
    ## 2  3017.102 -1.4887107
    ## 3  2683.814 -1.3195092
    ## 4  2595.994 -1.2778627
    ## 5  2334.905 -1.1463994
    ## 6  2011.819 -0.9811046
    # 95% equal-tailed CI based on percentiles of the empirical distribution
    quantile(-bootstrap[,1]/bootstrap[,2],prob=c(0.025,0.975))
    ##     2.5%    97.5%
    ## 2021.203 2077.168
    confint(bootstrap,method="percentile") # Comparison of 95% CI with traditional approach
    ##   name     lower      upper level     method estimate
    ## 1 year -1.623489 -0.6753815  0.95 percentile -1.15784
    confint(m1)[2,]
    ##      2.5 %     97.5 %
    ## -1.9107236 -0.5405716
  • Live example

15.4 Prediction

  • My definition of inference and prediction
    • Inference = Learning about what you can’t observe given what you did observe (and some assumptions)
    • Prediction = Learning about what you didn’t observe given what you did observe (and some assumptions)
  • Prediction (Ch. 4 in Faraway (2014))
    • Derived quantity
      • \(\mathbf{x}^{\prime}_0\) is a \(1\times p\) matrix of covariates (could be a row \(\mathbf{X}\) or completely new values of the predictors)
      • Use \(\widehat{\text{E}(y_0)}=\mathbf{x}^{\prime}_0\hat{\boldsymbol{\beta}}\)
    • Example
      • Predicting the number of whooping cranes
    url <- "https://www.dropbox.com/s/8grip274233dr9a/Butler%20et%20al.%20Table%201.csv?dl=1"
    df1 <- read.csv(url)

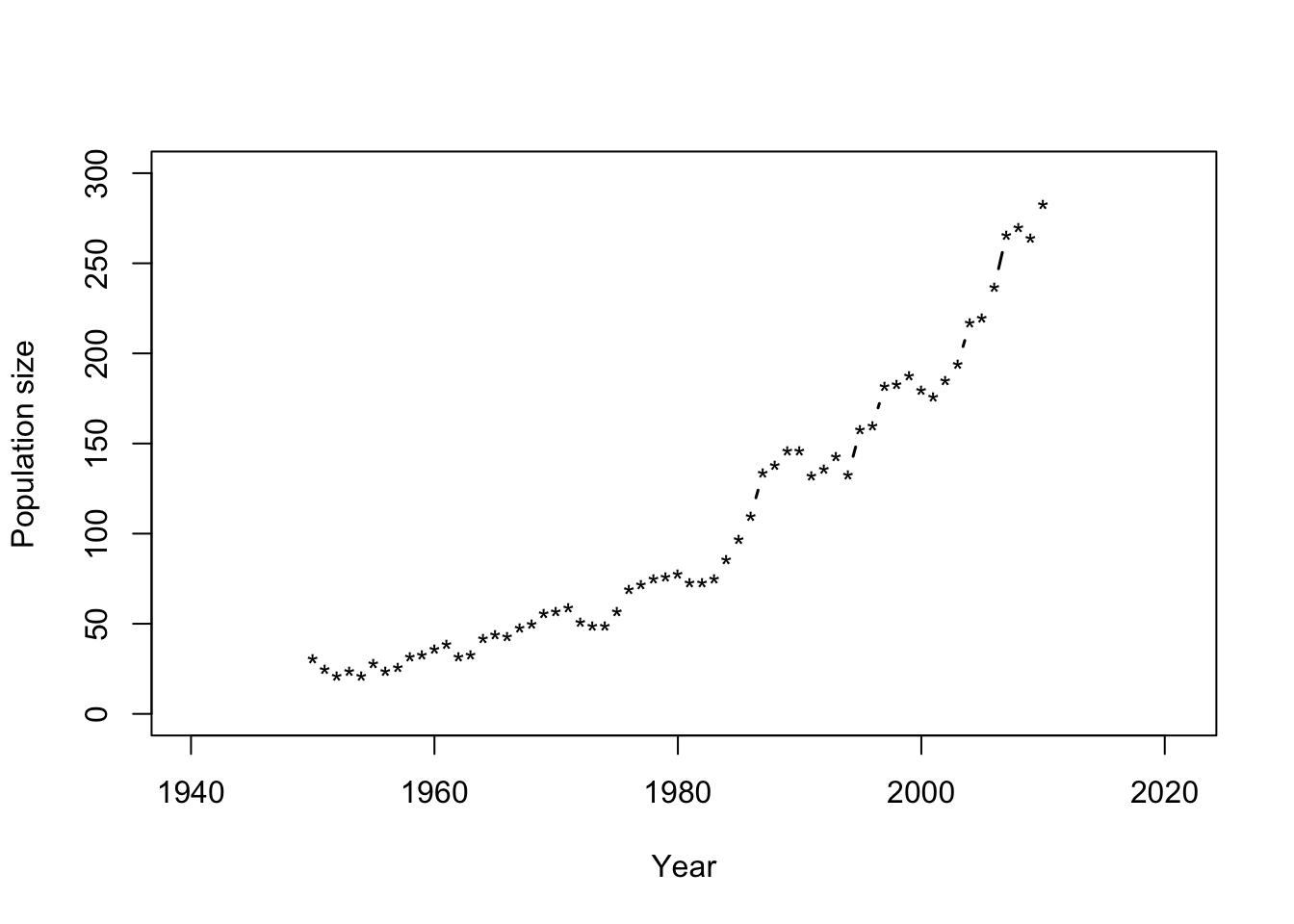

    plot(df1$Winter, df1$N, xlab = "Year", ylab = "Population size",
    xlim=c(1940,2021),ylim = c(0, 300), typ = "b", lwd = 1.5, pch = "*")
    • What model should we use?
    m1 <- lm(N ~ Winter + I(Winter^2),data=df1)
    Ey.hat <- predict(m1)

    plot(df1$Winter, df1$N, xlab = "Year", ylab = "Population size",
    xlim=c(1940,2021),ylim = c(0, 300), typ = "b", lwd = 1.5, pch = "*")
    points(df1$Winter,Ey.hat,typ="l",col="red")

15.5 Intervals for predictions

  • Expected value and variance of \(\mathbf{x}^{\prime}_0\hat{\boldsymbol{\beta}}\)

  • Confidence interval \(\text{P}\left(\mathbf{x}^{\prime}_0\hat{\boldsymbol{\beta}}-t_{\alpha/2,n-p}\sqrt{\hat{\sigma^{2}}\mathbf{x}_{0}^{'}(\mathbf{X}^{'}\mathbf{X})^{-1}\mathbf{x}_{0}}<\mathbf{x}^{\prime}_0\boldsymbol{\beta}<\mathbf{x}^{\prime}_0\hat{\boldsymbol{\beta}}+t_{\alpha/2,n-p}\sqrt{\hat{\sigma^{2}}\mathbf{x}_{0}^{'}(\mathbf{X}^{'}\mathbf{X})^{-1}\mathbf{x}_{0}}\right)\\=1-\alpha\)

    • The 95% CI is \(\mathbf{x}^{\prime}_0\hat{\boldsymbol{\beta}}\pm t_{\alpha/2,n-p}\sqrt{\hat{\sigma^{2}}\mathbf{x}_{0}^{'}(\mathbf{X}^{'}\mathbf{X})^{-1}\mathbf{x}_{0}}\)
    • In R
    Ey.hat <- predict(m1,interval="confidence")
    head(Ey.hat)
    ##        fit      lwr      upr
    ## 1 29.35980 21.43774 37.28186
    ## 2 28.84122 21.42928 36.25315
    ## 3 28.47610 21.54645 35.40575
    ## 4 28.26444 21.78812 34.74075
    ## 5 28.20624 22.15308 34.25940
    ## 6 28.30150 22.64000 33.96300
    plot(df1$Winter, df1$N, xlab = "Year", ylab = "Population size",
    xlim=c(1940,2021),ylim = c(0, 300), typ = "b", lwd = 1.5, pch = "*")
    points(df1$Winter,Ey.hat[,1],typ="l",col="red")
    points(df1$Winter,Ey.hat[,2],typ="l",col="red",lty=2)
    points(df1$Winter,Ey.hat[,3],typ="l",col="red",lty=2)

    • Why are there so many data points that fall outside of the 95% CIs?
  • Prediction intervals vs. Confidence intervals

    • CIs for \(\widehat{\text{E}(y_0)}=\mathbf{x}^{\prime}_0\hat{\boldsymbol{\beta}}\)

    • How to interpret \(\widehat{\text{E}(y_0)}\)

    • What if I wanted to predict \(y_0\)?

      • \(y_0\sim\text{N}(\mathbf{x}^{\prime}_0\hat{\boldsymbol{\beta}},\hat{\sigma}^2)\)
    • Expected value and variance of \(y_0\)

    • Prediction interval \(\text{P}\left(\mathbf{x}^{\prime}_0\hat{\boldsymbol{\beta}}-t_{\alpha/2,n-p}\sqrt{\hat{\sigma^{2}}(1+\mathbf{x}_{0}^{'}(\mathbf{X}^{'}\mathbf{X})^{-1}\mathbf{x}_{0})}<y_0<\mathbf{x}^{\prime}_0\hat{\boldsymbol{\beta}}+t_{\alpha/2,n-p}\sqrt{\hat{\sigma^{2}}(\mathbf{x}_{0}^{'}(\mathbf{X}^{'}\mathbf{X})^{-1}\mathbf{x}_{0})}\right)=\\1-\alpha\)

    • The 95% PI is \(\mathbf{x}^{\prime}_0\hat{\boldsymbol{\beta}}\pm t_{\alpha/2,n-p}\sqrt{\hat{\sigma^{2}}(1+\mathbf{x}_{0}^{'}(\mathbf{X}^{'}\mathbf{X})^{-1}\mathbf{x}_{0})}\)

    • Example in R

    y.hat <- predict(m1,interval="prediction")
    head(y.hat)
    ##        fit      lwr      upr
    ## 1 29.35980 6.630220 52.08938
    ## 2 28.84122 6.284368 51.39807
    ## 3 28.47610 6.073089 50.87910
    ## 4 28.26444 5.997480 50.53139
    ## 5 28.20624 6.058655 50.35382
    ## 6 28.30150 6.257741 50.34526
    plot(df1$Winter, df1$N, xlab = "Year", ylab = "Population size",
    xlim=c(1940,2021),ylim = c(0, 300), typ = "b", lwd = 1.5, pch = "*")
    points(df1$Winter,y.hat[,1],typ="l",col="red")
    points(df1$Winter,y.hat[,2],typ="l",col="red",lty=2)
    points(df1$Winter,y.hat[,3],typ="l",col="red",lty=2)

  • Live example

Literature cited

Efron, Bradley, and Robert J Tibshirani. 1994. An Introduction to the Bootstrap. CRC press.
Faraway, J. J. 2014. Linear Models with r. CRC Press.
Hesterberg, Tim C. 2015. “What Teachers Should Know about the Bootstrap: Resampling in the Undergraduate Statistics Curriculum.” The American Statistician 69 (4): 371–86.
