15 Risk of Bias Plots

by Luke A. McGuinness

Please cite this chapter as:

McGuinness, L. A. (2021). Risk of Bias Plots. In Harrer, M., Cuijpers, P., Furukawa, T.A., & Ebert, D.D., Doing Meta-Analysis with R: A Hands-On Guide (online version). bookdown.org/MathiasHarrer/Doing_Meta_Analysis_in_R/rob-plots.html.

I n this chapter, we will describe how to create risk of bias plots in R, using the {robvis} package.

15.1 Introduction

As part of a systematic review and meta-analysis, you may also want to examine the internal validity (risk of bias) of included studies using the relevant domain-based risk of bias assessment tool, and present the results of this assessment in a graphical format.

The Cochrane Handbook recommends two types of figure: a summary barplot figure showing the proportion of studies with a given risk of bias judgement within each domain, and a traffic light plot which presents the domain level judgments for each study.

However, the options available to researchers when creating these figures are limited. While RevMan has the functionality to create the plots, many researchers do not use it to conduct their systematic review and so copying the relevant data into the system is an inefficient solution.

Similarly, producing the graphs by hand, using software such as MS PowerPoint, is time consuming and means the figures have to manually updated if changes are needed. Additionally, journals usually require figures to be of publication quality (above ~300-400dpi), which can be hard to achieve when exporting the risk of bias figures from RevMan or creating them by hand.

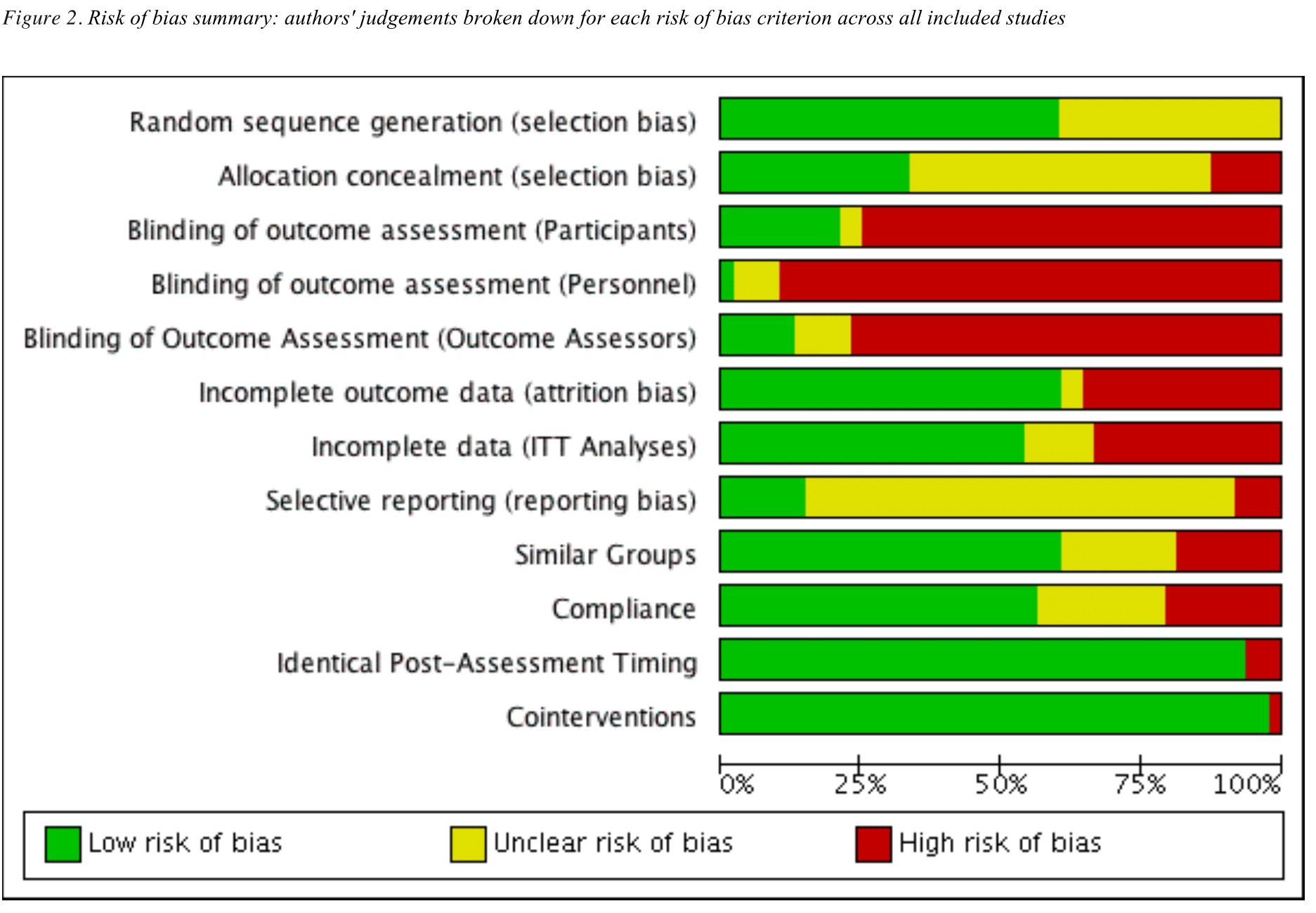

Figure 15.1: Example RevMan output.

To avoid all of this, you can now easily plot the risk of bias figures yourself within R Studio, using the {robvis} package (McGuinness and Higgins 2020; McGuinness 2019) which provides functions to convert a risk of bias assessment summary table into a summary plot or a traffic-light plot.

15.1.1 Load {robvis}

Assuming that you have already installed the {dmetar} package (see Chapter 2.3), load the {robvis} package using:

library(robvis)

15.1.2 Importing Your Risk of Bias Summary Table Data

To produce our plots, we first have to import the results of our risk of bias assessment from Excel into R. Please note that {robvis} expects certain facts about the data you provide it, so be sure to follow the guidance below when setting up your table in Excel:

The first column is labelled “Study” and contains the study identifier (e.g. Anthony et al, 2019)
The second-to-last column is labelled “Overall” and contains the overall risk-of-bias judgments
The last column is labelled “Weight” and contains some measure of study precision e.g. the weight assigned to each study in the meta-analysis, or if no meta-analysis was performed, the sample size of each study). See Chapter 4.1.1 for more details.
All other columns contain the results of the risk-of bias assessment for a specific domain.

To elaborate on the above guidance, consider as an example the ROB2 tool which has 5 domains. The resulting data set that {robvis} would expect for this tool would have 8 columns:

Column 1: Study identifier
Column 2-6: One RoB2 domain per column
Column 7: Overall risk-of-bias judgments
Column 8: Weight.

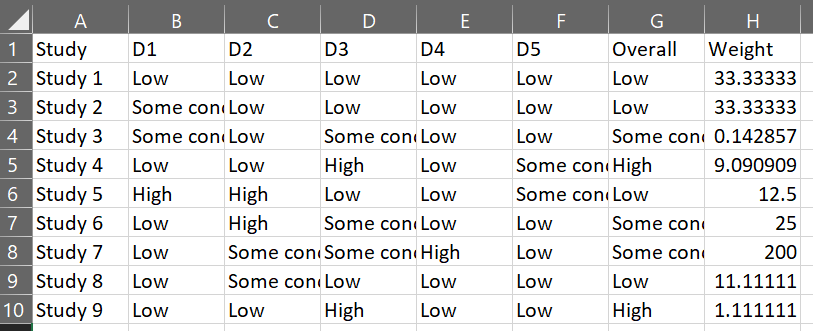

In Excel, this risk of bias summary table would look like this:

Column Names

For three of the four tool templates (ROB2, ROBINS-I, QUADAS-2), what you name the columns containing the domain-level judgments is not important, as the templates within robvis will relabel each domain with the correct tool-specific heading.

Once you have saved the table you created in Excel to the working directory as a comma-separated-file (e.g. “robdata.csv”), you can either read the file into R programmatically using the command below or via the “import assistant” method as described in Chapter 2.4.

my_rob_data <- read.csv("robdata.csv", header = TRUE)

15.1.3 Templates

{robvis} produces the risk of bias figures by using the data you provide to populate a template figure specific to the risk of bias assessment tool you used. At present, {robvis} contains templates for the following three tools:

ROB2, the new Cochrane risk of bias tool for randomized controlled trials;
ROBINS-I, the Risk of Bias In Non-randomized Studies - of Interventions tool;
QUADAS-2, the Quality and Applicability of Diagnostic Accuracy Studies, Version 2.

{robvis} also contains a special generic template, labeled as ROB1. Designed for use with the original Cochrane risk of bias tool for randomized controlled trials, it can also be used to visualize the results of assessments performed with other domain-based tools not included in the list above. See Chapter 15.4 for more information on the additional steps required when using this template.

15.1.4 Example Data Sets

The {robvis} package contains an example data set for each template outlined above. These are stored in the following objects:

data_rob2: Example data for the ROB2 tool
data_robins: Example data for the ROBINS-I tool
data_quadas: Example data for the QUADAS-2 tool
data_rob1: Example data for the RoB-1 tool.

You can explore these data sets using the glimpse function (see Chapter 2.5.1). For example, once you have loaded the package using library(robvis), viewing the ROBINS-I example data set can be achieved by running the following command:

glimpse(data_robins)

## Rows: 12
## Columns: 10
## $ Study   <fct> Study 1, Study 2, Study 3, Study 4, Study 5, Study 6, Study 7,…
## $ D1      <fct> Critical, Moderate, Moderate, Low, Serious, Critical, Critical…
## $ D2      <fct> Low, Low, Low, Low, Serious, Serious, Moderate, Moderate, Low,…
## $ D3      <fct> Critical, Low, Moderate, Serious, Low, Moderate, Moderate, Low…
## $ D4      <fct> Critical, Critical, Critical, Critical, Low, Critical, Serious…
## $ D5      <fct> Low, Low, Critical, Moderate, Moderate, Critical, Critical, Lo…
## $ D6      <fct> Low, Moderate, Low, Low, Low, Moderate, Serious, Low, Serious,…
## $ D7      <fct> Serious, Low, Serious, Critical, Moderate, Serious, Serious, C…
## $ Overall <fct> Critical, Low, Serious, Low, Serious, Serious, Moderate, Moder…
## $ Weight  <dbl> 33.3333333, 33.3333333, 0.1428571, 9.0909091, 12.5000000, 25.0…

These example data sets are used to create the plots presented through the remainder of this guide.

15.2 Summary Plots

15.2.1 Basics

Once we have successfully imported the risk of bias summary table into R, creating the risk of bias figures is quite straightforward.

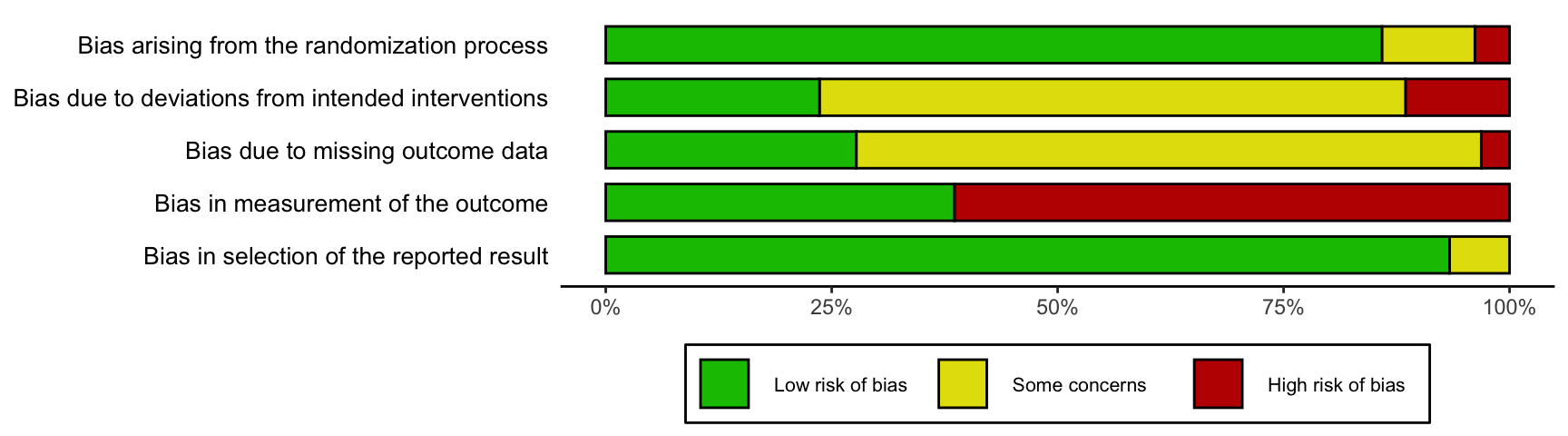

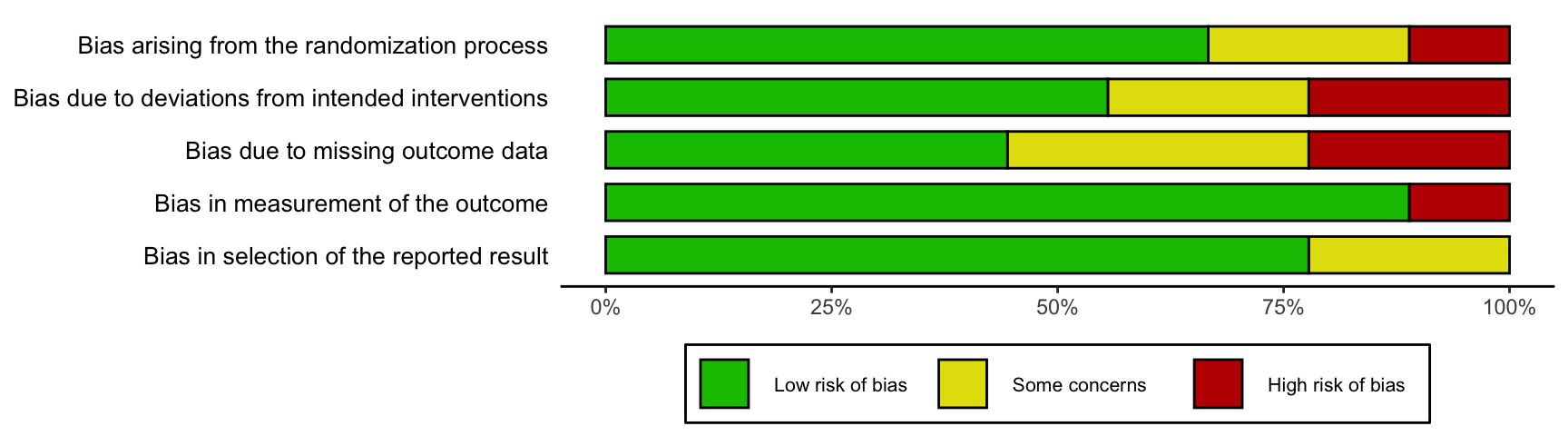

To get started, a simple weighted summary bar plot using the ROB2 example data set (data_rob2) is created by running the following code:

rob_summary(data = data_rob2,
            tool = "ROB2")

15.2.2 Modifying the Plot

The rob_summary function has the following parameters:

data. A data frame containing summary (domain) level risk-of-bias assessments, with the first column containing the study details, the second column containing the first domain of your assessments, and the final column containing a weight to assign to each study. The function assumes that the data includes a column for overall risk-of-bias. For example, a ROB2.0 dataset would have 8 columns (1 for study details, 5 for domain level judgments, 1 for overall judgments, and 1 for weights, in that order).
tool. The risk of bias assessment tool used. RoB2.0 ("ROB2"), "ROBINS-I", and "QUADAS-2" are currently supported.
overall. An option to include an additional bar for overall risk-of-bias in the figure. Default is FALSE.
weighted. An option to specify whether weights should be used in the bar plot. Default is TRUE, in line with current Cochrane Collaboration guidance.
colour. An argument to specify the colour scheme for the plot. Default is "cochrane", which used the ubiquitous Cochrane colours, while a preset option for a colour-blind friendly palette is also available (colour = "colourblind").
quiet. A logical option to quietly produce the plot without displaying it. Default is FALSE.

Examples of the functionality of each argument are described below.

15.2.2.1 Tool

An argument to define the tool template you wish to use. In the example above, the ROB2 template is used. The two other primary templates - the ROBINS-I and QUADAS-2 templates - are demonstrated below:

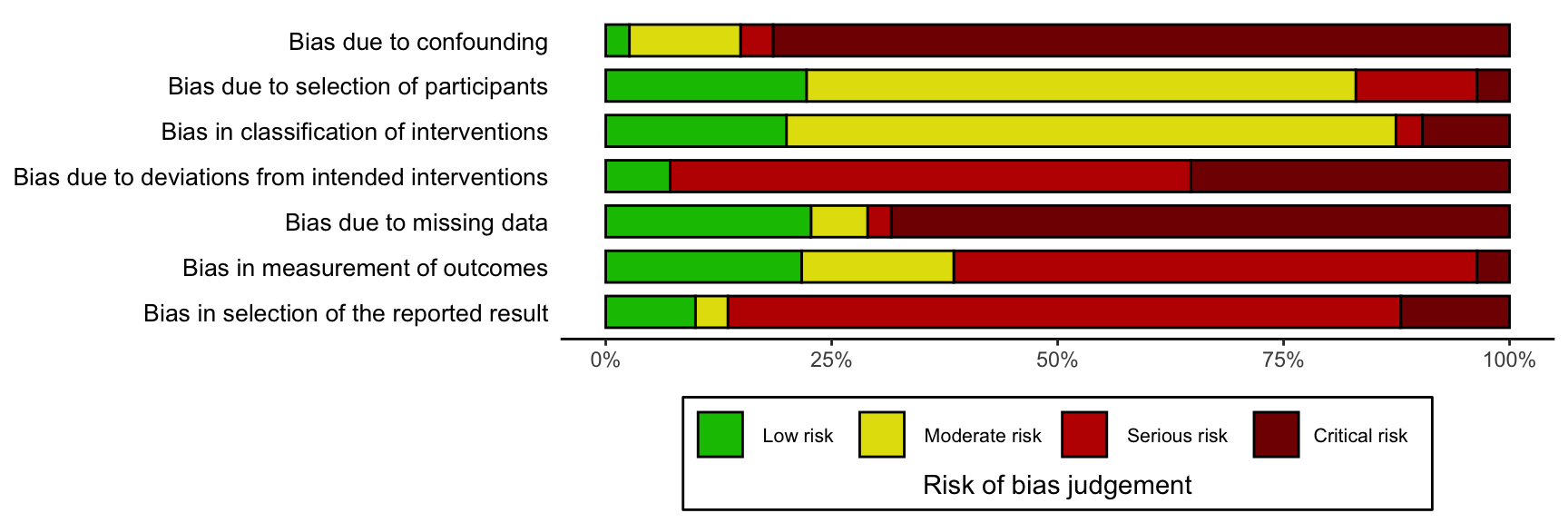

rob_summary(data = data_robins,
            tool = "ROBINS-I")

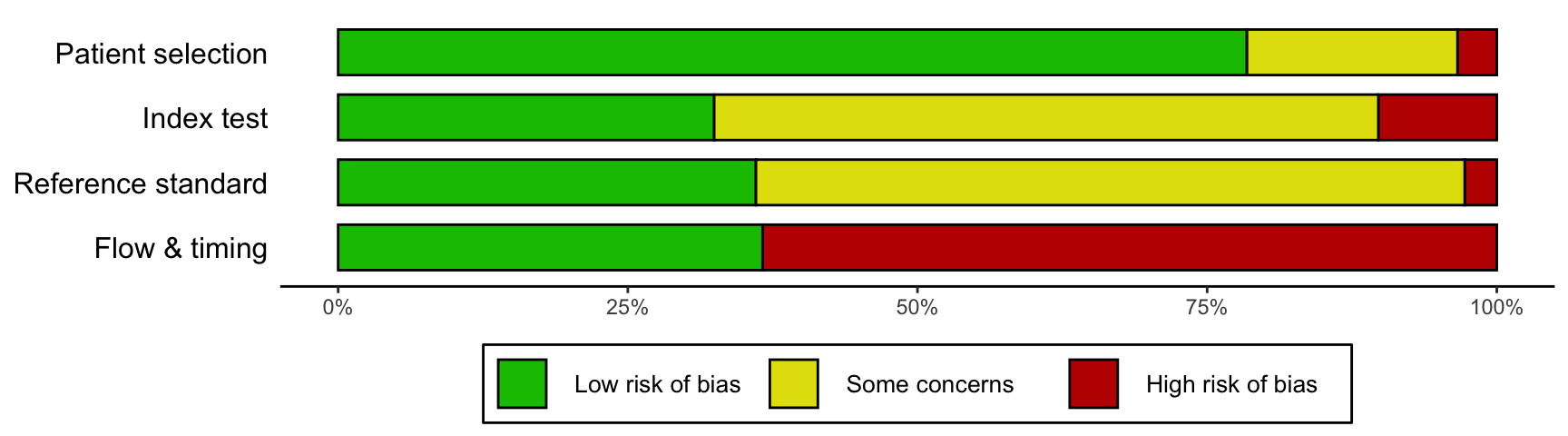

rob_summary(data = data_quadas,
            tool = "QUADAS-2")

15.2.2.2 Overall

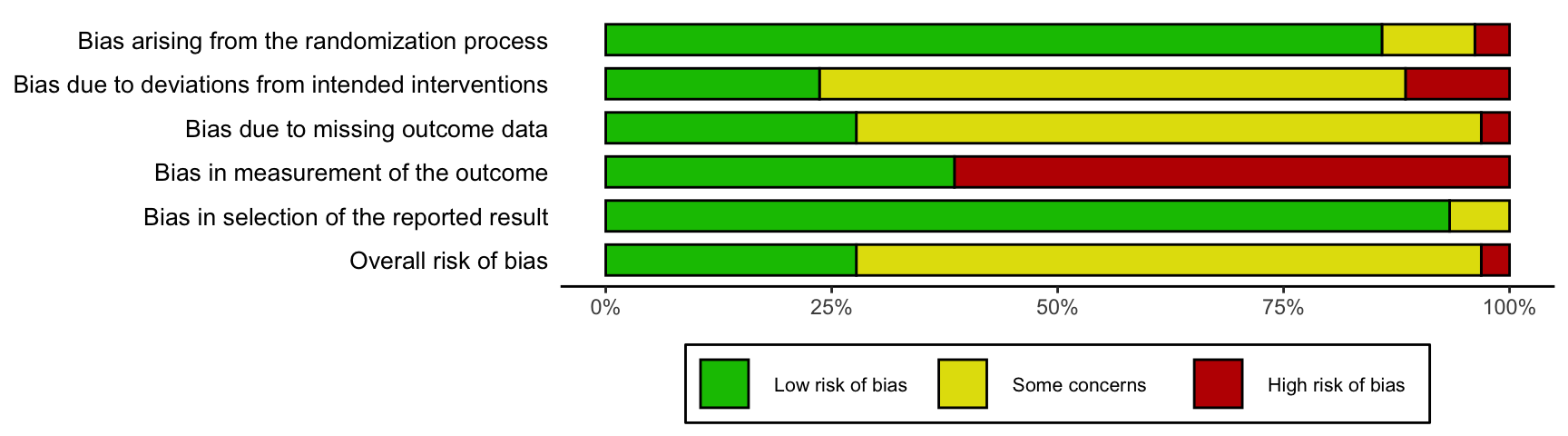

By default, an additional bar representing the overall risk of bias judgments is not included in the plot. If you would like to include this, set overall = TRUE. For example:

rob_summary(data = data_rob2,
            tool = "ROB2",
            overall = TRUE)

15.2.2.3 Weighted or Unweighted Bar Plots

By default, the bar plot is weighted by some measure of study precision, so that the bar plot shows the proportion of information rather than the proportion of studies that is at a particular risk of bias. This approach is in line with the Cochrane Handbook.

You can turn off this option by setting weighted = FALSE to create an unweighted bar plot. For example, compare the following two plots:

rob_summary(data = data_rob2,
            tool = "ROB2")

rob_summary(data = data_rob2,
            tool = "ROB2",
            weighted = FALSE)

15.2.2.4 Colour Scheme

British English Spelling

Please note the non-US English spelling of colour!

The colour argument of both plotting functions allows users to select from two predefined colour schemes, "cochrane" (default) or "colourblind", or to define their own palette by providing a vector of hex codes. For example, to use the predefined "colourblind" palette:

rob_summary(data = data_rob2,
            tool = "ROB2",
            colour = "colourblind")

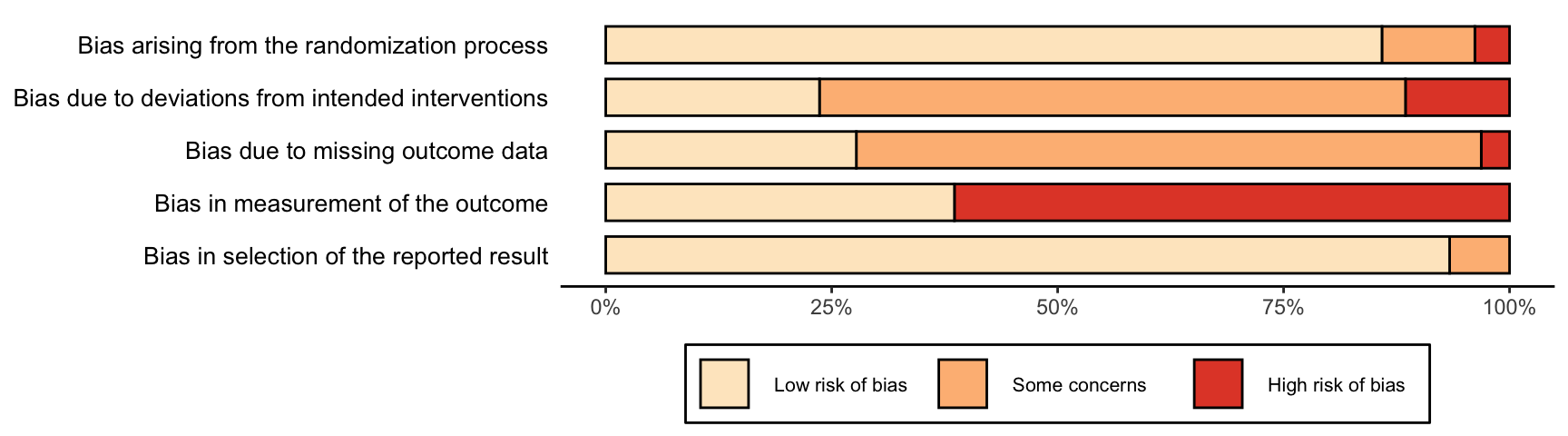

And to define your own colour scheme:

rob_summary(data = data_rob2,
            tool = "ROB2",
            colour = c("#f442c8","#bef441","#000000"))

When defining your own colour scheme, you must ensure that the number of discrete judgments (e.g. “Low”, “Moderate”, “High”, “Critical”) and the number of colours specified are the same. Additionally, colours must be specified in order of ascending risk-of-bias (e.g. “Low” to “Critical”), with the first hex corresponding to “Low” risk of bias.

15.3 Traffic Light Plots

Frequently, researchers will want to present the risk of bias in each domain for each study assessed. The resulting plots are commonly called traffic light plots, and can be produced with {robvis} via the rob_traffic_light function.

15.3.1 Basics

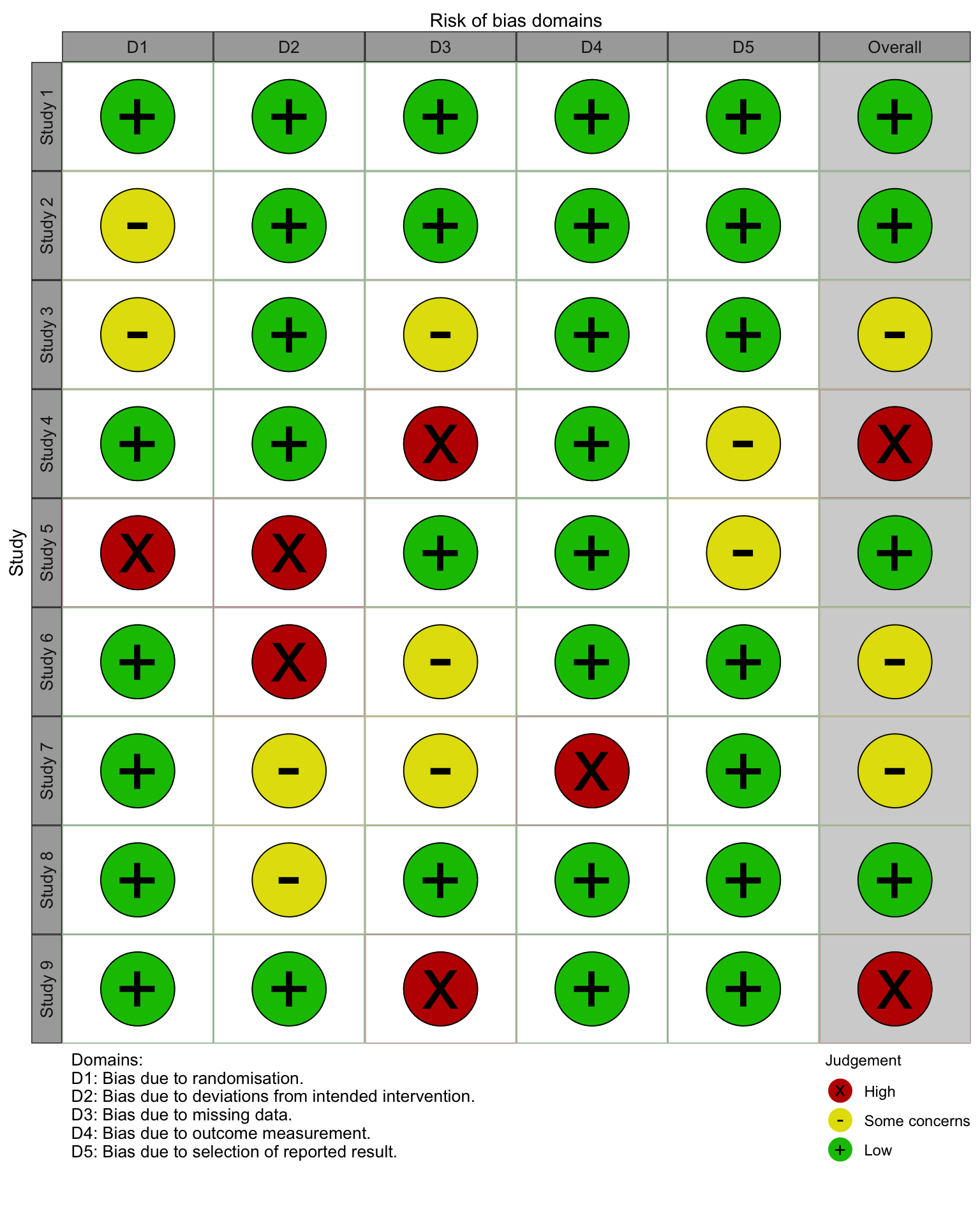

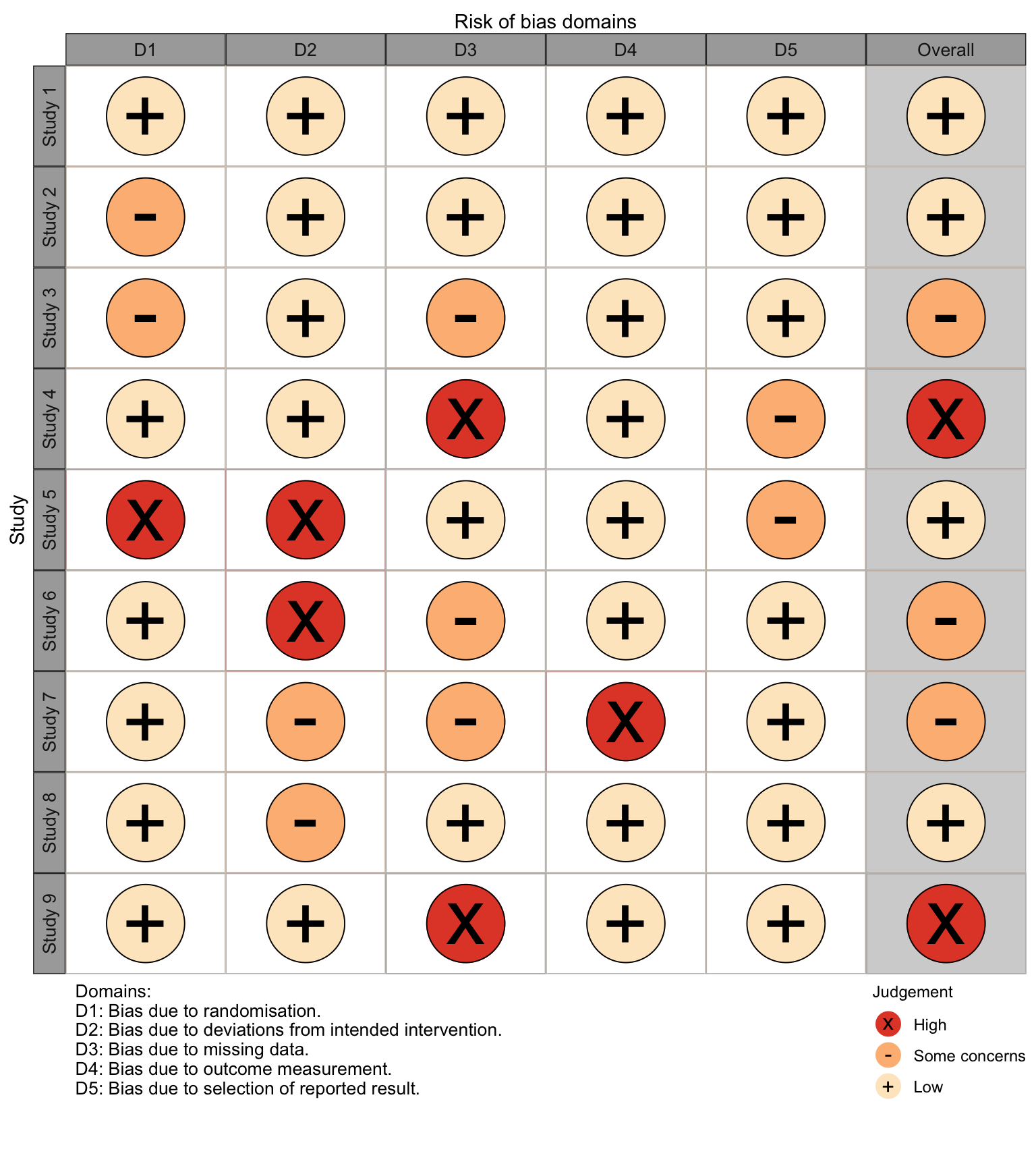

To get started, a traffic light plot using the ROB2 example dataset (data_rob2) is created by running the following code:

rob_traffic_light(data = data_rob2,
                  tool = "ROB2")

## Warning in ggplot2::geom_point(shape = 1, colour = "black", size = psize, : All aesthetics have length 1, but the data has 54
## rows.
## ℹ Did you mean to use `annotate()`?

15.3.2 Modifying the Plot

The rob_summary function has the following parameters:

data. A data frame containing summary (domain) level risk-of-bias assessments, with the first column containing the study details, the second column containing the first domain of your assessments, and the final column containing a weight to assign to each study. The function assumes that the data includes a column for overall risk-of-bias. For example, a ROB2.0 data set would have 8 columns (1 for study details, 5 for domain level judgments, 1 for overall judgments, and 1 for weights, in that order).
tool. The risk of bias assessment tool used. RoB2.0 ("ROB2"), "ROBINS-I", and "QUADAS-2" are currently supported.
colour. An argument to specify the colour scheme for the plot. Default is "cochrane" which used the ubiquitous Cochrane colours, while a preset option for a colour-blind friendly palette is also available ("colourblind").
psize. An option to change the size of the “traffic light” points. Default is 20.
quiet. A logical option to quietly produce the plot without displaying it. Default is FALSE.

15.3.2.1 Tool

An argument to define the tool template you wish to use. The ROB2 template is demonstrated and the two other primary templates - the ROBINS-I and QUADAS-2 templates - are displayed below:

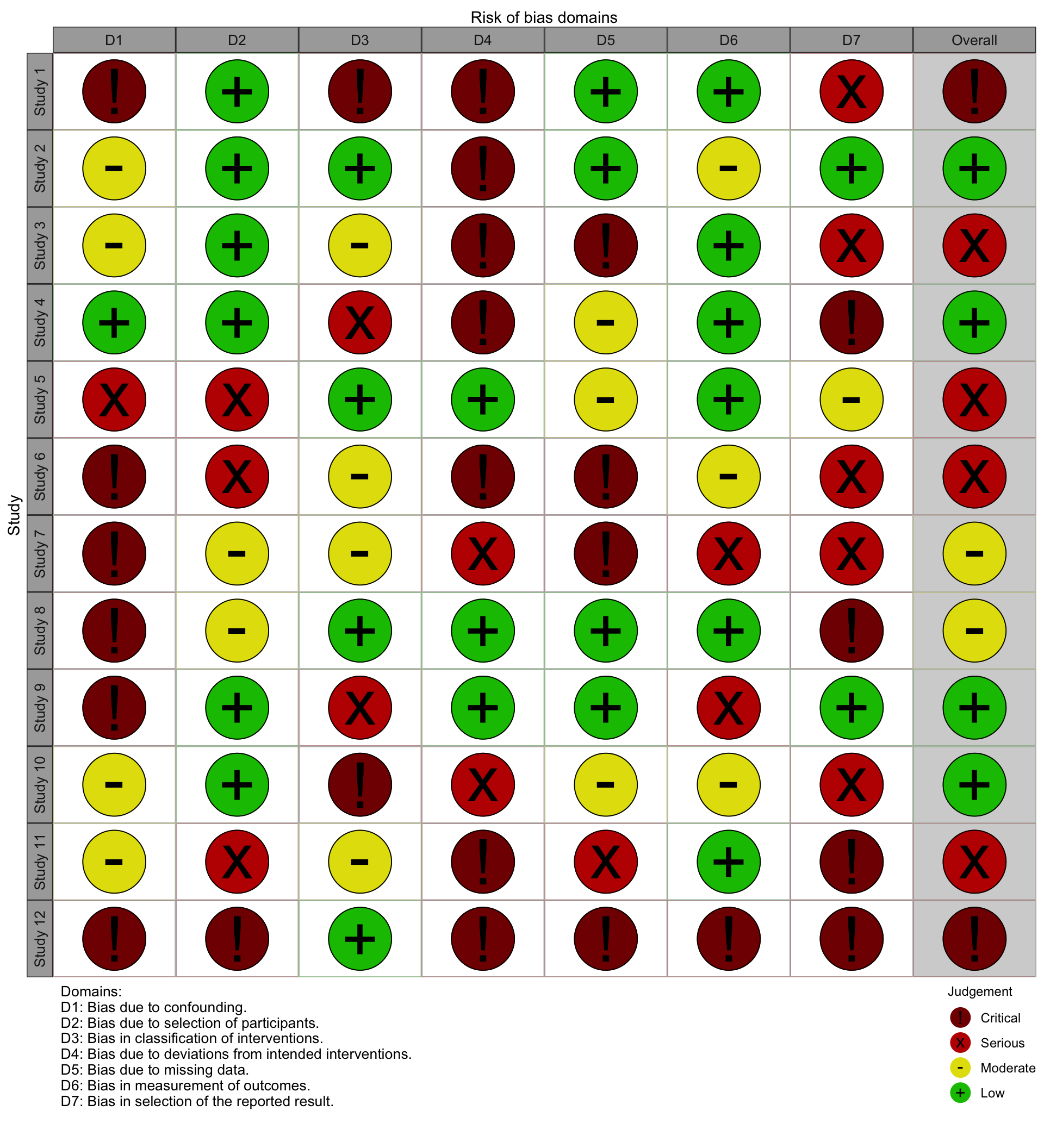

rob_traffic_light(data = data_robins,
                  tool = "ROBINS-I")

## Warning in ggplot2::geom_point(shape = 1, colour = "black", size = psize, : All aesthetics have length 1, but the data has 96
## rows.
## ℹ Did you mean to use `annotate()`?

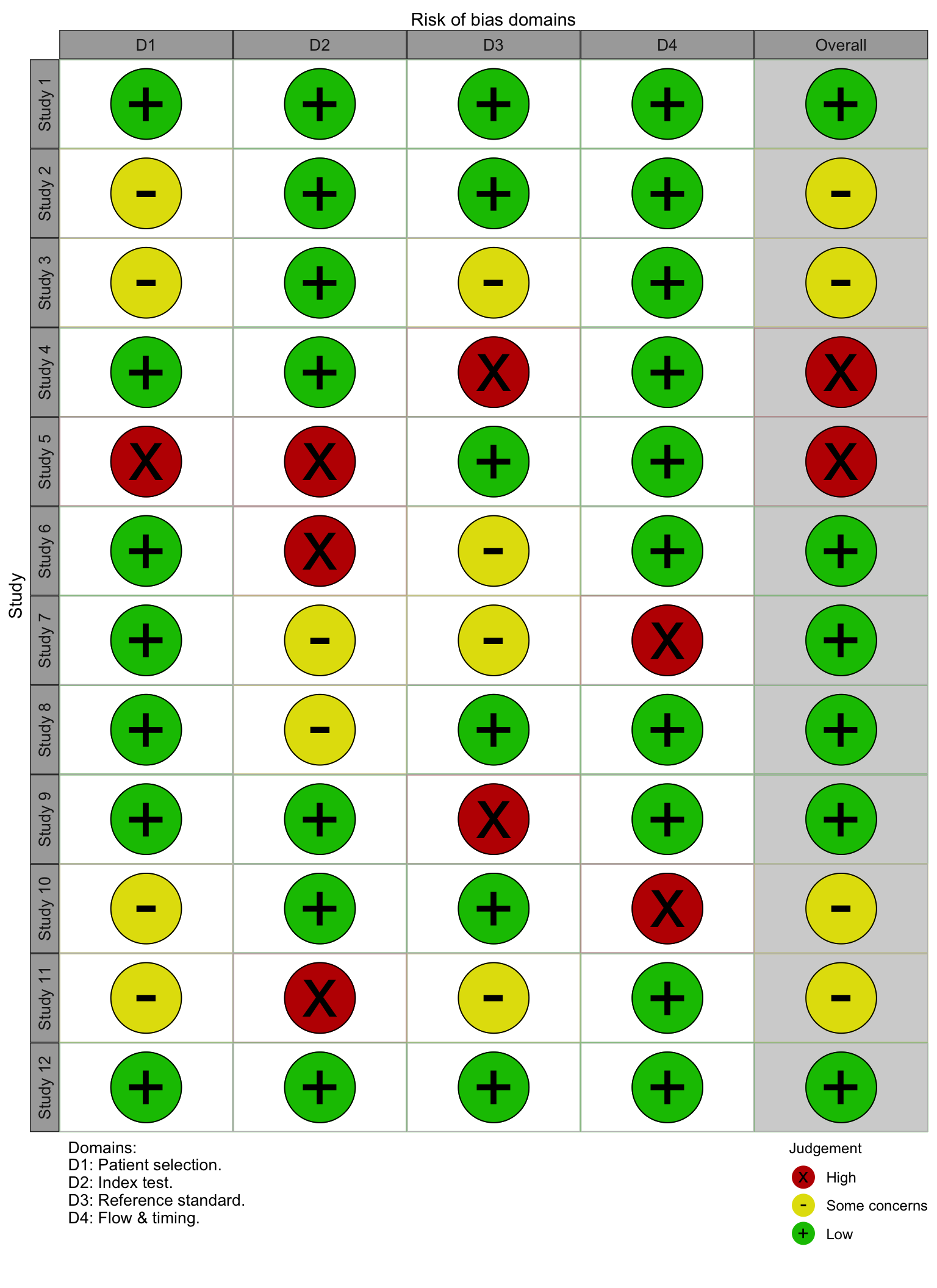

rob_traffic_light(data = data_quadas,
                  tool = "QUADAS-2")

## Warning in ggplot2::geom_point(shape = 1, colour = "black", size = psize, : All aesthetics have length 1, but the data has 60
## rows.
## ℹ Did you mean to use `annotate()`?

15.3.2.2 Colour Scheme

British English Spelling

Please note the non-US English spelling of colour!

For example, to use the predefined "colourblind" palette:

rob_traffic_light(data = data_rob2,
                  tool = "ROB2",
                  colour = "colourblind")

## Warning in ggplot2::geom_point(shape = 1, colour = "black", size = psize, : All aesthetics have length 1, but the data has 54
## rows.
## ℹ Did you mean to use `annotate()`?

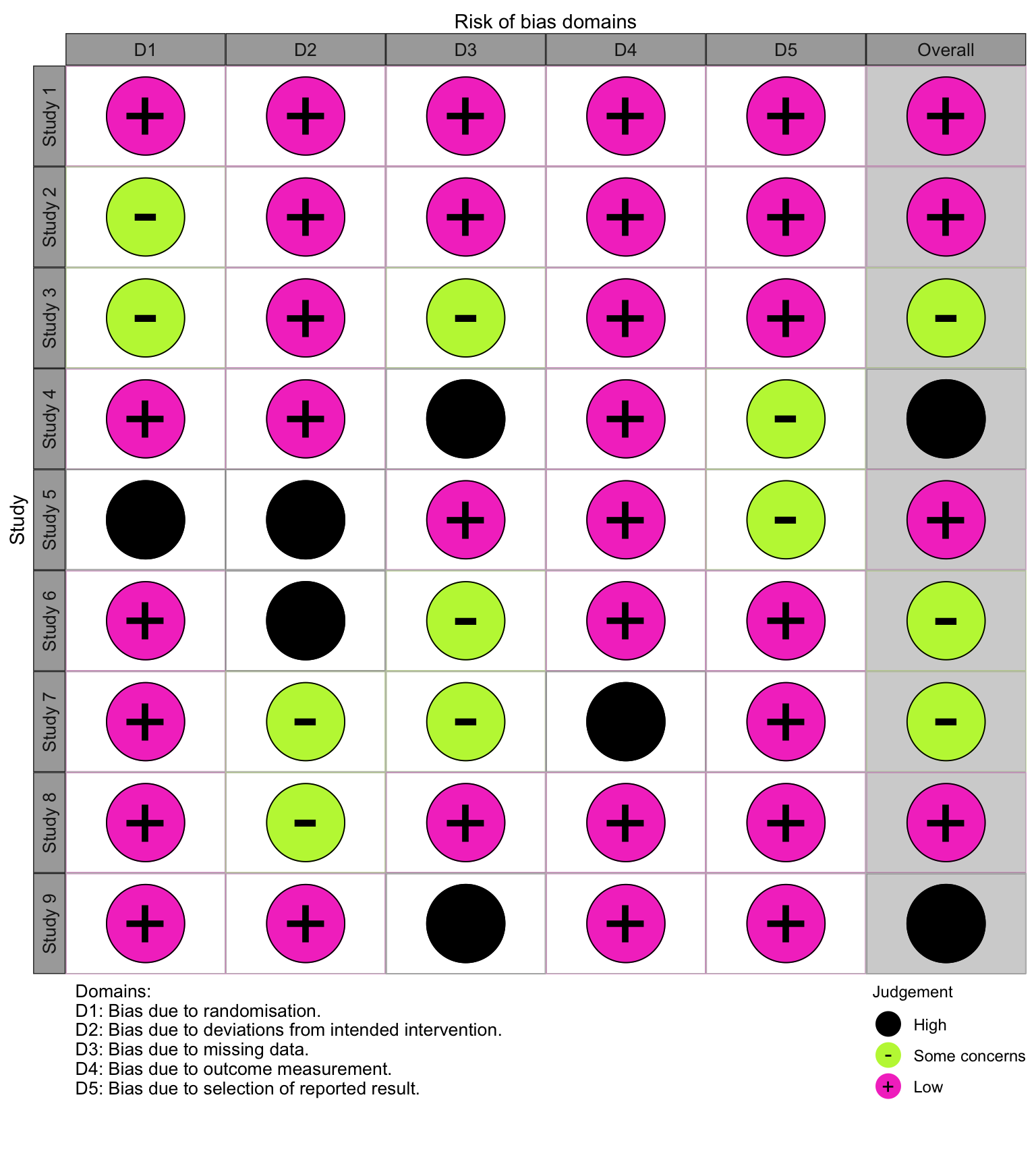

And to define your own colour scheme:

rob_traffic_light(data = data_rob2,
                  tool = "ROB2",
                  colour = c("#f442c8","#bef441","#000000"))

## Warning in ggplot2::geom_point(shape = 1, colour = "black", size = psize, : All aesthetics have length 1, but the data has 54
## rows.
## ℹ Did you mean to use `annotate()`?

15.3.2.3 Point Size

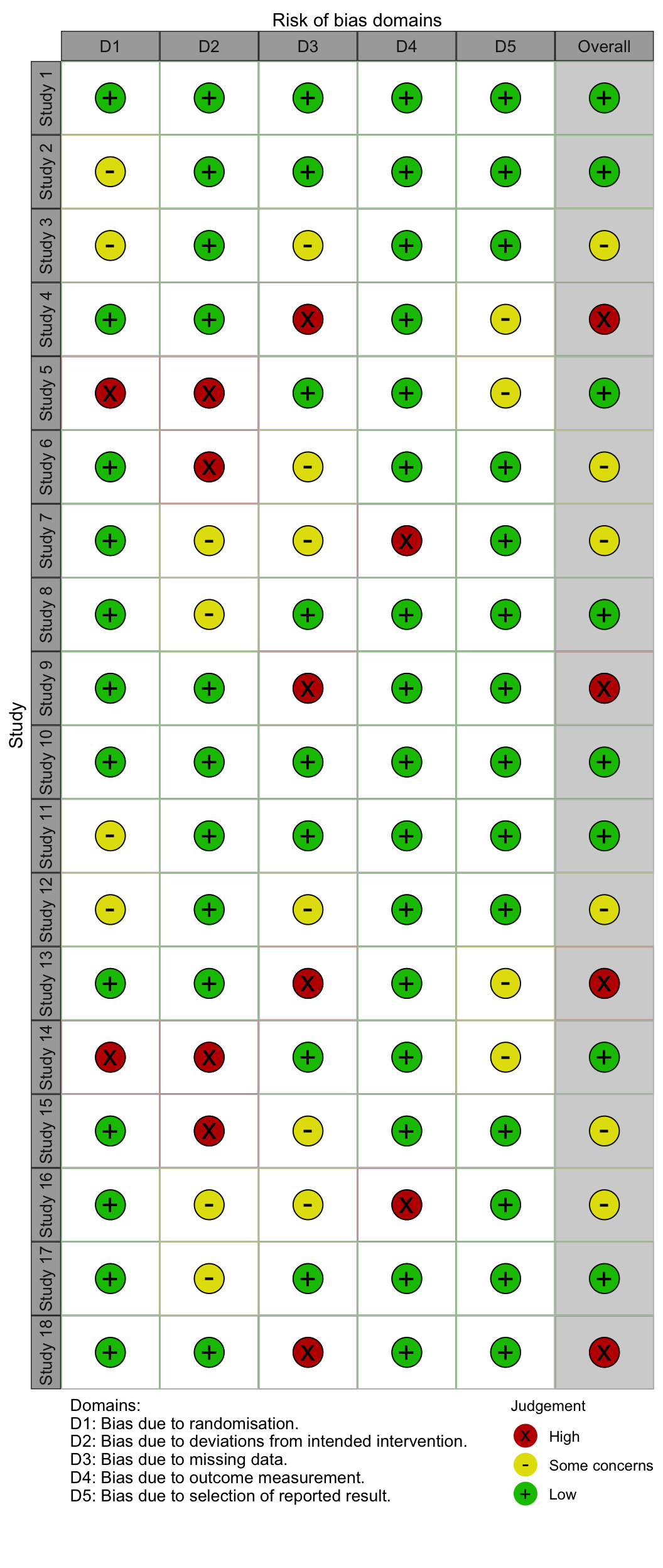

Occasionally, when a large number of risk of bias assessment have been performed, the resulting traffic light plot may be too long to be useful. Users can address this by modifying the psize argument of the rob_traffic_light function to a smaller number (default is 20). For example:

# Create bigger dataset (18 studies)
new_rob2_data <- rbind(data_rob2, data_rob2)
new_rob2_data$Study <- paste("Study", seq(1:length(new_rob2_data$Study)))

# Plot bigger dataset, reducing the psize argument from 20 to 8
rob_traffic_light(data = new_rob2_data,
                  tool = "ROB2",
                  psize = 8)

## Warning in ggplot2::geom_point(shape = 1, colour = "black", size = psize, : All aesthetics have length 1, but the data has 108
## rows.
## ℹ Did you mean to use `annotate()`?

15.4 “ROB1” Generic Template

15.4.1 Motivation

This template offers increased flexibility in the domains that are included in the plot. It can handle any number of domains (cf. the other tool templates that have a set number of domains) and uses the user-defined column headings as domain titles in the resulting figures.

15.4.2 Varying Numbers of Domains

The “ROB1” template (tool = "ROB1") can handle varying numbers of columns. This was originally designed for use with the ROB1 assessment tool, to which frequently added or removed domains. While this template could be used to present the result of assessments performed using adjusted versions of the other tools (ROB2, QUADAS-2, ROBINS-I), we would strongly discourage authors from doing so. Authors using other published tools should use the stricter templates presented in the previous chapters to ensure they conform with the guidance.

15.4.3 Domain Names

For the other tools listed in the previous sections, the names of the columns containing the domain-level risk of bias judgments are not important. For example, they are commonly named D1, D2, D3, etc. However, this is not the case when using the "ROB1" template.

Compare the column headings of the data_rob2 and the data_rob1 (presented horizontally here for ease of comparison):

Table 15.1: Table 15.2: Comparison of column names in the `data_rob2` (left) and `data_rob1` (right) datasets.
No.	data_rob2	data_rob1
1	Study	Study
2	D1	Random.sequence.generation.
3	D2	Allocation.concealment.
4	D3	Blinding.of.participants.and.personnel.
5	D4	Blinding.of.outcome.assessment
6	D5	Incomplete.outcome.data
7	Overall	Selective.reporting.
8	Weight	Other.sources.of.bias.
9	.	Overall
10	.	Weight

The domain columns (Columns 2-6) in the ROB2 example dataset have been given arbitrary names of D1 - D5, as they will be overwritten by the tool to correspond to the correct domain titles given by the ROB2 guidance.

In contrast, the domain columns (Columns 2-8) in the ROB1 example dataset are labelled correctly, as these will be used in the figures produced by rob_summary and rob_traffic_light.

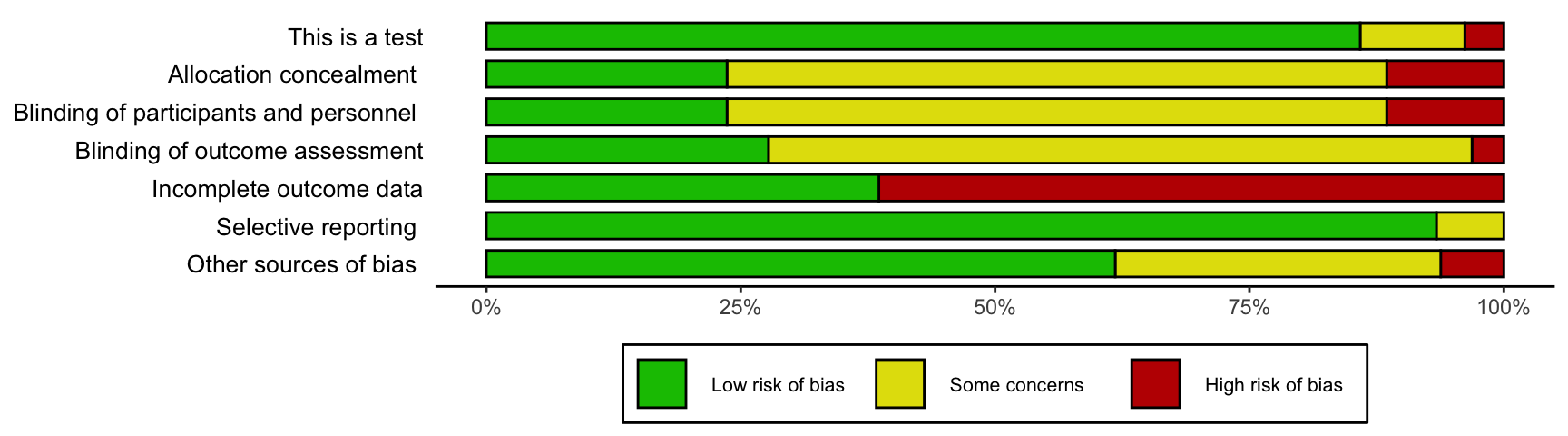

As an example, suppose we change the name of the “Random.sequence.generation” column to “This is a test”. In the rob_summary figure, the title of the first bar is changed, while in the rob_traffic_light figure, the caption is updated to reflect this change.

# Create copy of the data_rob1 dataset
new_rob1_data <- data_rob1

# Change the column heading for the first domain
colnames(new_rob1_data)[2] <- "This is a test"

# Create the summary barplot
rob_summary(data = new_rob1_data, tool = "ROB1")

# Create the traffic light plot
rob_traffic_light(data = new_rob1_data,
                  tool = "ROB1")

## Warning in ggplot2::geom_point(shape = 1, colour = "black", size = psize, : All aesthetics have length 1, but the data has 72
## rows.
## ℹ Did you mean to use `annotate()`?

15.5 Costumizing and Saving

15.5.1 The {ggplot2} Package

Both {robvis} functions (rob_summary and rob_traffic_light) produce a ggplot object, and so can be customized and saved using functions from the {ggplot2} package. Use the following code to load this package:

library(ggplot2)

15.5.2 Modifying Your Plots

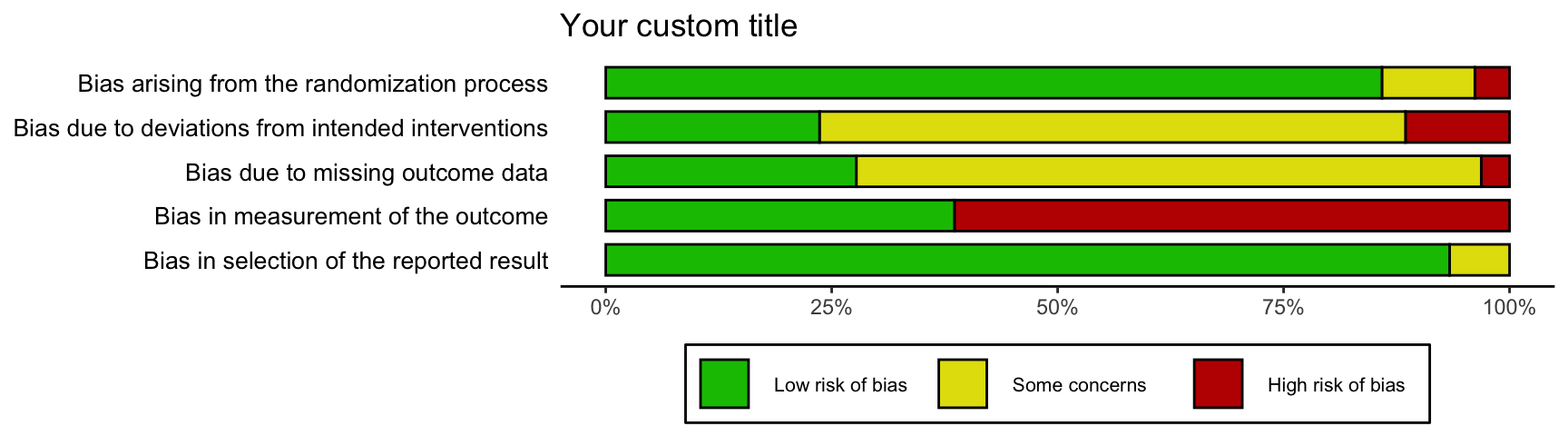

There are a range of post-production modifications you can make to you plots using {ggplot2} functions. A useful example is adding a title to the plot:

# Make sure you have the ggplot2 package installed and loaded
rob_summary(data_rob2, "ROB2") +
  ggtitle("Your custom title")

15.5.3 Saving the Plot

In order to save a risk of bias plot, we first assign it to an object using the <- operator and then save it using the ggsave function of the {ggplot2} package.

When saving the summary bar plot, we recommend using the following code, with the default height and width values.

# Create your plot, and assign it to an object
rob_barplot <- rob_summary(data_rob2, "ROB2")

# Save your plot
ggsave(plot = rob_barplot,        # Plot object to save
       filename = "robplot2.png", # Destination file
       width = 8,                 # Width of image (recommended)
       height = 2.41,             # Height of image (recommended)
       dpi = 1000)                # Resolution of image

When saving the traffic light plots, the approach is the same. However, there are no recommended values for the width and height parameters, as the best values for these parameters will vary from plot to plot as the number and names of included studies change.

15.5.4 Saving in a Different Format

The plots can be saved in a range of formats using the function outlined above, simply by changing the extension of the file-name (e.g. from “.png” to “.pdf”). Acceptable formats include .png, .pdf, .tiff and .svg⁷⁷.

For example, to save the bar plot created above (rob_barplot) as a PDF:

# Save your plot
ggsave(plot = rob_barplot,
       filename = "robplot2.pdf", # File extension now ".pdf"
       width = 8,
       height = 2.41,
       dpi = 1000)

15.6 Web App

In an effort to allow users to quickly explore the functionality of robvis, a web application was created which provides a graphically interface to the {robvis} package.

The web-app is available here. A brief guided walk-through is presented below.

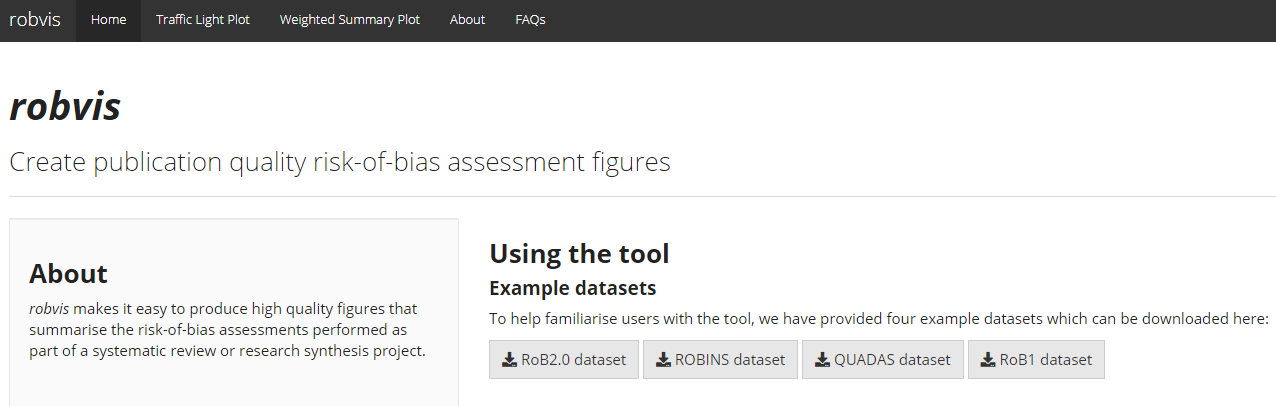

15.6.1 Landing Page

The page presents a concise version of the guidance found in the previous chapters, specifically relating to setting up your dataset. More importantly, users can download the example datasets for each tool as a CSV file and use these to interact with the app and explore its functionality.

15.6.2 Traffic Light Plot Page

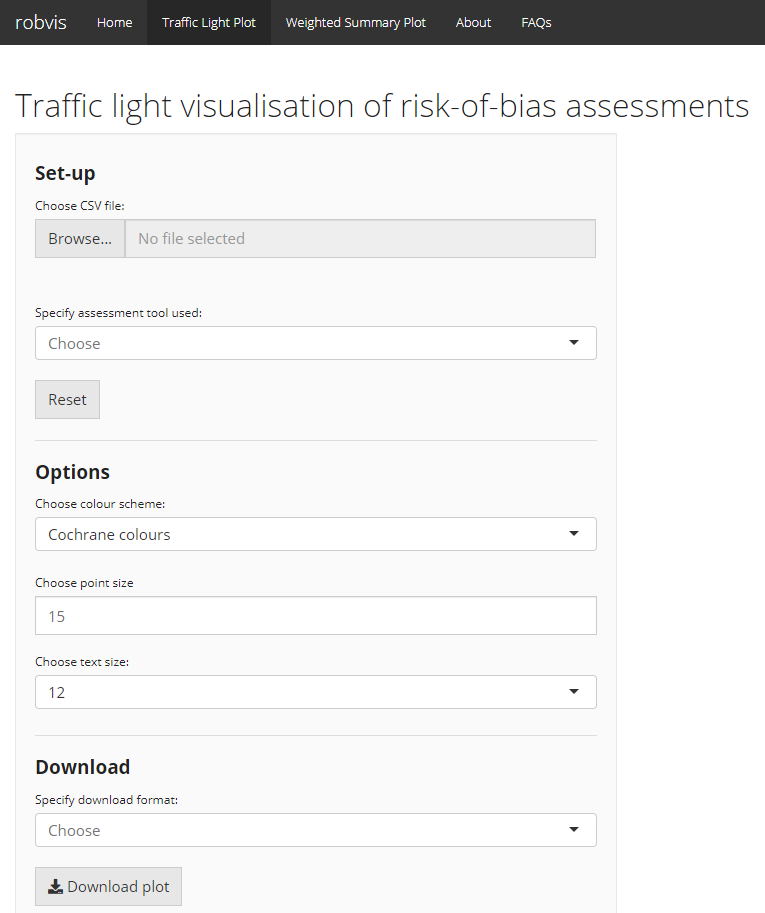

Clicking on the second tab will bring you to the screen displayed below.

This menu acts as a graphical interface for the rob_traffic_light function:

Upload your risk of bias summary table by clicking “Browse…” and navigating to where you stored your CSV file.
Use the drop-down box to select the tool used to perform your risk of bias assessments.

The basic traffic light plot should now appear on the right hand side of the window. You can customize the plot using the following options:

Select the colour scheme you wish to use (either “Cochrane” or “Colour-blind friendly”)
Modify the point size (useful when you wish to plot a large number of studies on a single traffic light plot)
Modify the text size.

Once you are happy with the plot, you can download it by selecting the required format (.png, .jpg,.tiff, .eps) and clicking the “Download plot” button. Note, if you do not first select a format, you will get a download error.

15.6.3 Summary Plot Page

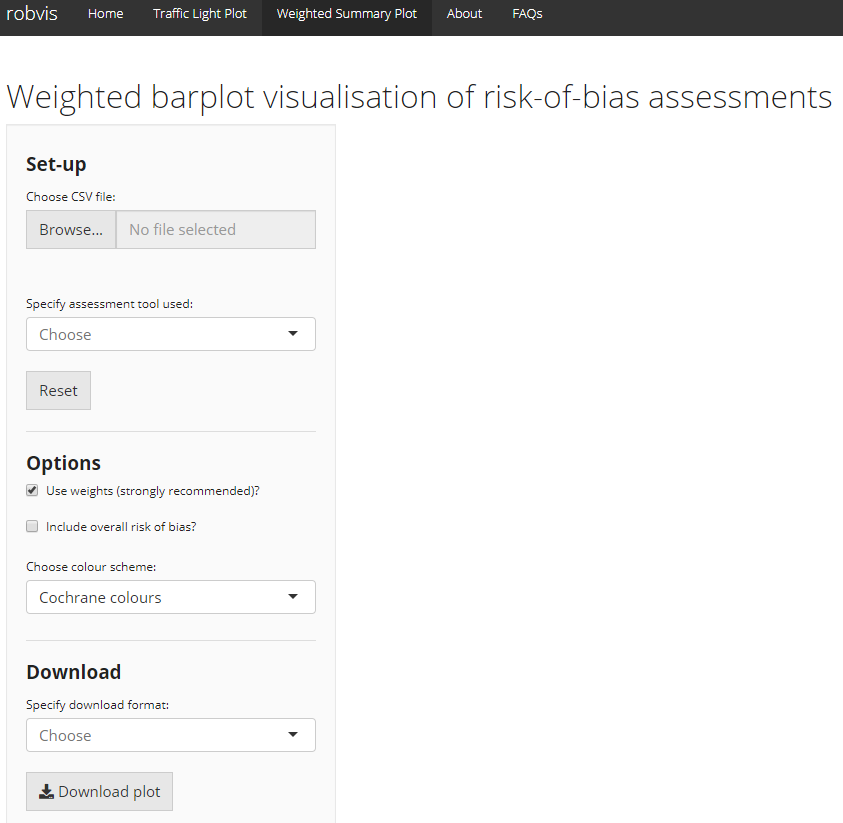

Clicking on the third tab will bring you to the screen displayed below.

This menu acts as a graphical interface for the rob_summary function:

Upload your risk of bias summary table by clicking “Browse…” and navigating to where you stored your CSV file.
Use the drop-down box to select the tool used to perform your risk of bias assessments.

The basic weighted summary bar plot should now appear on the right hand side of the window.

You can customize the plot using the following options:

Choose whether or not to use weights when creating the figure
Include an additional bar representing distribution of overall risk of bias judgments
Select the colour scheme you wish to use (either “Cochrane” or “Colour-blind friendly”)

As with the traffic light plot tab, you can download your plot by selecting the required format and clicking the “Download plot” button.

\[\tag*{$\blacksquare$}\]

14 Power Analysis

16 Reporting & Reproducibility
