Chapter 7 R Lab 6 - 24/05/2023

In this lecture we will learn how to implement support vector machine, and we will compare it with other classification algorithms.

The following packages are required: e1071, pROC, tidymodels,discrim and tidyverse.

library(tidymodels)
library(tidyverse)
library(e1071) #for SVM
##
## Attaching package: 'e1071'
## The following object is masked from 'package:tune':
##
##     tune
## The following object is masked from 'package:rsample':
##
##     permutations
## The following object is masked from 'package:parsnip':
##
##     tune
library(pROC)
library(discrim) #for QDA

For this lab session the simulated data contained in the file simdata.rds will be used (the file is available in the e-learning). The extension .rds refers to a format which is specific to R software. The file contains a R object which can be restored by using the function readRDS.

#Easy way: the RDS file must be in the same folder of the Rmd file
simdata = readRDS("./files/simdata.rds")
glimpse(simdata)
## Rows: 200
## Columns: 3
## $ x.1 <dbl> 1.8735462, 2.6836433, 1.6643714, 4.0952808, 2.8…
## $ x.2 <dbl> 2.9094018, 4.1888733, 4.0865884, 2.1690922, 0.2…
## $ y   <dbl> 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,…

The simulated data contains two regressors and the response variable y which we now transform into a factor with labels -1 and +1.

table(simdata$y)
##
##   1   2
## 150  50
simdata$y = factor(simdata$y, labels=c(-1,+1))
table(simdata$y)
##
##  -1   1
## 150  50

We also plot the data (scatterplot) by placing x.1 and x.2 on the x and y axis, and by using the categories of the response variable y for setting the color of the points.

simdata %>%
  ggplot() +
  geom_point(aes(x.1, x.2, col=y))

From the plot it results that the data can’t be separated by a linear decision boundary.

As usual, we split the data into a training and a test set. The first one, named simdata_tr, contains 70% of the observations. The latter is named simdata_te.

set.seed(4,sample.kind = "Rejection")
index = sample(1:nrow(simdata),0.7*nrow(simdata))
simdata_tr = simdata[index,]
simdata_te = simdata[-index,]

7.1 SVM

We use simdata_tr and simdata_te to implement SVM by using the function svm contained in the e1071 library (see ?svm). In particular, given the structure of the data a linear kernel won’t be taken into account; we will use instead a radial kernel and polynomial kernel.

We start by implementing SVM with a polynomial kernel with \(degree=4\) and cost parameter \(C=1\).

svmfit.poly <- svm(y~.,
                   data= simdata_tr,
                   kernel = "polynomial",
                   cost = 1,
                   degree = 4,
                   scale = T)

From the output we see that there are 66 training observations classified as support vectors. We can now use the function plot to represent graphically the output (see ?plot).

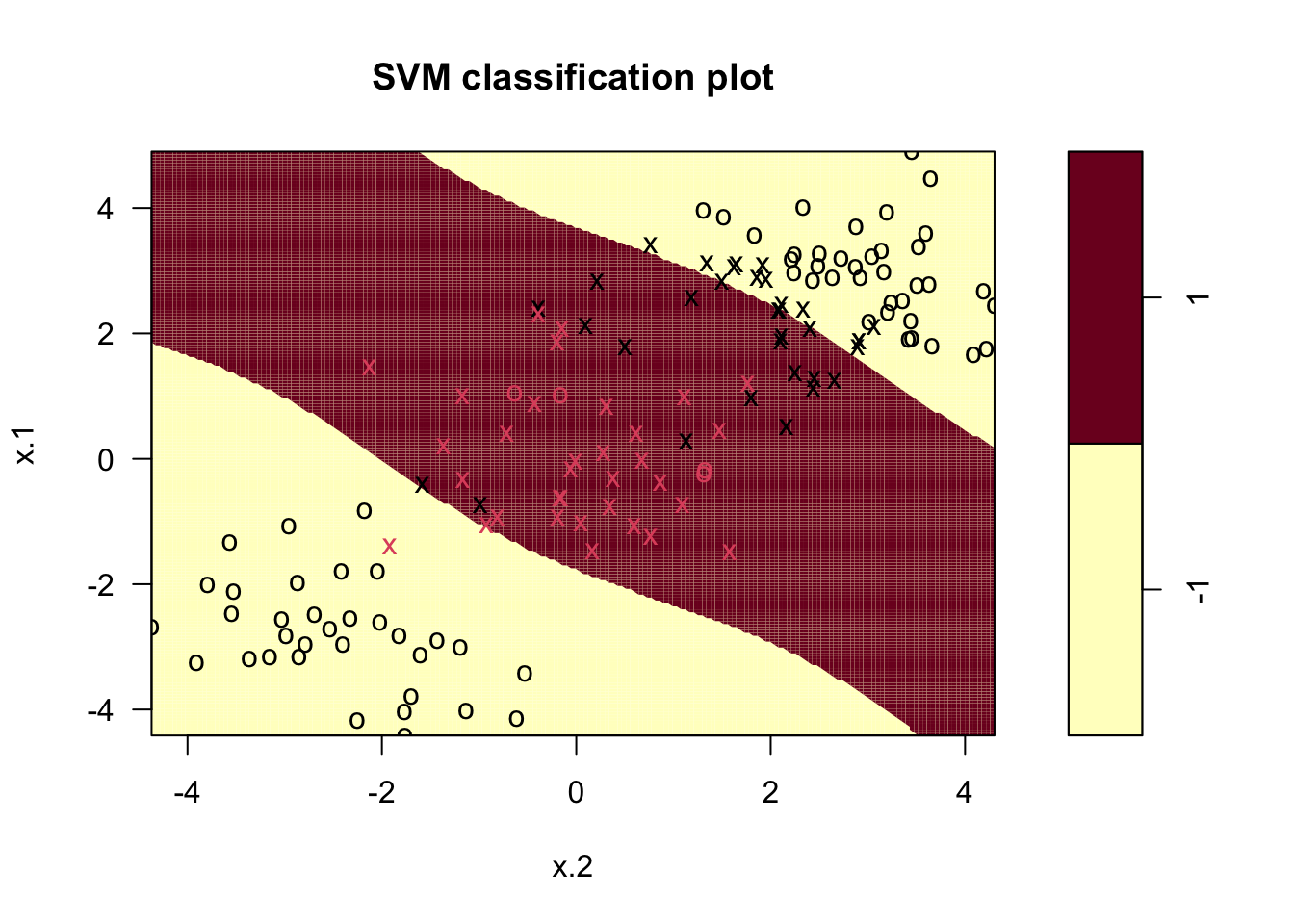

plot(svmfit.poly, simdata_tr, grid=200)# grid improve the resolution of the plot

In the figure we see the training observations represented by different colors: red symbols belong to the category +1, while black symbols to the category -1. Crosses (instead of circles) are used to denote the support vectors. Finally the background color represents the predicted category: the red area defines the values of the regressors for which the prediction of y is equal to +1. Elsewhere (in the yellow area) the prediction will be given by category -1. The option grid of the plot function improves the resolution of the prediction areas (the higher the value, the higher the resolution).

As usual, we compute predictions and then the accuracy.

# pred with polynomial
svmfit.poly_pred <- predict(svmfit.poly, newdata=simdata_te)
# cf
table(svmfit.poly_pred,simdata_te$y)
##
## svmfit.poly_pred -1  1
##               -1 40  2
##               1   7 11
# accuracy
mean(svmfit.poly_pred == simdata_te$y)
## [1] 0.85

Let’s train the svm algorithm also for the radial kernel. In this case, we will set the following parameters: \(cost=1\) and \(gamma=1\)

svmfit.radial <- svm(y~.,
                     data=simdata_tr,
                     kernel = "radial",
                     gamma = 1,
                     cost = 1,
                     scale= T)

Let’s visualize what’s going on:

plot(svmfit.radial,simdata_tr, grid=200)

As we did before, we can evaluate our results using the confusion matrix and the accuracy. In order to do that, we need the final prediction.

# pred with radial
svmfit.radial_pred <- predict(svmfit.radial, newdata=simdata_te)
# cf
table(svmfit.radial_pred,simdata_te$y)
##
## svmfit.radial_pred -1  1
##                 -1 45  2
##                 1   2 11
# accuracy
mean(svmfit.radial_pred == simdata_te$y)
## [1] 0.9333333

Let’s now change the value of \(\gamma\) to 2 (\(\gamma >0\)) and keep \(C=1\). How does the accuracy change?

svmfit.radial_2 = svm(y~.,
           data = simdata_tr,
           kernel = "radial",
           cost = 1,
           gamma = 2,
           scale= T)
#predictions
svmfit.radial_2_pred = predict(svmfit.radial_2, newdata=simdata_te)
#matrix
table(svmfit.radial_2_pred, simdata_te$y)
##
## svmfit.radial_2_pred -1  1
##                   -1 45  3
##                   1   2 10
#accuracy
mean(svmfit.radial_2_pred == simdata_te$y)
## [1] 0.9166667

By changing the value of \(\gamma\) the accuracy decreases slightly.

Let’s now consider different parameters for both the radial (\(C\) and \(\gamma\)) and the polynomial (\(degree\) and \(C\)) kernel and see which is the best combination in terms of cross-validation accuracy. In this case, instead of proceeding with a for loop as described in the last lab, we will use the function tune implemented in the e1071 library. Given that we use CV we set the seed equal to 1. In particular, we consider for \(C\) the values cost=c(0.1,1,10,100,1000), for \(\gamma\) the integers from 1 to 10 (1:10 or seq(1,10)) and for \(degree\) the integer values from 4 to 8).

# radial tuning
set.seed(1,sample.kind = "Rejection")
tune.svm.radial = tune(svm, #function to run iteratively
                y ~ .,
                data = simdata_tr,
                kernel = "radial",
                ranges = list(cost = c(0.1,1,10,100,1000),
                              gamma = 1:10))

By typing

summary(tune.svm.radial)
##
## Parameter tuning of 'svm':
##
## - sampling method: 10-fold cross validation
##
## - best parameters:
##  cost gamma
##   0.1     1
##
## - best performance: 0.05714286
##
## - Detailed performance results:
##     cost gamma      error dispersion
## 1  1e-01     1 0.05714286 0.05634362
## 2  1e+00     1 0.06428571 0.07103064
## 3  1e+01     1 0.08571429 0.06563833
## 4  1e+02     1 0.09285714 0.06776309
## 5  1e+03     1 0.07142857 0.05832118
## 6  1e-01     2 0.08571429 0.06563833
## 7  1e+00     2 0.07142857 0.06734350
## 8  1e+01     2 0.08571429 0.05634362
## 9  1e+02     2 0.08571429 0.06563833
## 10 1e+03     2 0.10000000 0.07678341
## 11 1e-01     3 0.11428571 0.09035079
## 12 1e+00     3 0.07142857 0.06734350
## 13 1e+01     3 0.07857143 0.05270463
## 14 1e+02     3 0.07857143 0.06254250
## 15 1e+03     3 0.10000000 0.07678341
## 16 1e-01     4 0.15000000 0.09190600
## 17 1e+00     4 0.07857143 0.06254250
## 18 1e+01     4 0.07857143 0.05270463
## 19 1e+02     4 0.08571429 0.07377111
## 20 1e+03     4 0.10714286 0.10780220
## 21 1e-01     5 0.16428571 0.09553525
## 22 1e+00     5 0.08571429 0.08109232
## 23 1e+01     5 0.10000000 0.06023386
## 24 1e+02     5 0.09285714 0.08940468
## 25 1e+03     5 0.10000000 0.09642122
## 26 1e-01     6 0.20714286 0.10350983
## 27 1e+00     6 0.07857143 0.06254250
## 28 1e+01     6 0.10000000 0.06023386
## 29 1e+02     6 0.10000000 0.09642122
## 30 1e+03     6 0.10714286 0.09066397
## 31 1e-01     7 0.25000000 0.08417938
## 32 1e+00     7 0.09285714 0.06776309
## 33 1e+01     7 0.09285714 0.06776309
## 34 1e+02     7 0.10714286 0.09066397
## 35 1e+03     7 0.10714286 0.09066397
## 36 1e-01     8 0.26428571 0.10129546
## 37 1e+00     8 0.10000000 0.06900656
## 38 1e+01     8 0.10000000 0.07678341
## 39 1e+02     8 0.10714286 0.09066397
## 40 1e+03     8 0.10714286 0.09066397
## 41 1e-01     9 0.26428571 0.10129546
## 42 1e+00     9 0.10000000 0.06900656
## 43 1e+01     9 0.10000000 0.07678341
## 44 1e+02     9 0.10714286 0.09066397
## 45 1e+03     9 0.10714286 0.09066397
## 46 1e-01    10 0.26428571 0.10129546
## 47 1e+00    10 0.10714286 0.06941609
## 48 1e+01    10 0.10714286 0.08417938
## 49 1e+02    10 0.11428571 0.09642122
## 50 1e+03    10 0.11428571 0.09642122

we obtain a data frame with 50 rows (one for each hyperparameter combination). We are interested in the third column (error) giving us the cross-validation error for a specific value of cost and gamma. In particular, we look for the value of \(C\) and \(\gamma\) for which error is lowest. This information is provided automatically in the ouput of tune. In fact the object tune.svm (it’s a list) contains the following objects:

names(tune.svm.radial)
## [1] "best.parameters"  "best.performance" "method"
## [4] "nparcomb"         "train.ind"        "sampling"
## [7] "performances"     "best.model"

By using the $ we can extract the best combination of parameters ($best.parameters), the corresponding cv error ($best.performance) and the corresponding estimate svm model ($best.model):

tune.svm.radial$best.parameters
##   cost gamma
## 1  0.1     1
tune.svm.radial$best.performance #cv error
## [1] 0.05714286
tune.svm.radial$best.model
##
## Call:
## best.tune(method = svm, train.x = y ~ ., data = simdata_tr,
##     ranges = list(cost = c(0.1, 1, 10, 100, 1000),
##         gamma = 1:10), kernel = "radial")
##
##
## Parameters:
##    SVM-Type:  C-classification
##  SVM-Kernel:  radial
##        cost:  0.1
##
## Number of Support Vectors:  72

If you are interest in computing class predictions for the test observation given the best hyperparameter setting, you could use the object tune.svm$best.model directly in the predict function.

Let’s tune also the polynomial kernel. A computation error will be displayed related to the number of interation. This is due to a limit of the e1071 package, but still the results are pretty good.

tune.svm.poly <- tune(svm,
                      y ~.,
                      data= simdata_tr,
                      kernel = "polynomial",
                      ranges = list(cost = c(0.1,1,10,100,1000),
                                    degree = 4:8))

As we did before, we can check our results:

summary(tune.svm.poly)
##
## Parameter tuning of 'svm':
##
## - sampling method: 10-fold cross validation
##
## - best parameters:
##  cost degree
##    10      4
##
## - best performance: 0.1214286
##
## - Detailed performance results:
##     cost degree     error dispersion
## 1  1e-01      4 0.2642857 0.11688512
## 2  1e+00      4 0.1642857 0.10129546
## 3  1e+01      4 0.1214286 0.10129546
## 4  1e+02      4 0.1285714 0.11065667
## 5  1e+03      4 0.1357143 0.12348860
## 6  1e-01      5 0.2642857 0.11688512
## 7  1e+00      5 0.2642857 0.11688512
## 8  1e+01      5 0.2642857 0.11688512
## 9  1e+02      5 0.2642857 0.11688512
## 10 1e+03      5 0.2642857 0.11688512
## 11 1e-01      6 0.2642857 0.11688512
## 12 1e+00      6 0.2642857 0.13062730
## 13 1e+01      6 0.1428571 0.10101525
## 14 1e+02      6 0.1500000 0.10884885
## 15 1e+03      6 0.1428571 0.11167657
## 16 1e-01      7 0.2642857 0.11688512
## 17 1e+00      7 0.2642857 0.11688512
## 18 1e+01      7 0.2642857 0.11688512
## 19 1e+02      7 0.2714286 0.12046772
## 20 1e+03      7 0.2785714 0.13656791
## 21 1e-01      8 0.2642857 0.11688512
## 22 1e+00      8 0.3142857 0.09642122
## 23 1e+01      8 0.2000000 0.12953781
## 24 1e+02      8 0.1500000 0.09788002
## 25 1e+03      8 0.1428571 0.11664237

Besides class predictions we also need probabilities in order to compute the ROC curve. In the case of svm, probabilities are a transformation of the decision values (the latter is the computed values of the hyperplane equation). To obtain this additional information we will use the options decision.values = T,probability = T in the svm and predict functions (run with the best parameter setting). We start with the polynomial kernel:

set.seed(4, sample.kind="Rejection")
best.svm.poly <- svm(y~.,
                     data= simdata_tr,
                     kernel = "polynomial",
                     cost = tune.svm.poly$best.model$cost,
                     degree = tune.svm.poly$best.model$degree,
                     decision.values = T,
                     probability = T)
best.svm.poly
##
## Call:
## svm(formula = y ~ ., data = simdata_tr, kernel = "polynomial",
##     cost = tune.svm.poly$best.model$cost, degree = tune.svm.poly$best.model$degree,
##     decision.values = T, probability = T)
##
##
## Parameters:
##    SVM-Type:  C-classification
##  SVM-Kernel:  polynomial
##        cost:  10
##      degree:  4
##      coef.0:  0
##
## Number of Support Vectors:  47
# compute predictions + decision.values + probabilities for the test set
best.svm.poly_pred <- predict(best.svm.poly,
                              newdata = simdata_te,
                              decision.values = T,
                              probability = T)
# accuracy
mean(best.svm.poly_pred == simdata_te$y)
## [1] 0.9

And then we compute the same for the radial kernel:

set.seed(4, sample.kind="Rejection")
best.svm.radial <- svm(y~.,
                       data = simdata_tr,
                       kernel = "radial",
                       cost = tune.svm.radial$best.model$cost,
                       gamma = tune.svm.radial$best.model$gamma,
                       decision.values = T,
                       probability = T)
### predictions ----

best.svm.radial_pred <- predict(best.svm.radial,
                                newdata= simdata_te,
                                decision.values = T,
                                probability = T)

best.svm.radial_pred
##   4   6  15  16  17  18  20  23  27  28  29  30  34  38  40
##  -1  -1  -1  -1  -1  -1  -1  -1  -1   1  -1  -1  -1  -1  -1
##  42  58  66  67  69  70  74  77  81  83  89  93  94  95  96
##  -1  -1  -1  -1  -1  -1  -1   1  -1  -1  -1  -1  -1  -1  -1
##  97 100 104 105 108 111 118 120 122 123 127 131 132 135 137
##  -1  -1  -1  -1  -1  -1  -1  -1   1  -1  -1  -1  -1  -1  -1
## 138 145 161 166 167 168 169 173 174 177 183 185 189 195 197
##  -1  -1  -1  -1   1   1   1   1   1   1   1   1   1   1  -1
## attr(,"decision.values")
##            -1/1
## 4    1.06518441
## 6    0.84167159
## 15   1.06858105
## 16   1.05818023
## 17   1.12076184
## 18   1.00155250
## 20   1.18328236
## 23   1.05891038
## 27   1.09073903
## 28  -0.24029197
## 29   1.12672134
## 30   1.19500107
## 34   1.18629143
## 38   0.82583782
## 40   1.17505398
## 42   1.13874828
## 58   1.04362613
## 66   1.19715857
## 67   0.35795172
## 69   1.13898919
## 70   0.93318949
## 74   0.80881534
## 77   0.12955352
## 81   1.13100955
## 83   1.01380301
## 89   1.19192259
## 93   1.12976497
## 94   0.93421936
## 95   0.90326506
## 96   1.18955055
## 97   1.00085098
## 100  1.01855088
## 104  1.10251370
## 105  0.77933440
## 108  0.58175356
## 111  0.97148119
## 118  1.12755593
## 120  1.01506129
## 122 -0.28235461
## 123  0.92997806
## 127  1.12436155
## 131  1.11028940
## 132  0.98968024
## 135  1.07647966
## 137  0.91201312
## 138  1.13258450
## 145  0.82162717
## 161  0.23441855
## 166  0.39336978
## 167 -0.95681700
## 168 -0.72181341
## 169 -0.91335816
## 173 -0.77448799
## 174 -1.04954849
## 177 -0.74116942
## 183 -0.75257449
## 185 -0.39323003
## 189  0.04169849
## 195 -0.74245356
## 197  0.47814541
## attr(,"probabilities")
##              -1          1
## 4   0.975646242 0.02435376
## 6   0.943066454 0.05693355
## 15  0.975963108 0.02403689
## 16  0.974979925 0.02502007
## 17  0.980353536 0.01964646
## 18  0.968900987 0.03109901
## 20  0.984587623 0.01541238
## 23  0.975050207 0.02494979
## 27  0.977933636 0.02206636
## 28  0.187263584 0.81273642
## 29  0.980801982 0.01919802
## 30  0.985274737 0.01472526
## 34  0.984767012 0.01523299
## 38  0.939612664 0.06038734
## 40  0.984086397 0.01591360
## 42  0.981676643 0.01832336
## 58  0.973538101 0.02646190
## 66  0.985397910 0.01460209
## 67  0.710114260 0.28988574
## 69  0.981693757 0.01830624
## 70  0.959645650 0.04035435
## 74  0.935681493 0.06431851
## 77  0.498368417 0.50163158
## 81  0.981118442 0.01888156
## 83  0.970326884 0.02967312
## 89  0.985097212 0.01490279
## 93  0.981027125 0.01897287
## 94  0.959802943 0.04019706
## 95  0.954809507 0.04519049
## 96  0.984958988 0.01504101
## 97  0.968817356 0.03118264
## 100 0.970862298 0.02913770
## 104 0.978915608 0.02108439
## 105 0.928305062 0.07169494
## 108 0.855726857 0.14427314
## 111 0.965114187 0.03488581
## 118 0.980863978 0.01913602
## 120 0.970469701 0.02953030
## 122 0.163270708 0.83672929
## 123 0.959151371 0.04084863
## 127 0.980625624 0.01937438
## 131 0.979540502 0.02045950
## 132 0.967455962 0.03254404
## 135 0.976684484 0.02331552
## 137 0.956277745 0.04372226
## 138 0.981233380 0.01876662
## 145 0.938661711 0.06133829
## 161 0.600566194 0.39943381
## 166 0.738055375 0.26194463
## 167 0.013399059 0.98660094
## 168 0.033229727 0.96677027
## 169 0.015869444 0.98413056
## 173 0.027155409 0.97284459
## 174 0.009326832 0.99067317
## 177 0.030858540 0.96914146
## 183 0.029538946 0.97046105
## 185 0.111829247 0.88817075
## 189 0.412493654 0.58750635
## 195 0.030707157 0.96929284
## 197 0.797518746 0.20248125
## Levels: -1 1
# accuracy
mean(best.svm.radial_pred == simdata_te$y)
## [1] 0.9

By typing best.svm.radial_pred or attributes(best.svm.radial_pred) we see that the object best.svm.radial_pred contains more information than just the predicted categories. The same applies also to the polynomial predictions. We are in particular interested in the attribute called "probabilities" which can be extracted as follows:

best.svm.poly_prob <- attr(best.svm.poly_pred, "probabilities")
best.svm.radial_prob <- attr(best.svm.radial_pred, "probabilities")

We are now able to compute and plot the ROC curve as described in Section ??:

rocsvm.poly <- roc(simdata_te$y,best.svm.poly_prob[,1])
## Setting levels: control = -1, case = 1
## Setting direction: controls > cases
rocsvm.radial <- roc(simdata_te$y, best.svm.radial_prob[,1])
## Setting levels: control = -1, case = 1
## Setting direction: controls > cases
ggroc(list(poly = rocsvm.poly,
           radial = rocsvm.radial))

# comparing between them, radial seems better.
auc(rocsvm.poly)
## Area under the curve: 0.9116
auc(rocsvm.radial)
## Area under the curve: 0.9787

What can we conclude? Well, considering that both the tuned algorithms are obtaining an accuracy equal to 0.9, we should consider the AUC in order to discriminate between them. In fact, take into consideration that AUC check sensitivity e specificity (so two “tests”) for several scenarios, while the accuracy consider just the missclassified observation in the best scenario. With this respect, I would go for radial kernel!

7.2 COMPARISON WITH QDA AND BAGGING

We compare, by means of accuracy, the svm algorithm with quadratic discriminant analysis (QDA) and bagging algorithm.

## QDA -----
qda_simdata = discrim_quad(mode = 'classification', engine = 'MASS') %>%
  fit(y ~ ., data = simdata_tr)

pred_qda <- predict(qda_simdata, new_data= simdata_te,type = 'prob') %>%
  bind_cols(predict(qda_simdata, new_data= simdata_te,type = 'class'))

#cf
table(pred_qda$.pred_class, simdata_te$y)
##
##      -1  1
##   -1 47  6
##   1   0  7
#accuracy
mean(pred_qda$.pred_class == simdata_te$y)
## [1] 0.9
rocqda <- roc(simdata_te$y, pred_qda$.pred_1)
## Setting levels: control = -1, case = 1
## Setting direction: controls < cases
## BAGGING -----
set.seed(1, sample.kind="Rejection")

bag_fit <- rand_forest(mtry = ncol(simdata_tr)-1,
                       trees = 500,
                       mode = 'classification',
                       engine = 'randomForest') %>%
  fit(y ~ ., data = simdata_tr)

bag_fit_pred <- predict(bag_fit,
                        new_data= simdata_te,
                        type = "prob") %>%
  mutate(predict(bag_fit,
                        new_data= simdata_te,
                        type = "class"))
# cf
table(bag_fit_pred$.pred_class, simdata_te$y)
##
##      -1  1
##   -1 45  4
##   1   2  9
# accuracy
mean(bag_fit_pred$.pred_class == simdata_te$y)
## [1] 0.9
rocbag <- roc(simdata_te$y, bag_fit_pred$.pred_1)
## Setting levels: control = -1, case = 1
## Setting direction: controls < cases

Finally, we can evaluate everything togheter:

ggroc(list(svm.poly = rocsvm.poly,
           svm.radial = rocsvm.radial,
           qda = rocqda,
           bagging = rocbag)) %>% plotly::ggplotly()
auc(rocbag)
## Area under the curve: 0.9771
auc(rocqda)
## Area under the curve: 0.982
auc(rocsvm.radial)
## Area under the curve: 0.9787
auc(rocsvm.poly)
## Area under the curve: 0.9116

As we already know, svm with polynomial kernel performes worse than its radial counterpart. At the same time, both QDA and Bagging seems to reach a good results. In this case, we should take into consideration not only the AUC and the accuracy, but also the algorithm characteristics as:

  1. Stability of decision
  2. Computational requirements
  3. Interpretability

Also, take into consideration that we didn’t tune any parameter of QDA and Bagging. If we just want to remain on a basic interpretation, QDA should be preferred. But real-life problems are not always requiring a basic interpretation!

7.3 SVM with more than 2 categories and more than 2 regressors

We consider now the Glass dataset contained in the mlbench library (see ?Glass). We start by exploring the data where Type is the response variable.

library(mlbench)
data(Glass)
glimpse(Glass)
## Rows: 214
## Columns: 10
## $ RI   <dbl> 1.52101, 1.51761, 1.51618, 1.51766, 1.51742, 1…
## $ Na   <dbl> 13.64, 13.89, 13.53, 13.21, 13.27, 12.79, 13.3…
## $ Mg   <dbl> 4.49, 3.60, 3.55, 3.69, 3.62, 3.61, 3.60, 3.61…
## $ Al   <dbl> 1.10, 1.36, 1.54, 1.29, 1.24, 1.62, 1.14, 1.05…
## $ Si   <dbl> 71.78, 72.73, 72.99, 72.61, 73.08, 72.97, 73.0…
## $ K    <dbl> 0.06, 0.48, 0.39, 0.57, 0.55, 0.64, 0.58, 0.57…
## $ Ca   <dbl> 8.75, 7.83, 7.78, 8.22, 8.07, 8.07, 8.17, 8.24…
## $ Ba   <dbl> 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0…
## $ Fe   <dbl> 0.00, 0.00, 0.00, 0.00, 0.00, 0.26, 0.00, 0.00…
## $ Type <fct> 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1…

We see that the response variable is characterized by 6 categories:

table(Glass$Type)
##
##  1  2  3  5  6  7
## 70 76 17 13  9 29

We proceed with some descriptive plotting:

Glass %>%
  ggplot()+
  geom_point(aes(RI,Na,col=Type))

Glass %>%
  ggplot()+
  geom_boxplot(aes(Mg,fill=Type))

We then create as usual the training (70%) and test data set.

set.seed(44,sample.kind = "Rejection")
tr_index = sample(1:nrow(Glass), nrow(Glass)*0.7)
Glass_tr = Glass[tr_index,]
Glass_te = Glass[-tr_index,]

Finally, we implement SVM. Note that the function svm uses the one-against-one approach. We consider in this case a polynomial kernel of degree \(d\) 1 and a value of \(C=1\). We then compute predictions and accuracy.

svm.fit = svm(Type ~ .,
              data = Glass_tr,
              kernel = "polynomial",
              cost = 1,
              degree = 1)
svm.pred = predict(svm.fit,
                   Glass_te)

table(svm.pred, Glass_te$Type)
##
## svm.pred  1  2  3  5  6  7
##        1 21 11  2  0  0  0
##        2  2 12  1  2  0  0
##        3  0  0  0  0  0  0
##        5  0  1  0  0  0  0
##        6  0  2  0  0  0  0
##        7  0  1  0  3  0  7
mean(svm.pred == Glass_te$Type)
## [1] 0.6153846

To tune the hyperparameters we consider different values of \(C\) (cost=c(0.1,1,10,100,1000)) and of the degree of the polynomial(1:5) and then compute the accuracy for each combination of hyperparameters.

set.seed(1,sample.kind = "Rejection")
tune.out=tune(svm,
              Type ~ .,
              data = Glass_tr,
              kernel="polynomial",
              ranges=list(cost=c(0.1,1,10,100,1000),
                          degree=1:5))
summary(tune.out)
##
## Parameter tuning of 'svm':
##
## - sampling method: 10-fold cross validation
##
## - best parameters:
##  cost degree
##  1000      3
##
## - best performance: 0.3142857
##
## - Detailed performance results:
##     cost degree     error dispersion
## 1  1e-01      1 0.5838095 0.07566619
## 2  1e+00      1 0.3952381 0.11306669
## 3  1e+01      1 0.3542857 0.10697989
## 4  1e+02      1 0.3209524 0.11070675
## 5  1e+03      1 0.3347619 0.10228062
## 6  1e-01      2 0.5966667 0.07445274
## 7  1e+00      2 0.5095238 0.09735737
## 8  1e+01      2 0.3747619 0.18767853
## 9  1e+02      2 0.3147619 0.13592437
## 10 1e+03      2 0.3480952 0.17874524
## 11 1e-01      3 0.6104762 0.07005019
## 12 1e+00      3 0.5300000 0.09993825
## 13 1e+01      3 0.3614286 0.12051895
## 14 1e+02      3 0.3547619 0.15259988
## 15 1e+03      3 0.3142857 0.12832624
## 16 1e-01      4 0.5761905 0.10021393
## 17 1e+00      4 0.5566667 0.10189561
## 18 1e+01      4 0.4890476 0.10079178
## 19 1e+02      4 0.3619048 0.13997084
## 20 1e+03      4 0.3347619 0.12801270
## 21 1e-01      5 0.5685714 0.13333711
## 22 1e+00      5 0.5566667 0.09692813
## 23 1e+01      5 0.5100000 0.11764143
## 24 1e+02      5 0.4561905 0.09706709
## 25 1e+03      5 0.3890476 0.13903258
tune.out$best.parameters
##    cost degree
## 15 1000      3
# prediction (based on the one-versus-one approach)
svm.pred.best = predict(tune.out$best.model,
                        newdata=Glass_te)
table(svm.pred.best, Glass_te$Type)
##
## svm.pred.best  1  2  3  5  6  7
##             1 19  4  2  1  0  0
##             2  2 17  0  3  0  1
##             3  2  2  1  0  0  0
##             5  0  1  0  0  0  0
##             6  0  2  0  0  0  0
##             7  0  1  0  1  0  6
mean(svm.pred.best == Glass_te$Type)
## [1] 0.6615385

Note that in this case the confusion matrix is not a 2 by 2 matrix, but it’s dimension is given by the number of categories of the response variable.

7.4 Exercises Lab 6

7.4.1 Exercise 1

The file winequality.csv (available in the e-learning) contains information about physicochemical and sensory properties of some Portuguese wines (data source: https://www.kaggle.com). The following variables are available:

  • fixed acidity
  • volatile acidity
  • citric acid
  • residual sugar
  • chlorides
  • free sulfur dioxide
  • total sulfur dioxide
  • density
  • pH
  • sulphates
  • alcohol
  • quality of the wine based on sensory data (score between 0 and 10)

7.4.1.1 Part 1: data import

  1. Import the data. Check the structure of the data and compute some quick summary statistics.
  2. Transform the quality variable into a binary variable (named goodwine) which represents good quality wine. The new variable is equal to 1 if quality is equal to or higher than 6 and equal to 0 otherwise. Remember to set the new variable as a factor.
  1. Provide a frequency table of the new quality variable goodwine.
  1. Remove from the dataset the original quality variable.

7.4.1.2 Part 2: data analysis and splitting

  1. Study the distribution of the following variables conditionally on the binary wine quality variable named goodwine: fixed.acidity, citric.acid and chlorides. Provide some conditional summary statistics and plots. Comment your results.
  2. Divide the dataset into a training (70% of the observations, named train.wine) and a test (30% of the observations, named test.wine) dataset. Remember to set the seed equal to 445566.
  1. Compute the average pH separately for the two datasets.

7.4.1.3 Part 3: KNN + cross-validation

  1. Perform KNN for the classification of the goodwine variable. In order to choose the best value for the \(K\) parameter (number of neighbors) we will implement manually 5-folds cross-validation (see theory Slides #6). Consider values of \(K\) in the set of integers between 1 and 100.

We first of all assign each training observation to a fold by using the sample function:

# n_folds = 5
# set.seed(1,sample.kind = "Rejection")
# fold_index = sample(1:n_folds,size=nrow(train.wine),replace=T)
# head(fold_index)
# table(fold_index)

We see that we have 240 training observations in fold 1 and 233 in fold 5.

For each value of \(k\) between 1 and 100 (external for loop), we have an internal for loop which runs in 5 iterations: in the first iteration, fold 1 will be using for validation and the remaining 4 folds will be used as training data, and so forth. For each iteration we will compute the validation error (on the left-out fold) and save it in a vector named temp that will contains 5 error values. We will then compute the mean of these 5 validation errors: this final number is the cv error for a specific value of \(k\).

# # empty vector for storing results
# cv.error = c()
# # considered values of k
# kseq = 1:100
#
# # external loop running over the values of k
# for(k in 1:length(kseq)){
#
#   # internal loop running over the index i (and the 5 folds)
#   # for a fixed value k
#   temp = c()
#   for(i in 1:n_folds){
#     trainingdata = train.wine[fold_index != i,]
#     validationdata = train.wine[fold_index == i,]
#
#     set.seed(1)
#     mod_knn = nearest_neighbor(neighbors = kseq[k], engine = 'kknn', mode = 'classification') %>%
#       fit(goodwine ~ .,data = trainingdata) %>%
#       predict(new_data = validationdata)
#     temp[i] = mean(mod_knn$.pred_class != validationdata$goodwine)
#   }
#
#   # We compute now the average of the 5 validation errors
#   cv.error[k] = mean(temp)
# }
#
# plot(kseq,cv.error,type="l")
# kseq[which.min(cv.error)]

We obtain that 61 is the value of \(k\) which minimizes the cv error. By using this value implement KNN and evaluate the test misclassification error rate (I suggest to save the error value in an object that will be used later for comparing different classifiers).

7.4.1.4 Part 4: logistic regression

We want now to use a logistic model to predict if a wine is of good quality or not (variable goodwine).

  1. Provide the output of the logistic model (estimated using the training data) which includes all the available predictors.

  2. Comment the coefficient of the alcohol regressor.

  3. Using the logistic model, predict goodwine for the test data. Provide the confusion matrix (using 0.5 as probability threshold).

  4. For the logistic model output compute the sensitivity, the specificity and the overall test misclassification error rate (remember to save the latter in an object for later use). Comment the results.

7.4.1.5 Part 5: LDA and QDA

We want now to use linear and quadratic discrimination analysis (LDA and QDA) to predict if a wine is of good quality or not (variable goodwine).

  1. Provide the confusion matrix and the test misclassification error rate that you obtain with linear discrimination analysis (remember to save the latter in an object for later use).
  2. Provide the confusion matrix and the test misclassification error rate that you obtain with quadratic discrimination analysis (remember to save the latter in an object for later use).

7.4.1.6 Part 6: Adaboost

Use the Adaboost algorithm to predict goodwine using all the available regressors. Use a number of iterations equal to 1000 (this is a bit time consuming…). Then compute the missclassification test error rate.

7.4.1.7 Part 7: SVM

Implement 3 different SVM model defined as follows: - linear kernel; - radial kernel with \(\gamma=1\) and cost parameter \(C=1\); - polynomial kernel with \(d=3\) and cost parameter \(C=1\). For each of the 3 models compute the missclassification test error rate.

7.4.1.8 Part 8: comparison

Compare the test misclassification error rate for all the classifiers you have used. Which is the best and the worst classifier?
