Chapter 1 I/O

In this Chapter, we will introduce basic functions to read text, excel and JSON files as well as large files.

We will also show how to obtain free financial and economic data including the following:

  • End-of-day and real-time pricing;
  • Company financials;
  • Macroeconomic data.

Data sources utilized in this Chapter include the following:

  • U.S. Securities and Exchange Commission;
  • Quandl;
  • IEX;
  • Alpha Vantage.

1.1 Importing Data

1.1.1 Text Files

The most basic and commonly used option to import data from text files in R is the use of the function read.table from the r-base. We can use this function to read text files with extensions such as .txt and .csv.

dat.table <- read.table(file = "<name of your file>.txt")
dat.csv <- read.csv(file = "<name of your file>.csv")

The package readr provides functions for reading text data into R that are much faster that the functions from the r-base. The read_table function from the package readr provides a near-replacement for the read.table function.

library(readr)
dat.table <- readr::read_table2(file = "<name of your file>.txt")
dat.csv <- readr::read_csv(file = "<name of your file>.csv")

Another option to save data is to write it in rds format. Data stored in rds format has the advantage to keep the original data struture and type of the object saved. Also, .rds files are compressed and consume less space than files saved in .csv format. A data.frame object can be saved in rds format and then loaded back as follows:

write_rds(dat.frame, path = "<name of your file>.rds")
dat.frame <- read_rds(path = "<name of your file>.rds")

1.1.2 Excel Files

The package readxl has an ease to use interface to functions that load excel documents in R. The functions read_xls and read_xlsx can be used to read excel files as follows:

library(readxl)
readxl::read_xls(path = "<name of your file>.xls")
readxl::read_xlsx(path = "<name of your file>.xlsx")

The function read_excel() automatically detects the extension of the input file as follows:

readxl::read_excel("<name and extension of your file>", sheet = "<sheet name or index>")

In the read_excel function, the sheet argument can receive either the target sheet name or index number, where sheet indexing starts at 1.

The readxl has been oberving increased use compared to other comparable packages such as gdata and the xlsx due to its relative ease of use and performance. Also, the readxl do not have depency with external code libraries while the packages gdata and xlsx depend on ActiveState PERL and the Java JDK, respectively.

1.1.3 JSON Files

JSON files are particularly used for transmitting data in web applications but also frequently used as a standard data interchange format.

The jsonline package can be used to parse files in JSON format as follows:

library(jsonlite)
result_json <- read_json("<json file>")

1.1.4 Large Files

Fast data manipulation in a short and flexible syntax.

1.2 Data Sources

In this section, we will show how to obtain financial and economic data from public sources.

1.2.1 Alpha Vantage

Alpha Vantage offers free access to pricing data including:

  • Stock Time Series Data;
  • Physical and Digital/Crypto Currencies (e.g., Bitcoin);
  • Technical Indicators and
  • Sector Performances.

The data are available in JSON and CSV formats via REST APIs. The quantmod and the alphavantager R packages offer a lightweight R interface to the Alpha Vantage API. Daily stock prices can be obtained with the quantmod::getSymbols function as follows:

getSymbols(Symbols='AAPL', src="av", output.size="full", adjusted=TRUE, api.key='your API key')

The output data is stored in an object with the same name as the corresponding symbol, in this example AAPL. The output data looks like the following

AAPL.Open AAPL.High AAPL.Low AAPL.Close AAPL.Volume AAPL.Adjusted
62.8 65.0 62.7 64.8 1.12e+08 2.02
65.0 65.0 62.0 62.1 8.41e+07 1.93
62.6 65.9 62.1 65.2 1.59e+08 2.03
67.0 68.8 66.0 68.6 1.97e+08 2.14
67.6 71.4 66.9 70.6 2.24e+08 2.20
71.9 75.2 70.5 73.5 4.09e+08 2.29

We called the quantmod::getSymbols function with the following arguments:

  • Symbols='AAPL' defines a character vector specifying the names of each symbol to be loaded, here specified by the symbol of the company Apple Inc.;
  • src="av" specifies the sourcing method, here defined with the value corresponding to Alpha Vantage;
  • output.size="full"specified length of the time series returned. The strings compact and full are accepted with the following specifications: compact returns only the latest 100 data points; full returns the full-length time series of up to 20 years of historical data;
  • adjusted=TRUE defines a boolean variable to include a column of closing prices adjusted for dividends and splits;
  • api.key specifies your Alpha Vantage API key.

1.2.2 IEX

The IEX Group operates the Investors Exchange (IEX), a stock exchange for U.S. equities that is built for investors and companies. IEX offers U.S. reference and market data including end-of-day and intraday pricing data. IEX offers an API with “a set of services designed for developers and engineers. It can be used to build high-quality apps and services”. Data sourced from the IEX API is freely available for commercial subject to conditions and the use of their API is subject to additional terms of use.

IEX lists the following github project as an unofficial API for R: https://github.com/imanuelcostigan/iex. We will provide examples on how to obtain intraday pricing data using this package. First, we will use the devtools to install the package directly from its github repository as follows:

library(devtools)
install_github("imanuelcostigan/iex")

The iex package provides 4 set of functions as follows:

For instance, the last function has the following arguments:

  • symbols: A vector of tickers (case insensitive). Special characters will be escaped. A list of eligible symbols is published daily by the IEX. When set to NULL (default) returns values for all symbols.
  • fields: A vector of fields names to return (case sensitive). When set to NULL (default) returns values for all fields.
  • version: The API version number, which is used to define the API URL.

We can obtain intraday stock price data with the last function as follows:

dat <- iex::last(symbols = c("AAPL"), fields  = c("symbol", "price", "size"))

The function returns an S3 object of class iex_api which has three accessible fields: path , response and content.

  • The path contains the corresponding IEX API path:
dat$path
## [1] "tops/last"
  • The response contains the unparsed IEX API response:
dat$response
## Response [https://api.iextrading.com/1.0/tops/last?symbols=AAPL&filter=symbol%2Cprice%2Csize]
##   Date: 2019-08-27 02:04
##   Status: 200
##   Content-Type: application/json; charset=utf-8
##   Size: 45 B
  • The content contains the parsed content from the API’s response:
dat$content
## [[1]]
## [[1]]$symbol
## [1] "AAPL"
##
## [[1]]$price
## [1] 207
##
## [[1]]$size
## [1] 100

According to the developer, this package causes R to pause 0.2 seconds after executing an API call to avoid the user being throttled by the IEX API (which enforces a 5 request per second limit). Documentation about the other set of functions can be obtained at https://github.com/imanuelcostigan/iex/tree/master/man.

1.2.3 Quandl

Quandl is likely the largest financial and alternative data aggregator/provider today. They leverage relationships with third-party providers to be a one-stop-shop for alternative data and traditional fundamental, pricing and estimates datasets.

Quandl offer an API which usage is free for registered users. You can obtain an API key here. After signing up, just append your API key to your call like this:

https://www.quandl.com/api/v3/datasets/WIKI/FB/data.csv?api_key=YOURAPIKEYHERE

At Quandl, every dataset is identified by “Quandl code”, which is a unique id. In the above example, you downloaded a dataset with the Quandl code “WIKI/FB”.

Every Quandl code has 2 parts: the database code (“WIKI”) which specifies where the data comes from, and the dataset code (“FB”) which identifies the specific time series you want.

You can find Quandl codes using their data browser. Additional API documentation can be found here.

Quandl is also available via an R interface (Raymond McTaggart, Gergely Daroczi, and Clement Leung 2019). For instance, we can obtain Crude Oil Futures prices from 01/01/2010 to 01/01/2019 as follows:

library(Quandl)
Quandl.api_key(config::get()$quandl.key)
from.dat <- as.Date("01/01/2010", format="%d/%m/%Y")
to.dat <- as.Date("01/01/2019", format="%d/%m/%Y")
crude.oil.futures<-Quandl("CHRIS/CME_CL1", start_date = from.dat, end_date = to.dat, type="xts")

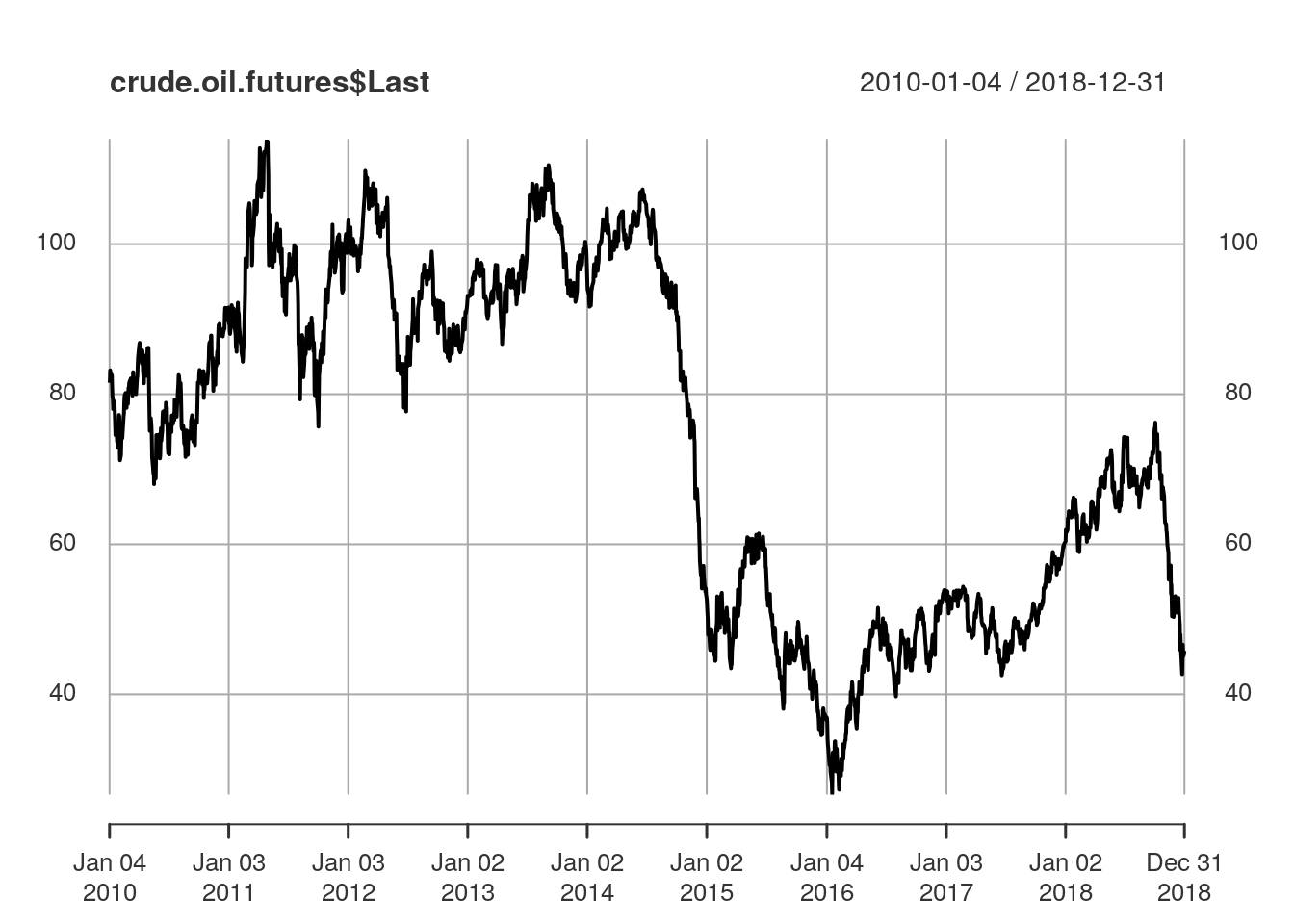

plot(crude.oil.futures$Last)

In the example above we specified the following Database/Dataset:

  • Database: “CHRIS”. Continuous contracts for all 600 futures on Quandl. Built on top of raw data from CME, ICE, LIFFE etc. Curated by the Quandl community. 50 years history.
  • Dataset: “CME_CL1”. Historical futures prices of Crude Oil Futures, Continuous Contract #1. Non-adjusted price based on spot-month continuous contract calculations. Raw data from CME.

1.2.4 SEC

Official filings are freely available from the U.S. Securities and Exchange Commission’s EDGAR database. The package finreportr provides an interface in R to facilitate financial analysis from SEC’s 10K and 10K/A filings.

We can obtain company basic information with the function the CompanyInfo function by passing the ticker symbol of the target company as follows:

library("finreportr")
AAPL.Info<-CompanyInfo("AAPL")
print(AAPL.Info)
##      company        CIK  SIC state state.inc FY.end     street.address
## 1 Apple Inc. 0000320193 3571    CA        CA   0930 ONE APPLE PARK WAY
##           city.state
## 1 CUPERTINO CA 95014

As a result, we obtain the following information:

  • Company name: Apple Inc.;
  • SEC Central Index Key (CIK): 0000320193;
  • Standard Industrial Classification (SIC): 3571, which is the industry code for Electronic Computers;
  • Address: ONE APPLE PARK WAY, CUPERTINO CA 95014;
  • Most recent period of report end is 0930.

The list of company annual reports with corresponding filing dates can be obtained with the function AnnualReports as follows:

AAPL.reports<-AnnualReports("AAPL")
Table 1.1: Sample Annual Reports
filing.name filing.date accession.no
10-K 2018-11-05 0000320193-18-000145
10-K 2017-11-03 0000320193-17-000070
10-K 2016-10-26 0001628280-16-020309
10-K 2015-10-28 0001193125-15-356351
10-K 2014-10-27 0001193125-14-383437
10-K 2013-10-30 0001193125-13-416534

The accession number is a unique identifier that the SEC creates for each filing.

Company financials are organized into 3 segments: Income Statement, Balance Sheet and Cash Flow.

Income Statement

Financials from the Income Statement segment can be obtained with the GetIncome function as follows:

AAPL.IS<-GetIncome("AAPL", 2017)
Table 1.2: Sample Income Statement Financials
Metric Units Amount startDate endDate
Revenue, Net usd 233715000000 2014-09-28 2015-09-26
Revenue, Net usd 75872000000 2015-09-27 2015-12-26
Revenue, Net usd 50557000000 2015-12-27 2016-03-26
Revenue, Net usd 42358000000 2016-03-27 2016-06-25
Revenue, Net usd 46852000000 2016-06-26 2016-09-24
Revenue, Net usd 215639000000 2015-09-27 2016-09-24

The Income Statement function returns data for the following metrics:

Table 1.3: Income Statement Metrics
Metrics
Revenue, Net
Cost of Goods and Services Sold
Gross Profit
Research and Development Expense
Selling, General and Administrative Expense
Operating Expenses
Operating Income (Loss)
Nonoperating Income (Expense)
Income (Loss) from Continuing Operations before Income Taxes, Noncontrolling Interest
Income Tax Expense (Benefit)
Net Income (Loss) Attributable to Parent
Earnings Per Share, Basic
Earnings Per Share, Diluted
Weighted Average Number of Shares Outstanding, Basic
Weighted Average Number of Shares Outstanding, Diluted
Common Stock, Dividends, Per Share, Declared

Balance Sheet

Financials from the Balance Sheet segment can be obtained with the GetBalanceSheet function as follows:

AAPL.BS<-GetBalanceSheet("AAPL", 2017)
Table 1.4: Sample Balance Sheet Financials
Metric Units Amount startDate endDate
Cash and Cash Equivalents, at Carrying Value usd 13844000000 NA 2014-09-27
Cash and Cash Equivalents, at Carrying Value usd 21120000000 NA 2015-09-26
Cash and Cash Equivalents, at Carrying Value usd 20484000000 NA 2016-09-24
Cash and Cash Equivalents, at Carrying Value usd 20289000000 NA 2017-09-30
Available-for-sale Securities, Current usd 46671000000 NA 2016-09-24
Available-for-sale Securities, Current usd 53892000000 NA 2017-09-30

The Balance Sheet function returns data for the following metrics:

Table 1.5: Balance Sheet Metrics
Metrics
Cash and Cash Equivalents, at Carrying Value
Available-for-sale Securities, Current
Accounts Receivable, Net, Current
Inventory, Net
Nontrade Receivables, Current
Other Assets, Current
Assets, Current
Available-for-sale Securities, Noncurrent
Property, Plant and Equipment, Net
Goodwill
Intangible Assets, Net (Excluding Goodwill)
Other Assets, Noncurrent
Assets
Accounts Payable, Current
Accrued Liabilities, Current
Deferred Revenue, Current
Commercial Paper
Long-term Debt, Current Maturities
Liabilities, Current
Deferred Revenue, Noncurrent
Long-term Debt, Excluding Current Maturities
Other Liabilities, Noncurrent
Liabilities
Commitments and Contingencies
Common Stocks, Including Additional Paid in Capital
Retained Earnings (Accumulated Deficit)
Accumulated Other Comprehensive Income (Loss), Net of Tax
Stockholders’ Equity Attributable to Parent
Liabilities and Equity

Cash Flow

Financials from the Cash Flow segment can be obtained with the GetCashFlow function as follows:

AAPL.CF<-GetCashFlow("AAPL", 2017)
Table 1.6: Sample Cash Flow Financials
Metric Units Amount startDate endDate
Cash and Cash Equivalents, at Carrying Value usd 13844000000 NA 2014-09-27
Cash and Cash Equivalents, at Carrying Value usd 21120000000 NA 2015-09-26
Cash and Cash Equivalents, at Carrying Value usd 20484000000 NA 2016-09-24
Cash and Cash Equivalents, at Carrying Value usd 20289000000 NA 2017-09-30
Net Income (Loss) Attributable to Parent usd 53394000000 2014-09-28 2015-09-26
Net Income (Loss) Attributable to Parent usd 18361000000 2015-09-27 2015-12-26

The Cash Flow function returns data for the following metrics:

Table 1.7: Cash Flow Metrics
Metrics
Cash and Cash Equivalents, at Carrying Value
Net Income (Loss) Attributable to Parent
Depreciation, Amortization and Accretion, Net
Share-based Compensation
Deferred Income Tax Expense (Benefit)
Other Noncash Income (Expense)
Increase (Decrease) in Accounts Receivable
Increase (Decrease) in Inventories
Increase (Decrease) in Other Receivables
Increase (Decrease) in Other Operating Assets
Increase (Decrease) in Accounts Payable
Increase (Decrease) in Deferred Revenue
Increase (Decrease) in Other Operating Liabilities
Net Cash Provided by (Used in) Operating Activities
Payments to Acquire Available-for-sale Securities
Proceeds from Maturities, Prepayments and Calls of Available-for-sale Securities
Proceeds from Sale of Available-for-sale Securities
Payments to Acquire Businesses, Net of Cash Acquired
Payments to Acquire Property, Plant, and Equipment
Payments to Acquire Intangible Assets
Payments to Acquire Other Investments
Payments for (Proceeds from) Other Investing Activities
Net Cash Provided by (Used in) Investing Activities
Proceeds from Issuance of Common Stock
Excess Tax Benefit from Share-based Compensation, Financing Activities
Payments Related to Tax Withholding for Share-based Compensation
Payments of Dividends
Payments for Repurchase of Common Stock
Proceeds from Issuance of Long-term Debt
Repayments of Long-term Debt
Proceeds from (Repayments of) Commercial Paper
Net Cash Provided by (Used in) Financing Activities
Cash and Cash Equivalents, Period Increase (Decrease)
Income Taxes Paid, Net
Interest Paid

1.3 Conclusion

  • We showed how to load and import data from both local files and external sources.
  • We provided examples on how to read tabular data and how to handle large files.
  • We showed how to obtain financial and economic data from freely available sources.

1.3.1 Further Reading

To further learn how to use R to load, transform, visualize and model data see (Wickham and Grolemund 2017). Additional relevant R packages include the following:

  • dplyr: Fast data frames manipulation and database query.
  • reshape2: Flexibly rearrange, reshape and aggregate data.
  • readr: A fast and friendly way to read tabular data into R.
  • tidyr: Easily tidy data with spread and gather functions.
  • rlist: A toolbox for non-tabular data manipulation with lists.
  • jsonlite: A robust and quick way to parse JSON files in R.
  • ff: Data structures designed to store large datasets.
  • lubridate: A set of functions to work with dates and times.

References

Raymond McTaggart, Gergely Daroczi, and Clement Leung. 2019. Quandl: API Wrapper for Quandl.com. https://CRAN.R-project.org/package=Quandl.

Wickham, Hadley, and Garrett Grolemund. 2017. R for Data Science: Import, Tidy, Transform, Visualize, and Model Data. 1st ed. O’Reilly Media, Inc.
