3 Miller Creek Discharge & Flow Rate

3.0.1 Introduction

Hydrology fieldwork focusing on flow and discharge is being conducted throughout the Miller Creek drainage in Fall 2020 - Spring 2021.

  • Near the mouth of Miller Creek, a discharge measurement station was installed in October 2020. At this site a pressure transducer measures water level, and discharge measurements are collected periodically using a SondeTek FlowTracker Acoustic Doppler Velocimeter. These data, along with staff plate observations, are being used to create a rating discharge curve.

  • An experiment to study stream flow rate in Miller Creek was conducted September 15-17, 2021. A plug of dissolved salt (NaCl) was discharged in to the creek, and the resultant spike in conductivity was observed downstream 0.64 km stream distance.

Raw water quality field data is stored in a Google Sheet that can be viewed at https://tinyurl.com/kwf-vogel-wqx-data under the “Discharge Measurements” tab.

Site photos are available through a point-and-click pop-up map at https://arcg.is/199PPj.

3.0.2 Methods Miller Creek Discharge Rating Curve

A discharge station was established in October 2020 near the mouth of Miller Creek, including a staff plate and Orpheus Mini pressure transducer.

Site visits were made opportunistically depending on precipitation throughout Summer/Fall 2021, and once each in Spring 2022 and Fall 2022. At each site visit, the pressure transducer is downloaded and a typically a discharge measurement is also collected using a SondeTek Flowtracker Acoustic Doppler Velocimeter. See Figure 3.1 for the discharge rates and staff plate values observed to date.

A total of seven discharge measurements at the Miller Creek mouth site were made between Fall 2020 and Spring 2022. A curve was fit to the scatter plot of stage height vs. discharge.

The rating curve for the outlet of Miller Creek and it’s source data may be accessed from the downloadable Excel file below:

Download Miller Creek Outlet Rating Curve Data
Miller Creek Discharge observations vs. Staff Gauge Height

Figure 3.1: Miller Creek Discharge observations vs. Staff Gauge Height

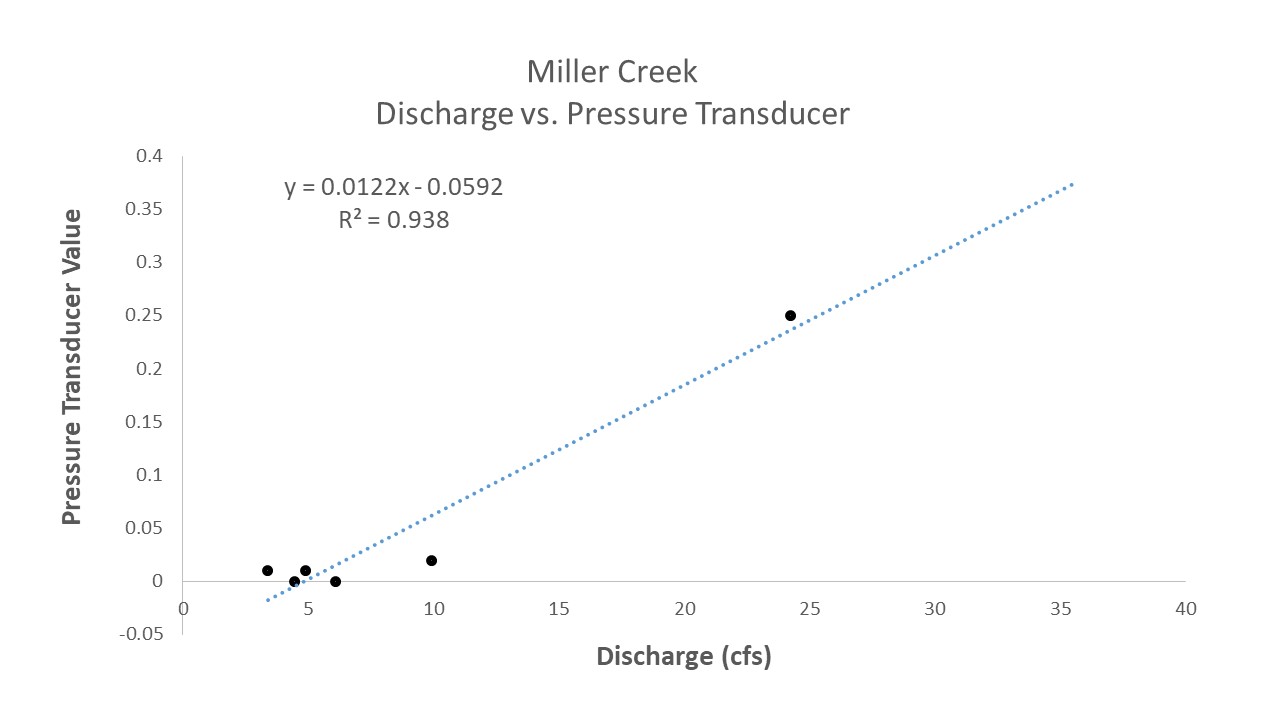

Miller Creek Discharge observations vs. Pressure Transducer Values

Figure 3.2: Miller Creek Discharge observations vs. Pressure Transducer Values Pressure Transducer Data

An Orpheus Mini pressure transducer (PT) was deployed at the mouth of Miller Creek from October 2020 through current day (as of 2022-11-29). Values were logged at 0.25 hr intervals.

We plotted staff plate observations with their simultaneous pressure transducer (PT) records and fit a linear regression. The resulting relationship (y = 0.0122x - 0.0592), where y is the PT value and x is stream discharge) can be used to translate the pressure transducer time series into a stream discharge time series, also known as a flow hydrograph (3.2) following the basic approach outlined in Covino et al. 20201.

Notes and caveats on data inputs to the flow hydrograph for Miller Creek:

  1. The quantity of paired discharge measurements and staff plate observations (7) is less than the minimum quantity desired (8) to record a rating curve.

  2. The linear relationship does not meet assumptions of statistical normality typically applied for such circumstances. The low number of discharge observations is a result of the remote location of the project site and the challenging logistics required to visit. While additional field observations would create more precise discharge values, the general shape of the flow time series would remain unchanged.

  3. Some pressure transducer time series data is either missing or should be excised for reasons including being affected by ice, exposure to air, or device removal due to concerns of site stability. Non-useful time periods are summarised in the downloadable table below.

Download Download Miller Creek Pressure Transducer Data Missing / Excised Time Periods

As of 2022-11-29, an insufficient number of discharge observations exist to make a reliable discharge rating curve for Miller Creek. As a result, the pressure transducer data in ?? is shown in raw form rather than as converted to stream discharge values.

Currently, available field observations produce a rating curve that translates to streamflow estimates ranging from 2.6 cfs to 187.3 cfs. These are likely an unreasonable estimate, given that the range of discharge values observed throughout the project (2021 - 2022) was between 4 cfs and 35 cfs.

Kenai Watershed Forum staff will continue to visit the site opportunistically throughout Summer 2023, and aim to gain sufficient discharge observations to create a reliable rating curve. We will consult with state and federal agency hydrologists to determine if alternative methods may be applied to develop a rating curve. These data may be useful in understanding management needs for potential future pike barriers. Discharge measurements at other sites

Additional discharge measurements were taken throughout Summer 2021 at two additional sites near Vogel Lake, near the outlets of Kuguyuk Pond and Bird Pond. See Figure 3.3 for discharge values observed to date.

Figure 3.3: Other discharge measurements Stream Flow Rate Experiment

On September 15-17, 2021 we conducted an experiment to examine stream flow rate in Miller Creek. We measured downstream transport time of dissolved solutes by deploying a plug of dissolved salt and measuring a resultant change in conductivity at a site downstream. We deployed a plug of dissolved salt into the Miller Creek stream channel and measured conductivity continuously at a downstream site. See Figure 3.4 for salt deployment and conductivity monitoring sites.

Stream Flow Rate Study Area. Stream distance between the NaCl release site and the downstream measurement site is 0.63 km (0.39 mi).

Figure 3.4: Stream Flow Rate Study Area. Stream distance between the NaCl release site and the downstream measurement site is 0.63 km (0.39 mi).

The Vogel Lake / Miller Creek system is a low-gradient drainage with little observable flow within 0.5 miles downstream of the lake outlet. We deployed our salt plug downstream from the Vogel Lake outlet at the first site with visibly evident surface flow, which was over the top of the first downstream beaver dam.

We released 140 lbs of dissolved NaCl by dissolving appx 15 lbs at a time in a 35 gallon trash can, then discharging it on the downstream side of the beaver dam into the stream channel. Our downstream site monitoring conductivity was 0.63 km (0.39 mi) downstream center-channel.

To record conductivity we used a pair of simultaneously deployed Hydrolab MS5 Sondes suspended from a floating buoy. We programmed the sondes to record at 0.25 hour intervals. We examined the resultant time series for exposure or errors and removed these data points. We averaged conductivity values between the two Hydrolab units in the final results. Streamflow Rate Results

We measured a readily evident rise in conductivity values at the downstream monitoring site. See Figure 3.5 for the time series of conductivity data.

Figure 3.5: Conductivity values at the site downstream of the NaCl release site. The NaCl plug was released at 19:30 on 9/15/2021. The release and measurement site coordinates can be accessed at the ArcGIS Online Map at https://arcg.is/199PPj.

In Figure 3.5 we can observe the following:

  • Initial NaCl Deployment: 9/15/2021 19:30

  • Start of the rising limb of the conductivity spike: 9/15/2021 22:00 (2.5 hrs after deployment)

  • Maximum conductivity peak (~20% above baseline values): 01:30 9/16/2021 (6.0 hours after deployment)

  • Return to baseline conductivity levels: 9/16/2021 15:00 (19.5 hrs after deployment)

Based on these results, peak concentration of the dissolved solute traveled though this section of Miller Creek at 0.11 km/h (0.06 mph).
