Graphical Analysis

Data Analytics Module
Lecturer: Hans van der Zwan
Handout 01
Topic: graphical data analysis/ visualization

Literature
Rumsey D. J. (2010). Statistical Essentials for Dummies. Hoboken: Wiley Publishing.
Ismay C. & Kim A. Y. (2019). ModernDive. Statistical Inference for Data Science. https://moderndive.com.

Recommended literature

Preparation class
See module description
Read Ismay & Kim (2019), chapter 3 (skip the parts about coding in R)

1.1 Data types

Variables can be divided in two groups: categorical en numerical variables. Categorical variables can be subdivided in nominal and ordinal variables.
Numerical variables are often subdivided in discrete and continuous variables.

1.2 Graphing data

The first step in data analysis, after data collection and data cleaning, is exploring the data using graphs and summary statistics. The kind of graph that is applicable depends on the data type of the variables to be plotted.

1.2.1 Univariate analysis

If the analysis concerns one single variable, it is a so called univariate analysis. If the relationship between two variables is involved, it is a bivariate analysis. With more than two variables, it is a multivariate analysis.

1.2.1.1 Univariate categorical data

For a univariate categorical analysis the most common plots are bar plots. Many studies make use of pie diagrams, although they are not recommended by many specialists in the field.
E.g. the note on the help page for R states:

Pie charts are a very bad way of displaying information. The eye is good at judging linear measures and bad at judging relative areas. A bar chart or dot chart is a preferable way of displaying this type of data.
Cleveland (1985), page 264: “Data that can be shown by pie charts always can be shown by a dot chart. This means that judgements of position along a common scale can be made instead of the less accurate angle judgements.” This statement is based on the empirical investigations of Cleveland and McGill as well as investigations by perceptual psychologists.
(Cleveland, W. S. (1985). The Elements of Graphing Data. Wadsworth: Monterey, CA, USA.)

Example: houses sold London, January 2019¹

ggplot(london_jan19, aes(x = TYPE)) +
  geom_bar(fill = 'royalblue') +
  xlab(NULL) +
  theme_minimal()

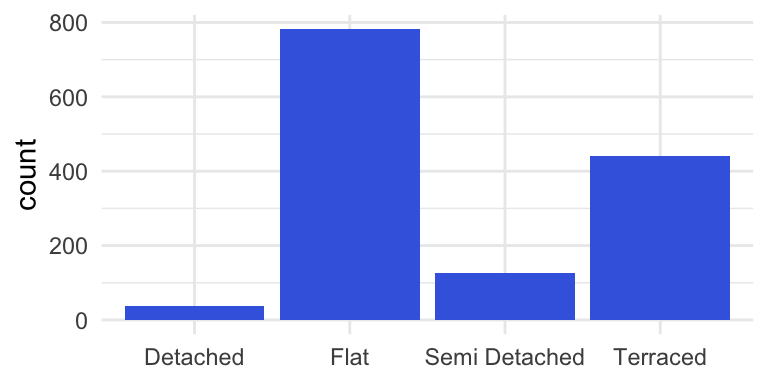

Figure 1. Number of houses sold by category in London January 2019. Data retrieved from http://landregistry.data.gov.uk/app/ppd/.

In many cases it is a good idea to reorder the bars from highest to lowest (or the other way around).

london_jan19 %>%
  group_by(TYPE) %>%
  summarize(COUNT = n()) %>%

  ggplot(aes(x = reorder(x=TYPE, X = -COUNT), y = COUNT)) +
  geom_bar(fill = 'royalblue', stat = "identity") +
  xlab(NULL) +
  theme_minimal()

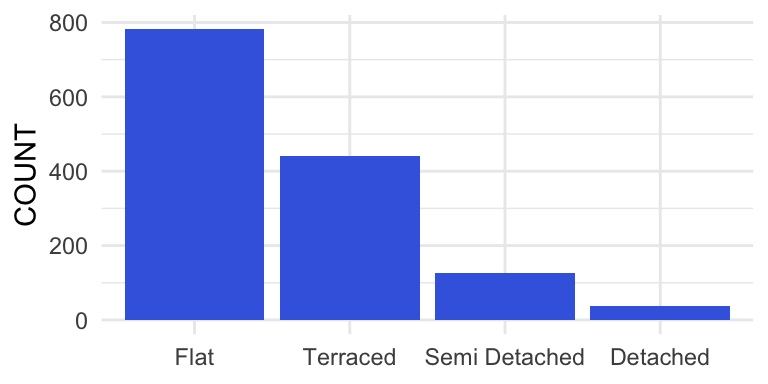

Figure 2. Number of houses sold by category in London January 2019. Data retrieved from http://landregistry.data.gov.uk/app/ppd/.

1.2.1.2 Univariate numerical data

Histograms are usefull graphs to explore a numerical variable.

Example: histogram selling prices properties sold in London

library(scales)
ppd_london2018 <- read_csv("/Users/R/10Rprojects/HousePricesUK/datafiles/ppd_london2018.csv")  %>%
  filter(TYPE != "O") %>%
  filter(PRICE < quantile(PRICE, .99))

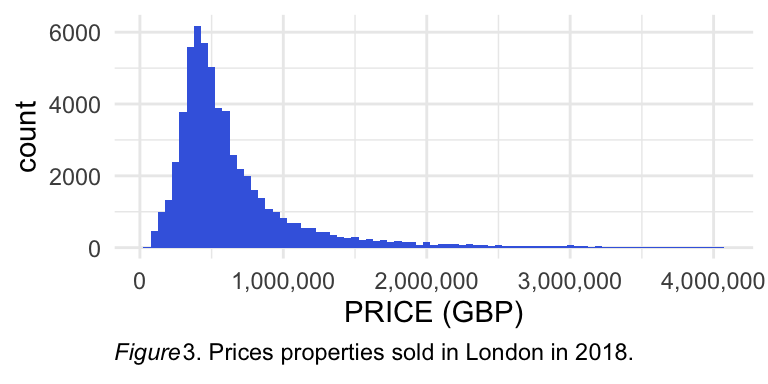

caption <- expression(paste(italic("Figure"), "3. Prices properties sold in London in 2018."))

histo <- ggplot(ppd_london2018, aes(x=PRICE)) +
  geom_histogram(fill = 'royalblue',
                 binwidth = 50000) +
  xlim(0, max(ppd_london2018$PRICE)) +
  xlab("PRICE (GBP)") +
  scale_x_continuous(labels = comma) +
  labs(caption = caption) +
  theme_minimal() +
  theme(plot.caption = element_text(hjust = 0))

histo

For explanation about creating histograms in MS Excel 2016, watch this video.

EXERCISE 1.1 to 1.3

Another possibility to plot one numerial variable is by using a box plot, also called box and whisker plot. These are especially usefull to compare the distribution of a variable within different groups; see section 2.2.2. for an example.
A boxplot is based on the so called five number summary of the data:
- Minimum
- First Quartile
- Median (Second Quartile)
- Third Quartile
- Maximum
They are also used to direct attention to outliers in the distribution.
Click here for an explanation about boxplots.

Example: tuition fees US universities 2014

tuition <- read.xlsx("/Users/R/10Rprojects/DataAnalysis/Datafiles/CATClists2014-1.xlsx",
                     sheet = "Tuition")

tuition %>%
  filter(Sector == 1) %>%
  select(tuition = `2014-15.Tuition.and.fees`) %>%
  ggplot(aes(x="", y = tuition)) +
    geom_boxplot(outlier.size = .5) +
  xlab(NULL) +
  ylab("US dollars") +
  theme_minimal() +
  coord_flip()

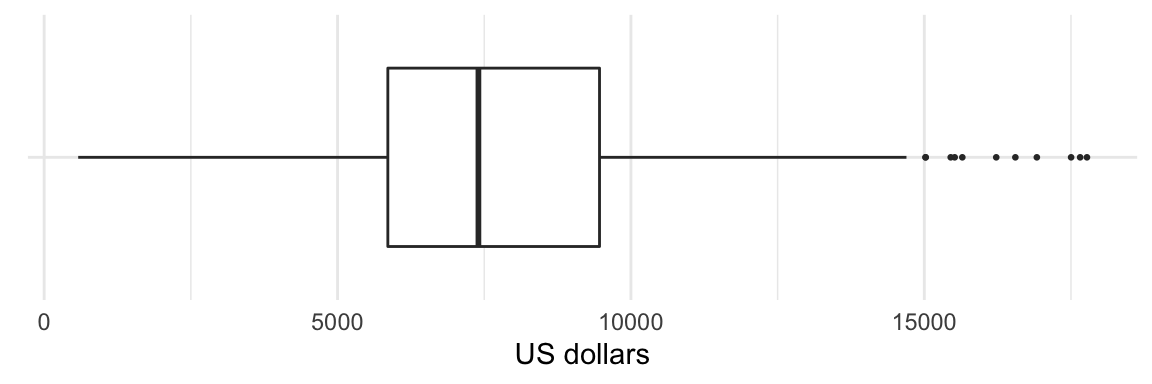

Figure 4. Tuiton fees 4-year public sector programmes at US universities in 2014-15. Data source: source.

1.3 Bivariate analysis

1.3.1 Two categorical variables

1.3.1.2 Heatmaps

Example: number of properties sold per type and per district

london_jan19 <- read.xlsx("/Users/R/10Rprojects/DataAnalysis/Datafiles/HP_LONDON_JAN19.xlsx")

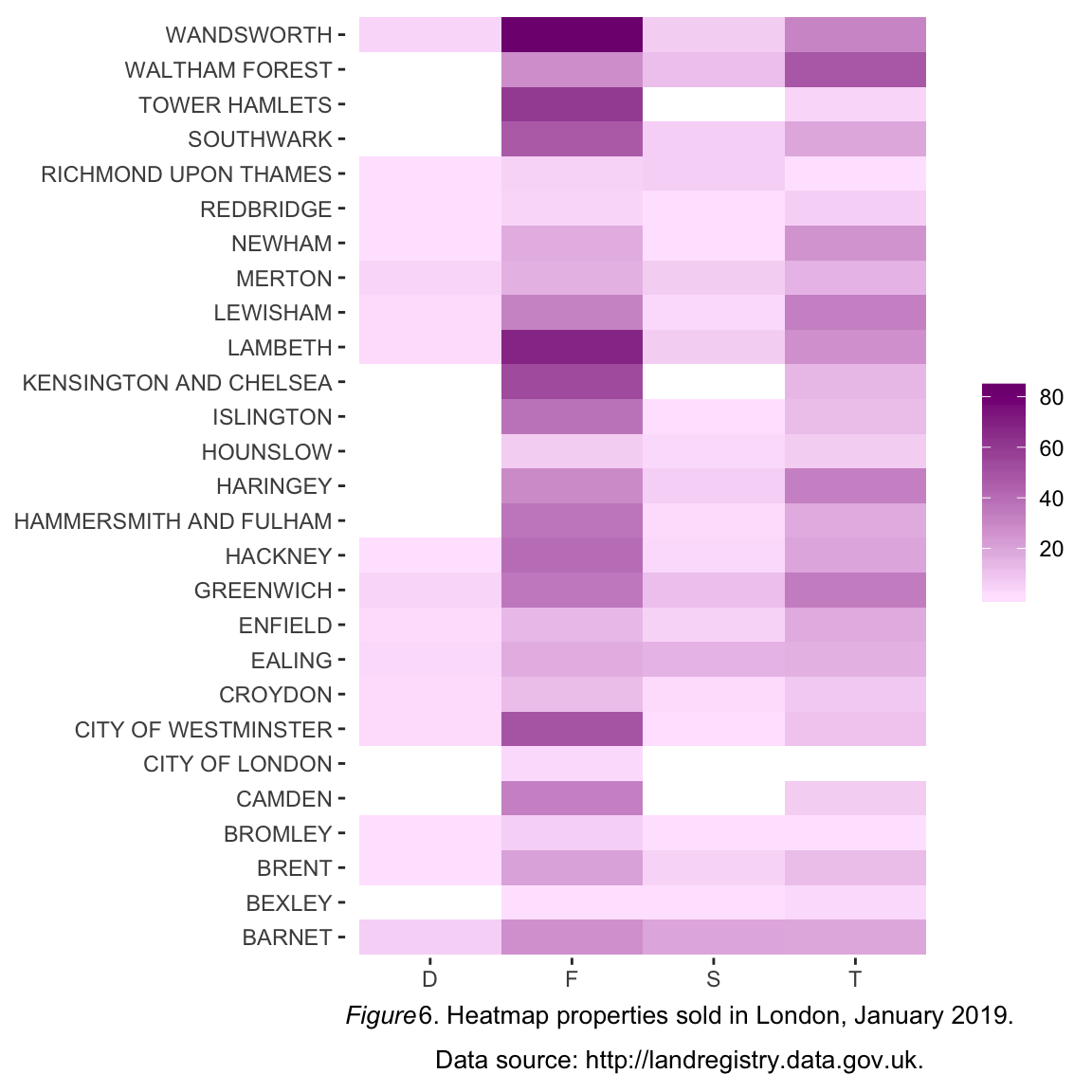

caption1 <- expression(atop(paste(italic("Figure"), "6. Heatmap properties sold in London, January 2019."), "Data source: http://landregistry.data.gov.uk."))

heatmap <- london_jan19 %>%
  group_by(TYPE, DISTRICT) %>%
  summarize(COUNT = n()) %>%
  ggplot(aes(x = TYPE, y = DISTRICT)) +
  geom_tile(aes(fill = COUNT)) +
  scale_fill_continuous(low = "#ffe6ff", high = "#800080") +
  labs(caption = caption1) +
  theme(panel.grid.major = element_blank(),
        panel.background = element_blank(),
        title = element_blank(),
        plot.caption = element_text(hjust = 0, size = 10))

heatmap

1.3.2 One categorical and one numerical variable

Boxplots are usefull graphs to compare the distribution of a variable between groups.

Example: tuition fees at different US universities

tuition <- read.xlsx("/Users/R/10Rprojects/DataAnalysis/Datafiles/CATClists2014-1.xlsx",
                      sheet = 'Tuition')
tuition %>% ggplot(aes(x = Sector.name, y = `2014-15.Tuition.and.fees`)) +
  geom_boxplot(fill = 'royalblue', outlier.color = "royalblue", outlier.size = .5) +
  ylab("USD") +
  theme_minimal() +
  theme(axis.text.x = element_text(angle=60, hjust = 1), axis.title.x = element_blank())

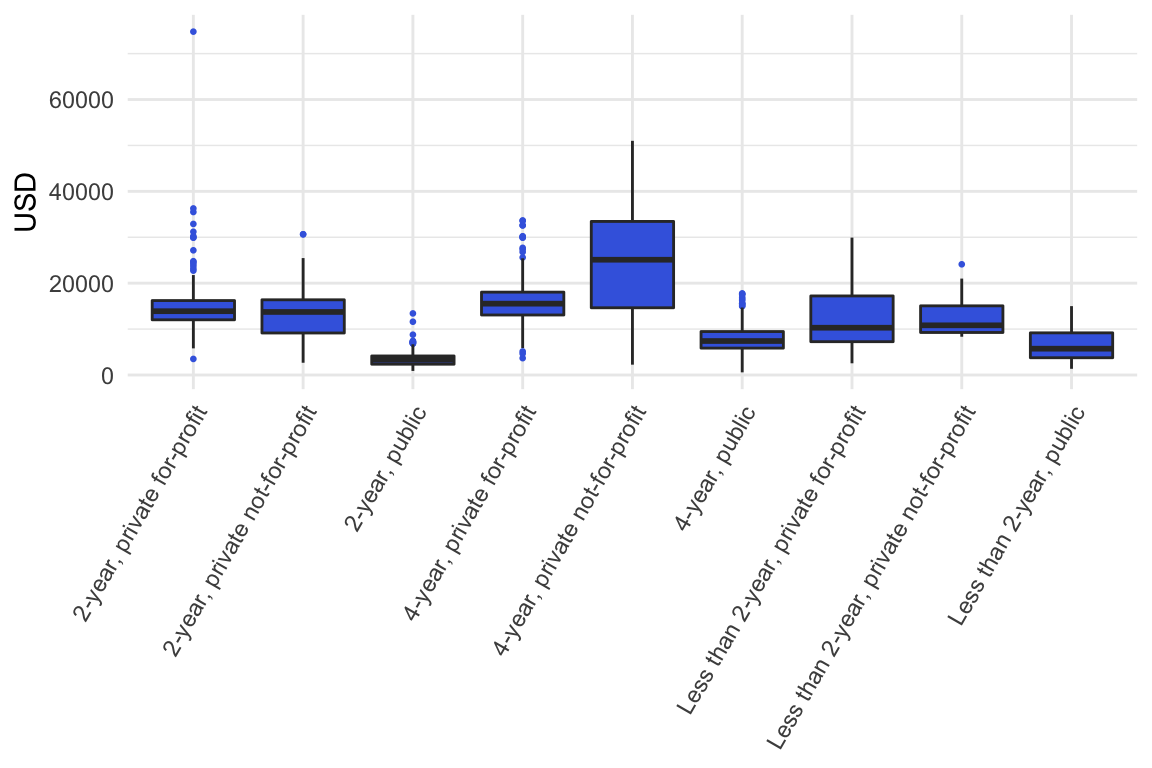

Figure 7. Comparing tuition fees for different programmes at US universities in the academic year 2014-2015. Data retrieved from this website.

For more examples how boxplots are used to compare groups, google images on ‘boxplot’.

Exercise 1.4 and 1.5

Another way to compare groups: side-by-side histograms. This is not that simple in MS Excel.

tuition <- read.xlsx("/Users/R/10Rprojects/DataAnalysis/Datafiles/CATClists2014-1.xlsx",
                      sheet = 'Tuition')
tuition %>% ggplot(aes(x = `2014-15.Tuition.and.fees`)) +
  geom_histogram(fill = 'royalblue', breaks = seq(0, 80000, 2500)) +
  facet_grid(Sector~., scales = 'free')  +
  theme_minimal()

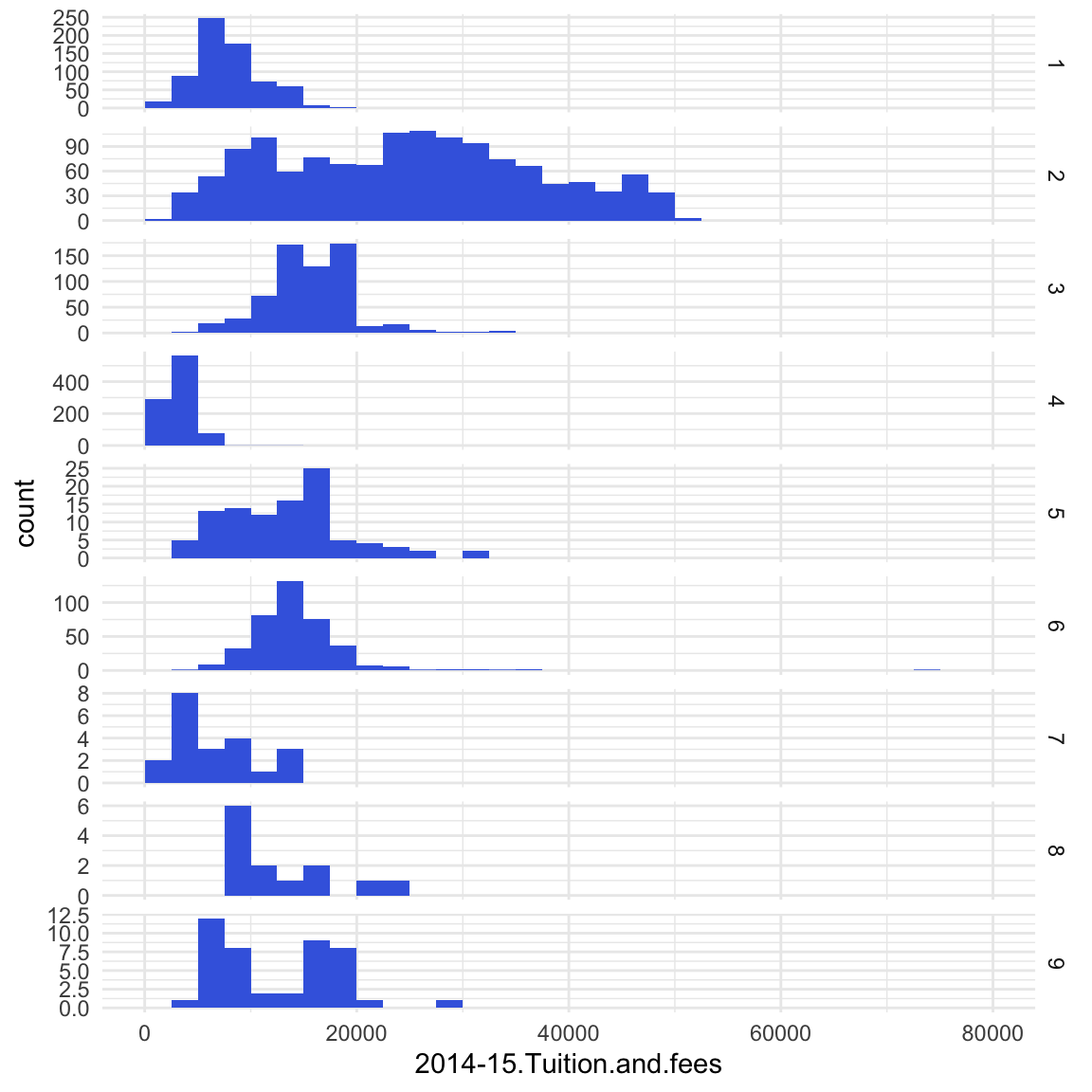

Figure 8. Tuition fees US universities per category in 2014-2015. Categories: 1 = 4-year, public; 2 = 4-year, private not-for-profit; 3 = 4-year, private for-profit; 4 = 2-year, public; 5 = 2-year, private not-for-profit; 6 = 2-year, private for-profit; 7 = Less than 2-year, public; 8 = Less than 2-year, private not-for-profit; 9 = Less than 2-year, private for-profit. The spread in the 4-year, private not-for-profit program fees is by far the highest. Data retrieved from this website.

1.3.3 Two numerical variables

To visualize the relationship between two numerical variables the most appropriate graph is a scatter plot. If there is a clear distinction between the independent (explanatory) and the dependent (response) variable, it is common to plot the independent variable on the x-axis and the dependent on the y-axis.

Example scatterplot

roomsforrent <- read.xlsx("/Users/R/10Rprojects/DataAnalysis/Datafiles/RoomsForRentNeth.xlsx")
roomsforrent %>%
  ggplot(aes(x= AREA, y = RENT)) +
  geom_point(color = 'blue', size = .5) +
  ylim(0, round(max(roomsforrent$RENT), -2)) +
  theme_minimal()

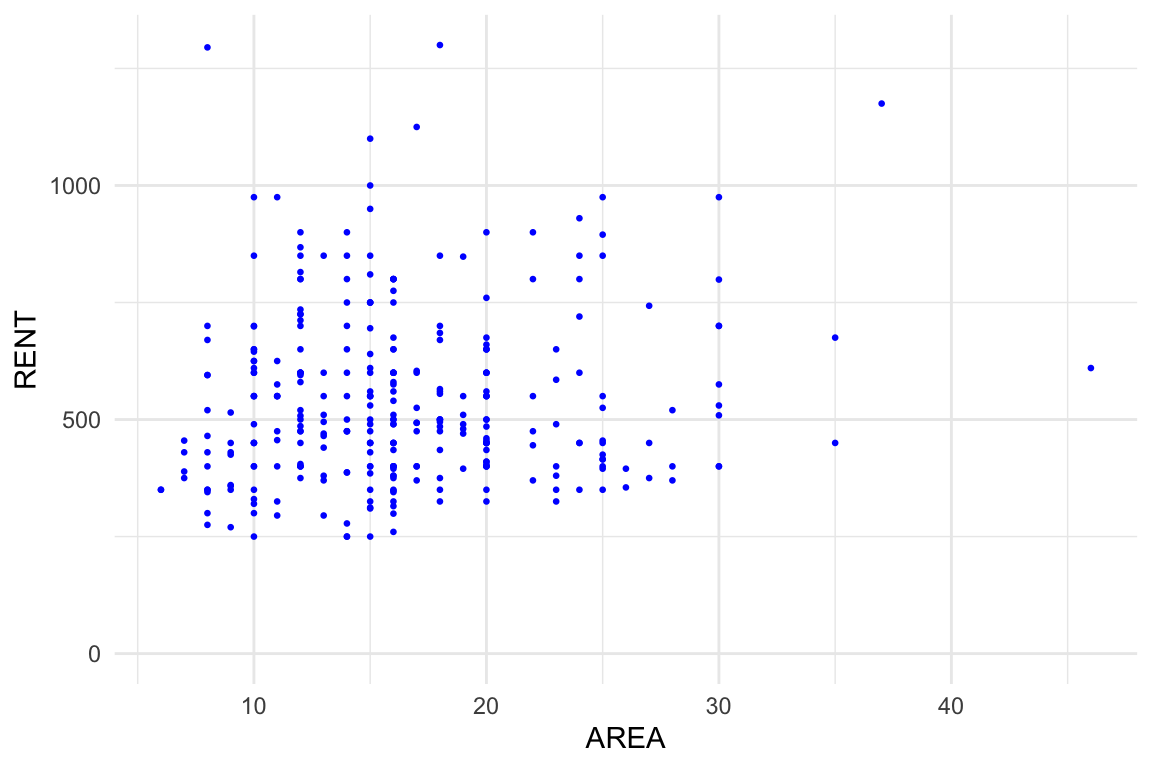

Figure 9. Relation between AREA in m^2 and RENT in euro for rooms for rent in Amsterdam, Rotterdam and The Hague. Data sampled from https://directwonen.nl/ on April 24, 2018. There doesn’t seem te be a relationship between AREA and RENT.

Exercise 1.6

1.3.4 Time series

A time series is a series of data points listed in time order. Most commonly, a time series is a sequence taken at successive equally spaced points in time. A line graph is commonly used to find patterns, e.g. seasonal influences and trends over time, in the data.

Example: number of passengers departed from Amsterdam Schiphol airport over time

df <- read.xlsx("Datafiles/cbs_airport_figures.xlsx")
schiphol_pass_vert_kwartaal <-
  df %>%
  filter(str_sub(Perioden, 5, 6) == "KW",
         Luchthavens_label == "Amsterdam Airport Schiphol") %>%
  select(
    PERIOD = Perioden,
    PASSENGERS_DEPARTED= TotaalVertrokkenPassagiers_18,
    PASSAGIERS_ARRIVED = TotaalAangekomenPassagiers_15) %>%
  mutate(PERIOD = str_replace(PERIOD, "KW", " Q"),
         YEAR = as.numeric(str_sub(PERIOD, 1, 4)))


schiphol_pass_vert_kwartaal %>%
  ggplot(aes(x = PERIOD, y = PASSENGERS_DEPARTED)) +
  geom_line(aes(group = 1), size = .2, col = "blue") +
  geom_point(col = "blue", size = 0.5) +
  theme_light() +
  theme(axis.text.x = element_text(angle = 90)) +
  scale_x_discrete(breaks =
                     schiphol_pass_vert_kwartaal$PERIOD[seq(1,nrow(schiphol_pass_vert_kwartaal), by = 4)],
                   labels = 1999:max(schiphol_pass_vert_kwartaal$YEAR)) +
  scale_y_continuous(labels = comma) +
  xlab(NULL)

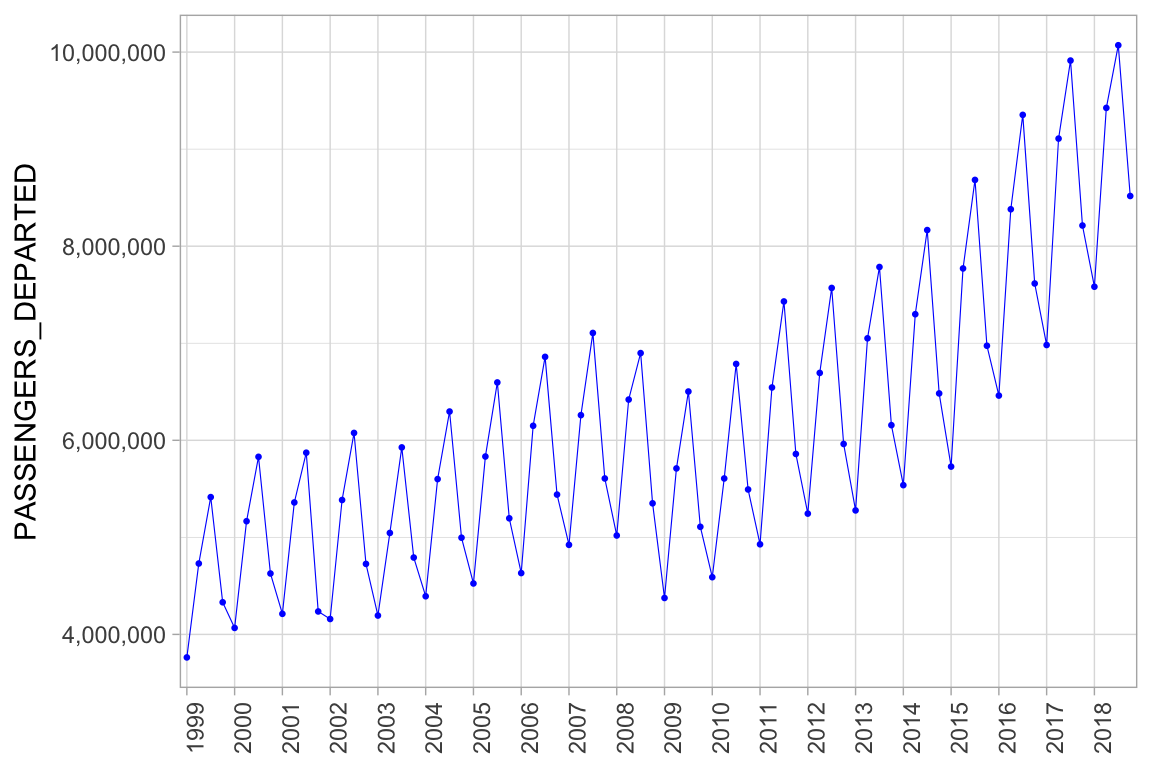

Figure 10. Passengers departed from Amsterdam Schiphol airport per quarter. The financial crisis that started in 2007/2008 seems to have caused a trend break.

Exercise 1.7

1.4 Homework assignment

(individual)

Make a choice from the two options below. Copy the graphs to a word file and upload this file in your group directory on blackboard.

Option 1 Analyzing company data
Analyze data from your company using graphical data analysis. Make a couple of usefull graphs that give insight in the data.

If you don’t have access to company data choose one of the following.

Option 2 Price paid data England and Wales
Go to http://landregistry.data.gov.uk/app/ppd/.
Download the price paid data for flats in January and February 2019.
Analyze the data using graphical data analysis.

Option 3 Air pollution data
Go to www.oaq.org.
Download air pollution data from a location of your choice.
Analyze the data using graphical data analysis.

In this lecture data from properties sold in England and Wales are sold. These data have been retrieved from http://landregistry.data.gov.uk/app/ppd/; this website contains HM Land Registry data © Crown copyright and database right 2019. This data is licensed under the Open Government Licence v3.0.↩
