20  Metric Predicted Variable with Multiple Nominal Predictors

This chapter considers data structures that consist of a metric predicted variable and two (or more) nominal predictors. This chapter extends ideas introduced in the previous chapter, so please read the previous chapter if you have not already…

The traditional treatment of this sort of data structure is called multifactor analysis of variance (ANOVA). Our Bayesian approach will be a hierarchical generalization of the traditional ANOVA model. The chapter also considers generalizations of the traditional models, because it is straight forward in Bayesian software to implement heavy-tailed distributions to accommodate outliers, along with hierarchical structure to accommodate heterogeneous variances in the different groups. (Kruschke, 2015, pp. 583–584)

20.1 Describing groups of metric data with multiple nominal predictors

Quick reprise:

Suppose we have two nominal predictors, denoted ${\overrightarrow{x}}_1$ and ${\overrightarrow{x}}_2$. A datum from the $j$th level of ${\overrightarrow{x}}_1$ is denoted $x_{1[j]}$, and analogously for the second factor. The predicted value is a baseline plus a deflection due to the level of factor $1$ plus a deflection due to the level of factor $2$ plus a residual deflection due to the interaction of factors:

$$\begin{array}{rl}\mu & ={\beta }_0+{\overrightarrow{\beta }}_1\cdot {\overrightarrow{x}}_1+{\overrightarrow{\beta }}_2\cdot {\overrightarrow{x}}_2+{\overrightarrow{\beta }}_{1\times 2}\cdot {\overrightarrow{x}}_{1\times 2}\\ & ={\beta }_0+\sum _j{\beta }_{1[j]}{x}_{1[j]}+\sum _k{\beta }_{2[k]}{x}_{2[k]}+\sum _{j,k}{\beta }_{1\times 2[j,k]}{x}_{1\times 2[j,k]}\end{array}$$

The deflections within factors and within the interaction are constrained to sum to zero:

$$\begin{array}{rlrlrl}\sum _j{\beta }_{1[j]}=0& & & \text{and}& & \sum _k{\beta }_{2[k]}=0\text{and}\\ \sum _j{\beta }_{1\times 2[j,k]}=0\text{ for all }k& & & \text{and}& & \sum _k{\beta }_{1\times 2[j,k]}=0\text{ for all }j\end{array}$$

([these equations] are repetitions of Equations 15.9 and 15.10, p. 434). The actual data are assumed to be randomly distributed around the predicted value. (pp. 584–585)

20.1.1 Interaction.

Load the primary packages for this chapter.

library(tidyverse)
library(palettetown)
library(patchwork)
library(brms)
library(tidybayes)
library(ggridges)
library(posterior)
library(directlabels)

An important concept of models with multiple predictors is interaction. Interaction means that the effect of a predictor depends on the level of another predictor. A little more technically, interaction is what is left over after the main effects of the factors are added: interaction is the nonadditive influence of the factors. (p. 585)

Here are the data necessary for our version of Figure 20.1, which displays an interaction of two 2-level factors.

grand_mean            <- 5
deflection_1          <- 1.8
deflection_2          <- 0.2
nonadditive_component <- -1

d <- tibble(x1 = rep(c(-1, 1), each = 2),
            x2 = rep(c(1, -1), times = 2)) |>
  mutate(mu_additive = grand_mean + (x1 * deflection_1) + (x2 * deflection_2)) |>
  mutate(mu_multiplicative = mu_additive + (x1 * x2 * nonadditive_component),
         # We'll need this to accommodate `position = "dodge"` within `geom_col()`
         x1_offset = x1 + x2 * -0.45,
         # We'll need this for the fill
         x2_c = factor(x2, levels = c(1, -1)))

d

# A tibble: 4 × 6
     x1    x2 mu_additive mu_multiplicative x1_offset x2_c
  <dbl> <dbl>       <dbl>             <dbl>     <dbl> <fct>
1    -1     1         3.4               4.4     -1.45 1
2    -1    -1         3                 2       -0.55 -1
3     1     1         7                 6        0.55 1
4     1    -1         6.6               7.6      1.45 -1

There’s enough going on with the lines, arrows, and titles across the three panels that to my mind it seems easier to make three distinct plots and them join them at the end with syntax from the patchwork package. But enough of the settings are common among the panels that it also makes sense to keep from repeating that part of the code. So we’ll take a three-step solution. For the first step, we’ll make the baseline or foundational plot, which we’ll call p.

Before we make p, let’s talk color and theme. For this chapter, we’ll carry forward our practice from Chapter 19 and take our color palette from the palettetown package. Our color palette will be #15, which is based on Beedrill.

scales::show_col(pokepal(pokemon = 15))

bd <- pokepal(pokemon = 15)

bd

 [1] "#181818" "#D8C8F0" "#F8F8F8" "#B8A8C0" "#606060" "#E8A030" "#A090A8"
 [8] "#F8C848" "#885000" "#980008" "#E8E0F8" "#F8F0A0" "#F89068" "#D01830"

Also like in the last chapter, our overall plot theme will be based on the default theme_grey() with a good number of adjustments. This time, it will have more of a theme_black() vibe.

theme_set(
  theme_grey() +
    theme(text = element_text(color = bd[3]),
          axis.text = element_text(color = bd[3]),
          axis.ticks = element_line(color = bd[3]),
          legend.background = element_blank(),
          legend.box.background = element_blank(),
          legend.key = element_rect(fill = bd[1]),
          panel.background = element_rect(fill = bd[1], color = bd[3]),
          panel.grid = element_blank(),
          plot.background = element_rect(fill = bd[1], color = bd[1]),
          strip.background = element_rect(fill = alpha(bd[5], 1/3), color = alpha(bd[5], 1/3)),
          strip.text = element_text(color = bd[3]))
)

Okay, it’s time to make p, the baseline or foundational plot for our Figure 20.1.

p <- d |>
  ggplot(aes(x = x1, y = mu_multiplicative)) +
  geom_col(aes(fill = x2_c),
           position = "dodge") +
  scale_x_continuous(breaks = c(-1, 1), labels = c("x1[1]", "x1[2]")) +
  scale_y_continuous(expression(mu), breaks = seq(from = 0, to = 10, by = 2),
                     expand = expansion(mult = c(0, 0.05))) +
  scale_fill_manual(NULL, values = bd[c(11, 6)], labels = c("x2[1]", "x2[2]")) +
  coord_cartesian(ylim = c(0, 10)) +
  theme(axis.ticks.x = element_blank(),
        legend.position = c(0.17, 0.875))

p

Now we have p, we’ll add panel-specific elements to it, which we’ll save as individual objects, p1, p2, and p3. That’s step 2. Then for step 3, we’ll bring them all together with patchwork.

# Deflection from additive
p1 <- p +
  geom_segment(aes(x = x1_offset, xend = x1_offset,
                   y = mu_additive, yend = mu_multiplicative),
               arrow = arrow(length = unit(0.275, "cm")),
               color = bd[5], linewidth = 1.25) +
  geom_line(aes(x = x1_offset, y = mu_additive, group = x2),
            color = bd[5], linetype = 2) +
  geom_line(aes(x = x1_offset, y = mu_additive, group = x1),
            color = bd[5], linetype = 2) +
  coord_cartesian(ylim = c(0, 10)) +
  ggtitle("Deflection from additive")

# Effect of x1 depends on x2
p2 <- p +
  geom_segment(aes(x = x1_offset, xend = x1_offset,
                   y = mu_additive, yend = mu_multiplicative),
               arrow = arrow(length = unit(0.15, "cm")),
               color = bd[5], linewidth = 0.5) +
  geom_line(aes(x = x1_offset, y = mu_additive, group = x2),
            color = bd[5], linetype = 2) +
  geom_line(aes(x = x1_offset, y = mu_multiplicative, group = x2),
            color = bd[5], linewidth = 1.25) +
  ggtitle("Effect of x1 depends on x2")

# Effect of x2 depends on x1
p3 <- p +
  geom_segment(aes(x = x1_offset, xend = x1_offset,
                   y = mu_additive, yend = mu_multiplicative),
               arrow = arrow(length = unit(0.15, "cm")),
               color = bd[5], linewidth = 0.5) +
  geom_line(aes(x = x1_offset, y = mu_multiplicative, group = x1),
            color = bd[5], linewidth = 1.25) +
  geom_line(aes(x = x1_offset, y = mu_additive, group = x1),
            color = bd[5], linetype = 2) +
  ggtitle("Effect of x2 depends on x1")

# Combine
p1 + p2 + p3

And in case it’s not clear, “the average deflection from baseline due to a predictor… is called the main effect of the predictor. The main effects of the predictors correspond to the dashed lines in the left panel of Figure 20.1” (p. 587). And further

The left panel of Figure 20.1 highlights the interaction as the nonadditive component, emphasized by the heavy vertical arrows that mark the departure from additivity. The middle panel of Figure 20.1 highlights the interaction by emphasizing that the effect of $x_1$ depends on the level of $x_2$. The heavy lines mark the effect of $x_1$, that is, the changes from level $1$ of $x_1$ to level $2$ of $x_1$. Notice that the heavy lines have different slopes: The heavy line for level $1$ of $x_2$ has a shallower slope than the heavy line for level $2$ of $x_2$. The right panel of Figure 20.1 highlights the interaction by emphasizing that the effect of $x_2$ depends on the level of $x_1$. (p. 587)

20.1.2 Traditional ANOVA.

As was explained in Section 19.2 (p. 556), the terminology, “analysis of variance,” comes from a decomposition of overall data variance into within-group variance and between-group variance… The Bayesian approach is not ANOVA, but is analogous to ANOVA. Traditional ANOVA makes decisions about equality of groups (i.e., null hypotheses) on the basis of $p$ values using a null hypothesis that assumes (i) the data are normally distributed within groups, and (ii) the standard deviation of the data within each group is the same for all groups. The second assumption is sometimes called “homogeneity of variance.” The entrenched precedent of ANOVA is why basic models of grouped data make those assumptions, and why the basic models presented in this chapter will also make those assumptions. Later in the chapter, those constraints will be relaxed. (pp. 587–588)

20.2 Hierarchical Bayesian approach

“Our goal is to estimate the main and interaction deflections, and other parameters, based on the observed data” (p. 588).

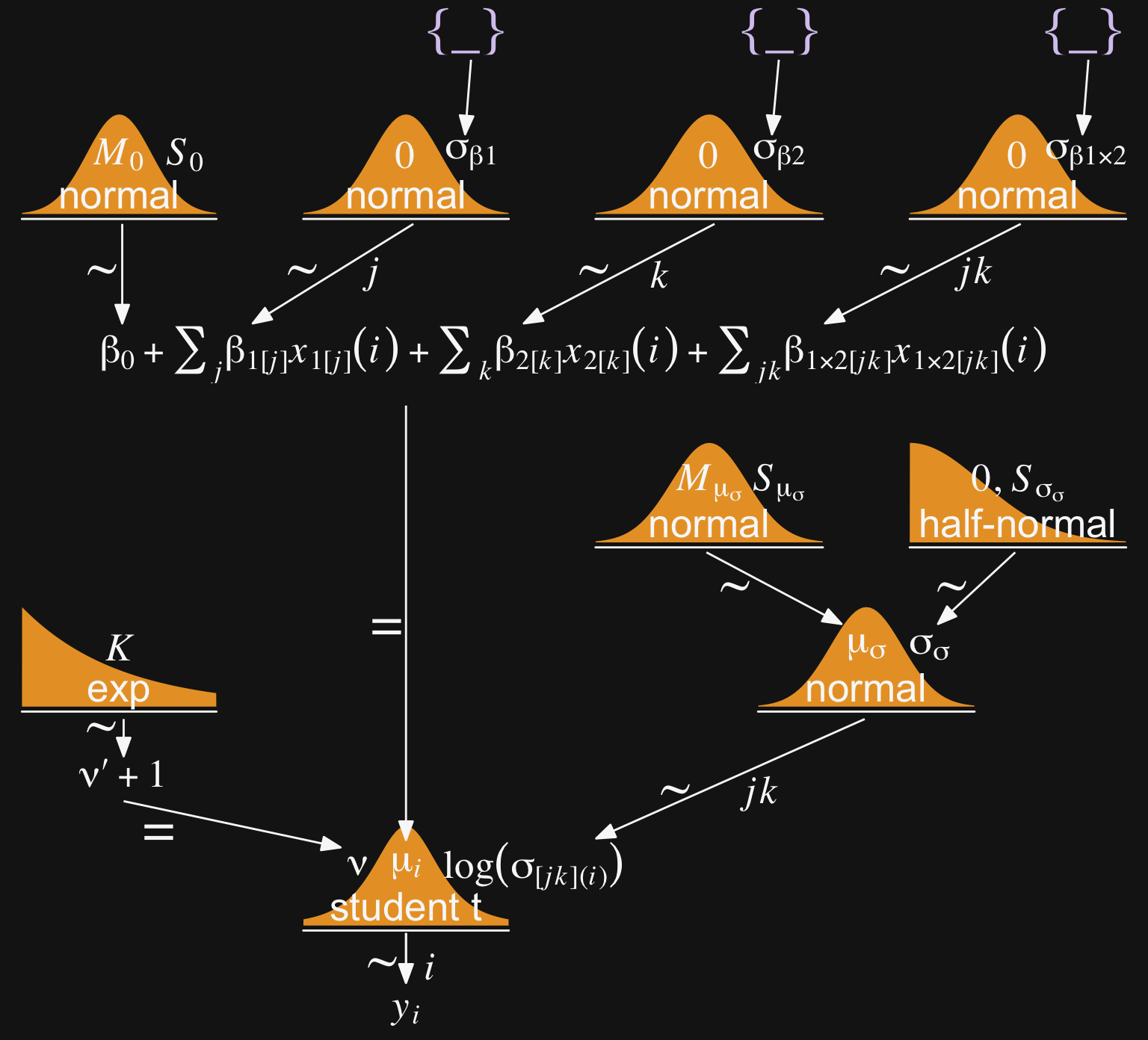

Figure 20.2 will provide a generic model diagram of how this can work.

# Bracket
p1 <- tibble(x = 0.99,
             y = 0.5,
             label = "{_}") |>
  ggplot(aes(x = x, y = y, label = label)) +
  geom_text(color = bd[2], family = "Times", hjust = 1, size = 10) +
  scale_x_continuous(expand = c(0, 0), limits = c(0, 1)) +
  ylim(0, 1) +
  theme_void()

## Plain arrow
# Save our custom arrow settings
my_arrow <- arrow(angle = 20, length = unit(0.35, "cm"), type = "closed")
p2 <- tibble(x = 0.68,
             y = 1,
             xend = 0.68,
             yend = 0.25) |>
  ggplot(aes(x = x, xend = xend,
             y = y, yend = yend)) +
  geom_segment(arrow = my_arrow, color = bd[3]) +
  xlim(0, 1) +
  theme_void()

# Normal density
p3 <- tibble(x = seq(from = -3, to = 3, by = 0.1)) |>
  ggplot(aes(x = x, y = (dnorm(x)) / max(dnorm(x)))) +
  geom_area(fill = bd[6]) +
  annotate(geom = "text",
           x = 0, y = 0.2,
           label = "normal",
           color = bd[3], size = 7) +
  annotate(geom = "text",
           x = c(0, 1.45), y = 0.6,
           hjust = c(0.5, 0),
           label = c("italic(M)[0]", "italic(S)[0]"),
           color = bd[3], family = "Times", parse = TRUE, size = 7) +
  scale_x_continuous(expand = c(0, 0)) +
  theme_void() +
  theme(axis.line.x = element_line(color = bd[3], linewidth = 0.5))

# Normal density
p4 <- tibble(x = seq(from = -3, to = 3, by = 0.1)) |>
  ggplot(aes(x = x, y = (dnorm(x)) / max(dnorm(x)))) +
  geom_area(fill = bd[6]) +
  annotate(geom = "text",
           x = 0, y = 0.2,
           label = "normal",
           color = bd[3], size = 7) +
  annotate(geom = "text",
           x = c(0, 1.15), y = 0.6,
           label = c("0", "sigma[beta][1]"),
           hjust = c(0.5, 0),
           color = bd[3], family = "Times", parse = TRUE, size = 7) +
  scale_x_continuous(expand = c(0, 0)) +
  theme_void() +
  theme(axis.line.x = element_line(color = bd[3], linewidth = 0.5))

# Normal density
p5 <- tibble(x = seq(from = -3, to = 3, by = 0.1)) |>
  ggplot(aes(x = x, y = (dnorm(x)) / max(dnorm(x)))) +
  geom_area(fill = bd[6]) +
  annotate(geom = "text",
           x = 0, y = 0.2,
           label = "normal",
           color = bd[3], size = 7) +
  annotate(geom = "text",
           x = c(0, 1.15), y = 0.6,
           label = c("0", "sigma[beta][2]"),
           hjust = c(0.5, 0),
           color = bd[3], family = "Times", parse = TRUE, size = 7) +
  scale_x_continuous(expand = c(0, 0)) +
  theme_void() +
  theme(axis.line.x = element_line(color = bd[3], linewidth = 0.5))

# Normal density
p6 <- tibble(x = seq(from = -3, to = 3, by = 0.1)) |>
  ggplot(aes(x = x, y = (dnorm(x)) / max(dnorm(x)))) +
  geom_area(fill = bd[6]) +
  annotate(geom = "text",
           x = 0, y = 0.2,
           label = "normal",
           color = bd[3], size = 7) +
  annotate(geom = "text",
           x = c(0, 0.67), y = 0.6,
           hjust = c(0.5, 0),
           label = c("0", "sigma[beta][1%*%2]"),
           color = bd[3], family = "Times", parse = TRUE, size = 7) +
  scale_x_continuous(expand = c(0, 0)) +
  theme_void() +
  theme(axis.line.x = element_line(color = bd[3], linewidth = 0.5))

# Four annotated arrows
p7 <- tibble(x = c(0.05, 0.34, 0.64, 0.945),
             y = 1,
             xend = c(0.05, 0.18, 0.45, 0.74),
             yend = 0) |>
  ggplot(aes(x = x, xend = xend,
             y = y, yend = yend)) +
  geom_segment(arrow = my_arrow, color = bd[3]) +
  annotate(geom = "text",
           x = c(0.025, 0.23, 0.30, 0.52, 0.585, 0.81, 0.91), y = 0.5,
           label = c("'~'", "'~'", "italic(j)", "'~'", "italic(k)", "'~'", "italic(jk)"),
           size = c(10, 10, 7, 10, 7, 10, 7),
           color = bd[3], family = "Times", parse = TRUE) +
  xlim(0, 1) +
  theme_void()

# Likelihood formula
p8 <- tibble(x = 0.5,
             y = 0.25,
             label = "beta[0]+sum()[italic(j)]*beta[1]['['*italic(j)*']']*italic(x)[1]['['*italic(j)*']'](italic(i))+sum()[italic(k)]*beta[2]['['*italic(k)*']']*italic(x)[2]['['*italic(k)*']'](italic(i))+sum()[italic(jk)]*beta[1%*%2]['['*italic(jk)*']']*italic(x)[1%*%2]['['*italic(jk)*']'](italic(i))") |>
  ggplot(aes(x = x, y = y, label = label)) +
  geom_text(color = bd[3], family = "Times", hjust = 0.5, parse = TRUE, size = 7) +
  scale_x_continuous(expand = c(0, 0), limits = c(0, 1)) +
  ylim(0, 1) +
  theme_void()

# Half-normal density
p9 <- tibble(x = seq(from = 0, to = 3, by = 0.01)) |>
  ggplot(aes(x = x, y = (dnorm(x)) / max(dnorm(x)))) +
  geom_area(fill = bd[6]) +
  annotate(geom = "text",
           x = 1.5, y = 0.2,
           label = "half-normal",
           color = bd[3], size = 7) +
  annotate(geom = "text",
           x = 1.5, y = 0.6,
           label = "0*','*~italic(S)[sigma]",
           color = bd[3], family = "Times", parse = TRUE, size = 7) +
  scale_x_continuous(expand = c(0, 0)) +
  theme_void() +
  theme(axis.line.x = element_line(color = bd[3], linewidth = 0.5))

# The final normal density
p10 <- tibble(x = seq(from = -3, to = 3, by = 0.1)) |>
  ggplot(aes(x = x, y = (dnorm(x)) / max(dnorm(x)))) +
  geom_area(fill = bd[6]) +
  annotate(geom = "text",
           x = 0, y = 0.2,
           label = "normal",
           color = bd[3], size = 7) +
  annotate(geom = "text",
           x = c(0, 1.15), y = 0.6,
           label = c("mu[italic(i)]", "sigma[italic(y)]"),
           hjust = c(0.5, 0),
           color = bd[3], family = "Times", parse = TRUE, size = 7) +
  scale_x_continuous(expand = c(0, 0)) +
  theme_void() +
  theme(axis.line.x = element_line(color = bd[3], linewidth = 0.5))

# An annotated arrow
p11 <- tibble(x = 0.4,
              y = 0.5,
              label = "'='") |>
  ggplot(aes(x = x, y = y, label = label)) +
  geom_text(color = bd[3], family = "Times", parse = TRUE, size = 10) +
  geom_segment(x = 0.5, xend = 0.5,
               y = 1, yend = 0.1,
               arrow = my_arrow, color = bd[3]) +
  xlim(0, 1) +
  theme_void()

# Another annotated arrow
p12 <- tibble(x = 0.49,
              y = 0.55,
              label = "'~'") |>
  ggplot(aes(x = x, y = y, label = label)) +
  geom_text(color = bd[3], family = "Times", parse = TRUE, size = 10) +
  geom_segment(x = 0.79, xend = 0.4,
               y = 1, yend = 0.2,
               arrow = my_arrow, color = bd[3]) +
  xlim(0, 1) +
  theme_void()

# The final annotated arrow
p13 <- tibble(x = c(0.375, 0.625),
              y = c(1/3, 1/3),
              label = c("'~'", "italic(i)")) |>
  ggplot(aes(x = x, y = y, label = label)) +
  geom_text(size = c(10, 7),
            color = bd[3], family = "Times", parse = TRUE) +
  geom_segment(x = 0.5, xend = 0.5,
               y = 1, yend = 0,
               arrow = my_arrow, color = bd[3]) +
  xlim(0, 1) +
  theme_void()

# Some text
p14 <- tibble(x = 0.5,
              y = 0.5,
              label = "italic(y[i])") |>
  ggplot(aes(x = x, y = y, label = label)) +
  geom_text(color = bd[3], family = "Times", parse = TRUE, size = 7) +
  xlim(0, 1) +
  theme_void()

# Define the layout
layout <- c(
  area(t = 1, b = 1, l = 6, r = 7),
  area(t = 1, b = 1, l = 10, r = 11),
  area(t = 1, b = 1, l = 14, r = 15),
  area(t = 3, b = 4, l = 1, r = 3),
  area(t = 3, b = 4, l = 5, r = 7),
  area(t = 3, b = 4, l = 9, r = 11),
  area(t = 3, b = 4, l = 13, r = 15),
  area(t = 2, b = 3, l = 6, r = 7),
  area(t = 2, b = 3, l = 10, r = 11),
  area(t = 2, b = 3, l = 14, r = 15),
  area(t = 6, b = 7, l = 1, r = 15),
  area(t = 5, b = 6, l = 1, r = 15),
  area(t = 9, b = 10, l = 10, r = 12),
  area(t = 12, b = 13, l = 7, r = 9),
  area(t = 8, b = 12, l = 7, r = 9),
  area(t = 11, b = 12, l = 7, r = 12),
  area(t = 14, b = 14, l = 7, r = 9),
  area(t = 15, b = 15, l = 7, r = 9))

# Combine, adjust, and display
(p1 + p1 + p1 + p3 + p4 + p5 + p6 + p2 + p2 + p2 + p8 + p7 + p9 + p10 + p11 + p12 + p13 + p14) +
  plot_layout(design = layout) &
  ylim(0, 1) &
  theme(plot.margin = margin(0, 5.5, 0, 5.5))

Wow that plot has a lot of working parts! 😮

20.2.1 Implementation in JAGS brms.

Below is how to implement the model based on the code from Kruschke’s Jags-Ymet-Xnom2fac-MnormalHom.R and Jags-Ymet-Xnom2fac-MnormalHom-Example.R scripts. With brms, we’ll need to specify the stanvars.

mean_y <- mean(my_data$y)
sd_y   <- sd(my_data$y)

omega <- sd_y / 2
sigma <- 2 * sd_y

s_r <- gamma_a_b_from_omega_sigma(mode = omega, sd = sigma)

stanvars <- stanvar(mean_y, name = "mean_y") +
  stanvar(sd_y,      name = "sd_y") +
  stanvar(s_r$shape, name = "alpha") +
  stanvar(s_r$rate,  name = "beta")

And before that, of course, make sure you’ve defined the gamma_a_b_from_omega_sigma() function. E.g.,

gamma_a_b_from_omega_sigma <- function(mode, sd) {
  if (mode <= 0) stop("`mode` must be > 0")
  if (sd   <= 0) stop("`sd` must be > 0")
  rate <- (mode + sqrt(mode^2 + 4 * sd^2)) / (2 * sd^2)
  shape <- 1 + mode * rate
  list(shape = shape, rate = rate)
}

With the preparatory work done, now all we’d need to do is run the brm() code.

fit <- brm(
  data = my_data,
  family = gaussian,
  y ~ 1 + (1 | factor_1) + (1 | factor_2) + (1 | factor_1:factor_2),
  prior = c(prior(normal(mean_y, sd_y * 5), class = Intercept),
            prior(gamma(alpha, beta), class = sd),
            prior(cauchy(0, sd_y), class = sigma)),
  stanvars = stanvars)

If you have reason to use different priors for the random effects, you can always specify multiple lines of class = sd, each with the appropriate coef argument.

The big new element is multiple (|) parts in the formula. In this simple model type, we’re only working random intercepts, in this case with two factors and their interaction. The formula above presumes the interaction is not itself coded within the data. But consider the case you have data including a term for the interaction of the two lower-level factors, called interaction. In that case, you’d have that last part of the formula read (1 | interaction), instead.

20.2.2 Example: It’s only money.

Load the salary data¹.

my_data <- read_csv("data.R/Salary.csv")

glimpse(my_data)

Rows: 1,080
Columns: 6
$ Org     <chr> "PL", "MUTH", "ENG", "CMLT", "LGED", "MGMT", "INFO", "CRIN", "…
$ OrgName <chr> "Philosophy", "Music Theory", "English", "Comparative Literatu…
$ Cla     <chr> "PC", "PC", "PC", "PC", "PT", "PR", "PT", "PR", "PR", "PR", "P…
$ Pos     <chr> "FT2", "FT2", "FT2", "FT2", "FT3", "NDW", "FT3", "FT1", "NDW",…
$ ClaPos  <chr> "PC.FT2", "PC.FT2", "PC.FT2", "PC.FT2", "PT.FT3", "PR.NDW", "P…
$ Salary  <dbl> 72395, 61017, 82370, 68805, 63796, 219600, 98814, 107745, 1142…

We’ll follow Kruschke’s example on page 593 and modify the Pos variable a bit.

my_data <- my_data |>
  mutate(Pos = factor(Pos,
                      levels = c("FT3", "FT2", "FT1", "NDW", "DST") ,
                      ordered = TRUE,
                      labels = c("Assis", "Assoc", "Full", "Endow", "Disting")))

With 1,080 cases, two factors, and a criterion, these data are a little too unwieldy to look at the individual case level. But if we’re tricky on how we aggregate, we can get a good sense of their structure with a geom_tile() plot. Here our strategy is to aggregate by our two factors, Pos and Org. Since our criterion is Salary, we’ll compute the mean value of the cases within each unique paring, encoded as m_salary. Also, we’ll get a sense of how many cases there are within each factor pairing with n.

my_data |>
  group_by(Pos, Org) |>
  summarise(m_salary = mean(Salary),
            n        = n()) |>
  ungroup() |>
  mutate(Org = fct_reorder(Org, m_salary),
         Pos = fct_reorder(Pos, m_salary)) |>

  ggplot(aes(x = Org, y = Pos, label = n, fill = m_salary)) +
  geom_tile() +
  geom_text(size = 2.75) +
  # Everything below this is really just aesthetic flourish
  scale_x_discrete("Org", expand = c(0, 0)) +
  scale_y_discrete("Pos", expand = c(0, 0)) +
  scale_fill_gradient(low = bd[9], high = bd[12],
                      breaks = c(55e3, 15e4, 26e4),
                      labels = c("$55K", "$150K", "$260K")) +
  theme(axis.text.x = element_text(angle = 90, hjust = 0),
        axis.text.y = element_text(hjust = 0),
        axis.ticks = element_blank(),
        legend.position = "top")

Hopefully it’s clear that each cell is a unique pairing of Org and Pos. The cells are color coded by the mean Salary. The numbers in the cells give the $n$ cases they represent. When there’s no data for a unique combination of Org and Pos, the cells are left blank charcoal.

Define our stanvars.

mean_y <- mean(my_data$Salary)
sd_y   <- sd(my_data$Salary)

omega <- sd_y / 2
sigma <- 2 * sd_y

s_r <- gamma_a_b_from_omega_sigma(mode = omega, sd = sigma)

stanvars <- stanvar(mean_y, name = "mean_y") +
  stanvar(sd_y,      name = "sd_y") +
  stanvar(s_r$shape, name = "alpha") +
  stanvar(s_r$rate,  name = "beta")

Now fit the model.

fit20.1 <- brm(
  data = my_data,
  family = gaussian,
  Salary ~ 1 + (1 | Pos) + (1 | Org) + (1 | Pos:Org),
  prior = c(prior(normal(mean_y, sd_y * 5), class = Intercept),
            prior(gamma(alpha, beta), class = sd),
            prior(cauchy(0, sd_y), class = sigma)),
  iter = 4000, warmup = 2000, chains = 4, cores = 4,
  seed = 20,
  control = list(adapt_delta = 0.999, max_treedepth = 13),
  stanvars = stanvars,
  file = "fits/fit20.01")

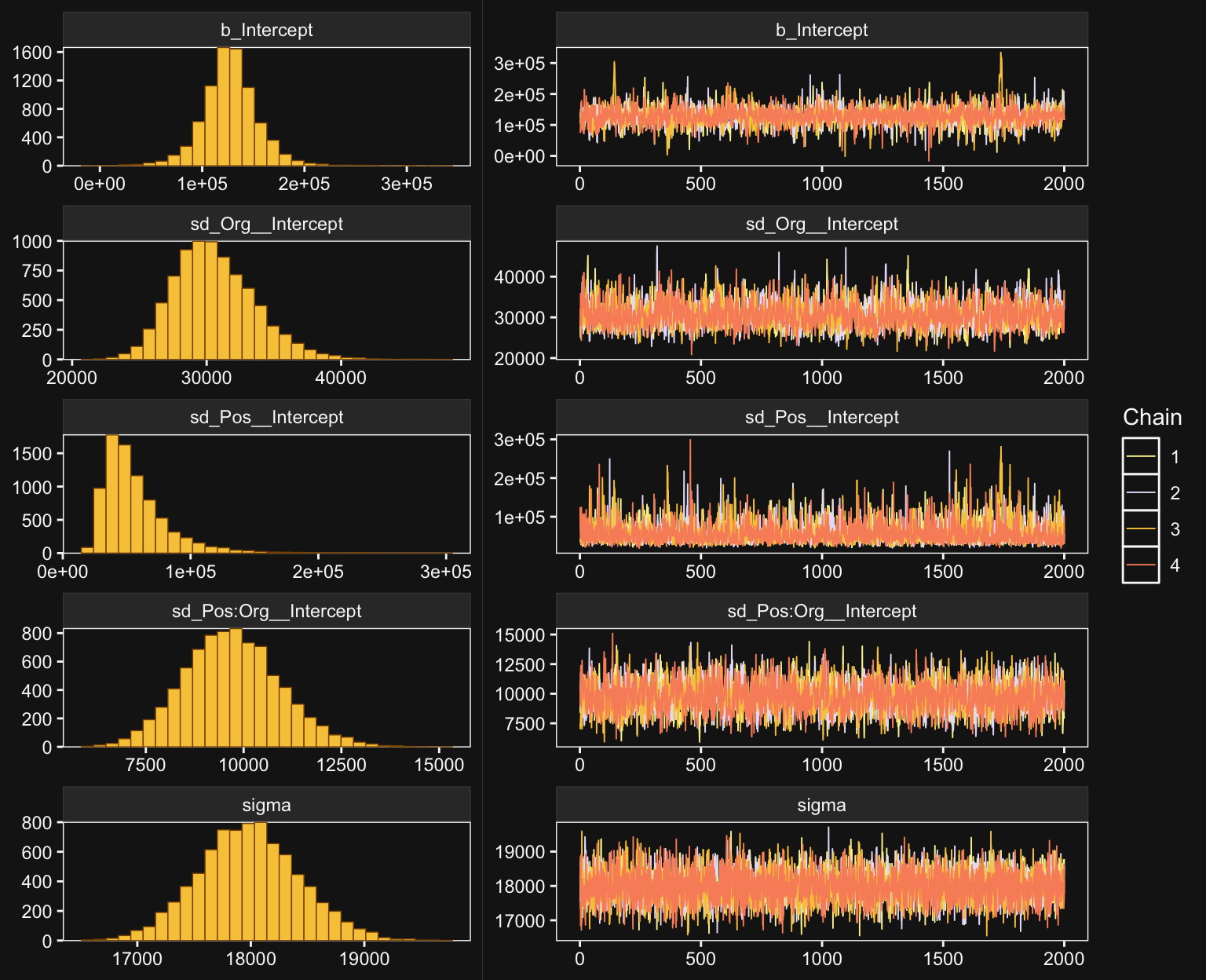

The chains look fine.

bayesplot::color_scheme_set(scheme = bd[c(13, 7:9, 11:12)])

plot(fit20.1, widths = c(2, 3))

Here’s the model summary.

print(fit20.1)

 Family: gaussian
  Links: mu = identity; sigma = identity
Formula: Salary ~ 1 + (1 | Pos) + (1 | Org) + (1 | Pos:Org)
   Data: my_data (Number of observations: 1080)
  Draws: 4 chains, each with iter = 4000; warmup = 2000; thin = 1;
         total post-warmup draws = 8000

Multilevel Hyperparameters:
~Org (Number of levels: 60)
              Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sd(Intercept) 30587.12   3066.63 25367.04 37278.32 1.00     1984     3537

~Pos (Number of levels: 5)
              Estimate Est.Error l-95% CI  u-95% CI Rhat Bulk_ESS Tail_ESS
sd(Intercept) 56919.28  26674.19 26584.79 127565.63 1.00     3033     3987

~Pos:Org (Number of levels: 216)
              Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sd(Intercept)  9709.60   1229.90  7390.98 12260.12 1.00     2225     4393

Regression Coefficients:
           Estimate Est.Error l-95% CI  u-95% CI Rhat Bulk_ESS Tail_ESS
Intercept 127669.52  27655.07 72411.94 183447.97 1.00     2372     3156

Further Distributional Parameters:
      Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sigma 17986.26    445.14 17143.71 18889.31 1.00     7037     6086

Draws were sampled using sampling(NUTS). For each parameter, Bulk_ESS
and Tail_ESS are effective sample size measures, and Rhat is the potential
scale reduction factor on split chains (at convergence, Rhat = 1).

This was a difficult model to fit with brms. Stan does well when the criteria are on or close to a standardized metric and these Salary data are a far cry from that. Tuning adapt_delta and max_treedepth went a long way to help the model out.

Okay, let’s get ready for our version of Figure 20.3. First, we’ll use tidybayes::add_epred_draws() to help organize the necessary posterior draws.

# How many draws would you like?
n_draw <- 20

# Wrangle
f <- my_data |>
  distinct(Pos) |>
  expand_grid(Org = c("BFIN", "CHEM", "PSY", "ENG")) |>
  add_epred_draws(fit20.1, ndraws = n_draw, seed = 20,
                  allow_new_levels = TRUE,
                  dpar = c("mu", "sigma")) |>
  mutate(ll = qnorm(0.025, mean = mu, sd = sigma),
         ul = qnorm(0.975, mean = mu, sd = sigma)) |>
  mutate(Salary = map2(.x = ll, .y = ul,
                       .f = \(ll, ul) seq(from = ll, to = ul, length.out = 100))) |>
  unnest(Salary) |>
  mutate(density = dnorm(Salary, mean = mu, sd = sigma)) |>
  group_by(.draw) |>
  mutate(density = density / max(density)) |>
  mutate(Org = factor(Org, levels = c("BFIN", "CHEM", "PSY", "ENG")))

glimpse(f)

Rows: 40,000
Columns: 13
Groups: .draw [20]
$ Pos        <ord> Assoc, Assoc, Assoc, Assoc, Assoc, Assoc, Assoc, Assoc, Ass…
$ Org        <fct> BFIN, BFIN, BFIN, BFIN, BFIN, BFIN, BFIN, BFIN, BFIN, BFIN,…
$ .row       <int> 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,…
$ .chain     <int> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA,…
$ .iteration <int> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA,…
$ .draw      <int> 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,…
$ .epred     <dbl> 213454.1, 213454.1, 213454.1, 213454.1, 213454.1, 213454.1,…
$ mu         <dbl> 213454.1, 213454.1, 213454.1, 213454.1, 213454.1, 213454.1,…
$ sigma      <dbl> 17478.82, 17478.82, 17478.82, 17478.82, 17478.82, 17478.82,…
$ ll         <dbl> 179196.2, 179196.2, 179196.2, 179196.2, 179196.2, 179196.2,…
$ ul         <dbl> 247711.9, 247711.9, 247711.9, 247711.9, 247711.9, 247711.9,…
$ Salary     <dbl> 179196.2, 179888.3, 180580.4, 181272.5, 181964.6, 182656.6,…
$ density    <dbl> 0.1465288, 0.1582290, 0.1705958, 0.1836410, 0.1973740, 0.21…

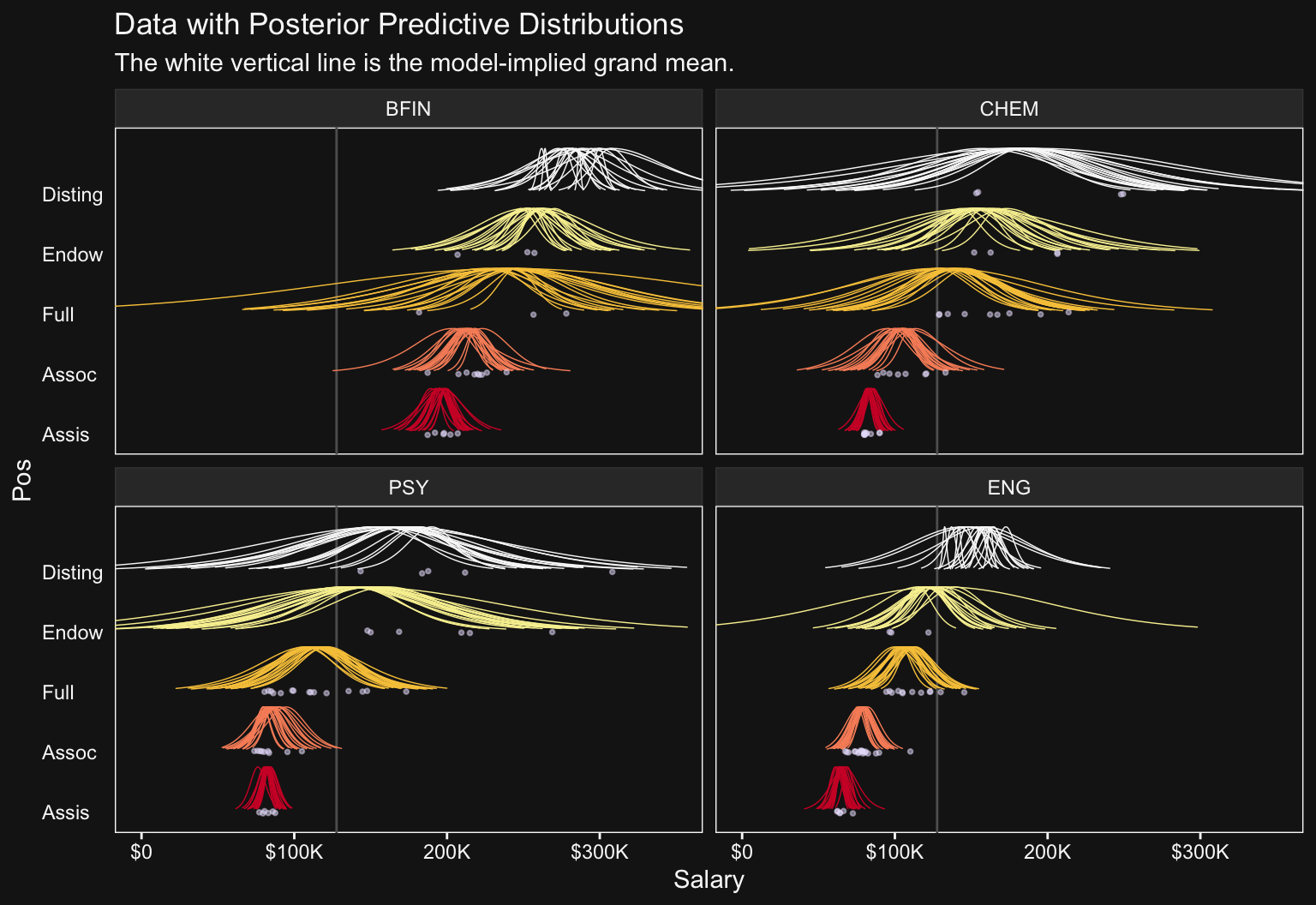

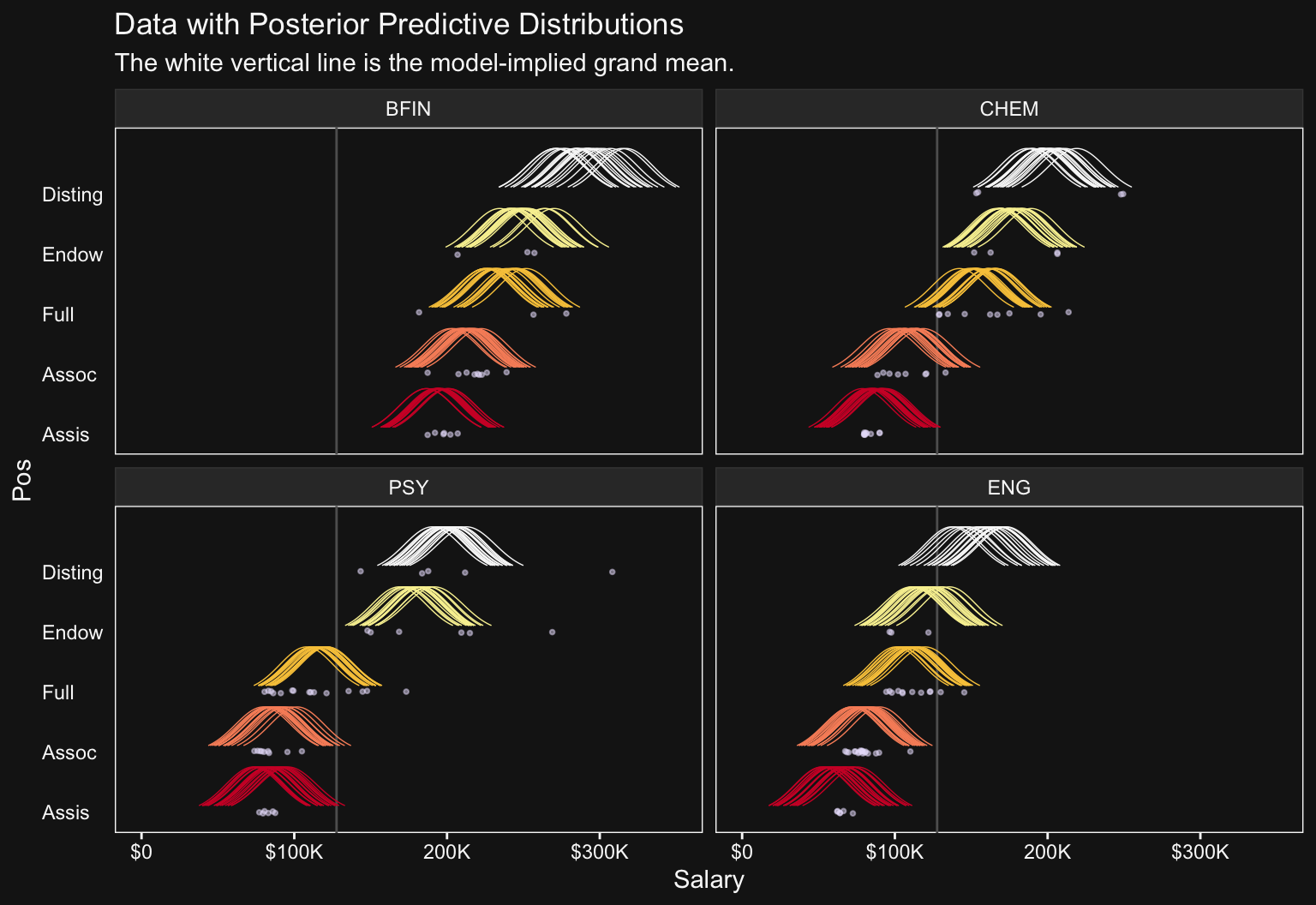

We’re ready to plot.

set.seed(20)

f |>
  ggplot(aes(x = Salary, y = Pos)) +
  geom_vline(xintercept = fixef(fit20.1)[, 1], color = bd[5]) +
  geom_ridgeline(aes(height = density, group = interaction(Pos, .draw),
                     color = Pos),
                 fill = NA, linewidth = 1/4,
                 scale = 3/4, show.legend = FALSE) +
  geom_jitter(data = my_data |>
                filter(Org %in% c("BFIN", "CHEM", "PSY", "ENG")) |>
                mutate(Org = factor(Org, levels = c("BFIN", "CHEM", "PSY", "ENG"))),
              alpha = 1/2, color = bd[11], height = 0.025, size = 2/3) +
  scale_x_continuous(breaks = seq(from = 0, to = 300000, length.out = 4),
                     labels = c("$0", "$100K", "200K", "$300K")) +
  scale_color_manual(values = bd[c(14, 13, 8, 12, 3)]) +
  coord_cartesian(xlim = c(0, 35e4),
                  ylim = c(1.25, 5.5)) +
  labs(y = "Pos",
       title = "Data with Posterior Predictive Distributions",
       subtitle = "The white vertical line is the model-implied grand mean.") +
  theme(axis.text.y = element_text(hjust = 0),
        axis.ticks.y = element_blank()) +
  facet_wrap(~ Org, ncol = 2)

The brms package doesn’t have a convenience function that returns output quite like what Kruschke displayed in his Table 20.2. But we can get close. The posterior_summary() will return posterior means, $\mathit{\text{SD}}$s, and percentile-based 95% intervals for all model parameters. Due to space concerns, I’ll just show the first ten lines.

posterior_summary(fit20.1)[1:10,]

                        Estimate  Est.Error       Q2.5      Q97.5
b_Intercept           127669.524 27655.0657  72411.936 183447.970
sd_Org__Intercept      30587.123  3066.6288  25367.045  37278.316
sd_Pos__Intercept      56919.285 26674.1901  26584.787 127565.625
sd_Pos:Org__Intercept   9709.599  1229.8974   7390.985  12260.119
sigma                  17986.264   445.1411  17143.710  18889.307
Intercept             127669.524 27655.0657  72411.936 183447.970
r_Org[ACTG,Intercept]  80402.010  7527.8583  65442.278  95243.866
r_Org[AFRO,Intercept] -14692.683  9914.6500 -34691.535   4929.789
r_Org[AMST,Intercept] -16248.872 10108.1240 -36302.854   3406.033
r_Org[ANTH,Intercept] -18963.439  7844.6522 -34779.361  -3563.439

The summarise_draws() function from the posterior package (Bürkner et al., 2021), however, will take us a long ways towards making Table 20.2.

as_draws_df(fit20.1) |>
  select(b_Intercept,
         starts_with("r_Pos["),
         `r_Org[ENG,Intercept]`,
         `r_Org[PSY,Intercept]`,
         `r_Org[CHEM,Intercept]`,
         `r_Org[BFIN,Intercept]`,
         `r_Pos:Org[Assis_PSY,Intercept]`,
         `r_Pos:Org[Full_PSY,Intercept]`,
         `r_Pos:Org[Assis_CHEM,Intercept]`,
         `r_Pos:Org[Full_CHEM,Intercept]`,
         sigma) |>
  summarise_draws(mean, median, mode = Mode, ess_bulk, ess_tail, ~ quantile(.x, probs = c(0.025, 0.975))) |>
  mutate_if(is.double, .funs = round, digits = 0)

# A tibble: 15 × 8
   variable                 mean median   mode ess_bulk ess_tail  `2.5%` `97.5%`
   <chr>                   <dbl>  <dbl>  <dbl>    <dbl>    <dbl>   <dbl>   <dbl>
 1 b_Intercept            127670 127178 122977     2296     3144   72412  183448
 2 r_Pos[Assis,Intercept] -46967 -46412 -43664     2291     3250 -102931    8241
 3 r_Pos[Assoc,Intercept] -33700 -33045 -30866     2293     3251  -89474   21296
 4 r_Pos[Full,Intercept]   -3769  -3213  -1182     2307     3338  -59208   51082
 5 r_Pos[Endow,Intercept]  26375  26759  26739     2317     3297  -28817   81633
 6 r_Pos[Disting,Interce…  54972  55288  54565     2319     3073    -518  110334
 7 r_Org[ENG,Intercept]   -19021 -18954 -19190     2237     4513  -32538   -5897
 8 r_Org[PSY,Intercept]     6603   6644   6716     2280     3804   -6208   19166
 9 r_Org[CHEM,Intercept]   18928  19024  20094     2397     4368    5508   31946
10 r_Org[BFIN,Intercept]  107100 107053 107016     2717     4651   92558  121991
11 r_Pos:Org[Assis_PSY,I…  -3177  -3055  -3418     9858     6618  -17207   10052
12 r_Pos:Org[Full_PSY,In… -14962 -14794 -14424     7011     6645  -27408   -3122
13 r_Pos:Org[Assis_CHEM,… -12539 -12415 -11971     8216     6641  -25323     -91
14 r_Pos:Org[Full_CHEM,I…  13287  13268  13153     8278     6631     653   26818
15 sigma                   17986  17976  17996     6901     6012   17144   18889

Note how we’ve used by kinds of effective-sample size estimates available for brms and note that we’ve used percentile-based intervals.

As Kruschke then pointed out, “individual salaries vary tremendously around the predicted cell mean” (p. 594), which you can quantify using ${\sigma }_y$. Here it is using posterior_summary().

posterior_summary(fit20.1)["sigma", ]

  Estimate  Est.Error       Q2.5      Q97.5
17986.2638   445.1411 17143.7102 18889.3066

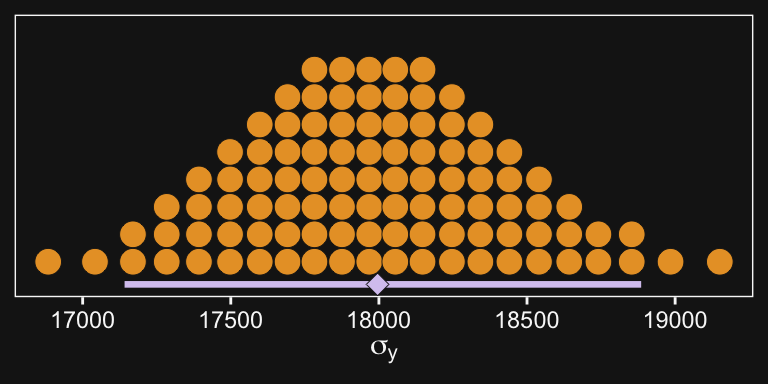

And we can get a better sense of the distribution with a dot plot.

# Extract the posterior draws
draws <- as_draws_df(fit20.1)

# Plot
draws |>
  ggplot(aes(x = sigma)) +
  stat_dotsinterval(point_interval = mode_hdi, .width = 0.95,
                    color = bd[2], justification = -0.04,
                    point_color = bd[1], point_fill = bd[2], point_size = 3,
                    quantiles = 100, shape = 23,
                    slab_color = bd[1], slab_fill = bd[6], slab_size = 1/4, stroke = 1/4) +
  scale_y_continuous(NULL, breaks = NULL) +
  xlab(expression(sigma[y]))

As Kruschke pointed out, this parameter is held constant across all subgroups. That is, the subgroups are homogeneous with respect to their variances. We’ll relax this constraint later on.

Before we move on to the next section, look above at how many arguments we fiddled with to configure stat_dotsinterval(). Given how many more dot plots we have looming in our not-too-distant future, we might go ahead and save these settings as a new function. We’ll call it stat_beedrill().

stat_beedrill <- function(point_size = 3,
                          slab_color = bd[1],
                          quantiles = 100, ...) {
  stat_dotsinterval(point_interval = mode_hdi, .width = 0.95,
                    # Learn more about this at https://github.com/mjskay/ggdist/issues/93
                    color = bd[2], justification = -0.04,
                    point_color = bd[1], point_fill = bd[2], point_size = point_size,
                    quantiles = quantiles,
                    shape = 23, stroke = 1/4,
                    slab_color = slab_color, slab_fill = bd[6], slab_size = 1/4,
                    ...)
}

Note how we hard coded the settings for some of the parameters within the function (e.g., point_interval) but allows others to be adjustable with new default settings (e.g., point_size).

20.2.3 Main effect contrasts.

In applications with multiple levels of the factors, it is virtually always the case that we are interested in comparing particular levels with each other…. These sorts of comparisons, which involve levels of a single factor and collapse across the other factor(s), are called main effect comparisons or contrasts.(p. 595)

The fitted() function provides a versatile framework for contrasts among the main effects. In order to follow Kruschke’s aim to compare “levels of a single factor and collapse across the other factor(s)” when those factors are modeled in a hierarchical structure, one will have to make use of the re_formula argument within fitted(). Here’s how to do that for the first contrast.

# Define the new data
nd <- tibble(Pos = c("Assis", "Assoc"))

# Feed the new data into `fitted()`
f <- fitted(fit20.1,
            newdata = nd,
            # This part is crucial
            re_formula = ~ (1 | Pos),
            summary = FALSE) |>
  data.frame() |>
  set_names("Assis", "Assoc") |>
  mutate(`Assoc vs Assis` = Assoc - Assis)

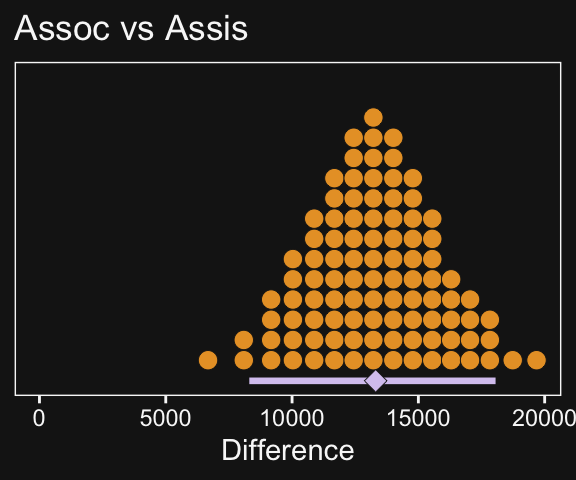

# Plot
f |>
  ggplot(aes(x = `Assoc vs Assis`)) +
  stat_beedrill() +
  scale_y_continuous(NULL, breaks = NULL) +
  xlim(0, NA) +
  labs(x = "Difference",
       title = "Assoc vs Assis")

In case you were curious, here are the summary statistics.

f |>
  mode_hdi(`Assoc vs Assis`) |>
  select(`Assoc vs Assis`:.upper) |>
  mutate_if(is.double, .funs = round, digits = 0)

# A tibble: 1 × 3
  `Assoc vs Assis` .lower .upper
             <dbl>  <dbl>  <dbl>
1            13310   8307  18056

Now make the next two contrasts.

nd <- tibble(Org = c("BFIN", "CHEM", "ENG", "PSY"))

f <- fitted(fit20.1,
            newdata = nd,
            # Note the change from above
            re_formula = ~ (1 | Org),
            summary = FALSE) |>
  data.frame() |>
  set_names(pull(nd, Org)) |>
  transmute(`CHEM vs PSY`     = CHEM - PSY,
            `BFIN vs other 3` = BFIN - ((CHEM + ENG + PSY) / 3))

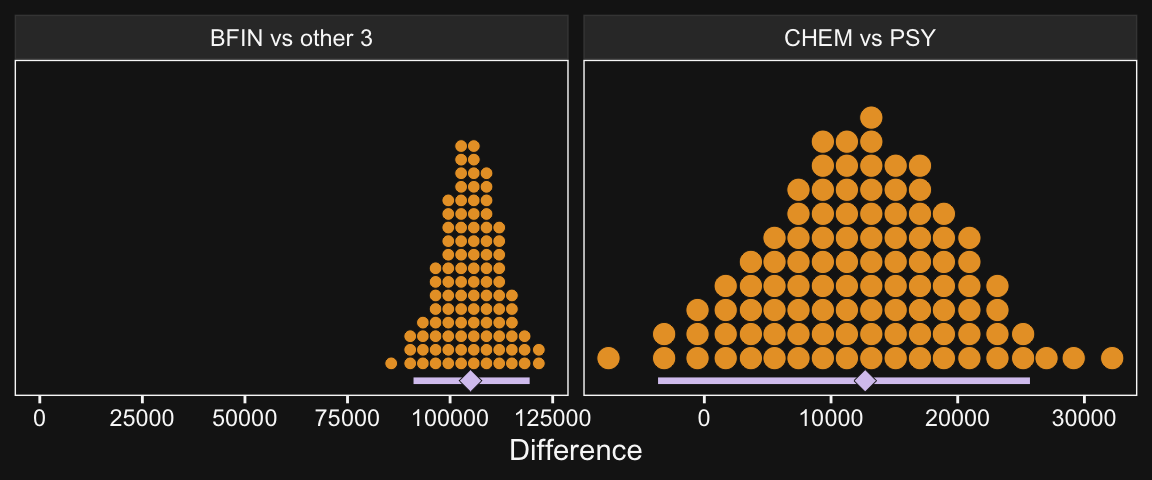

# Plot
f |>
  pivot_longer(cols = everything()) |>

  ggplot(aes(x = value)) +
  stat_beedrill() +
  scale_y_continuous(NULL, breaks = NULL) +
  xlab("Difference") +
  expand_limits(x = 0) +
  facet_wrap(~ name, scales = "free")

And here are their numeric summaries.

f |>
  pivot_longer(cols = everything(),
               names_to = "contrast",
               values_to = "mode") |>
  group_by(contrast) |>
  mode_hdi(mode) |>
  select(contrast:.upper) |>
  mutate_if(is.double, .funs = round, digits = 0)

# A tibble: 2 × 4
  contrast          mode .lower .upper
  <chr>            <dbl>  <dbl>  <dbl>
1 BFIN vs other 3 104977  91083 119390
2 CHEM vs PSY      12697  -3654  25702

For more on marginal contrasts in brms, see the discussion in issue #552 in the brms GitHub repo and this discussion thread on the Stan forums.

20.2.4 Interaction contrasts and simple effects.

If we’d like to make the simple effects and interaction contrasts like Kruschke displayed in Figure 20.5 within our tidyverse/brms paradigm, it’ll be simplest to just redefine our nd data and use fitted(), again. This time, however, we won’t be using the re_formula argument.

# Define our new data
nd <- crossing(Pos = c("Assis", "Full"),
               Org = c("CHEM", "PSY")) |>
  # We'll need to update our column names
  mutate(col_names = str_c(Pos, "_", Org))

# get the draws with `fitted()`
f1 <- fitted(fit20.1,
             newdata = nd,
             summary = FALSE) |>
  # Wrangle
  as_tibble() |>
  set_names(nd |> pull(col_names)) |>
  mutate(`Full - Assis @ PSY`  = Full_PSY - Assis_PSY,
         `Full - Assis @ CHEM` = Full_CHEM - Assis_CHEM) |>
  mutate(`Full.v.Assis\n(x)\nCHEM.v.PSY` = `Full - Assis @ CHEM` - `Full - Assis @ PSY`)

Warning: The `x` argument of `as_tibble.matrix()` must have unique column names if
`.name_repair` is omitted as of tibble 2.0.0.
ℹ Using compatibility `.name_repair`.

# What have we done?
head(f1)

# A tibble: 6 × 7
  Assis_CHEM Assis_PSY Full_CHEM Full_PSY `Full - Assis @ PSY`
       <dbl>     <dbl>     <dbl>    <dbl>                <dbl>
1     87244.    80274.   160082.  113265.               32991.
2     93401.    87707.   151067.  109298.               21591.
3     81356.    81220.   164675.  119308.               38087.
4     83610.    82380.   158248.  116593.               34214.
5     85674.    90286.   149961.  119400.               29114.
6     92861.    80436.   158679.  110260.               29824.
# ℹ 2 more variables: `Full - Assis @ CHEM` <dbl>,
#   `Full.v.Assis\n(x)\nCHEM.v.PSY` <dbl>

It’ll take just a tiny bit more wrangling before we’re ready to plot.

# Save the levels
levels <- c("Full - Assis @ PSY", "Full - Assis @ CHEM", "Full.v.Assis\n(x)\nCHEM.v.PSY")

# Rope annotation
d_text <- tibble(name  = "Full - Assis @ PSY",
                 value = 15500,
                 y     = 0.95,
                 label = "ROPE") |>
  mutate(name = factor(name, levels = levels))

# Wrangle
f1 |>
  pivot_longer(cols = -contains("_")) |>
  mutate(name = factor(name, levels = levels)) |>

  # Plot!
  ggplot(aes(x = value)) +
  # For kicks and giggles we'll throw in the ROPE
  geom_rect(xmin = -1e3, xmax = 1e3,
            ymin = -Inf, ymax = Inf,
            color = "transparent", fill = bd[7]) +
  stat_beedrill() +
  geom_text(data = d_text,
            aes(y = y, label = label),
            color = bd[7], size = 5) +
  scale_y_continuous(NULL, breaks = NULL) +
  xlab("Difference") +
  expand_limits(x = 0) +
  facet_wrap(~ name, scales = "free")

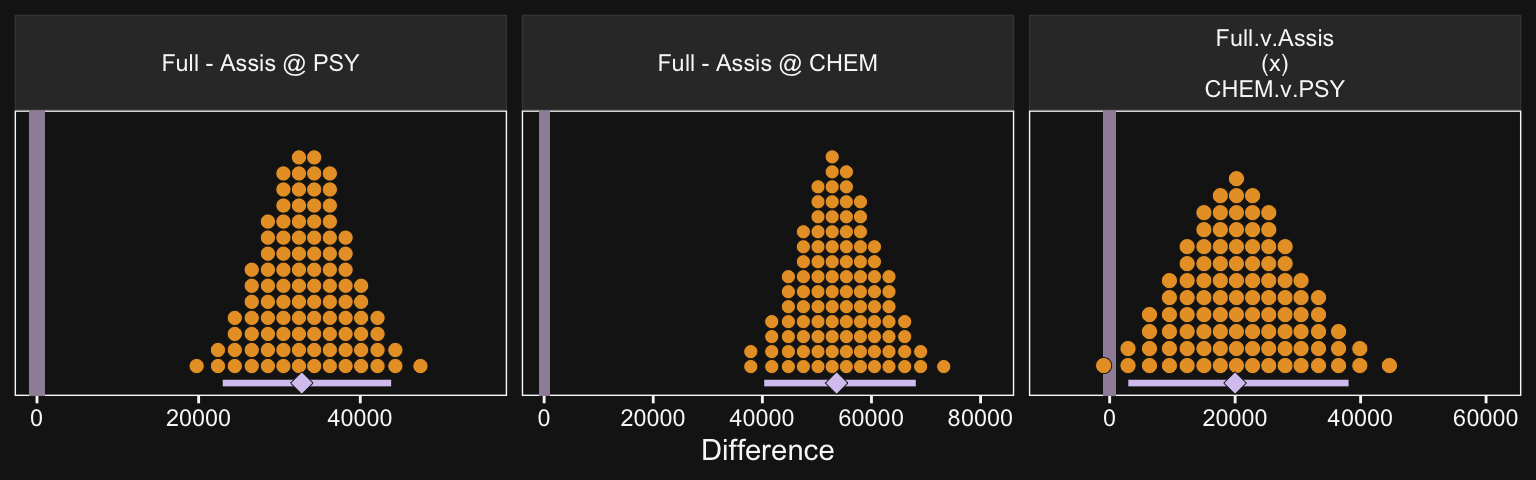

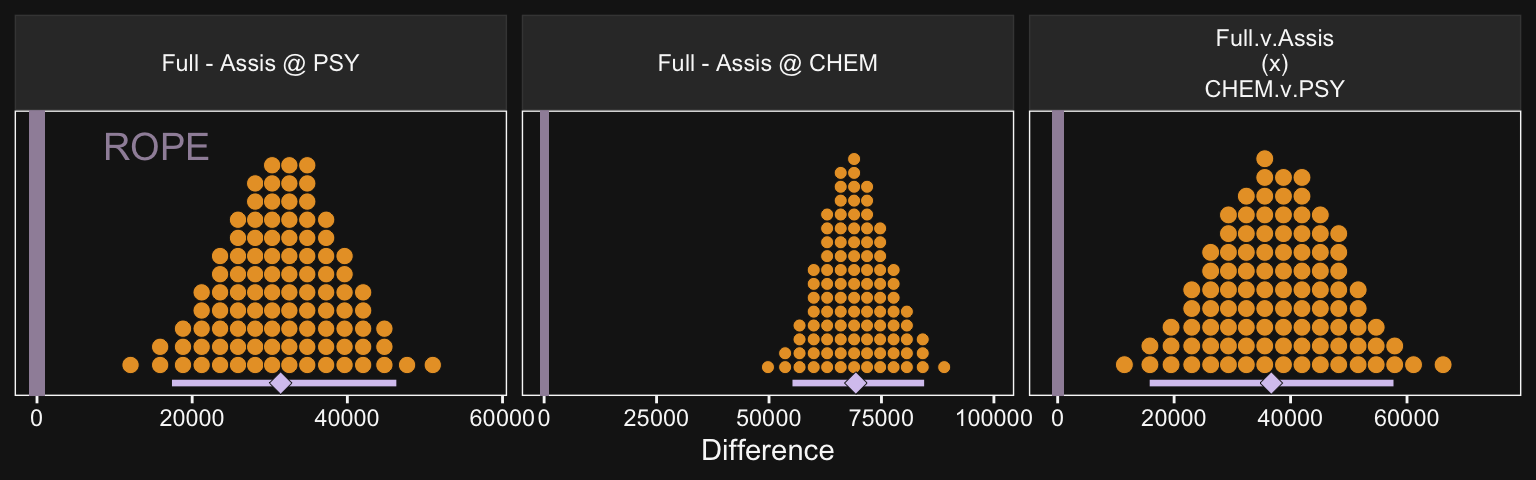

If it was really important that the labels in the $x$-axes were different, like they are in Kruschke’s Figure 20.5, you could always make the three plots separately and then bind them together with patchwork syntax.

Though he didn’t show the results, on page 598 Kruschke mentioned a few other contrasts we might consider. The example entailed comparing the differences within BFIN to the average of the other three. Let’s walk that out.

# Define our new data
nd <- crossing(Pos = c("Assis", "Full"),
               Org = c("BFIN", "CHEM", "ENG", "PSY")) |>
  # We'll need to update our column names
  mutate(col_names = str_c(Pos, "_", Org))

# Get the draws with `fitted()`
f2 <- fitted(fit20.1,
             newdata = nd,
             summary = FALSE) |>
  # Wrangle
  as_tibble() |>
  set_names(nd |> pull(col_names)) |>
  mutate(`Full - Assis @ BFIN` = Full_BFIN - Assis_BFIN,
         `Full - Assis @ CHEM` = Full_CHEM - Assis_CHEM,
         `Full - Assis @ ENG`  = Full_ENG - Assis_ENG,
         `Full - Assis @ PSY`  = Full_PSY - Assis_PSY) |>
  mutate(`Full.v.Assis\n(x)\nBFIN.v.the rest` = `Full - Assis @ BFIN` - (`Full - Assis @ CHEM` + `Full - Assis @ ENG` + `Full - Assis @ PSY`) / 3)

# What have we done?
glimpse(f2)

Rows: 8,000
Columns: 13
$ Assis_BFIN                           <dbl> 179702.3, 197555.7, 198085.4, 199…
$ Assis_CHEM                           <dbl> 87243.78, 93400.63, 81355.51, 836…
$ Assis_ENG                            <dbl> 69624.44, 70437.92, 56159.17, 597…
$ Assis_PSY                            <dbl> 80274.11, 87707.46, 81220.42, 823…
$ Full_BFIN                            <dbl> 227615.4, 230966.7, 236450.4, 226…
$ Full_CHEM                            <dbl> 160082.1, 151066.8, 164675.0, 158…
$ Full_ENG                             <dbl> 116536.8, 116549.0, 103145.3, 106…
$ Full_PSY                             <dbl> 113264.9, 109298.4, 119307.6, 116…
$ `Full - Assis @ BFIN`                <dbl> 47913.06, 33411.09, 38365.01, 271…
$ `Full - Assis @ CHEM`                <dbl> 72838.36, 57666.16, 83319.53, 746…
$ `Full - Assis @ ENG`                 <dbl> 46912.33, 46111.04, 46986.08, 468…
$ `Full - Assis @ PSY`                 <dbl> 32990.79, 21590.90, 38087.19, 342…
$ `Full.v.Assis\n(x)\nBFIN.v.the rest` <dbl> -3000.7655, -8378.2747, -17765.92…

Now plot.

f2 |>
  pivot_longer(cols = -contains("_")) |>

  ggplot(aes(x = value)) +
  geom_rect(xmin = -1e3, xmax = 1e3,
            ymin = -Inf, ymax = Inf,
            color = "transparent", fill = bd[7]) +
  stat_beedrill() +
  scale_y_continuous(NULL, breaks = NULL) +
  xlab("Difference") +
  expand_limits(x = 0) +
  facet_wrap(~ name, scales = "free")

So while the overall pay averages for those in BFIN were larger than those in the other three departments, the differences between full and associate professors within BFIN wasn’t substantially different from the differences within the other three departments. To be sure, the interquartile range of that last difference distribution fell below both zero and the ROPE, but there’s still a lot of spread in the rest of the distribution.

20.2.4.1 Interaction effects: High uncertainty and shrinkage.

“It is important to realize that the estimates of interaction contrasts are typically much more uncertain than the estimates of simple effects or main effects” (p. 598).

If we start with our fitted() object f1, we can wrangle a bit, compute the HDIs with tidybayes::mode_hdi() and then use simple subtraction to compute the interval range for each difference.

f1 |>
  pivot_longer(cols = -contains("_")) |>
  mutate(name = factor(name, levels = c("Full - Assis @ PSY", "Full - Assis @ CHEM", "Full.v.Assis\n(x)\nCHEM.v.PSY"))) |>
  group_by(name) |>
  mode_hdi(value) |>
  select(name:.upper) |>
  mutate(`interval range` = .upper - .lower)

# A tibble: 3 × 5
  name                             value .lower .upper `interval range`
  <fct>                            <dbl>  <dbl>  <dbl>            <dbl>
1 "Full - Assis @ PSY"            31403. 17395. 46313.           28918.
2 "Full - Assis @ CHEM"           69304. 55214. 84488.           29273.
3 "Full.v.Assis\n(x)\nCHEM.v.PSY" 36694. 15804. 57679.           41875.

Just like Kruschke pointed out in the text, the interval for the interaction estimate was quite larger than the intervals for the simple contrasts.

This large uncertainty of an interaction contrast is caused by the fact that it involves at least four sources of uncertainty (i.e., at least four groups of data), unlike its component simple effects which each involve only half of those sources of uncertainty. In general, interaction contrasts require a lot of data to estimate accurately. (p. 598)

Gelman has blogged on this, a bit (e.g., You need 16 times the sample size to estimate an interaction than to estimate a main effect).

There is also shrinkage.

The interaction contrasts also can experience notable shrinkage from the hierarchical model. In the present application, for example, there are $300$ interaction deflections ($5$ levels of seniority times $60$ departments) that are assumed to come from a higher-level distribution that has an estimated standard deviation, denoted ${\sigma }_{\beta 1\times 2}$ in Figure 20.2. Chances are that most of the $300$ interaction deflections will be small, and therefore the estimated standard deviation of the interaction deflections will be small, and therefore the estimated deflections themselves will be shrunken toward zero. This shrinkage is inherently neither good nor bad; it is simply the correct consequence of the model assumptions. The shrinkage can be good insofar as it mitigates false alarms about interactions, but the shrinkage can be bad if it inappropriately obscures meaningful interactions. (p. 598)

Here’s that ${\sigma }_{{\beta }_{1\times 2}}$.

draws |>
  ggplot(aes(x = `sd_Pos:Org__Intercept`)) +
  stat_beedrill() +
  xlab(expression(sigma[beta[1%*%2]])) +
  scale_y_continuous(NULL, breaks = NULL)

20.3 Rescaling can change interactions, homogeneity, and normality

When interpreting interactions, it can be important to consider the scale on which the data are measured. This is because an interaction means non-additive effects when measured on the current scale. If the data are nonlinearly transformed to a different scale, then the non-additivity can also change. (p. 599)

Here is Kruschke’s initial example of a possible interaction effect of sex and political party with respect to wages.

d <- tibble(monetary_units = c(10, 12, 15, 18),
            politics       = rep(c("democrat", "republican"), each = 2),
            sex            = rep(c("women", "men"), times = 2)) |>
  mutate(sex_number = if_else(sex == "women", 1, 2),
         politics   = factor(politics, levels = c("republican", "democrat")))

d |>
  ggplot(aes(x = sex_number, y = monetary_units, color = politics)) +
  geom_line(linewidth = 3) +
  scale_x_continuous("sex", breaks = 1:2, labels = c("women", "men")) +
  scale_color_manual(NULL, values = bd[8:7]) +
  coord_cartesian(ylim = c(0, 20)) +
  theme(legend.position = c(0.2, 0.15))

Because the pay discrepancy between men and women is not equal between Democrats and Republicans, in this example, it can be tempting to claim there is a subtle interaction. Not necessarily so.

tibble(politics      = c("democrat", "republican"),
       female_salary = c(10, 15)) |>
  mutate(male_salary = 1.2 * female_salary)

# A tibble: 2 × 3
  politics   female_salary male_salary
  <chr>              <dbl>       <dbl>
1 democrat              10          12
2 republican            15          18

If we take female salary as the baseline and then add 20% to it for the men, the salary difference between Republican men and women will be larger than that between Democratic men and women. Even though the rate increase from women to men was the same, the increase in absolute value was greater within Republicans because Republican women made more than Democratic women.

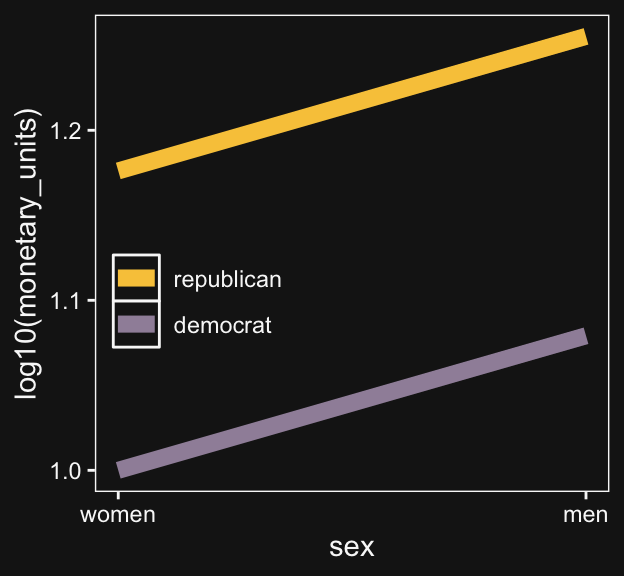

Look what happens to our original plot when we transform monetary_units with log10().

d |>
  ggplot(aes(x = sex_number, y = log10(monetary_units), color = politics)) +
  geom_line(linewidth = 3) +
  scale_x_continuous("sex", breaks = 1:2, labels = c("women", "men")) +
  scale_color_manual(NULL, values = bd[8:7]) +
  theme(legend.position = c(0.2, 0.4))

“Equal ratios are transformed to equal distances by a logarithmic transformation” (p. 599).

We can get a better sense of this with our version of Figure 20.6. Probably the easiest way to inset the offset labels will be with help from the geom_dl() function from the directlabels package (Hocking, 2021).

# Define the data
d <- crossing(int = c("Non−crossover Interaction", "Crossover Interaction"),
              x1  = factor(1:2),
              x2  = factor(1:2)) |>
  mutate(y = c(6, 2, 15, 48, 2, 6, 15, 48)) |>
  mutate(ly = log(y))

# Save the subplots
p1 <- d |>
  filter(int == "Non−crossover Interaction") |>
  ggplot(aes(x = x1, y = y, group = x2, label = x2)) +
  geom_line(aes(color = x2),
            linewidth = 1) +
  geom_dl(method = list(dl.combine("first.points", "last.points")),
          color = bd[3]) +
  scale_x_discrete(NULL, breaks = NULL, expand = expansion(mult = 0.1)) +
  scale_color_manual(values = bd[8:7]) +
  labs(subtitle = "Non−crossover Interaction") +
  theme(legend.position = c(0.15, 0.8),
        legend.key.size = unit(1/3, "cm"))

p2 <- d |>
  filter(int == "Crossover Interaction") |>
  ggplot(aes(x = x1, y = y, group = x2, label = x2)) +
  geom_line(aes(color = x2),
            linewidth = 1) +
  geom_dl(method = list(dl.combine("first.points", "last.points")),
          color = bd[3]) +
  scale_x_discrete(NULL, breaks = NULL, expand = expansion(mult = 0.1)) +
  scale_y_continuous(NULL, breaks = NULL) +
  scale_color_manual(values = bd[8:7], breaks = NULL) +
  labs(subtitle = "Crossover Interaction")

p3 <- d |>
  filter(int == "Crossover Interaction") |>
  ggplot(aes(x = x2, y = y, group = x1, label = x1)) +
  geom_line(aes(color = x1),
            linewidth = 2) +
  geom_dl(method = list(dl.combine("first.points", "last.points")),
          color = bd[3]) +
  scale_x_discrete(NULL, breaks = NULL, expand = expansion(mult = 0.1)) +
  scale_y_continuous(NULL, breaks = NULL) +
  scale_color_manual(values = bd[12:11]) +
  labs(subtitle = "Crossover Interaction") +
  theme(legend.position = c(0.15, 0.8),
        legend.key.size = unit(1/3, "cm"))

p4 <- d |>
  filter(int == "Non−crossover Interaction") |>
  ggplot(aes(x = x1, y = ly, group = x2, label = x2)) +
  geom_line(aes(color = x2),
            linewidth = 1) +
  geom_dl(method = list(dl.combine("first.points", "last.points")),
          color = bd[3]) +
  scale_x_discrete(expand = expansion(mult = 0.1)) +
  scale_color_manual(values = bd[8:7], breaks = NULL) +
  ylab(expression(log(y)))

p5 <- d |>
  filter(int == "Crossover Interaction") |>
  ggplot(aes(x = x1, y = ly, group = x2, label = x2)) +
  geom_line(aes(color = x2),
            linewidth = 1) +
  geom_dl(method = list(dl.combine("first.points", "last.points")),
          color = bd[3]) +
  scale_x_discrete(expand = expansion(mult = 0.1)) +
  scale_y_continuous(NULL, breaks = NULL) +
  scale_color_manual(values = bd[8:7], breaks = NULL) +
  ylab(expression(log(y)))

p6 <- d |>
  filter(int == "Crossover Interaction") |>
  ggplot(aes(x = x2, y = ly, group = x1, label = x1)) +
  geom_line(aes(color = x1),
            linewidth = 2) +
  geom_dl(method = list(dl.combine("first.points", "last.points")),
          color = bd[3]) +
  scale_x_discrete(expand = expansion(mult = 0.1)) +
  scale_y_continuous(NULL, breaks = NULL) +
  scale_color_manual(values = bd[12:11], breaks = NULL) +
  ylab(expression(log(y)))

# Combine
p1 + p2 + p3 + p4 + p5 + p6

“The transformability from interaction to non-interaction is only possible for non-crossover interactions. This terminology, ‘noncrossover,’ is merely a description of the graph: The lines do not cross over each other and they have the same sign slope” (p. 601). The plots in the leftmost column are examples of non-crossover interactions. The plots in the center column are examples of crossover interactions.

Kruschke then pointed out that transforming data can have unexpected consequences for summary values, such as variances:

Suppose one condition has data values of $100$, $110$, and $120$, while a second condition has data values of $1100$, $1110$, and $1120$. For both conditions, the variance is $66.7$, so there is homogeneity of variance. When the data are logarithmically transformed, the variance of the first group becomes $1.05e-3$, but the variance of the second group becomes two orders of magnitude smaller, namely $1.02e-5$. In the transformed data there is not homogeneity of variance. (p. 601)

See for yourself.

tibble(x = c(100, 110, 120, 1100, 1110, 1120),
       y = rep(letters[1:2], each = 3)) |>
  group_by(y) |>
  summarise(variance_of_x     = var(x),
            variance_of_log_x = var(log(x)))

# A tibble: 2 × 3
  y     variance_of_x variance_of_log_x
  <chr>         <dbl>             <dbl>
1 a               100         0.00832
2 b               100         0.0000812

Though it looks like the numbers Kruschke reported in the text are off, his overall point stands. While we had homogeneity of variance for x, the variance is heterogeneous when working with log(x).

20.4 Heterogeneous variances and robustness against outliers

As we will see in just a moment, our approach to the variant of this model with heterogeneous variances and robustness against outliers will differ slightly from the one Kruschke presented in the text. The two are the same in spirit, but ours differs in how we model ${\sigma }_{[jk](i)}$. We’ll get a sense of that difference in our version of the hierarchical model diagram of Figure 20.7.

# Bracket
p1 <- tibble(x = 0.99,
             y = 0.5,
             label = "{_}") |>
  ggplot(aes(x = x, y = y, label = label)) +
  geom_text(color = bd[2], family = "Times", hjust = 1, size = 10) +
  scale_x_continuous(expand = c(0, 0), limits = c(0, 1)) +
  ylim(0, 1) +
  theme_void()

# Plain arrow
p2 <- tibble(x = 0.73,
             y = 1,
             xend = 0.68,
             yend = 0.25) |>
  ggplot(aes(x = x, xend = xend,
             y = y, yend = yend)) +
  geom_segment(arrow = my_arrow, color = bd[3]) +
  xlim(0, 1) +
  theme_void()

# Normal density
p3 <- tibble(x = seq(from = -3, to = 3, by = 0.1)) |>
  ggplot(aes(x = x, y = (dnorm(x)) / max(dnorm(x)))) +
  geom_area(fill = bd[6]) +
  annotate(geom = "text",
           x = 0, y = 0.2,
           label = "normal",
           color = bd[3], size = 7) +
  annotate(geom = "text",
           x = c(0, 1.45), y = 0.6,
           hjust = c(0.5, 0),
           label = c("italic(M)[0]", "italic(S)[0]"),
           color = bd[3], family = "Times", parse = TRUE, size = 7) +
  scale_x_continuous(expand = c(0, 0)) +
  theme_void() +
  theme(axis.line.x = element_line(color = bd[3], linewidth = 0.5))

# Normal density
p4 <- tibble(x = seq(from = -3, to = 3, by = 0.1)) |>
  ggplot(aes(x = x, y = (dnorm(x)) / max(dnorm(x)))) +
  geom_area(fill = bd[6]) +
  annotate(geom = "text",
           x = 0, y = 0.2,
           label = "normal",
           color = bd[3], size = 7) +
  annotate(geom = "text",
           x = c(0, 1.15), y = 0.6,
           label = c("0", "sigma[beta][1]"),
           hjust = c(0.5, 0),
           color = bd[3], family = "Times", parse = TRUE, size = 7) +
  scale_x_continuous(expand = c(0, 0)) +
  theme_void() +
  theme(axis.line.x = element_line(color = bd[3], linewidth = 0.5))

# Normal density
p5 <- tibble(x = seq(from = -3, to = 3, by = 0.1)) |>
  ggplot(aes(x = x, y = (dnorm(x)) / max(dnorm(x)))) +
  geom_area(fill = bd[6]) +
  annotate(geom = "text",
           x = 0, y = 0.2,
           label = "normal",
           color = bd[3], size = 7) +
  annotate(geom = "text",
           x = c(0, 1.15), y = 0.6,
           label = c("0", "sigma[beta][2]"),
           hjust = c(0.5, 0),
           color = bd[3], family = "Times", parse = TRUE, size = 7) +
  scale_x_continuous(expand = c(0, 0)) +
  theme_void() +
  theme(axis.line.x = element_line(color = bd[3], linewidth = 0.5))

# Normal density
p6 <- tibble(x = seq(from = -3, to = 3, by = 0.1)) |>
  ggplot(aes(x = x, y = (dnorm(x)) / max(dnorm(x)))) +
  geom_area(fill = bd[6]) +
  annotate(geom = "text",
           x = 0, y = 0.2,
           label = "normal",
           color = bd[3], size = 7) +
  annotate(geom = "text",
           x = c(0, 0.75), y = 0.6,
           hjust = c(0.5, 0),
           label = c("0", "sigma[beta][1%*%2]"),
           color = bd[3], family = "Times", parse = TRUE, size = 7) +
  scale_x_continuous(expand = c(0, 0)) +
  theme_void() +
  theme(axis.line.x = element_line(color = bd[3], linewidth = 0.5))

# Four annotated arrows
p7 <- tibble(x = c(0.05, 0.34, 0.64, 0.945),
             y = 1,
             xend = c(0.05, 0.18, 0.45, 0.75),
             yend = 0) |>
  ggplot(aes(x = x, xend = xend,
             y = y, yend = yend)) +
  geom_segment(arrow = my_arrow, color = bd[3]) +
  annotate(geom = "text",
           x = c(0.03, 0.23, 0.30, 0.52, 0.585, 0.82, 0.90), y = 0.5,
           label = c("'~'", "'~'", "italic(j)", "'~'", "italic(k)", "'~'", "italic(jk)"),
           size = c(10, 10, 7, 10, 7, 10, 7),
           color = bd[3], family = "Times", parse = TRUE) +
  xlim(0, 1) +
  theme_void()

# Likelihood formula
p8 <- tibble(x = 0.5,
             y = 0.25,
             label = "beta[0]+sum()[italic(j)]*beta[1]['['*italic(j)*']']*italic(x)[1]['['*italic(j)*']'](italic(i))+sum()[italic(k)]*beta[2]['['*italic(k)*']']*italic(x)[2]['['*italic(k)*']'](italic(i))+sum()[italic(jk)]*beta[1%*%2]['['*italic(jk)*']']*italic(x)[1%*%2]['['*italic(jk)*']'](italic(i))") |>
  ggplot(aes(x = x, y = y, label = label)) +
  geom_text(color = bd[3], family = "Times", hjust = 0.5, parse = TRUE, size = 7) +
  scale_x_continuous(expand = c(0, 0), limits = c(0, 1)) +
  ylim(0, 1) +
  theme_void()

# Normal density
p9 <- tibble(x = seq(from = -3, to = 3, by = 0.1)) |>
  ggplot(aes(x = x, y = (dnorm(x)) / max(dnorm(x)))) +
  geom_area(fill = bd[6]) +
  annotate(geom = "text",
           x = 0, y = 0.2,
           label = "normal",
           color = bd[3], size = 7) +
  annotate(geom = "text",
           x = c(0, 1.15), y = 0.6,
           label = c("italic(M)[mu[sigma]]", "italic(S)[mu[sigma]]"),
           hjust = c(0.5, 0),
           color = bd[3], family = "Times", parse = TRUE, size = 7) +
  scale_x_continuous(expand = c(0, 0)) +
  theme_void() +
  theme(axis.line.x = element_line(color = bd[3], linewidth = 0.5))

# Half-normal density
p10 <- tibble(x = seq(from = 0, to = 3, by = 0.01)) |>
  ggplot(aes(x = x, y = (dnorm(x)) / max(dnorm(x)))) +
  geom_area(fill = bd[6]) +
  annotate(geom = "text",
           x = 1.5, y = 0.2,
           label = "half-normal",
           color = bd[3], size = 7) +
  annotate(geom = "text",
           x = 1.5, y = 0.6,
           label = "0*','*~italic(S)[sigma[sigma]]",
           color = bd[3], family = "Times", parse = TRUE, size = 7) +
  scale_x_continuous(expand = c(0, 0)) +
  theme_void() +
  theme(axis.line.x = element_line(color = bd[3], linewidth = 0.5))

# Exponential density
p11 <- tibble(x = seq(from = 0, to = 1, by = 0.01)) |>
  ggplot(aes(x = x, y = (dexp(x, 2) / max(dexp(x, 2))))) +
  geom_area(fill = bd[6]) +
  annotate(geom = "text",
           x = 0.5, y = 0.2,
           label = "exp",
           color = bd[3], size = 7) +
  annotate(geom = "text",
           x = 0.5, y = 0.6,
           label = "italic(K)",
           color = bd[3], family = "Times", parse = TRUE, size = 7) +
  scale_x_continuous(expand = c(0, 0)) +
  theme_void() +
  theme(axis.line.x = element_line(color = bd[3], linewidth = 0.5))

# Normal density
p12 <- tibble(x = seq(from = -3, to = 3, by = 0.1)) |>
  ggplot(aes(x = x, y = (dnorm(x)) / max(dnorm(x)))) +
  geom_area(fill = bd[6]) +
  annotate(geom = "text",
           x = 0, y = 0.2,
           label = "normal",
           color = bd[3], size = 7) +
  annotate(geom = "text",
           x = c(0, 1.2), y = 0.6,
           hjust = c(0.5, 0),
           label = c("mu[sigma]", "sigma[sigma]"),
           color = bd[3], family = "Times", parse = TRUE, size = 7) +
  scale_x_continuous(expand = c(0, 0)) +
  theme_void() +
  theme(axis.line.x = element_line(color = bd[3], linewidth = 0.5))

# Student-t density
p13 <- tibble(x = seq(from = -3, to = 3, by = 0.1)) |>
  ggplot(aes(x = x, y = (dt(x, 3) / max(dt(x, 3))))) +
  geom_area(fill = bd[6]) +
  annotate(geom = "text",
           x = 0, y = 0.2,
           label = "student t",
           color = bd[3], size = 7) +
  annotate(geom = "text",
           x = c(-1.4, 0), y = 0.6,
           label = c("nu", "mu[italic(i)]"),
           color = bd[3], family = "Times", parse = TRUE, size = 7) +
  scale_x_continuous(expand = c(0, 0)) +
  theme_void() +
  theme(axis.line.x = element_line(color = bd[3], linewidth = 0.5))

# Two annotated arrows
p14 <- tibble(x = c(0.18, 0.82),
              y = 1,
              xend = c(0.46, 0.66),
              yend = c(0.28, 0.28)) |>
  ggplot(aes(x = x, xend = xend,
             y = y, yend = yend)) +
  geom_segment(arrow = my_arrow, color = bd[3]) +
  annotate(geom = "text",
           x = c(0.24, 0.69), y = 0.62,
           label = "'~'",
           color = bd[3], family = "Times", parse = TRUE, size = 10) +
  xlim(0, 1) +
  theme_void()

# Log sigma
p15 <- tibble(x = 0.65,
              y = 0.6,
              label = "log(sigma['['*italic(jk)*']('*italic(i)*')'])") |>
  ggplot(aes(x = x, y = y, label = label)) +
  geom_text(color = bd[3], family = "Times", hjust = 0, parse = TRUE, size = 7) +
  scale_x_continuous(expand = c(0, 0), limits = c(0, 2)) +
  ylim(0, 1) +
  theme_void()

# Two annotated arrows
p16 <- tibble(x = c(0.18, 0.18),  # 0.2142857
              y = c(1, 0.45),
              xend = c(0.18, 0.67),
              yend = c(0.75, 0.14)) |>
  ggplot(aes(x = x, xend = xend,
             y = y, yend = yend)) +
  geom_segment(arrow = my_arrow, color = bd[3]) +
  annotate(geom = "text",
           x = c(0.13, 0.18, 0.26), y = c(0.92, 0.64, 0.22),
           label = c("'~'", "nu*minute+1", "'='"),
           color = bd[3], family = "Times", parse = TRUE, size = c(10, 7, 10)) +
  xlim(0, 1) +
  theme_void()

# One annotated arrow
p17 <- tibble(x = 0.5,
              y = 1,
              xend = 0.5,
              yend = 0.03) |>
  ggplot(aes(x = x, xend = xend,
             y = y, yend = yend)) +
  geom_segment(arrow = my_arrow, color = bd[3]) +
  annotate(geom = "text",
           x = 0.4, y = 0.5,
           label = "'='",
           color = bd[3], family = "Times", parse = TRUE, size = 10) +
  xlim(0, 1) +
  theme_void()

# Another annotated arrow
p18 <- tibble(x = 0.87,
              y = 1,
              xend = 0.43,
              yend = 0.2) |>
  ggplot(aes(x = x, xend = xend,
             y = y, yend = yend)) +
  geom_segment(arrow = my_arrow, color = bd[3]) +
  annotate(geom = "text",
           x = c(0.56, 0.7), y = 0.5,
           label = c("'~'", "italic(jk)"),
           color = bd[3], family = "Times", parse = TRUE, size = c(10, 7)) +
  xlim(0, 1) +
  theme_void()

# The final annotated arrow
p19 <- tibble(x = c(0.375, 0.625),
              y = c(1/3, 1/3),
              label = c("'~'", "italic(i)")) |>
  ggplot(aes(x = x, y = y, label = label)) +
  geom_text(size = c(10, 7),
            color = bd[3], family = "Times", parse = TRUE) +
  geom_segment(x = 0.5, xend = 0.5,
               y = 1, yend = 0,
               arrow = my_arrow, color = bd[3]) +
  xlim(0, 1) +
  theme_void()

# Some text
p20 <- tibble(x = 0.5,
              y = 0.5,
              label = "italic(y[i])") |>
  ggplot(aes(x = x, y = y, label = label)) +
  geom_text(color = bd[3], family = "Times", parse = TRUE, size = 7) +
  xlim(0, 1) +
  theme_void()

# Define the layout
layout <- c(
  area(t = 1, b = 1, l = 6, r = 7),
  area(t = 1, b = 1, l = 10, r = 11),
  area(t = 1, b = 1, l = 14, r = 15),
  area(t = 3, b = 4, l = 1, r = 3),
  area(t = 3, b = 4, l = 5, r = 7),
  area(t = 3, b = 4, l = 9, r = 11),
  area(t = 3, b = 4, l = 13, r = 15),
  area(t = 2, b = 3, l = 6, r = 7),
  area(t = 2, b = 3, l = 10, r = 11),
  area(t = 2, b = 3, l = 14, r = 15),
  area(t = 6, b = 7, l = 1, r = 15),
  area(t = 5, b = 6, l = 1, r = 15),
  area(t = 9, b = 10, l = 9, r = 11),
  area(t = 9, b = 10, l = 13, r = 15),
  area(t = 12, b = 13, l = 1, r = 3),
  area(t = 12, b = 13, l = 11, r = 13),
  area(t = 16, b = 17, l = 5, r = 7),
  area(t = 11, b = 12, l = 9, r = 15),
  area(t = 16, b = 17, l = 5, r = 10),
  area(t = 14, b = 16, l = 1, r = 7),
  area(t = 8, b = 16, l = 5, r = 7),
  area(t = 14, b = 16, l = 5, r = 13),
  area(t = 18, b = 18, l = 5, r = 7),
  area(t = 19, b = 19, l = 5, r = 7))

# Combine, adjust, and display
(p1 + p1 + p1 + p3 + p4 + p5 + p6 + p2 + p2 + p2 + p8 + p7 + p9 +
    p10 + p11 + p12 + p13 + p14 + p15 + p16 + p17 + p18 + p19 + p20) +
  plot_layout(design = layout) &
  ylim(0, 1) &
  theme(plot.margin = margin(0, 5.5, 0, 5.5))

Wow that’s a lot! If you compare our diagram with the one in the text, you’ll see the $\nu$ and $\mu$ structures are the same. If you look down toward the bottom of the diagram, the first big difference is that we’re modeling the log of ${\sigma }_{[jk](i)}$, which is the typical brms strategy for avoiding negative values when modeling a $\sigma$ parameter. Then when you look up and to the right, you’ll see that we’re modeling $\log ({\sigma }_{[jk](i)})$ with a conventional hierarchical Gaussian structure. Keep this in mind when we get into our brms code, below.

Before we fit the robust hierarchical variances model, we need to define our stanvars.

stanvars <- stanvar(mean_y, name = "mean_y") +
  stanvar(sd_y,      name = "sd_y") +
  stanvar(s_r$shape, name = "alpha") +
  stanvar(s_r$rate,  name = "beta") +
  stanvar(1/29,      name = "one_over_twentynine")

Recall that to fit a robust hierarchical variances model, we need to wrap our two formulas within the bf() function.

⚠️ Warning: This one took the better part of two hours fit. ⚠️

fit20.2 <- brm(
  data = my_data,
  family = student,
  bf(Salary ~ 1 + (1 | Pos) + (1 | Org) + (1 | Pos:Org),
     sigma  ~ 1 + (1 | Pos:Org)),
  prior = c(prior(normal(mean_y, sd_y * 5), class = Intercept),
            prior(normal(log(sd_y), 1),     class = Intercept, dpar = sigma),
            prior(gamma(alpha, beta), class = sd),
            prior(normal(0, 1),       class = sd, dpar = sigma),
            prior(exponential(one_over_twentynine), class = nu)),
  iter = 4000, warmup = 1000, chains = 4, cores = 4,
  seed = 20,
  control = list(adapt_delta = 0.9995, max_treedepth = 15),
  stanvars = stanvars,
  file = "fits/fit20.02")

Behold the summary.

print(fit20.2)

 Family: student
  Links: mu = identity; sigma = log; nu = identity
Formula: Salary ~ 1 + (1 | Pos) + (1 | Org) + (1 | Pos:Org)
         sigma ~ 1 + (1 | Pos:Org)
   Data: my_data (Number of observations: 1080)
  Draws: 4 chains, each with iter = 4000; warmup = 1000; thin = 1;
         total post-warmup draws = 12000

Multilevel Hyperparameters:
~Org (Number of levels: 60)
              Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sd(Intercept) 31552.79   3050.64 26206.85 38040.24 1.00     2179     4024

~Pos (Number of levels: 5)
              Estimate Est.Error l-95% CI  u-95% CI Rhat Bulk_ESS Tail_ESS
sd(Intercept) 50738.87  23562.49 23489.20 112529.77 1.01     2192     3452

~Pos:Org (Number of levels: 216)
                    Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sd(Intercept)        5281.37    850.72  3720.91  7021.74 1.00     2553     5052
sd(sigma_Intercept)     0.97      0.07     0.85     1.11 1.00     2739     5024

Regression Coefficients:
                 Estimate Est.Error l-95% CI  u-95% CI Rhat Bulk_ESS Tail_ESS
Intercept       122491.59  24319.84 73429.39 172217.25 1.00     1505     2574
sigma_Intercept      9.11      0.09     8.93      9.29 1.00     3146     5438

Further Distributional Parameters:
   Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
nu     6.99      4.15     3.73    15.99 1.00     4964     4883

Draws were sampled using sampling(NUTS). For each parameter, Bulk_ESS
and Tail_ESS are effective sample size measures, and Rhat is the potential
scale reduction factor on split chains (at convergence, Rhat = 1).

This time we’ll just feed the results of the wrangling code right into the plotting code for our version of the top panels of Figure 20.8.

# How many draws would you like?
n_draw <- 20

set.seed(20)

# Wrangle
my_data |>
  distinct(Pos) |>
  expand_grid(Org = c("BFIN", "CHEM", "PSY", "ENG")) |>
  add_epred_draws(fit20.2, ndraws = n_draw, seed = 20,
                  allow_new_levels = TRUE,
                  dpar = c("mu", "sigma", "nu")) |>
  mutate(ll = qt(0.025, df = nu),
         ul = qt(0.975, df = nu)) |>
  mutate(Salary = map2(.x = ll, .y = ul,
                       .f = \(ll, ul) seq(from = ll, to = ul, length.out = 100))) |>
  unnest(Salary) |>
  mutate(density = dt(Salary, df = nu)) |>
  # Notice the conversion
  mutate(Salary = mu + Salary * sigma) |>
  group_by(.draw) |>
  mutate(density = density / max(density)) |>
  mutate(Org = factor(Org, levels = c("BFIN", "CHEM", "PSY", "ENG"))) |>

  # Plot
  ggplot(aes(x = Salary, y = Pos)) +
  geom_vline(xintercept = fixef(fit20.1)[, 1], color = bd[5]) +
  geom_ridgeline(aes(height = density, group = interaction(Pos, .draw), color = Pos),
                 fill = NA, linewidth = 1/4,
                 scale = 3/4, show.legend = FALSE) +
  geom_jitter(data = my_data |>
                filter(Org %in% c("BFIN", "CHEM", "PSY", "ENG")) |>
                mutate(Org = factor(Org, levels = c("BFIN", "CHEM", "PSY", "ENG"))),
              alpha = 1/2, color = bd[11], height = 0.025, size = 2/3) +
  scale_x_continuous(breaks = seq(from = 0, to = 300000, length.out = 4),
                     labels = c("$0", "$100K", "200K", "$300K")) +
  scale_color_manual(values = bd[c(14, 13, 8, 12, 3)]) +
  coord_cartesian(xlim = c(0, 35e4),
                  ylim = c(1.25, 5.5)) +
  labs(y = "Pos",
       title = "Data with Posterior Predictive Distributions",
       subtitle = "The white vertical line is the model-implied grand mean.") +
  theme(axis.text.y = element_text(hjust = 0),
        axis.ticks.y = element_blank()) +
  facet_wrap(~ Org)

Our results for the bottom panel of Figure 20.8 will differ substantially from Kruschke’s. Recall that Kruschke modeled ${\sigma }_{[j,k](i)}$ with a hierarchical gamma distribution and using the $\omega +\sigma$ parameterization. We, however, modeled our hierarchical $\log (\sigma )$ with the typical normal distribution. As such, we have posteriors for ${\sigma }_{\mu }$ and ${\sigma }_{\sigma }$.

# Wrangle
as_draws_df(fit20.2) |>
  transmute(Normality              = log10(nu),
            `Mean of Cell Sigma's` = exp(b_sigma_Intercept),
            `SD of Cell Sigma's`   = exp(`sd_Pos:Org__sigma_Intercept`)) |>
  pivot_longer(cols = everything()) |>
  mutate(name = factor(name, levels = c("Normality", "Mean of Cell Sigma's", "SD of Cell Sigma's"))) |>

  # Plot
  ggplot(aes(x = value)) +
  stat_beedrill() +
  scale_y_continuous(NULL, breaks = NULL) +
  xlab("param. value") +
  facet_wrap(~ name, ncol = 3, scales = "free")

Though our ${\sigma }_{\mu }$ is on a similar metric to Kruschke’s ${\sigma }_{\omega }$, our ${\sigma }_{\sigma }$ is just fundamentally different from his. So it goes. If you think I’m in error, here, share your insights. Even though our hierarchical $\sigma$ parameters look different from Kruschke’s, it turns the contrast distributions are quite similar. Here’s the necessary wrangling to make our version for Figure 20.9.

# Define our new data
nd <- crossing(Pos = c("Assis", "Full"),
               Org = c("CHEM", "PSY")) |>
  # We'll need to update our column names
  mutate(col_names = str_c(Pos, "_", Org))

# get the draws with `fitted()`
f <- fitted(fit20.2,
            newdata = nd,
            summary = FALSE) |>
  # Wrangle
  as_tibble() |>
  set_names(nd |> pull(col_names)) |>
  transmute(`Full - Assis @ CHEM` = Full_CHEM - Assis_CHEM,
            `Full - Assis @ PSY`  = Full_PSY - Assis_PSY) |>
  mutate(`Full.v.Assis\n(x)\nCHEM.v.PSY` = `Full - Assis @ CHEM` - `Full - Assis @ PSY`) |>
  pivot_longer(cols = everything()) |>
  mutate(name = factor(name, levels = c("Full - Assis @ PSY", "Full - Assis @ CHEM",
                                        "Full.v.Assis\n(x)\nCHEM.v.PSY")))

# What have we done?
head(f)

# A tibble: 6 × 2
  name                             value
  <fct>                            <dbl>
1 "Full - Assis @ CHEM"           67729.
2 "Full - Assis @ PSY"            34597.
3 "Full.v.Assis\n(x)\nCHEM.v.PSY" 33132.
4 "Full - Assis @ CHEM"           50247.
5 "Full - Assis @ PSY"            39984.
6 "Full.v.Assis\n(x)\nCHEM.v.PSY" 10264.

Now plot.

f |>
  ggplot(aes(x = value)) +
  geom_rect(xmin = -1e3, xmax = 1e3,
            ymin = -Inf, ymax = Inf,
            color = "transparent", fill = bd[7]) +
  stat_beedrill() +
  scale_y_continuous(NULL, breaks = NULL) +
  xlab("Difference") +
  expand_limits(x = 0) +
  facet_wrap(~ name, scales = "free")

See? Our contrast distributions are really close those in the text. Here are the numeric estimates.

f |>
  group_by(name) |>
  mode_hdi(value) |>
  select(name:.upper) |>
  mutate_if(is.double, .funs = round, digits = 0)

# A tibble: 3 × 4
  name                            value .lower .upper
  <fct>                           <dbl>  <dbl>  <dbl>
1 "Full - Assis @ PSY"            32766  22981  43825
2 "Full - Assis @ CHEM"           53618  40340  68128
3 "Full.v.Assis\n(x)\nCHEM.v.PSY" 19988   2973  38085

In the second half of the middle paragraph on page 605, Kruschke contrasted the ${\sigma }_{{\beta }_{1\times 2}}$ parameter in the two models (i.e., our fit20.1 and fit20.2). Recall that in the brms output, these are termed sd_Pos:Org__Intercept. Here are the comparisons from our brms models.

posterior_summary(fit20.1)["sd_Pos:Org__Intercept", ]

 Estimate Est.Error      Q2.5     Q97.5
 9709.599  1229.897  7390.985 12260.119

posterior_summary(fit20.2)["sd_Pos:Org__Intercept", ]

 Estimate Est.Error      Q2.5     Q97.5
5281.3712  850.7184 3720.9147 7021.7354

They are similar to the values in the text. And recall, of course, the brms::posterior_summary() function returns posterior means. If you really wanted the posterior modes, like Kruschke reported in the text, you’ll have to work a little harder.

bind_rows(as_draws_df(fit20.1) |> select(`sd_Pos:Org__Intercept`),
          as_draws_df(fit20.2) |> select(`sd_Pos:Org__Intercept`)) |>
  mutate(fit = rep(c("fit20.1", "fit20.2"), times = c(8000, 12000))) |>
  group_by(fit) |>
  mode_hdi(`sd_Pos:Org__Intercept`) |>
  select(fit:.upper) |>
  mutate_if(is.double, .funs = round, digits = 0)

# A tibble: 2 × 4
  fit     `sd_Pos:Org__Intercept` .lower .upper
  <chr>                     <dbl>  <dbl>  <dbl>
1 fit20.1                    9567   7298  12108
2 fit20.2                    5061   3648   6936

The curious might even look at those in a plot.

bind_rows(as_draws_df(fit20.1) |> select(`sd_Pos:Org__Intercept`),
          as_draws_df(fit20.2) |> select(`sd_Pos:Org__Intercept`)) |>
  mutate(fit = rep(c("fit20.1", "fit20.2"), times = c(8000, 12000))) |>

  ggplot(aes(x = `sd_Pos:Org__Intercept`, y = fit)) +
  stat_beedrill(point_size = 2, size = 1/2) +
  labs(x = expression(sigma[beta[1%*%2]]),
       y = NULL) +
  coord_cartesian(ylim = c(1.5, NA))

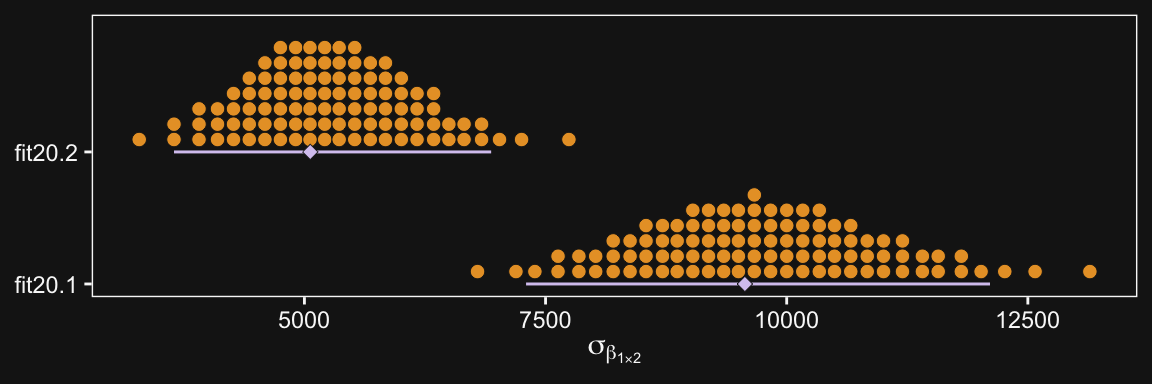

“Which model is a better description of the data?… In principle, an intrepid programmer could do a Bayesian model comparison…” (pp. 605–606). We could also examine information criteria, like the LOO.

fit20.1 <- add_criterion(fit20.1, criterion = "loo")
fit20.2 <- add_criterion(fit20.2, criterion = "loo")

Sigh. Both models had high pareto_k values, suggesting there were outliers relative to what was expected by their likelihoods. Just a little further in the text, Kruschke gives us hints why this might be so:

Moreover, both models assume that the data within cells are distributed symmetrically above and below their central tendency, either as a normal distribution or a $t$-distribution. The data instead seem to be skewed toward larger values, especially for advanced seniorities. (p. 606)

Here’s the current LOO difference.

loo_compare(fit20.1, fit20.2) |> print(simplify = FALSE)

        elpd_diff se_diff  elpd_loo se_elpd_loo p_loo    se_p_loo looic
fit20.2      0.0       0.0 -11766.8     41.5       314.7     10.9  23533.6
fit20.1   -427.7      34.2 -12194.6     42.8       140.2     11.9  24389.1
        se_looic
fit20.2     83.0
fit20.1     85.7

But really, “we might want to create a model that describes the data within each cell as a skewed distribution such as a Weibull” (p. 606). Yes, brms can handle Weibull regression (e.g., here).

20.5 Within-subject designs

When every subject contributes many measurements to every cell, then the model of the situation is a straight-forward extension of the models we have already considered. We merely add “subject” as another nominal predictor in the model, with each individual subject being a level of the predictor. If there is one predictor other than subject, the model becomes

$$y={\beta }_0+{\overrightarrow{\beta }}_1{\overrightarrow{x}}_1+{\overrightarrow{\beta }}_S{\overrightarrow{x}}_S+{\overrightarrow{\beta }}_{1\times S}{\overrightarrow{x}}_{1\times S}$$

This is exactly the two-predictor model we have already considered, with the second predictor being subject. When there are two predictors other than subject, the model becomes

$$\begin{array}{rlr}y=& {\beta }_0& \text{baseline}\\ & +{\overrightarrow{\beta }}_1{\overrightarrow{x}}_1+{\overrightarrow{\beta }}_2{\overrightarrow{x}}_2+{\overrightarrow{\beta }}_S{\overrightarrow{x}}_S& \text{main effects}\\ & +{\overrightarrow{\beta }}_{1\times 2}{\overrightarrow{x}}_{1\times 2}+{\overrightarrow{\beta }}_{1\times S}{\overrightarrow{x}}_{1\times S}+{\overrightarrow{\beta }}_{2\times S}{\overrightarrow{x}}_{2\times S}& \text{two-way interactions}\\ & +{\overrightarrow{\beta }}_{1\times 2\times S}{\overrightarrow{x}}_{1\times 2\times S}& \text{three-way interactions}\end{array}$$

This model includes all the two-way interactions of the factors, plus the three-way interaction. (p. 607)

In situations in which subjects only contribute one observation per condition/cell, we simplify the model to

$$\begin{array}{rl}y=& {\beta }_0\\ & +{\overrightarrow{\beta }}_1{\overrightarrow{x}}_1+{\overrightarrow{\beta }}_2{\overrightarrow{x}}_2+{\overrightarrow{\beta }}_{1\times 2}{\overrightarrow{x}}_{1\times 2}\\ & +{\overrightarrow{\beta }}_S{\overrightarrow{x}}_S\end{array}$$

“In other words, we assume a main effect of subject, but no interaction of subject with other predictors. In this model, the subject effect (deflection) is constant across treatments, and the treatment effects (deflections) are constant across subjects” (p. 608).

20.5.1 Why use a within-subject design? And why not?

Kruschke opined “the primary reason to use a within-subject design is that you can achieve greater precision in the estimates of the effects than in a between-subject design” (p. 608). Well, to that I counterpoint: “No one goes to the circus to see the average dog jump through the hoop significantly oftener than untrained does raised under the same circumstances” (Skinner, 1956, p. 228). And it’s unlikely you’ll make a skillful jumper of your dog without repeated trials. There’s also the related issue that between- and within-person processes aren’t necessarily the same. For an introduction to the issue, see Hamaker’s (2012) chapter, Why researchers should think “within-person”: A paradigmatic rationale, or the paper from Bolger et al. (2019), Causal processes in psychology are heterogeneous.

But we digress.

Here’s the 4-subject response time data.

d <- tibble(response_time = c(300, 320, 350, 370, 400, 420, 450, 470),
            subject       = rep(1:4, each = 2),
            hand          = rep(c("dominant", "nondominant"), times = 4))

d

# A tibble: 8 × 3
  response_time subject hand
          <dbl>   <int> <chr>
1           300       1 dominant
2           320       1 nondominant
3           350       2 dominant
4           370       2 nondominant
5           400       3 dominant
6           420       3 nondominant
7           450       4 dominant
8           470       4 nondominant

“For every subject, the difference between dominant and nondominant hands is exactly 20 ms, but there are big differences across subjects in overall response times” (p. 608). Here’s what that looks like.

d |>
  mutate(subject = factor(subject)) |>

  ggplot(aes(x = response_time, y = subject)) +
  geom_line(aes(group = subject),
            color = bd[3], linetype = 3) +
  geom_point(aes(color = hand), size = 3) +
  scale_color_manual(values = bd[8:9])

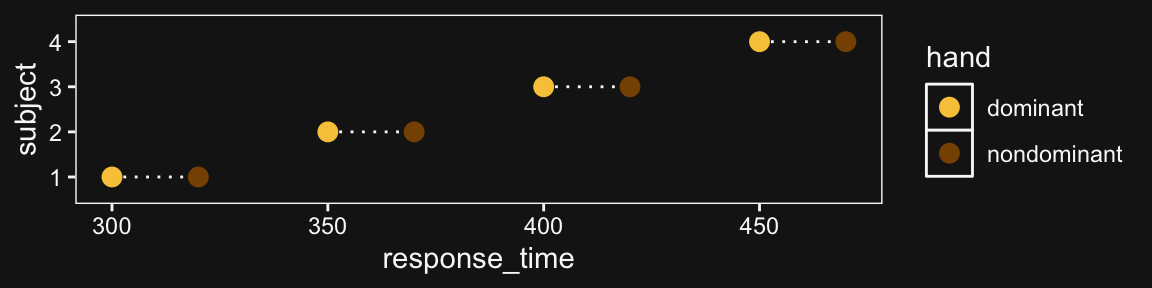

Here there is more variability between subjects than within them, which you’d never detect without a within-subject design including multiple subjects.

20.5.2 Split-plot design.

“Split-plot experiments were invented by Fisher (1925) (p. 610).”

Kruschke then wrote this to set the stage for the next subsection:

Consider an agricultural experiment investigating the productivity of different soil tilling methods and different fertilizers. It is relatively easy to provide all the farmers with the several different fertilizers. But it might be relatively difficult to provide all farmers with all the machinery for several different tilling methods. Therefore, any particular farmer will use a single (randomly assigned) tilling method on his whole plot, and tilling methods will differ between whole plots. Each farmer will split his field into subplots and apply all the fertilizers to different (randomly assigned) split plots, and fertilizers will differ across split plots within whole plots. This type of experiment inspires the name, split-plot design. The generic experiment-design term for the farmer’s field is “block.” Then, the factor that varies within every field is called the within-block factor and the factor that varies between fields is called the between-block factor. Notice also that each split plot yields a single measurement (in this case the productivity measured in bushels per acre), not multiple measurements. (p. 610)

20.5.2.1 Example: Knee high by the fourth of July.

Load the agronomy data.

my_data <- read_csv("data.R/SplitPlotAgriData.csv")

glimpse(my_data)

Rows: 99
Columns: 4
$ Field <dbl> 1, 1, 1, 2, 2, 2, 3, 3, 3, 4, 4, 4, 5, 5, 5, 6, 6, 6, 7, 7, 7, 8…
$ Till  <chr> "Chisel", "Chisel", "Chisel", "Chisel", "Chisel", "Chisel", "Chi…
$ Fert  <chr> "Broad", "Deep", "Surface", "Broad", "Deep", "Surface", "Broad",…
$ Yield <dbl> 119, 130, 123, 135, 148, 134, 140, 146, 142, 126, 132, 131, 128,…

We might use geom_tile() to visualize the data like this.

my_data |>
  mutate(Fert = str_c("Fert: ", Fert)) |>

  ggplot(aes(x = Till, y = Field)) +
  geom_tile(aes(fill = Yield)) +
  scale_x_discrete(expand = c(0, 0)) +
  scale_y_discrete(expand = c(0, 0)) +
  scale_fill_gradient(low = bd[1], high = bd[12]) +
  theme(panel.background = element_rect(fill = bd[7])) +
  facet_wrap(~ Fert)

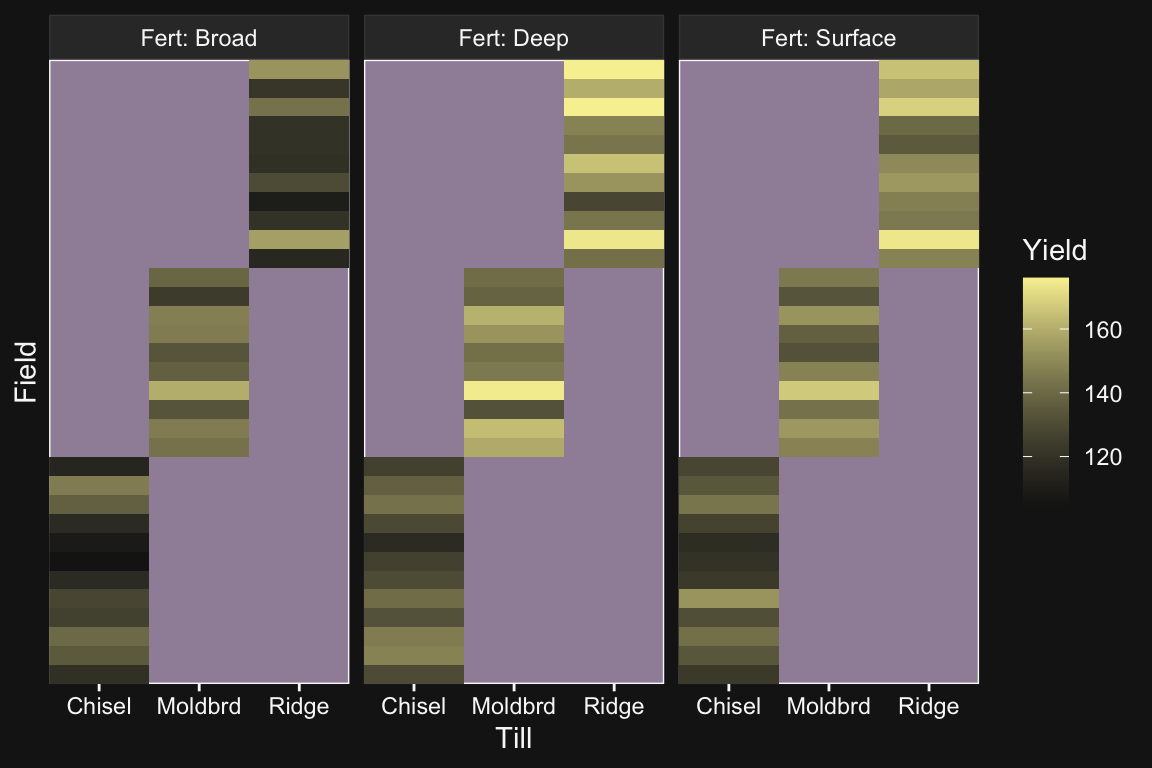

As Kruschke pointed out in the text, notice how each Field has only one level of Till, but three levels of Fert.

20.5.2.2 The descriptive model.

In the classical ANOVA-style model for a split-plot design, the overall variance is conceptually decomposed into five components: the main effect of the between-subjects factor, the main effect of the within-subjects factor, the interaction of the two factors, the effect of subject within levels of the between-subject factor, and the interaction of subject with the within-subject factor. Unfortunately, because there is only a single datum per cell, the five components exactly match the data, which is to say that there are as many parameters as there are data points. (If every subject contributed multiple data points to every cell then the five-component model could be used.) Because there is no residual noise within cells, the classical approach is to treat the final component as noise, that is, treat the interaction of subject with the within-subject factor as noise. That component is not included in the model (at least, not distinct from noise). We will do the same for the descriptive model in our Bayesian analysis. (p. 612)

20.5.2.3 Implementation in JAGS brms.

Define the stanvars.

mean_y <- mean(my_data$Yield)
sd_y   <- sd(my_data$Yield)

omega <- sd_y / 2
sigma <- 2 * sd_y

s_r <- gamma_a_b_from_omega_sigma(mode = omega, sd = sigma)

stanvars <- stanvar(mean_y, name = "mean_y") +
  stanvar(sd_y,      name = "sd_y") +
  stanvar(s_r$shape, name = "alpha") +
  stanvar(s_r$rate,  name = "beta")

Here’s how to fit the model with brm().

fit20.3 <- brm(
  data = my_data,
  family = gaussian,
  Yield ~ 1 + (1 | Till) + (1 | Fert) + (1 | Field) + (1 | Till:Fert),
  prior = c(prior(normal(mean_y, sd_y * 5), class = Intercept),
            prior(gamma(alpha, beta), class = sd),
            prior(cauchy(0, sd_y), class = sigma)),
  iter = 4000, warmup = 2000, chains = 4, cores = 4,
  seed = 20,
  control = list(adapt_delta = 0.9999, max_treedepth = 12),
  stanvars = stanvars,
  file = "fits/fit20.03")

20.5.2.4 Results.

Check the summary.

print(fit20.3)

 Family: gaussian
  Links: mu = identity; sigma = identity
Formula: Yield ~ 1 + (1 | Till) + (1 | Fert) + (1 | Field) + (1 | Till:Fert)
   Data: my_data (Number of observations: 99)
  Draws: 4 chains, each with iter = 4000; warmup = 2000; thin = 1;
         total post-warmup draws = 8000

Multilevel Hyperparameters:
~Fert (Number of levels: 3)
              Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sd(Intercept)    15.10     12.87     1.59    49.62 1.00     2549     3194

~Field (Number of levels: 33)
              Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sd(Intercept)    11.75      1.71     8.92    15.56 1.00     1777     3428

~Till (Number of levels: 3)
              Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sd(Intercept)    15.44     13.59     1.25    51.54 1.00     2231     2758

~Till:Fert (Number of levels: 9)
              Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sd(Intercept)     8.67      4.11     3.59    18.68 1.00     2039     3879

Regression Coefficients:
          Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
Intercept   139.97     15.97   106.35   174.06 1.00     3110     3227

Further Distributional Parameters:
      Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sigma     5.69      0.53     4.77     6.89 1.00     3658     5369

Draws were sampled using sampling(NUTS). For each parameter, Bulk_ESS
and Tail_ESS are effective sample size measures, and Rhat is the potential
scale reduction factor on split chains (at convergence, Rhat = 1).

We might compare the $\sigma$ posteriors with a plot.

as_draws_df(fit20.3) |>
  pivot_longer(cols = c(sigma, starts_with("sd"))) |>

  ggplot(aes(x = value, y = name)) +
  stat_beedrill(point_size = 3/2, size = 1/2, slab_color = bd[6]) +
  labs(x = NULL,
       y = NULL) +
  coord_cartesian(xlim = c(0, 50),
                  ylim = c(1.5, NA)) +
  theme(axis.text.y = element_text(hjust = 0),
        axis.ticks.y = element_blank())

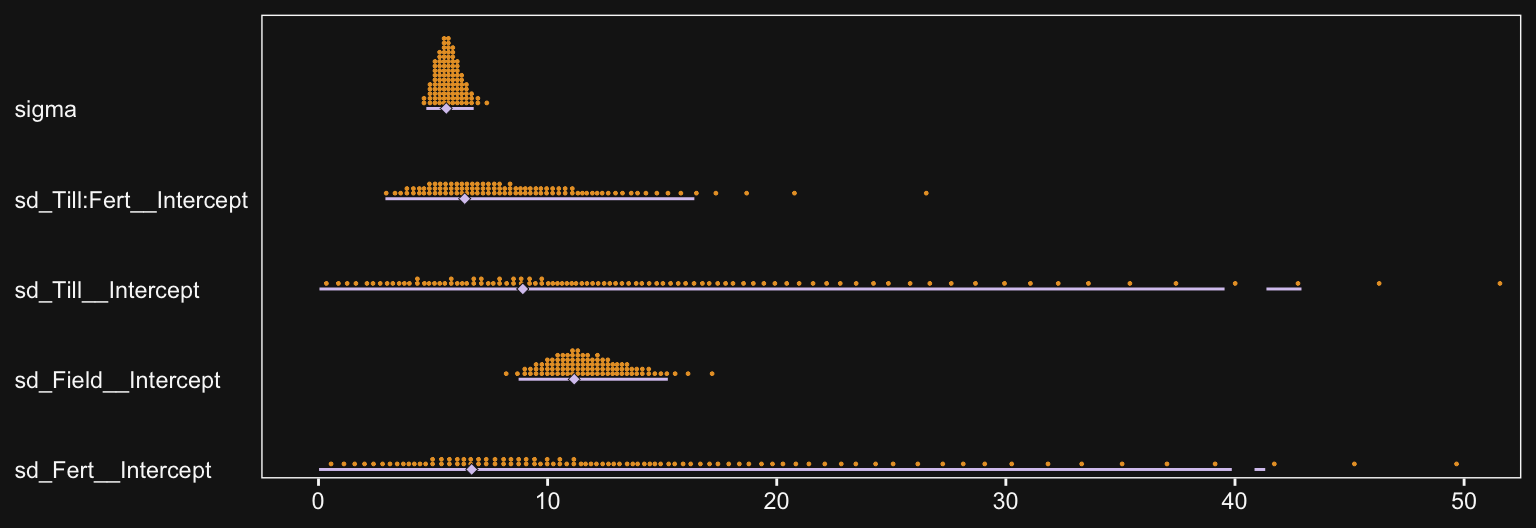

Now we have the results of fit20.3, we are ready to make our version if Figure 20.10. Note that how within add_fitted_draws(), we used the re_formula argument to average over the random effects of Field (i.e., we left (1 | Field) out of the formula). That’s our equivalent to when Kruschke wrote “The predictive normal distributions are plotted with means at ${\beta }_0+{\beta }_B+{\beta }_W+{\beta }_{B\times W}$ (collapsed across ${\beta }_S$) and with standard deviation $\sigma$” (pp. 614–615).

# Wrangle
my_data |>
  distinct(Till, Fert) |>
  add_epred_draws(fit20.3,
                  ndraws = 20,
                  re_formula = Yield ~ 1 + (1 | Till) + (1 | Fert) + (1 | Till:Fert),
                  dpar = c("mu", "sigma")) |>
  mutate(ll = qnorm(0.025, mean = mu, sd = sigma),
         ul = qnorm(0.975, mean = mu, sd = sigma)) |>
  mutate(Yield = map2(.x = ll, .y = ul,
                      .f = \(ll, ul) seq(from = ll, to = ul, length.out = 100))) |>
  unnest(Yield) |>
  mutate(density = dnorm(Yield, mean = mu, sd = sigma)) |>
  group_by(.draw) |>
  mutate(density = density / max(density)) |>

  # Plot
  ggplot(aes(x = Yield, y = Fert)) +
  geom_path(data = my_data,
            aes(group = Field |> as.factor()),
            color = bd[5], linewidth = 1/4) +
  geom_ridgeline(aes(height = -density, group = interaction(Fert, .draw), color = Fert),
                 fill = NA, linewidth = 1/3,
                 min_height = NA, scale = 3/4) +
  geom_jitter(data = my_data,
              alpha = 1/2, color = bd[5], height = 0.025) +
  scale_x_continuous(breaks = seq(from = 100, to = 180, by = 20)) +
  scale_color_manual(values = bd[c(9, 6, 12)]) +
  coord_flip(xlim = c(90, 190),
             ylim = c(0.5, 2.75)) +
  ggtitle("Data with Posterior Predictive Distribution") +
  theme(axis.ticks.x = element_blank(),
        legend.position = "none") +
  facet_wrap(~ Till, labeller = label_both)

Now let’s make our Figure 20.11 contrasts.

nd <- my_data |>
  distinct(Till, Fert) |>
  # We'll need to update our column names
  mutate(col_names = str_c(Till, "_", Fert))

fitted(fit20.3,
       newdata = nd,
       summary = FALSE,
       re_formula = Yield ~ 1 + (1 | Till) + (1 | Fert) + (1 | Till:Fert)) |>
  as_tibble() |>
  set_names(nd |> pull(col_names)) |>
  transmute(
    `Moldbrd\nvs\nRidge` = ((Moldbrd_Broad + Moldbrd_Deep + Moldbrd_Surface) / 3) -
      ((Ridge_Broad + Ridge_Deep + Ridge_Surface) / 3),
    `Moldbrd.Ridge\nvs\nChisel` = ((Moldbrd_Broad + Moldbrd_Deep +
                                      Moldbrd_Surface + Ridge_Broad + Ridge_Deep +
                                      Ridge_Surface) / 6) - ((Chisel_Broad + Chisel_Deep + Chisel_Surface) / 3),
    `Deep.Surface\nvs\nBroad` = ((Chisel_Deep + Moldbrd_Deep +
                                    Ridge_Deep + Chisel_Surface +
                                    Moldbrd_Surface + Ridge_Surface) / 6) - ((Chisel_Broad + Moldbrd_Broad + Ridge_Broad) / 3),
    `Chisel.Moldbrd.v.Ridge\n(x)\nBroad.v.Deep.Surface` = (((Chisel_Broad + Chisel_Deep +
                                                               Chisel_Surface + Moldbrd_Broad +
                                                               Moldbrd_Deep + Moldbrd_Surface) / 6) -
                                                             ((Ridge_Broad + Ridge_Deep +
                                                                 Ridge_Surface) / 3)) -
      (((Chisel_Broad + Moldbrd_Broad + Ridge_Broad) / 3) -
         ((Chisel_Deep + Moldbrd_Deep + Ridge_Deep + Chisel_Surface + Moldbrd_Surface + Ridge_Surface) / 6))) |>
  pivot_longer(cols = everything()) |>
  mutate(name = factor(name, levels = c("Moldbrd\nvs\nRidge", "Moldbrd.Ridge\nvs\nChisel", "Deep.Surface\nvs\nBroad",
                                        "Chisel.Moldbrd.v.Ridge\n(x)\nBroad.v.Deep.Surface"))) |>

  ggplot(aes(x = value)) +
  geom_rect(xmin = -5, xmax = 5,
            ymin = -Inf, ymax = Inf,
            color = "transparent", fill = bd[7]) +
  stat_beedrill() +
  scale_y_continuous(NULL, breaks = NULL) +
  xlab("Difference") +
  expand_limits(x = -5) +
  theme(strip.text = element_text(size = 6)) +
  facet_wrap(~ name, ncol = 4, scales = "free")

As far as I can tell, it appears that our contrasts indicate our variance parameter for Till ended up larger than Kruschke’s.

Kruschke then posed a model “with field/subject coding suppressed, hence no lines connecting data from the same field/subject” (p. 616). Here’s how to fit that model.

fit20.4 <- brm(
  data = my_data,
  family = gaussian,
  Yield ~ 1 + (1 | Till) + (1 | Fert) + (1 | Till:Fert),
  prior = c(prior(normal(mean_y, sd_y * 5), class = Intercept),
            prior(gamma(alpha, beta), class = sd),
            prior(cauchy(0, sd_y), class = sigma)),
  iter = 4000, warmup = 2000, chains = 4, cores = 4,
  seed = 20,
  control = list(adapt_delta = 0.999, max_treedepth = 12),
  stanvars = stanvars,
  file = "fits/fit20.04")

Behold the summary.

print(fit20.4)

 Family: gaussian
  Links: mu = identity; sigma = identity
Formula: Yield ~ 1 + (1 | Till) + (1 | Fert) + (1 | Till:Fert)
   Data: my_data (Number of observations: 99)
  Draws: 4 chains, each with iter = 4000; warmup = 2000; thin = 1;
         total post-warmup draws = 8000

Multilevel Hyperparameters:
~Fert (Number of levels: 3)
              Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sd(Intercept)    15.19     13.58     1.52    52.79 1.00     2969     3511

~Till (Number of levels: 3)
              Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sd(Intercept)    16.28     14.00     1.92    55.66 1.00     2763     3612

~Till:Fert (Number of levels: 9)
              Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sd(Intercept)     7.58      4.58     1.28    18.53 1.00     1883     2545

Regression Coefficients:
          Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
Intercept   140.21     16.63   103.88   174.51 1.00     3549     2824

Further Distributional Parameters:
      Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sigma    12.70      0.99    10.92    14.73 1.00     8621     5146

Draws were sampled using sampling(NUTS). For each parameter, Bulk_ESS
and Tail_ESS are effective sample size measures, and Rhat is the potential
scale reduction factor on split chains (at convergence, Rhat = 1).

Look at how much larger the posterior is for ${\sigma }_y$ in this model compared to fit20.3.

posterior_summary(fit20.3)["sigma", ]

 Estimate Est.Error      Q2.5     Q97.5
5.6923857 0.5329087 4.7729407 6.8873491

posterior_summary(fit20.4)["sigma", ]

  Estimate  Est.Error       Q2.5      Q97.5
12.6997385  0.9933701 10.9223400 14.7346315

Here’s the top portion of Figure 20.12.

# Wrangle
my_data |>
  distinct(Till, Fert) |>
  add_epred_draws(fit20.4,
                  ndraws = 20,
                  re_formula = Yield ~ 1 + (1 | Till) + (1 | Fert) + (1 | Till:Fert),
                  dpar = c("mu", "sigma")) |>
  mutate(ll = qnorm(0.025, mean = mu, sd = sigma),
         ul = qnorm(0.975, mean = mu, sd = sigma)) |>
  mutate(Yield = map2(.x = ll, .y = ul,
                      .f = \(ll, ul) seq(from = ll, to = ul, length.out = 200))) |>
  unnest(Yield) |>
  mutate(density = dnorm(Yield, mean = mu, sd = sigma)) |>
  group_by(.draw) |>
  mutate(density = density / max(density)) |>

  # Plot
  ggplot(aes(x = Yield, y = Fert)) +
  geom_ridgeline(aes(height = -density, group = interaction(Fert, .draw), color = Fert),
                 fill = NA, linewidth = 1/3,
                 min_height = NA, scale = 3/4) +
  geom_jitter(data = my_data,
              alpha = 1/2, color = bd[5], height = 0.025) +
  scale_x_continuous(breaks = seq(from = 100, to = 180, by = 20)) +
  scale_color_manual(values = bd[c(9, 6, 12)]) +
  coord_flip(xlim = c(90, 190),
             ylim = c(0.5, 2.75)) +
  ggtitle("Data with Posterior Predictive Distribution") +
  theme(axis.ticks.x = element_blank(),
        legend.position = "none") +
  facet_wrap(~ Till, labeller = label_both)

Now make the plots for the contrast distributions.

fitted(fit20.4,
       newdata = nd,
       summary = FALSE,
       re_formula = Yield ~ 1 + (1 | Till) + (1 | Fert) + (1 | Till:Fert)) |>
  as_tibble() |>
  set_names(nd |> pull(col_names)) |>
  transmute(
    `Moldbrd\nvs\nRidge` = ((Moldbrd_Broad + Moldbrd_Deep + Moldbrd_Surface) / 3) -
      ((Ridge_Broad + Ridge_Deep + Ridge_Surface) / 3),
    `Moldbrd.Ridge\nvs\nChisel` = ((Moldbrd_Broad + Moldbrd_Deep + Moldbrd_Surface + Ridge_Broad + Ridge_Deep + Ridge_Surface) / 6) -
      ((Chisel_Broad + Chisel_Deep + Chisel_Surface) / 3),
    `Deep.Surface\nvs\nBroad` = ((Chisel_Deep + Moldbrd_Deep + Ridge_Deep + Chisel_Surface + Moldbrd_Surface + Ridge_Surface) / 6) -
      ((Chisel_Broad + Moldbrd_Broad + Ridge_Broad) / 3),
    `Chisel.Moldbrd.v.Ridge\n(x)\nBroad.v.Deep.Surface` = (((Chisel_Broad + Chisel_Deep + Chisel_Surface + Moldbrd_Broad + Moldbrd_Deep + Moldbrd_Surface) / 6) -
                                                             ((Ridge_Broad + Ridge_Deep + Ridge_Surface) / 3)) -
      (((Chisel_Broad + Moldbrd_Broad + Ridge_Broad) / 3) -
         ((Chisel_Deep + Moldbrd_Deep + Ridge_Deep + Chisel_Surface + Moldbrd_Surface + Ridge_Surface) / 6))) |>
  pivot_longer(cols = everything()) |>
  mutate(name = factor(name, levels = c("Moldbrd\nvs\nRidge", "Moldbrd.Ridge\nvs\nChisel", "Deep.Surface\nvs\nBroad",
                                        "Chisel.Moldbrd.v.Ridge\n(x)\nBroad.v.Deep.Surface"))) |>

  ggplot(aes(x = value)) +
  geom_rect(xmin = -5, xmax = 5,
            ymin = -Inf, ymax = Inf,
            color = "transparent", fill = bd[7]) +
  stat_beedrill() +
  scale_y_continuous(NULL, breaks = NULL) +
  xlab("Difference") +
  expand_limits(x = -5) +
  theme(strip.text = element_text(size = 6)) +
  facet_wrap(~ name, ncol = 4, scales = "free")

Though not identical, these were closer to those Kruschke displayed in the text.

20.5.2.5 Model comparison approach.

Like we covered in Chapter 10, I’m not aware that Stan/brms will allow for $\delta$ factor-inclusion parameters the way JAGS allows. However, if you’d like to compare models with different parameters, you can always use information criteria.

fit20.3 <- add_criterion(fit20.3, criterion = "loo")
fit20.4 <- add_criterion(fit20.4, criterion = "loo")

Executing that yielded the following warning message:

Found 4 observations with a pareto_k > 0.7 in model ‘fit20.3’. It is recommended to set ‘moment_match = TRUE’ in order to perform moment matching for problematic observations.

To use the moment_match approach, the model in question must have been fit with the setting save_pars = save_pars(all = TRUE) within the brm() call. The default is save_pars = NULL and we used the default settings, above. If you go through the trouble of refitting the model with those updated settings, you’ll find that the moment_match approach didn’t help in this case. For the sake of reducing clutter, I’m not going to show the code for refitting the model. However, the next warning message I got after executing fit20.3 <- add_criterion(fit20.3, criterion = "loo", moment_match = TRUE) was:

Warning: Found 1 observations with a pareto_k > 0.7 in model ‘fit20.3’. It is recommended to set ‘reloo = TRUE’ in order to calculate the ELPD without the assumption that these observations are negligible. This will refit the model 1 times to compute the ELPDs for the problematic observations directly.

So it’s time to bring in the big guns. Let’s use reloo. Be warned that, because this requires refitting the model multiple times, this will take a few minutes.

fit20.3 <- add_criterion(fit20.3, criterion = "loo", reloo = TRUE)

Okay, we’re finally ready for the LOO comparison.

loo_compare(fit20.3, fit20.4) |>
  print(simplify = FALSE)

        elpd_diff se_diff elpd_loo se_elpd_loo p_loo  se_p_loo looic  se_looic
fit20.3    0.0       0.0  -334.9      8.1        34.6    4.5    669.9   16.3
fit20.4  -61.7       8.0  -396.6      5.7         8.9    1.0    793.2   11.5

All good. Based on the LOO values, we should prefer the fuller model. This, of course, should be no surprise. The posterior for ${\sigma }_{\text{Field}}$ was a far cry from zero.

posterior_summary(fit20.3)["sd_Field__Intercept", ]

 Estimate Est.Error      Q2.5     Q97.5
11.753392  1.712050  8.921916 15.564711

Kruschke ended this chapter by mentioning Bayes’ factors:

Bayes’ factor approaches to hypothesis tests in ANOVA were presented by Rouder et al. (2012) and Wetzels, Grasman, and Wagenmakers (2012). Morey and Rouder’s BayesFactor package for R is available at the Web site http://bayesfactorpcl.r-forge.r-project.org/. (p. 618)

If you wanna go that route, you’re on your own.

Session info

sessionInfo()

R version 4.4.3 (2025-02-28)
Platform: aarch64-apple-darwin20
Running under: macOS Ventura 13.4

Matrix products: default
BLAS:   /Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/lib/libRlapack.dylib;  LAPACK version 3.12.0

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

time zone: America/Chicago
tzcode source: internal

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
 [1] directlabels_2024.1.21 posterior_1.6.0        ggridges_0.5.6
 [4] tidybayes_3.0.7        brms_2.22.0            Rcpp_1.0.14
 [7] patchwork_1.3.0        palettetown_0.1.1      lubridate_1.9.3
[10] forcats_1.0.0          stringr_1.5.1          dplyr_1.1.4
[13] purrr_1.0.4            readr_2.1.5            tidyr_1.3.1
[16] tibble_3.2.1           ggplot2_3.5.1          tidyverse_2.0.0

loaded via a namespace (and not attached):
 [1] tidyselect_1.2.1     svUnit_1.0.6         farver_2.1.2
 [4] loo_2.8.0            fastmap_1.1.1        TH.data_1.1-2
 [7] tensorA_0.36.2.1     digest_0.6.37        estimability_1.5.1
[10] timechange_0.3.0     lifecycle_1.0.4      StanHeaders_2.32.10
[13] survival_3.8-3       magrittr_2.0.3       compiler_4.4.3
[16] rlang_1.1.5          tools_4.4.3          utf8_1.2.4
[19] yaml_2.3.8           knitr_1.49           emo_0.0.0.9000
[22] labeling_0.4.3       bridgesampling_1.1-2 htmlwidgets_1.6.4
[25] curl_6.0.1           pkgbuild_1.4.4       bit_4.0.5
[28] plyr_1.8.9           multcomp_1.4-26      abind_1.4-8
[31] withr_3.0.2          stats4_4.4.3         grid_4.4.3
[34] inline_0.3.19        xtable_1.8-4         colorspace_2.1-1
[37] emmeans_1.10.3       scales_1.3.0         MASS_7.3-64
[40] cli_3.6.4            mvtnorm_1.2-5        rmarkdown_2.29
[43] crayon_1.5.3         generics_0.1.3       RcppParallel_5.1.7
[46] rstudioapi_0.16.0    reshape2_1.4.4       tzdb_0.4.0
[49] rstan_2.32.6         splines_4.4.3        bayesplot_1.11.1
[52] assertthat_0.2.1     parallel_4.4.3       matrixStats_1.4.1
[55] vctrs_0.6.5          V8_4.4.2             Matrix_1.7-2
[58] sandwich_3.1-1       jsonlite_1.8.9       hms_1.1.3
[61] arrayhelpers_1.1-0   bit64_4.0.5          ggdist_3.3.2
[64] glue_1.8.0           codetools_0.2-20     distributional_0.5.0
[67] stringi_1.8.4        gtable_0.3.6         QuickJSR_1.1.3
[70] quadprog_1.5-8       munsell_0.5.1        pillar_1.10.2
[73] htmltools_0.5.8.1    Brobdingnag_1.2-9    R6_2.6.1
[76] vroom_1.6.5          evaluate_1.0.1       lattice_0.22-6
[79] backports_1.5.0      rstantools_2.4.0     gridExtra_2.3
[82] coda_0.19-4.1        nlme_3.1-167         checkmate_2.3.2
[85] xfun_0.49            zoo_1.8-12           pkgconfig_2.0.3

Footnote

Bolger, N., Zee, K. S., Rossignac-Milon, M., & Hassin, R. R. (2019). Causal processes in psychology are heterogeneous. Journal of Experimental Psychology: General, 148(4), 601–618. https://doi.org/10.1037/xge0000558

Bürkner, P.-C., Gabry, J., Kay, M., & Vehtari, A. (2021). posterior: Tools for working with posterior distributions [Manual].

Fisher, R. A. (1925). Statistical methods for research workers, 11th ed. Rev. Edinburgh. https://psycnet.apa.org/record/1925-15003-000

Hamaker, E. L. (2012). Why researchers should think "within-Person": A paradigmatic rationale. In Handbook of research methods for studying daily life (pp. 43–61). The Guilford Press. https://www.guilford.com/books/Handbook-of-Research-Methods-for-Studying-Daily-Life/Mehl-Conner/9781462513055

Hocking, T. D. (2021). Directlabels: Direct labels for multicolor plots [Manual]. https://CRAN.R-project.org/package=directlabels

Kruschke, J. K. (2015). Doing Bayesian data analysis: A tutorial with R, JAGS, and Stan. Academic Press. https://sites.google.com/site/doingbayesiandataanalysis/

Rouder, J. N., Morey, R. D., Speckman, P. L., & Province, J. M. (2012). Default Bayes factors for ANOVA designs. Journal of Mathematical Psychology, 56(5), 356–374. https://doi.org/10.1016/j.jmp.2012.08.001

Skinner, B. F. (1956). A case history in scientific method. American Psychologist, 11(5), 221–233. https://doi.org/10.1037/h0047662

Wetzels, R., Grasman, R. P. P. P., & Wagenmakers, E.-J. (2012). A default Bayesian hypothesis test for ANOVA designs. The American Statistician, 66(2), 104–111. https://doi.org/10.1080/00031305.2012.695956

---

1. It’s not quite clear where these data come from. At the top of page 591, Kruschke wrote “in this section, we will be looking at some real-world salaries.” Further down on the same page, Kruschke added: “The data are annual salaries of 1,080 tenure-track professors at a large-enrollment, small-city, Midwestern-American, research-oriented, state university. (Salaries at big- city and private universities tend to be higher, while salaries at liberal-arts colleges and teaching-oriented state universities tend to be lower.) The data span 60 academic departments that had at least seven members. The data also include the professor’s seniority.” He did not provide a reference.
