Appendix D: Working with Austrian data

Objectives

This chapter tries to find and to apply Austrian data for map plotting.

Watch out! D.1

I can’t remember from where I got the following Austrian data. Month later I tried to find the original source and learned about the following websites:

Gliederung Österreichs in Gemeinden
Update 2017 der Gemeindegrenzen
Verwaltungsgrenzen Österreich (GeoJSON, TopoJSON)
Download Austria Shapefiles
Austrian OGD basemap
Free Austria GIS Map files from simplemaps

The Austrian Map is an interesting website with all Austrian geographical and historical details.

R Code D.1 : Load data for Austrian regions

Listing / Output D.1: Load data for Austrian regions

Code

at_regions <- sf::st_read("_archive/austria/austria-with-regions_.geojson")

#> Reading layer `austria-with-regions_' from data source
#>   `/Users/petzi/Documents/Meine-Repos/GDSWR-notes-new/_archive/austria/austria-with-regions_.geojson'
#>   using driver `GeoJSON'
#> Simple feature collection with 9 features and 4 fields
#> Geometry type: MULTIPOLYGON
#> Dimension:     XY
#> Bounding box:  xmin: 9.53099 ymin: 46.37265 xmax: 17.16204 ymax: 49.02135
#> Geodetic CRS:  WGS 84

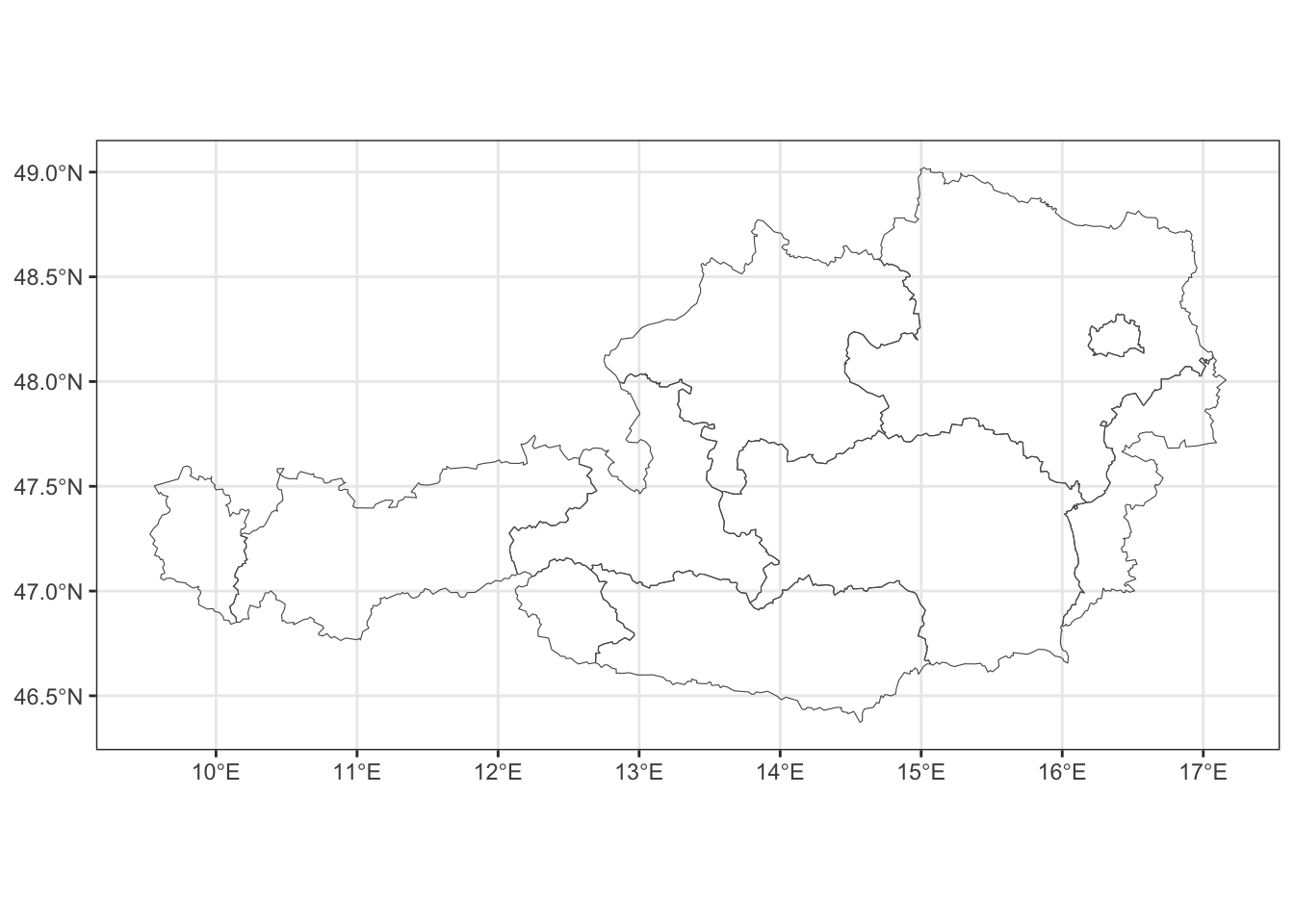

R Code D.2 : Plot Austrian regions

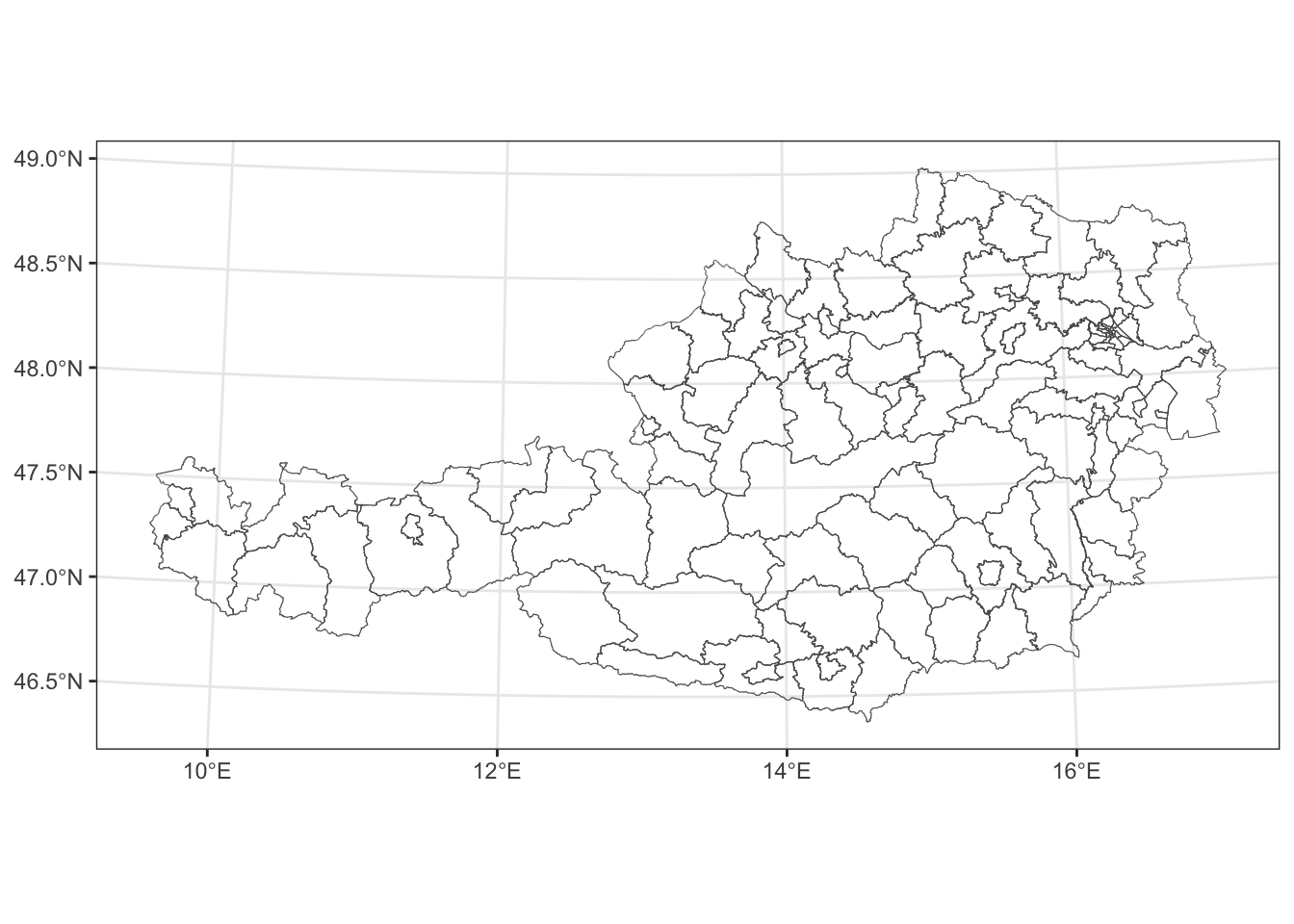

R Code D.3 : Load Austrian regions with administrative borders

Listing / Output D.3: Austrian regions with administrative borders

# Working with Austrian data {#sec-annex-d} ```{r} #| label: setup #| results: hold #| include: false base::source(file = "R/helper.R") ggplot2::theme_set(ggplot2::theme_bw()) options(show.signif.stars = FALSE) ``` ::::: {#obj-annex-d} :::: {.my-objectives} ::: {.my-objectives-header} Objectives ::: ::: {.my-objectives-container} This chapter tries to find and to apply Austrian data for map plotting. ::: :::: ::::: ::: {.callout-warning #wrn-annex-d-austrian-data} I can't remember from where I got the following Austrian data. Month later I tried to find the original source and learned about the following websites: - [Gliederung Österreichs in Gemeinden](https://data.statistik.gv.at/web/meta.jsp?dataset=OGDEXT_GEM_1) - [Update 2017 der Gemeindegrenzen](https://wahlen.strategieanalysen.at/geojson/) - [Verwaltungsgrenzen Österreich](https://www.opendataportal.at/katalog/dataset/geojson-daten-osterreich) (GeoJSON, TopoJSON) - [Download Austria Shapefiles](https://www.igismap.com/download-austria-shapefile-administrative-boundary-polygon-rail-road-line-ferry-airpoint-point/) - [Austrian OGD basemap](https://basemap.at/en/) - [Free Austria GIS Map files](https://simplemaps.com/gis/country/at#admin1) from [simplemaps](https://simplemaps.com/) *** The [Austrian Map](https://maps.bev.gv.at/#/center/13.35,47.7702/zoom/8) is an interesting website with all Austrian geographical and historical details. ::: :::::{.my-r-code} :::{.my-r-code-header} :::::: {#cnj-annex-d-load-regions} : Load data for Austrian regions :::::: ::: ::::{.my-r-code-container} ::: {#lst-annex-d-load-regions} ```{r} #| label: annex-d-load-regions at_regions <- sf::st_read("_archive/austria/austria-with-regions_.geojson") ``` Load data for Austrian regions ::: :::: ::::: :::::{.my-r-code} :::{.my-r-code-header} :::::: {#cnj-annex-d-plot-regions} : Plot Austrian regions :::::: ::: ::::{.my-r-code-container} ::: {#lst-annex-d-plot-regions} ```{r} #| label: annex-d-plot-regions ggplot2::ggplot(data = at_regions) + ggplot2::geom_sf(fill = NA) ``` Austrian regions ::: :::: ::::: :::::{.my-r-code} :::{.my-r-code-header} :::::: {#cnj-annex-d-austrian-regions-with-admin-borders} : Load Austrian regions with administrative borders :::::: ::: ::::{.my-r-code-container} ::: {#lst-annex-d-austrian-regions-with-admin-borders} ```{r} #| label: annex-d-austrian-regions-with-admin-borders #| cache: TRUE at_folder = "_archive/austria" pol_bez_folder = "/OGDEXT_POLBEZ_1_STATISTIK_AUSTRIA_20240101/" pol_bez_file = "STATISTIK_AUSTRIA_POLBEZ_20240101.shp" at_pol_bezirk <- sf::st_read( paste0(at_folder, pol_bez_folder, pol_bez_file) ) ggplot2::ggplot(data = at_pol_bezirk) + ggplot2::geom_sf(fill = NA) ``` Austrian regions with administrative borders ::: :::: :::::
