Workbook suggested answers

10.7 Introduction

This chapter presents the suggested R code to answer the workbook activities and exercises throughout the course labs in Quantitative Research Methods for Social Sciences. This covers from Lab 3 to Lab 9.

Before looking at the answers, try asking your tutor for help. Also, we strongly recommend web resources, such as https://stackoverflow.com/ or https://community.rstudio.com/. By solving the issues, you will learn a lot! ;)

10.8 Lab 3. Data wrangling

## Load the packages
library(tidyverse)

# Read the data from the .rds file
clean_data <- readRDS("data/nilt_r_object.rds")
# Glimpse clean_data
glimpse(clean_data)

# Glimpse the nilt data
glimpse(nilt)

10.9 Lab 4. Exploratory data analysis

Preamble code

## Load the packages
library(tidyverse)
# Read the data from the .rds file
nilt <- readRDS("data/nilt_r_object.rds")
#Subset
nilt_subset <- select(nilt, rsex, rage, highqual, religcat, uninatid,  ruhappy, rhourswk, persinc2)

10.9.1 Activity #1

From your R Studio Cloud script, do the following activities using the data stored in the nilt_subset object:

  • Create a One-Way contingency table for uninatid in the nilt_subset dataset using the sumtable() function;
# Load the vtable package to create summary tables
library(vtable)
# Create table
sumtable(nilt_subset, vars = c('uninatid'))
Table 10.1: Summary Statistics
Variable N Percent
uninatid 1183
… Unionist 348 29.4%
… Nationalist 255 21.6%
… Neither 580 49%
  • Using the variables religcat and uninatid, generate a Two-Way contingency table;
sumtable(nilt_subset, vars = c('religcat'), group = 'uninatid')
Table 10.2: Summary Statistics
uninatid
Unionist
Nationalist
Neither
Variable N Percent N Percent N Percent
religcat 341 255 558
… Catholic 2 0.6% 245 96.1% 238 42.7%
… Protestant 305 89.4% 5 2% 180 32.3%
… No religion 34 10% 5 2% 140 25.1%

10.9.2 Activity #2

Using the data in the nilt_subset object, complete the following activities.

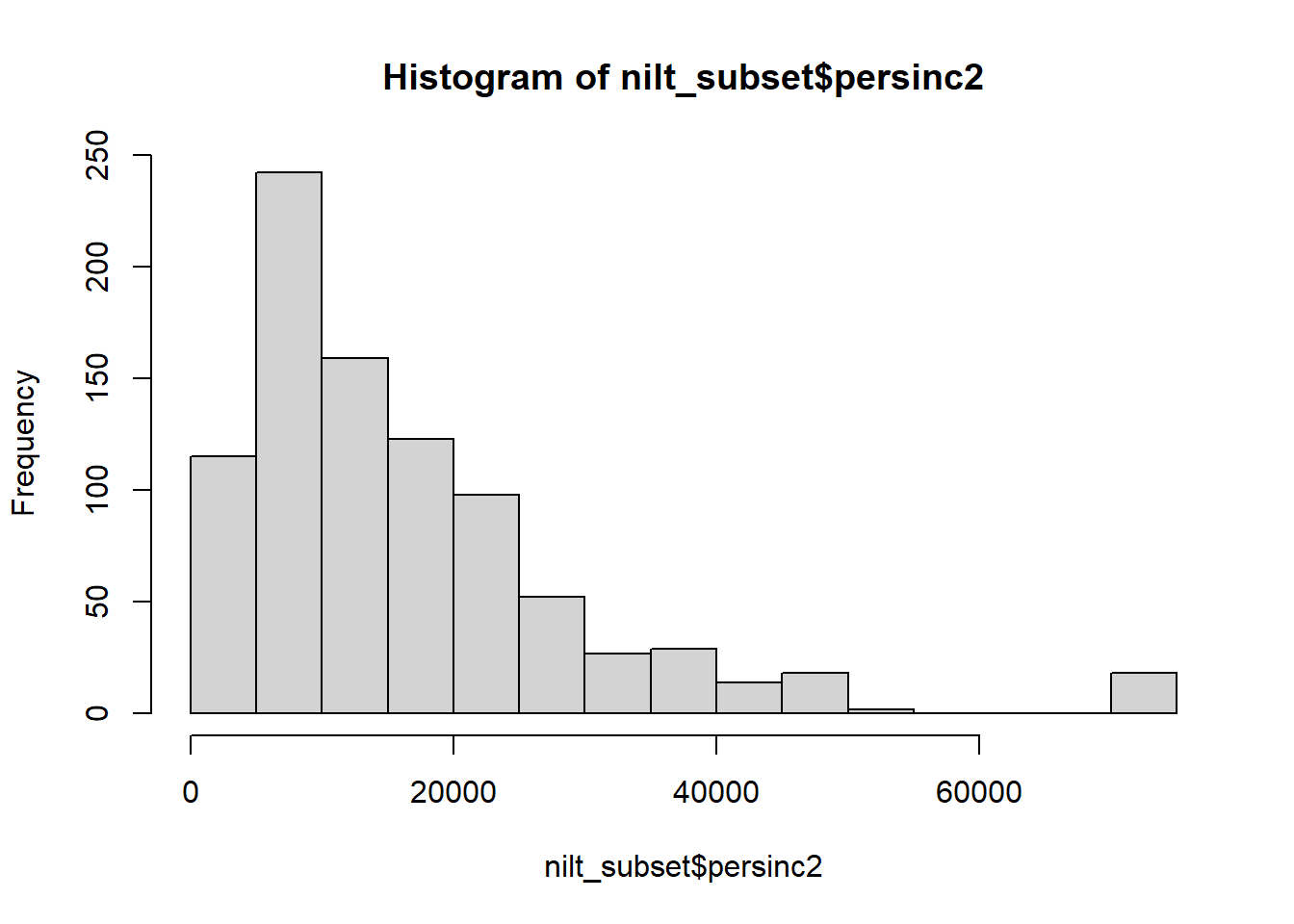

  • Using the hist() function plot a histogram of personal income persinc2. From the NILT documentation this variable refers to annual personal income in £ before taxes and other deductions;
hist(nilt_subset$persinc2)

* Create a summary of the personal income persinc2 variable, using the sumtable() function.

sumtable(nilt_subset, vars = c('persinc2'))
Table 10.3: Summary Statistics
Variable N Mean Std. Dev. Min Pctl. 25 Pctl. 75 Max
persinc2 897 16394.582 13465.9 260 6760 22100 75000
  • Compute the mean and standard deviation of the personal income persinc2, grouped by happiness ruhappy.
sumtable(nilt_subset, vars = c('persinc2'), group = 'ruhappy')
Table 10.4: Summary Statistics
ruhappy
Very happy
Fairly happy
Not very happy
Not at all happy
Can’t choose
Variable N Mean SD N Mean SD N Mean SD N Mean SD N Mean SD
persinc2 305 17568.59 13428.568 500 16261.96 14014.845 62 13444.516 9754.291 9 12451.111 11500.735 15 11457.333 6112.936

10.10 Lab 6. Visual exploratory analysis

Preamble code

## Load the packages
library(tidyverse)

# Load the data from the .rds file we created in the last lab
nilt <- readRDS("data/nilt_r_object.rds")
#Create subset
nilt_subset <- select(nilt, rsex, rage, highqual, religcat, uninatid,  ruhappy, rhourswk, persinc2)

10.10.1 Excercices

Using the nilt_subset object, complete the tasks below in the Rmd file ‘Lab_4’, which you created earlier. Insert a new chunk for each of these activities and include brief comments as text in the Rmd document to introduce the plots and discuss the results (tip —leave an empty line between your text and the next chunk to separate the description and the plots):

  • Create a first-level header to start a section called “Categorical analysis”;
## Categorical analysis

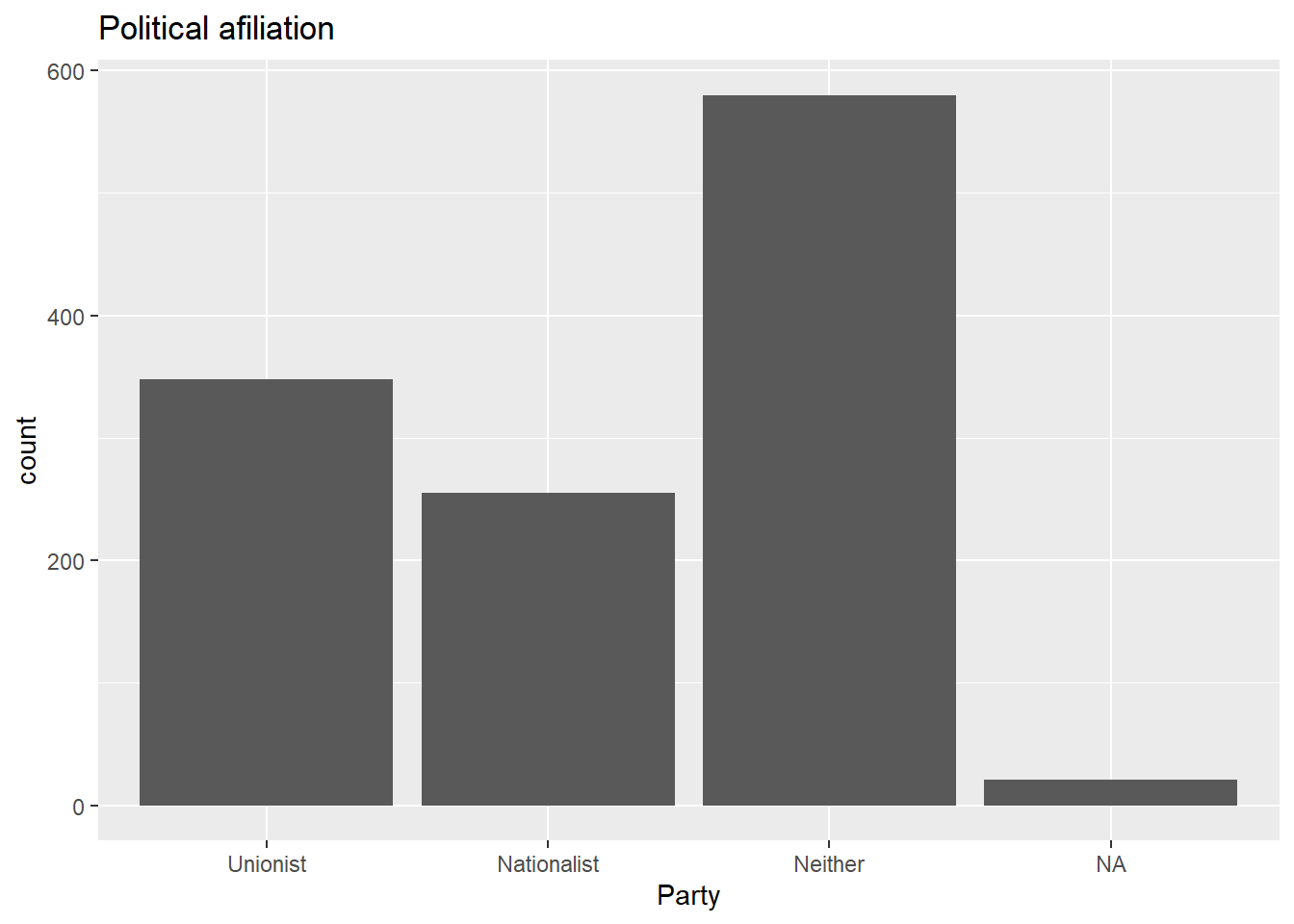

  • Create a simple bar plot using the geom_bar() geometry to visualize the political affiliation reported by the respondents using the variable uninatid;
ggplot(nilt_subset, aes(x=uninatid)) +
  geom_bar() +
  labs(title = "Political afiliation", x= "Party")

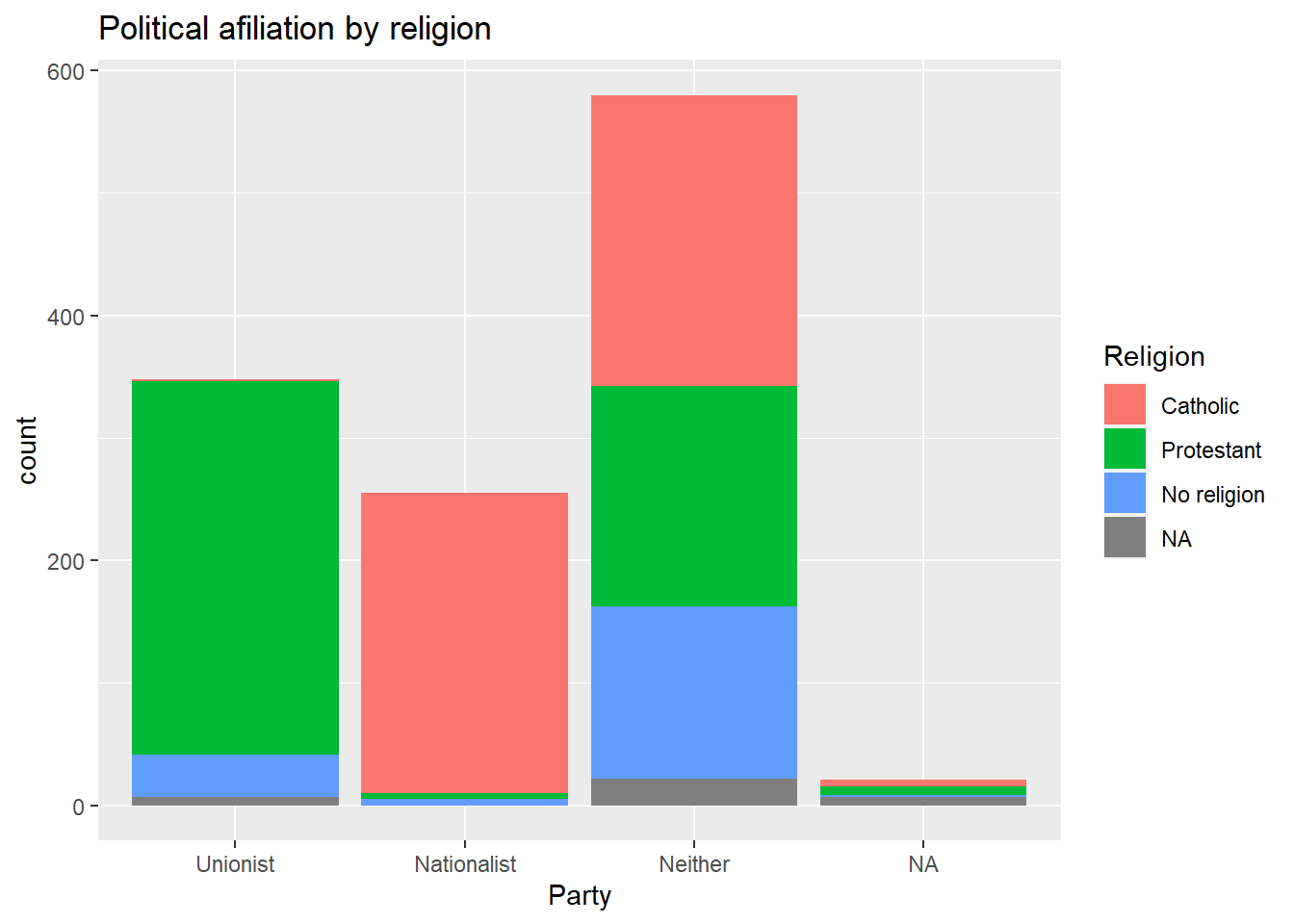

* Based on the plot above, create a ‘stacked bar plot’ to visualize the political affiliation by religion, using the uninatid and religcat variables;

ggplot(nilt_subset, aes(x=uninatid, fill = religcat)) +
  geom_bar() +
  labs(title = "Political afiliation by religion",
       x= "Party", fill = "Religion")

* Create a new first-level header to start a section called “Numeric analysis”;

## Numeric analysis

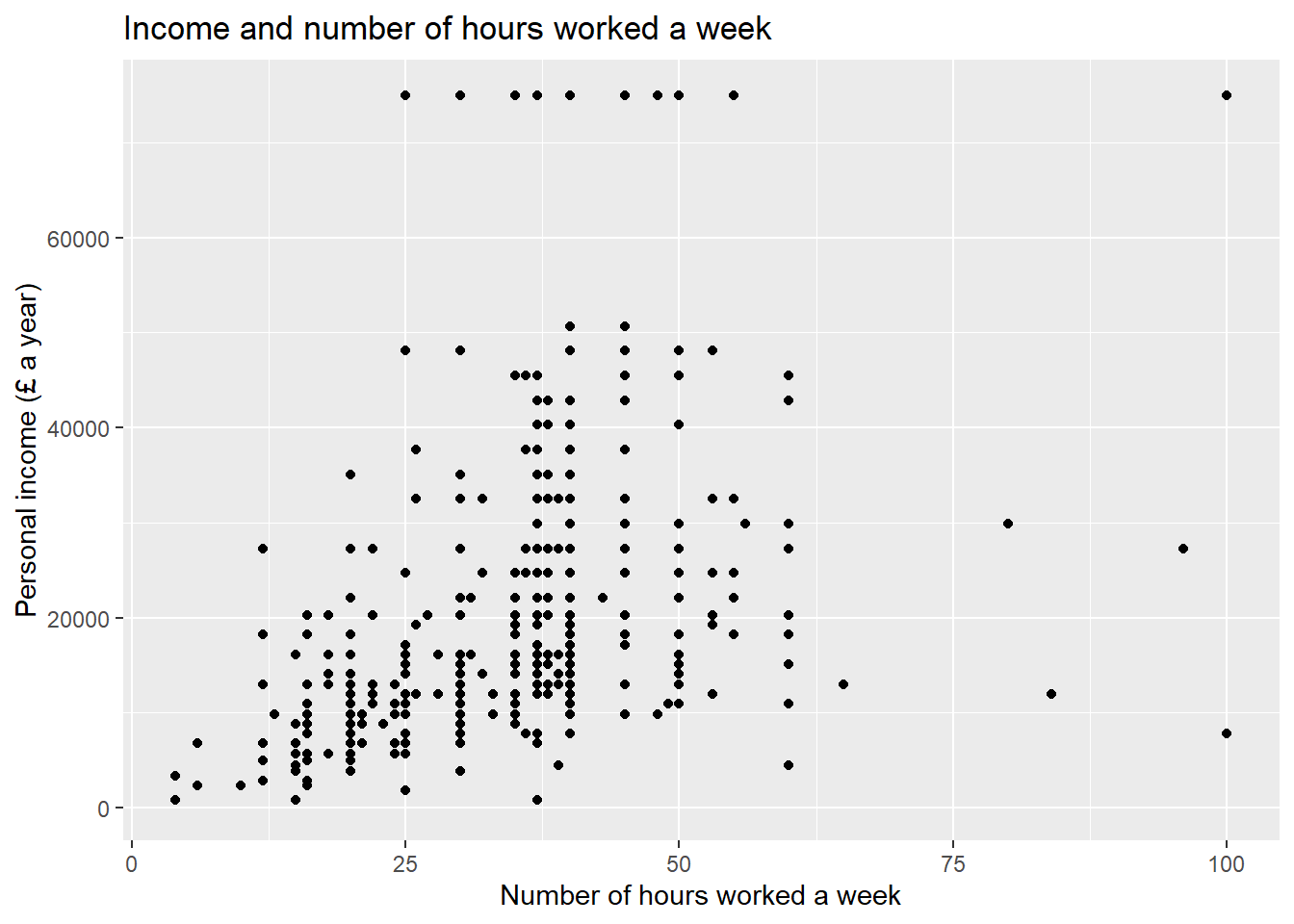

  • Create a scatter plot about the relationship between personal income persinc2 on the Y axis and number of hours worked a week rhourswk on the X axis;
ggplot(nilt_subset, aes(x= rhourswk, y=persinc2)) +
  geom_point() +
  labs(title= 'Income and number of hours worked a week',
       x = 'Number of hours worked a week', y= 'Personal income (£ a year)' )

* Finally, create a box plot to visualize personal income persinc2 on the Y axis and self-reported level of happiness ruhappy on the x axis… Interesting result, Isn’t it? Talk to your lab group-mates and tutors about your results on Zoom (live) or your Lab Group on Teams (online anytime);

ggplot(nilt_subset, aes(x= ruhappy, y=persinc2)) +
  geom_boxplot() +
  labs(title= 'Personal income and happiness',
       x='Hapiness level', y='Personal income (£ a year)')

  • Briefly comment each of the plots as text in your Rmd file;
  • Knit the .Rmd document as HTML or PDF. The knitted file will be saved automatically in your project. You can come back to the Rmd file to make changes if needed and knit it again as many times as you wish.

10.11 Lab 7. Correlation

## Load the packages
library(tidyverse)
# Load the data from the .rds file we created in lab 3
nilt <- readRDS("data/nilt_r_object.rds")
# Age of respondent’s spouse/partner
nilt$spage <- as.numeric(nilt$spage)
# Migration
nilt <- mutate_at(nilt, vars(mil10yrs, miecono, micultur), as.numeric)
# overall perception towards migrants
nilt <- rowwise(nilt) %>%
  # sum values
  mutate(mig_per = sum(mil10yrs, miecono, micultur, na.rm = T )) %>%
  ungroup() %>%
  # assign NA to values that sum 0
  mutate(mig_per =  na_if(mig_per, 0))

10.11.1 Activity 1

Using the nilt data object, visualize the relationship of the following variables by creating a new chunk. Run the chunk individually and comment on what you observe from the result as text in the Rmd file (remember to leave an empty line between your text and the chunk).

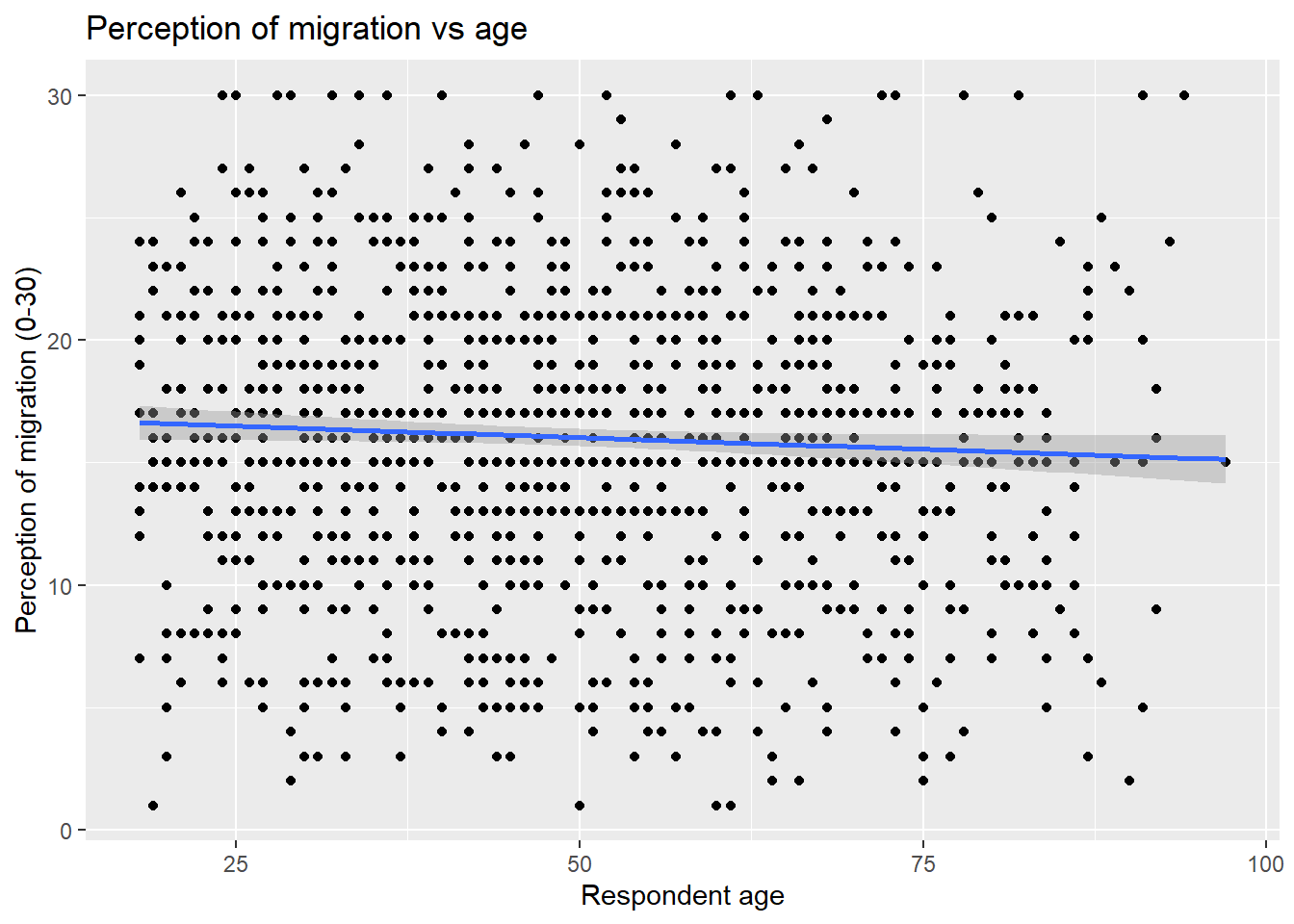

  • Create a scatter plot to visualize the correlation between the respondent’s overall opinion in relation to migration mig_per and the respondent’s age rage. Remember that we just created the mig_per variable by summing three variables which were in a 0-10 scale (the higher the value, the better the person’s perception is). In aes(), specify rage on the X axis and mig_per on the Y axis. Use the ggplot() function and geom_point(). Also, include a straight line describing the points using the geom_smooth() function. Within this function, set the method argument to 'lm'.
ggplot(nilt, aes(x=rage, mig_per)) +
  geom_point() +
  geom_smooth(method = 'lm') +
  labs(title = 'Perception of migration vs age',
       x= 'Respondent age', y= 'Perception of migration (0-30)')

* What type of relationship do you observe? Comment the overall result of the plot and whether this is in line with your previous expectation.

10.12 Lab 8. Linear model. Simple linear regression

## Load the packages
library(tidyverse)
# Read the data from the .rds file
nilt <- readRDS("data/nilt_r_object.rds")
m3 <- lm(persinc2 ~ rhourswk, data = nilt)

10.12.1 Lab activities

Use the nilt data set object in your linear_model_intro file to:

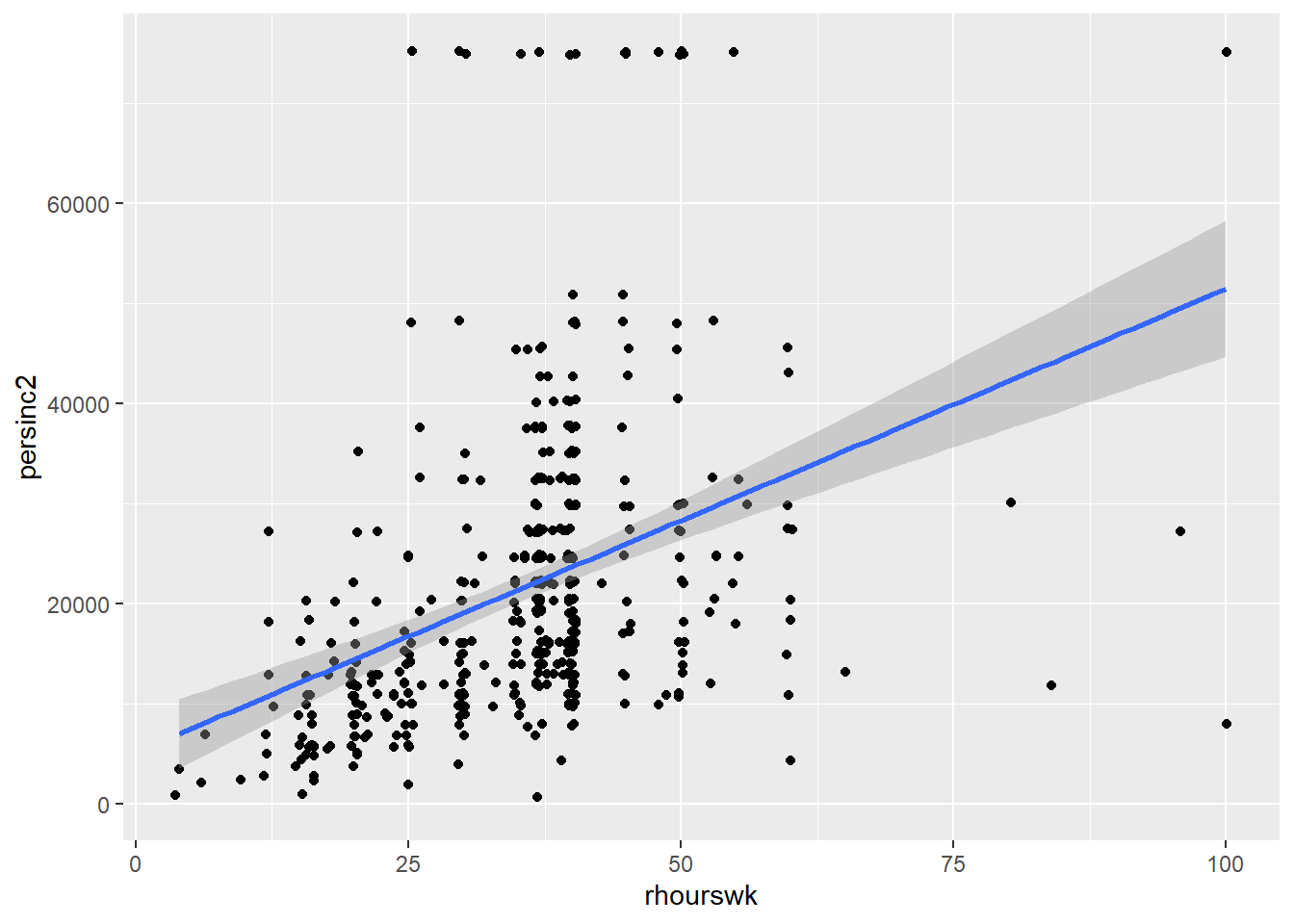

  1. Plot a scatter plot using ggplot. In the aesthetics, locate rhourswk in the X axis, and persinc2 in the Y axis. In the geom_point(), jitter the points by specifying the position = 'jitter'. Also, include the best fit line using the geom_smooth() function, and specify the method = 'lm' inside.
ggplot(nilt, aes(x= rhourswk, y= persinc2)) +
  geom_point(position = 'jitter') +
  geom_smooth(method = 'lm')

2. Print the summary of m3 using the summary() function.

summary(m3)
##
## Call:
## lm(formula = persinc2 ~ rhourswk, data = nilt)
##
## Residuals:
##    Min     1Q Median     3Q    Max
## -43694  -8148  -3070   4990  58249
##
## Coefficients:
##             Estimate Std. Error t value Pr(>|t|)
## (Intercept)   5170.4     1966.2    2.63  0.00884 **
## rhourswk       463.2       52.4    8.84  < 2e-16 ***
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 13860 on 455 degrees of freedom
##   (747 observations deleted due to missingness)
## Multiple R-squared:  0.1466, Adjusted R-squared:  0.1447
## F-statistic: 78.15 on 1 and 455 DF,  p-value: < 2.2e-16
  1. Is the the relationship of hours worked a week significant? Re: Yes. The p-value (fourth column of the ‘Coefficients’ table) is lower than 0.05.
  2. What is the adjusted r-squared? How would you interpret it? Re: the adjusted R-squared is 0.14. This can be interpreted in terms of percentage, e.g. 14% of the variance in personal income can be explained by the number of hours worked a week.
  3. What is the sample size to fit the model? Re: The total number of observations in the data set is 1,204 and the model summary says that 747 observations were deleted due to missingness. Therefore, the sample size is 457 (1204-747).
  4. What is the expected income in pounds a year for a respondent who works 30 hours a week according to coefficients of this model?
5170.4 + 463.2 * 30
## [1] 19066.4
  1. Plot a histogram of the residuals of m3 using the residuals() function inside hist(). Do the residuals look normally distributed (as in a bell-shaped curve)?
hist(residuals(m3))

Overall, the residuals look normally distributed with the exception of the values to the right-hand side of the plot (between 40000 and 60000).

10.13 Lab 9. Multivariate linear model

10.13.1 Lab activities

  1. Load the packages, and the data that you will need in your file using the code below:
## Load the packages
library(moderndive)
library(tidyverse)
# Read the data from the .rds file
nilt <- readRDS("data/nilt_r_object.rds")
  1. Print a table for the highest level of qualification highqual using the table() function.
table(nilt$highqual)
##
## Degree level or higher       Higher education   GCE A level or equiv
##                    230                    102                    243
##      GCSE A-C or equiv      GCSE D-G or equiv      No qualifications
##                    185                     82                    281
##   Other, level unknown           Unclassified
##                     27                     54
  1. Generate a scatter plot using ggplot. Within aes(), locate the number of hours worked a week rhourswk on the X axis and the personal income persinc2 on the Y axis, and specify the color of the dots by the highest level of qualification highqual. Use the geom_point() function and ‘jitter’ the points using the argument position. Add the parallel slopes using the geom_parallel_slopes() function and set the standard error se to FALSE. What is your interpretation of the plot? Write down your comments to introduce the plot.
ggplot(nilt, aes(x = rhourswk, y= persinc2, color = highqual)) +
  geom_point(position = 'jitter') +
  moderndive::geom_parallel_slopes(se = FALSE) +
  labs(title = "Personal income",
       subtitle = 'Personal income and number of hours worked a week by education level',
       x= 'Number of hours worked a week', y= 'Personal income (£ a year)',
       color = 'Highest education level')

  1. Fit a linear model model using the lm() function to analyse the personal income persinc2 using the number of works worked a week rhourswk, the highest level of qualification highqual, and the age of the respondent rage as independent variables. Store the model in an object called m4 and print the summary.
m4 <- lm(persinc2 ~ rhourswk + rage + highqual, nilt)
summary(m4)
##
## Call:
## lm(formula = persinc2 ~ rhourswk + rage + highqual, data = nilt)
##
## Residuals:
##    Min     1Q Median     3Q    Max
## -36228  -6425  -1411   4635  54749
##
## Coefficients:
##                               Estimate Std. Error t value Pr(>|t|)
## (Intercept)                    3904.64    2714.25   1.439    0.151
## rhourswk                        444.79      45.32   9.814  < 2e-16 ***
## rage                            236.59      48.47   4.881 1.47e-06 ***
## highqualHigher education      -8164.91    1939.50  -4.210 3.09e-05 ***
## highqualGCE A level or equiv -12439.26    1563.42  -7.956 1.47e-14 ***
## highqualGCSE A-C or equiv    -13037.47    1703.07  -7.655 1.20e-13 ***
## highqualGCSE D-G or equiv    -11622.07    2665.38  -4.360 1.61e-05 ***
## highqualNo qualifications    -12968.10    2339.78  -5.542 5.11e-08 ***
## highqualOther, level unknown  15445.70    3334.75   4.632 4.76e-06 ***
## highqualUnclassified         -12399.58    2786.16  -4.450 1.08e-05 ***
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 11830 on 447 degrees of freedom
##   (747 observations deleted due to missingness)
## Multiple R-squared:  0.3887, Adjusted R-squared:  0.3764
## F-statistic: 31.58 on 9 and 447 DF,  p-value: < 2.2e-16
  1. Comment on the results of the model by mentioning which of the variables is significant and their respective p-value, the adjusted r-squared of the model, and the number of observations used to fit the model. Re: All the independent variables including the number of hours worked a week, age, and all the categories of highest qualification level compared to ‘Degree or higher’ are significant to predict personal income in the model ‘m4’, considering that the p-value is lower than 0.05. We can confirm this from the fourth column of the ‘Coefficients’ table. The adjusted R-squared of the model is 0.37. This means that 37.6% of the variance in personal income can be explained by these variables. The size of the sample used to fit this model is 457, considering that the ‘nilt’ data set contains 1204 observations but 747 were deleted due to missingness (1204 - 747).

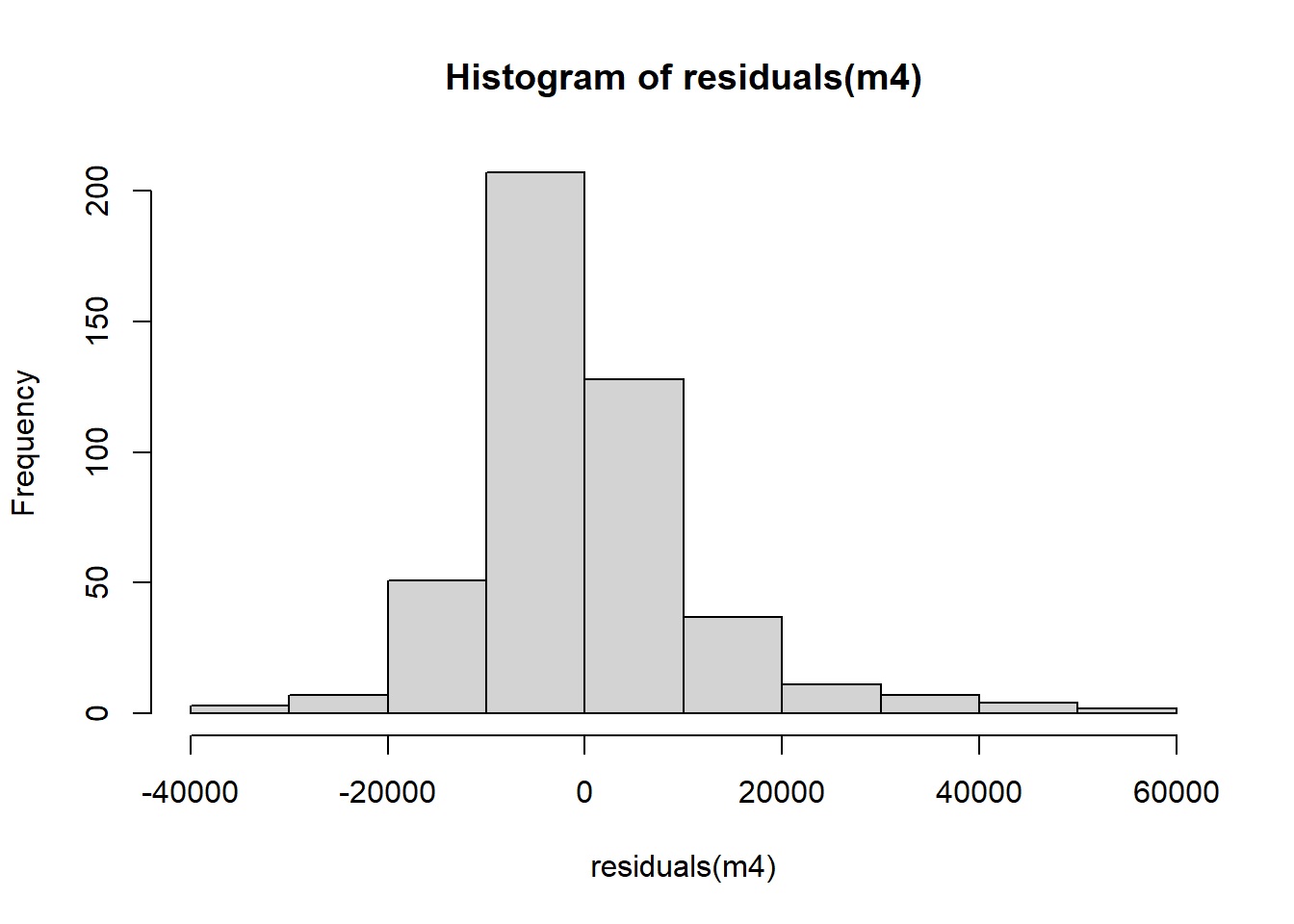

  2. Plot a histogram of the residuals for model m4. Do they look normally distributed? Can we trust our estimates or would you advise to carry out further actions to verify the adequate interpretation of this model?
hist(residuals(m4))

The distribution of the residuals in ‘m4’ look overall normally distributed. However, the distribution is not perfectly symmetric. Therefore, we would advice to conduct further checks to test the linear model assumptions.
