13 Advanced Data Visualisation Techniques

Learning Objectives

Learn advanced data visualisation techniques
Create contour plots to visualise interaction effects
Create a pyramid plot to visualise population distribution

In this chapter, we will learn how to create advanced data visualisation techniques using ggplot2. We will create contour plots to visualise interaction effects and pyramid plots to visualise population distribution.

13.1 Example: Detecting Interaction Effects with Contour Plots

Interaction effects can cause predictors to act together on the response variable, leading to additional variation in the response. Interaction effects occur when the combined effect of two or more predictors is different from what would be expected if the impact of each predictor were considered alone. For instance, in the case of cardiovascular disease (CVD) risk prediction, the interaction between age and cholesterol levels can have a significant impact on the risk of developing heart disease. In addition, if smoke is added to the model, the effect of cholesterol levels on CVD risk may change depending on whether the individual is a smoker or non-smoker. So, smoke is said to interact with cholesterol levels in predicting CVD risk, as well as age, but in what way?

$y=\beta_0 +\beta_1 x_1 + \beta_2 x_2 +\beta_3 x_3 + \epsilon \tag{13.1}$

where $y$ is the risk of developing heart disease, $\beta_0$ is the intercept, $\beta_1$ and $\beta_2$ are the coefficients for the predictors $x_1$ and $x_2$ , respectively, and $\beta_3$ is the coefficient for the interaction term $x_1*x_2$ . The error term $\epsilon$ accounts for the variability in the response variable that is not explained by the predictors.

There are four type of interactions:

additive is when $\beta_3 \approx{0}$
antagonistic is when $\beta_3 < 0$
synergistic is when $\beta_3 > 0$
atypical is when $\beta_3 \neq 0$

In order to simulate the interaction effects for each type of interaction, we cannot just simulate random values for $y$ , we need to simulate different levels of interactions between predictors setting up the values for the coefficients $\beta_0$ , $\beta_1$ , $\beta_2$ , and $\beta_3$ , and the predictors $x_1$ and $x_2$ and the error term $\epsilon$ .

Load the necessary libraries and set the seed for reproducibility.

library(tidyverse)
set.seed(123)

Simulate the data ready for different interaction effects.

beta0<- rep(0,200)
beta1<- rep(1,200)
beta2<- rep(1,200)

Then, simulate the predictors $x_1$ and $x_2$ and the error term $\epsilon$ for 200 observations.

x1<- runif(200, min = 0, max = 1)
x2 <- runif(200, min = 0, max = 1)
e <- rnorm(200)

Then for each of the three cases we simulate a $\beta_3$ based on antagonism, no interaction, or synergism with values -10, 0, and 10 respectively.

Case 1: Antagonism

beta3 <- rep(-10,200)

Assemble the values for the coefficients and predictors into the equation, to obtaining the response variable $y$ . This will be our synthetic “observed” data.

y1 = beta0 + beta1*x1 + beta2*x2 + beta3*(x1*x2) + e

Apply a linear model to the observed data to predict the response variable $y$ based on interaction between $x_1$ and $x_2$ .

observed1 <- tibble(y1, x1, x2)

mod1 <- lm(y1 ~ x1*x2, data = observed1)

observed1$z <- predict(mod1, observed1)

Then create a grid of values for $x_1$ and $x_2$ to predict the response variable $y$ based on the interaction between $x_1$ and $x_2$ .

grid <- with(observed1,
             interp::interp(x = x1, y = x2, z))
griddf <- subset(data.frame(x = rep(grid$x, nrow(grid$z)),
                            y = rep(grid$y,
                                    each = ncol(grid$z)),
                            z = as.numeric(grid$z)),!is.na(z))

p1 <- ggplot(griddf, aes(x, y, z = z)) +
  geom_contour(aes(colour = after_stat(level),
                   linetype = factor(after_stat(level))),
                   linewidth = 2) +
  scale_color_viridis_c()+
  guides(linetype = "none")+
  labs(title="Antagonism",
       color="Prediction", x = "x1", y = "x2")+
  theme(legend.position = "top")

Case 2: Additive (no interaction)

beta3 <- rep(0,200)

y2 = beta0 + beta1*x1 + beta2*x2 + beta3*(x1*x2) + e

observed2 <- tibble(y2, x1, x2)

mod2 <- lm(y2 ~ x1*x2, data = observed2)
observed2$z <- predict(mod2, observed2)

grid <- with(observed2, interp::interp(x = x1, y = x2, z))
griddf <- subset(data.frame(x = rep(grid$x, nrow(grid$z)),
                            y = rep(grid$y,
                                    each = ncol(grid$z)),
                            z = as.numeric(grid$z)),!is.na(z))

p2 <- ggplot(griddf, aes(x, y, z = z)) +
  geom_contour(aes(colour = after_stat(level),
                   linetype = factor(after_stat(level))),
                   linewidth = 2) +
  scale_color_viridis_c()+
  guides(linetype = "none")+
  labs(title="Antagonism",
       color="Prediction", x = "x1", y = "x2")+
  theme(legend.position = "top")

Case 3: Synergism

beta3<- rep(10,200)

y3 = beta0 + beta1*x1 + beta2*x2 + beta3*(x1*x2) + e

observed3 <- tibble(y3, x1, x2)

mod3 <- lm(y3 ~ x1 * x2 , data = observed3)
observed3$z <- predict(mod3, observed3)

grid <- with(observed3, interp::interp(x=x1,y=x2,z))
griddf <- subset(data.frame(x = rep(grid$x, nrow(grid$z)),
                            y = rep(grid$y, each = ncol(grid$z)),
                            z = as.numeric(grid$z)),!is.na(z))

p3 <- ggplot(griddf, aes(x, y, z = z)) +
  geom_contour(aes(colour = after_stat(level),
                   linetype = factor(after_stat(level))),
                   linewidth = 2) +
  scale_color_viridis_c()+
  guides(linetype = "none")+
  labs(title="Antagonism",
       color="Prediction", x = "x1", y = "x2")+
  theme(legend.position = "top")

library(patchwork)
p1|p2|p3

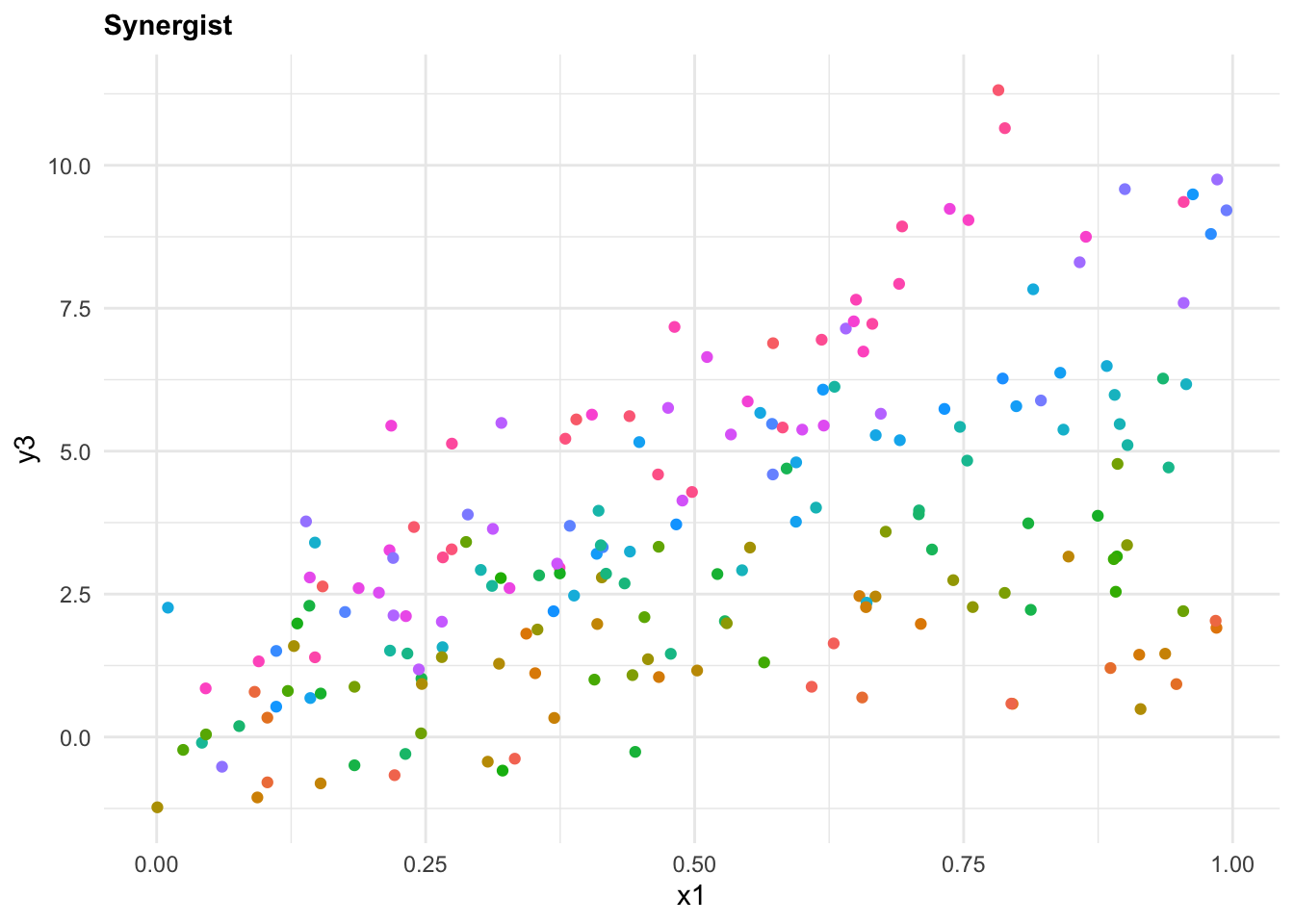

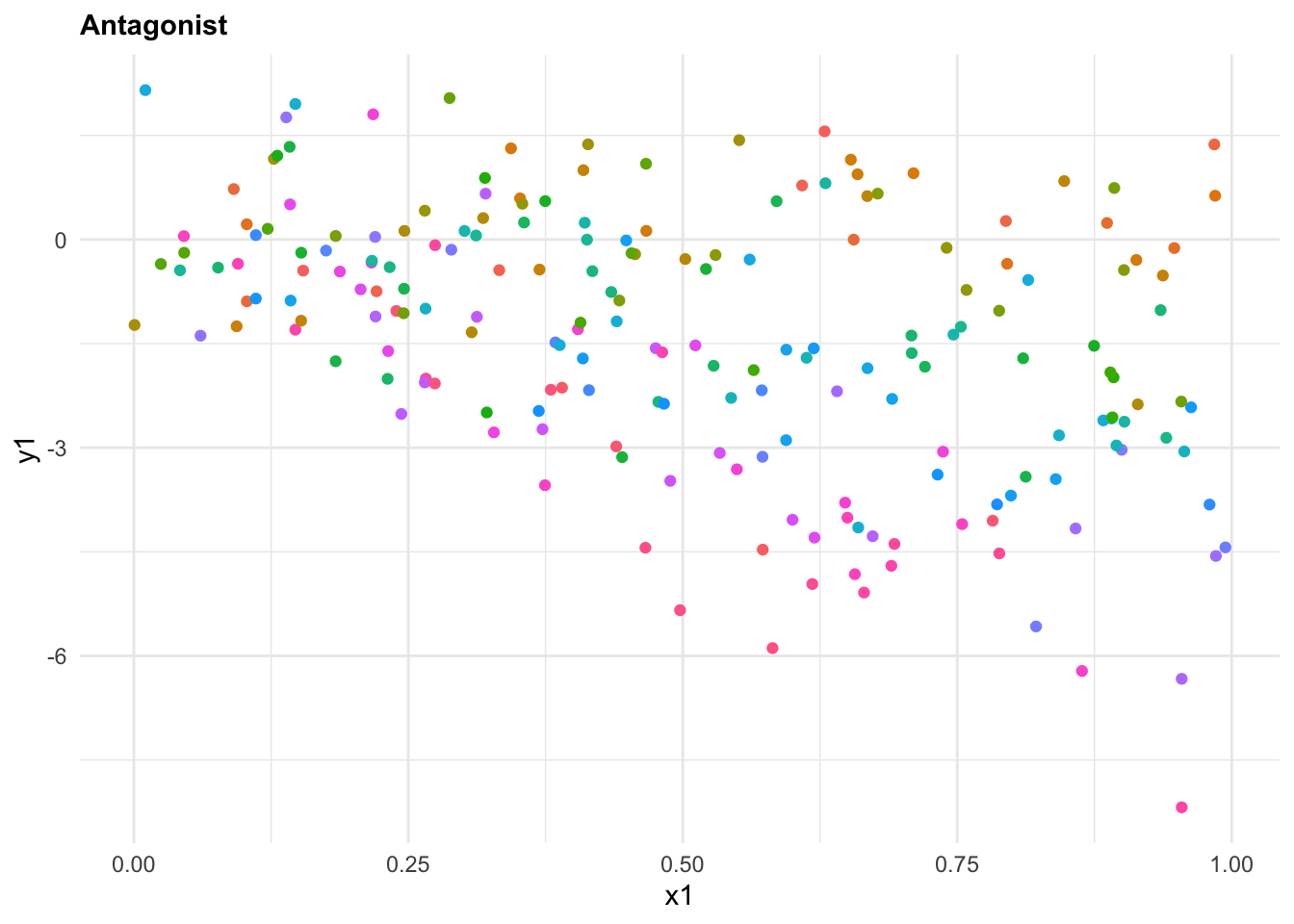

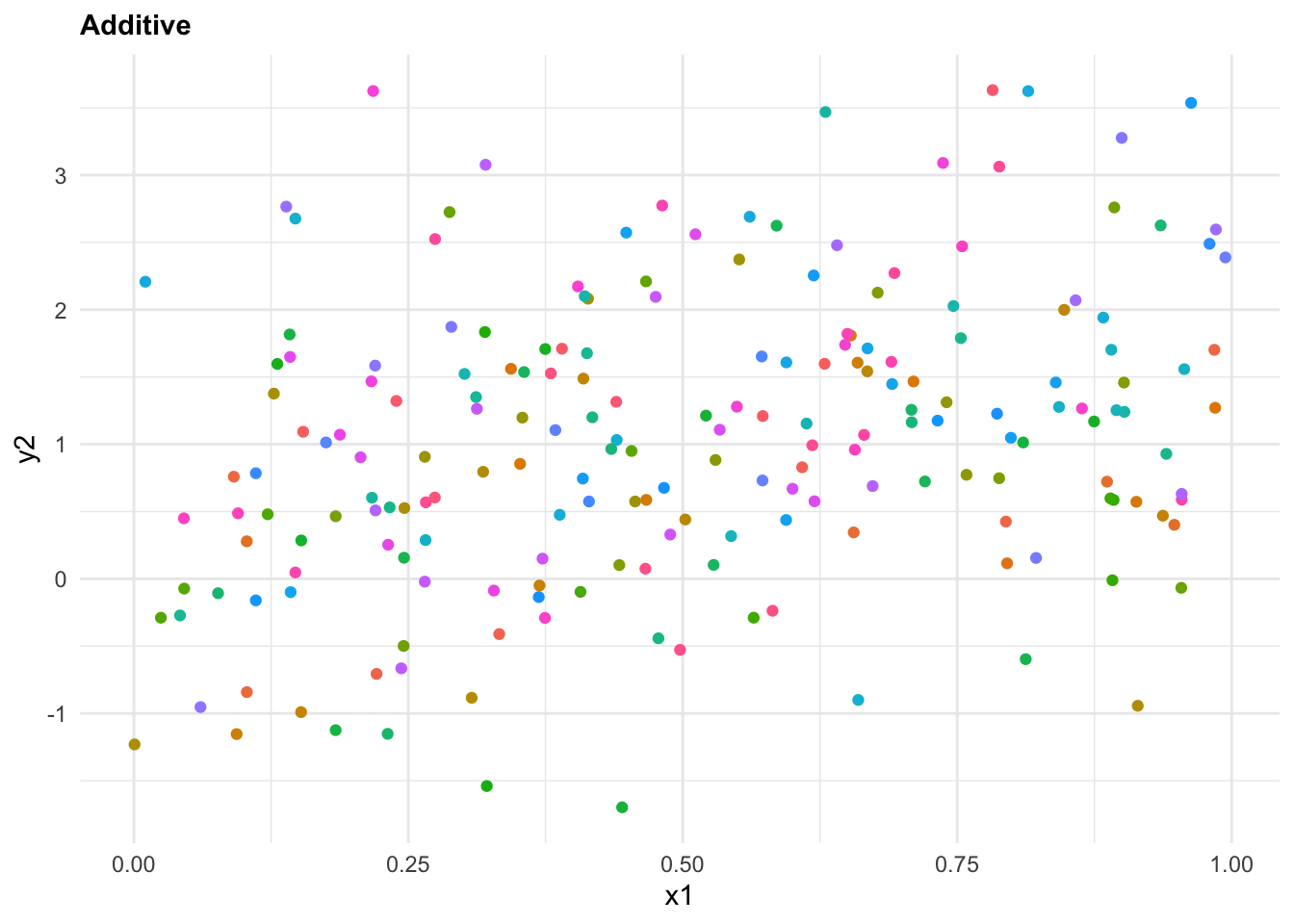

Scatterplots for Antagonistic, Additive, and Synergistic interaction effects — (a) Scatterplot for Antagonistic

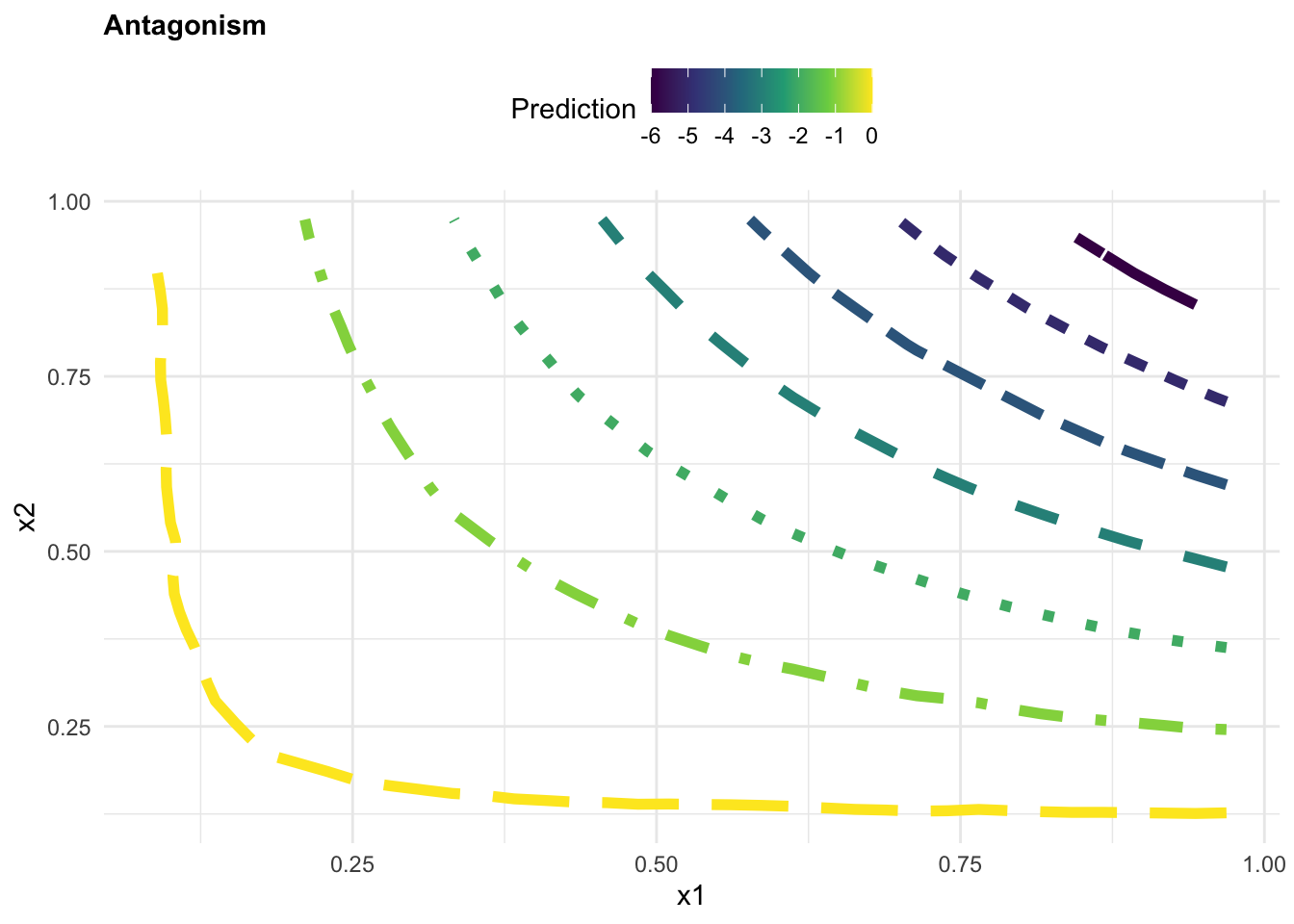

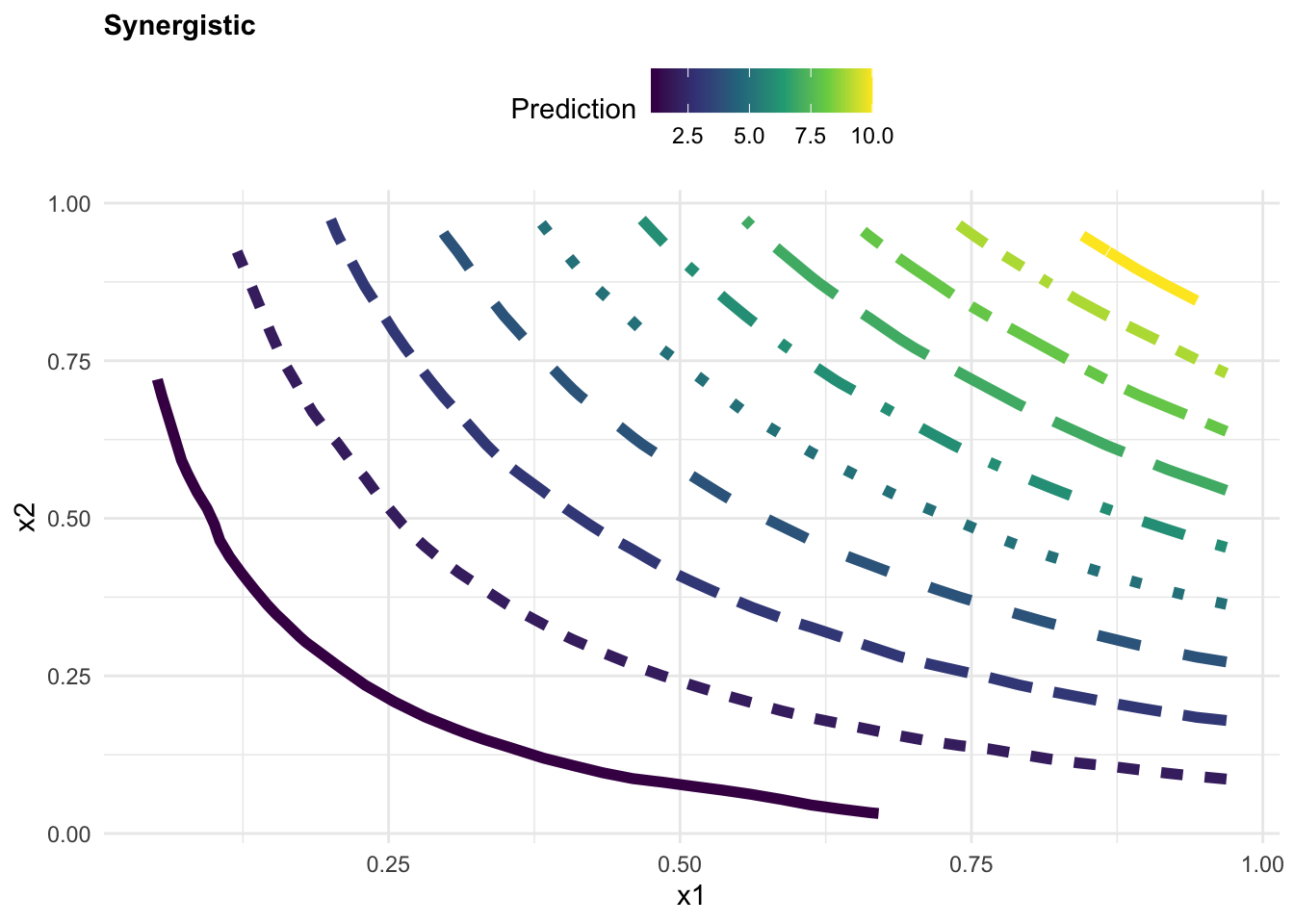

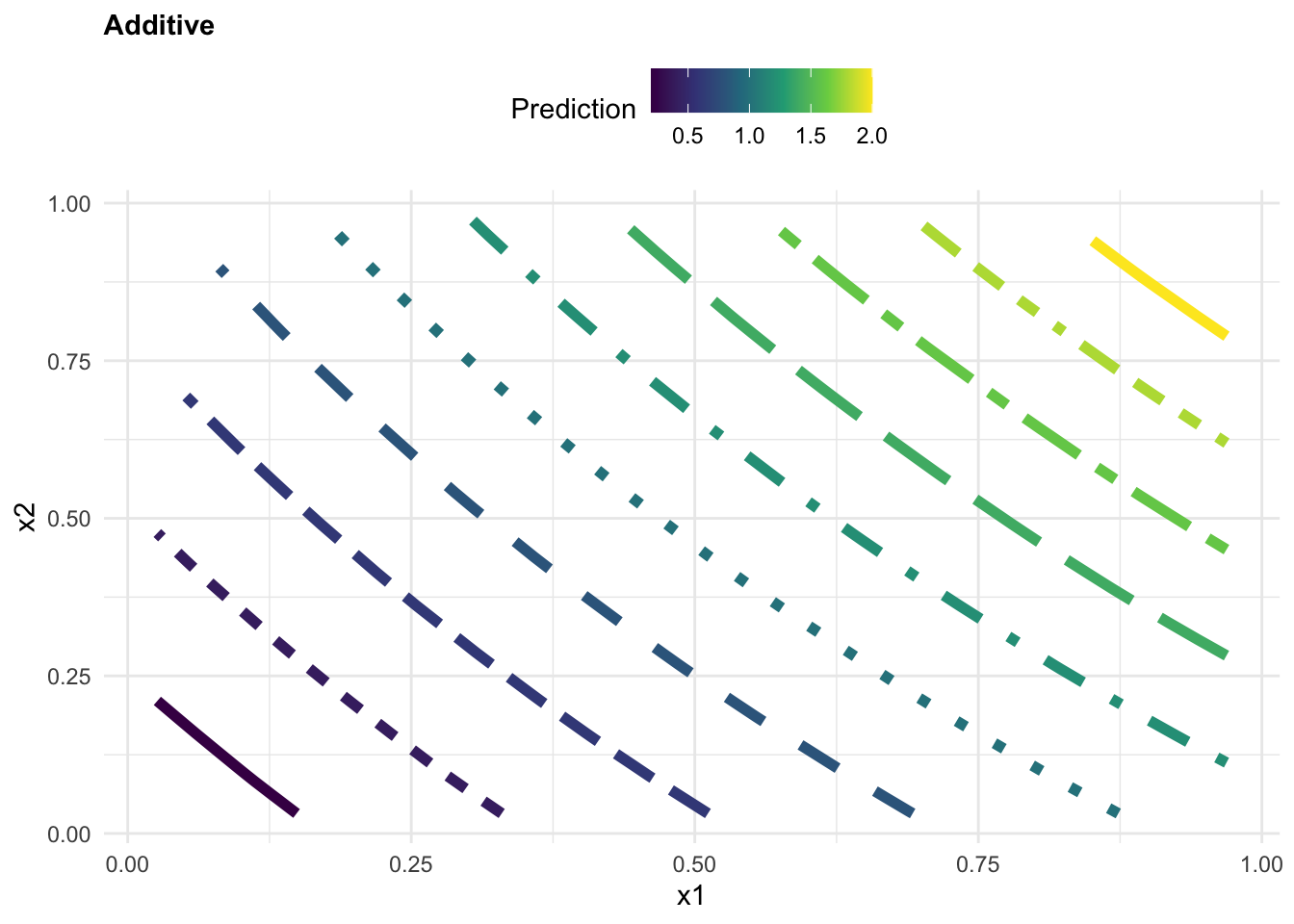

Contour plots for Antagonistic, Additive, and Synergistic interaction effects — (a) Contour plot for Antagonistic

13.2 Example: Pyramid Plot

A pyramid plot is a type of bar chart that displays the distribution of a population by age. We use the data from the wpp2022 package, data(package = "wpp2022") which is a collection of population datasets, with population estimates. Data are from the United Nations World Population Prospects 2022.

library(wpp2022)

The data contains the following columns:

# load the data on the population
data(popAge1dt)
popAge1dt %>% head()
#>    country_code   name  year   age     popM     popF      pop
#>           <int> <char> <int> <int>    <num>    <num>    <num>
#> 1:          900  World  1949     0 41312.32 39439.29 80751.61
#> 2:          900  World  1949     1 35761.05 34274.35 70035.40
#> 3:          900  World  1949     2 33514.72 32065.08 65579.81
#> 4:          900  World  1949     3 31076.46 29780.73 60857.19
#> 5:          900  World  1949     4 28786.66 27647.06 56433.72
#> 6:          900  World  1949     5 28082.09 26882.94 54965.03

Check all Countries in the dataset with View():

popAge1dt %>% count(name) %>% View

Data are then aggregated to show the total population for all ages by year. Here, in particular, we show the use of geomtextpath::geom_textline() to add a label to the World line plot. geomtextpath is a nice R-package which allows you to add text along a path.

all_ages <- popAge1dt %>%
  group_by(year, name) %>%
  reframe(tot_pop=sum(pop))

all_ages %>%
  filter(!name == "World")%>%
  ggplot(aes(x = year, y = tot_pop, group = name)) +
  geom_line(color= "grey", linewidth =0.2) +
  geomtextpath::geom_textline(data = all_ages %>% filter(name == "World"),
                              aes(label=name),
                              color = "red", linewidth = 1) +
  labs(title = "United Nations World Population Prospects [1949 - 2021]",
       x = "Year", y = "Population in thousands",
       caption = "Data Source: UN World Pop 2022| Graphic: @fgazzelloni")

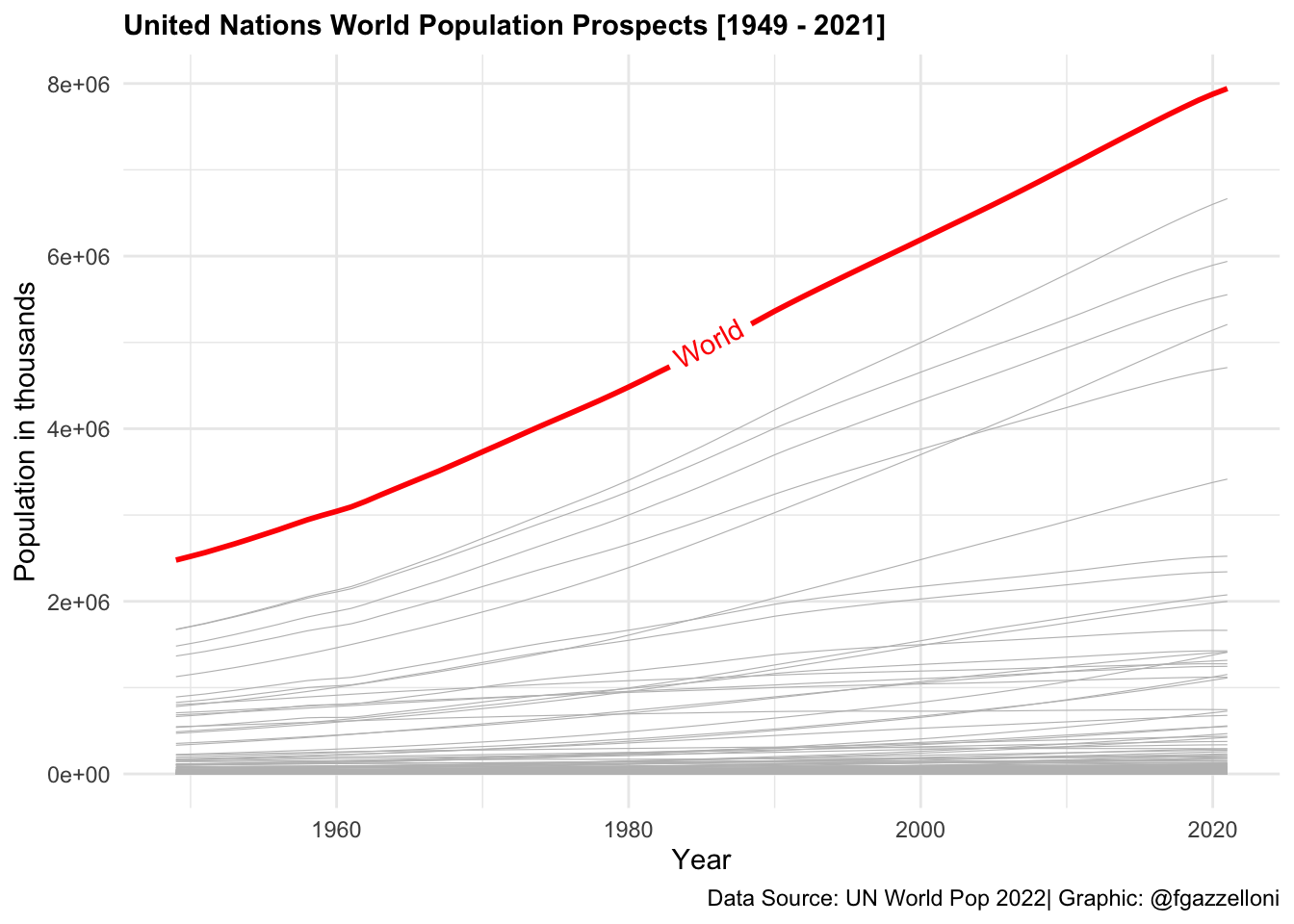

Figure 13.3: Population for all ages from 1949 to 2021

Data are then transformed to a long format to create a pyramid plot. We select the columns name, year, age, popF, and popM and pivot the data to a long format using the pivot_longer() function. We then create a new column value that contains positive values for male population and negative values for females.

data <- popAge1dt %>%
   select(name, year, age, popF, popM) %>%
   pivot_longer(cols = c(popM, popF),
                names_to = "sex",
                values_to = "population") %>%
   mutate(value = ifelse(sex == "popF",
                         as.integer(population * -1),
                         as.integer(population)))

data %>% head()
#> # A tibble: 6 × 6
#>   name   year   age sex   population  value
#>   <chr> <int> <int> <chr>      <dbl>  <int>
#> 1 World  1949     0 popM      41312.  41312
#> 2 World  1949     0 popF      39439. -39439
#> 3 World  1949     1 popM      35761.  35761
#> 4 World  1949     1 popF      34274. -34274
#> 5 World  1949     2 popM      33515.  33514
#> 6 World  1949     2 popF      32065. -32065

Then, we can create pyramid plots that show the distribution of the population by age for High-income countries, Lower-middle-income countries, and Low-income countries, and put them in one chunk with the option layout-ncol: 3.

data %>%
  filter(name == "High-income countries") %>%
  ggplot(aes(x = age, y = value, fill = sex)) +
  geom_bar(stat = "identity") +
  scale_fill_manual(values = c("#CC6666", "#9999CC")) +
  coord_flip() +
  labs(title = "United Nations World Population Prospects 2022",
       subtitle = "High-income countries",
       x= "Age", y = "Population in thousands", fill = "",
       caption = "Data Source: UN World Pop | Graphic: @fgazzelloni") +
  theme_minimal() +
  theme(plot.title = element_text(face = "bold",
                                  hjust = 0.5),
        plot.subtitle = element_text(hjust = 0.5),
        axis.text = element_text(size = 10))

data %>%
  filter(name == "Lower-middle-income countries") %>%
  ggplot(aes(x = age, y = value, fill = sex)) +
  geom_bar(stat = "identity") +
  scale_fill_manual(values = c("#CC6666", "#9999CC")) +
  coord_flip() +
  labs(title = "United Nations World Population Prospects 2022",
       subtitle = "Lower-middle-income countries",
       x= "Age", y = "Population in thousands", fill = "",
       caption = "Data Source: UN World Pop | Graphic: @fgazzelloni") +
  theme_minimal() +
  theme(plot.title = element_text(face = "bold",
                                  hjust = 0.5),
        plot.subtitle = element_text(hjust = 0.5),
        axis.text = element_text(size = 10))

data %>%
  filter(name == "Low-income countries") %>%
  ggplot(aes(x = age, y = value, fill = sex)) +
  geom_bar(stat = "identity") +
  scale_fill_manual(values = c("#CC6666", "#9999CC")) +
  coord_flip() +
  labs(title = "United Nations World Population Prospects 2022",
       subtitle = "Low-income countries",
       x= "Age", y = "Population in thousands", fill = "",
       caption = "Data Source: UN World Pop | Graphic: @fgazzelloni") +
  theme_minimal() +
  theme(plot.title = element_text(face = "bold",
                                  hjust = 0.5),
        plot.subtitle = element_text(hjust = 0.5),
        axis.text = element_text(size = 10))

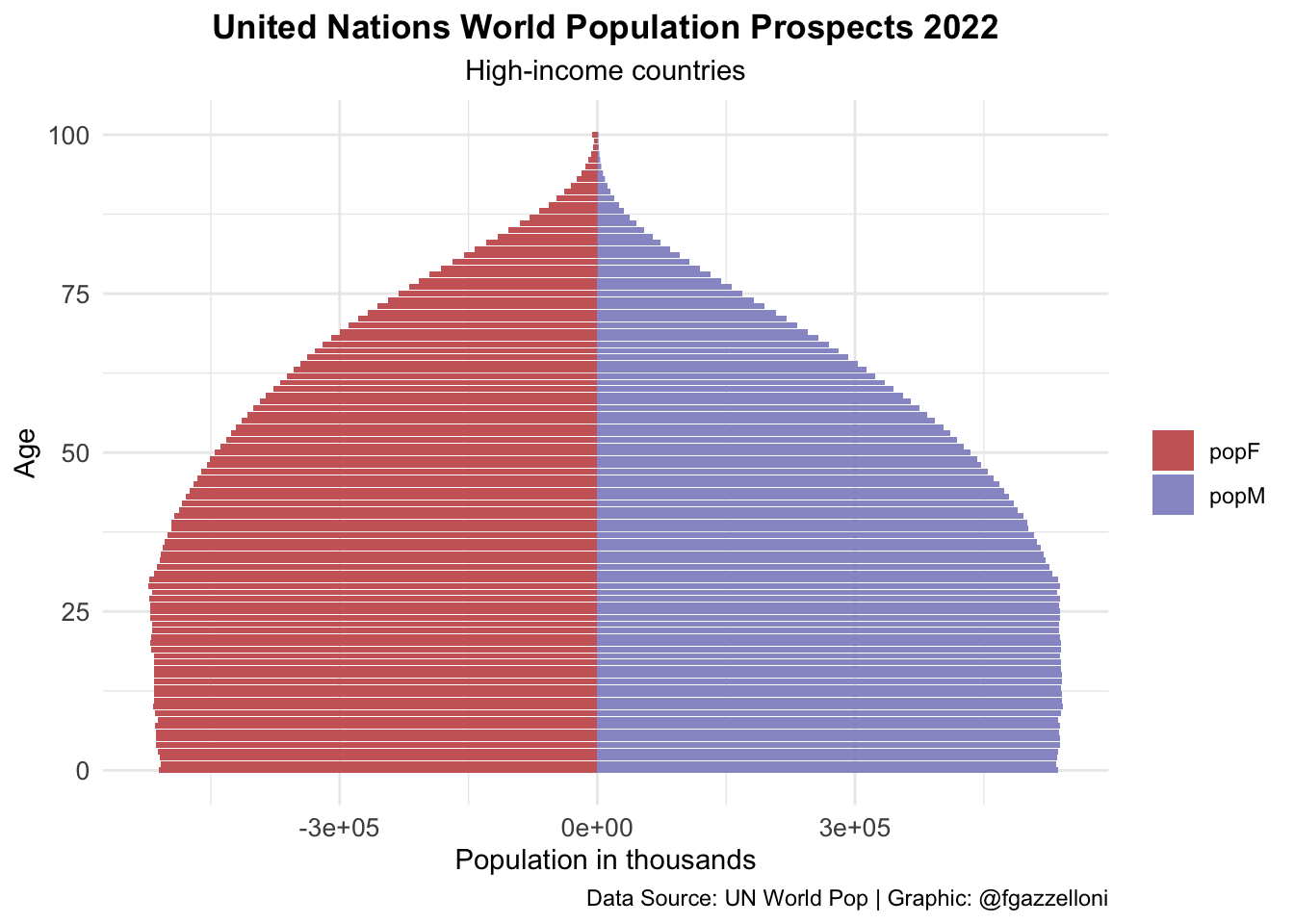

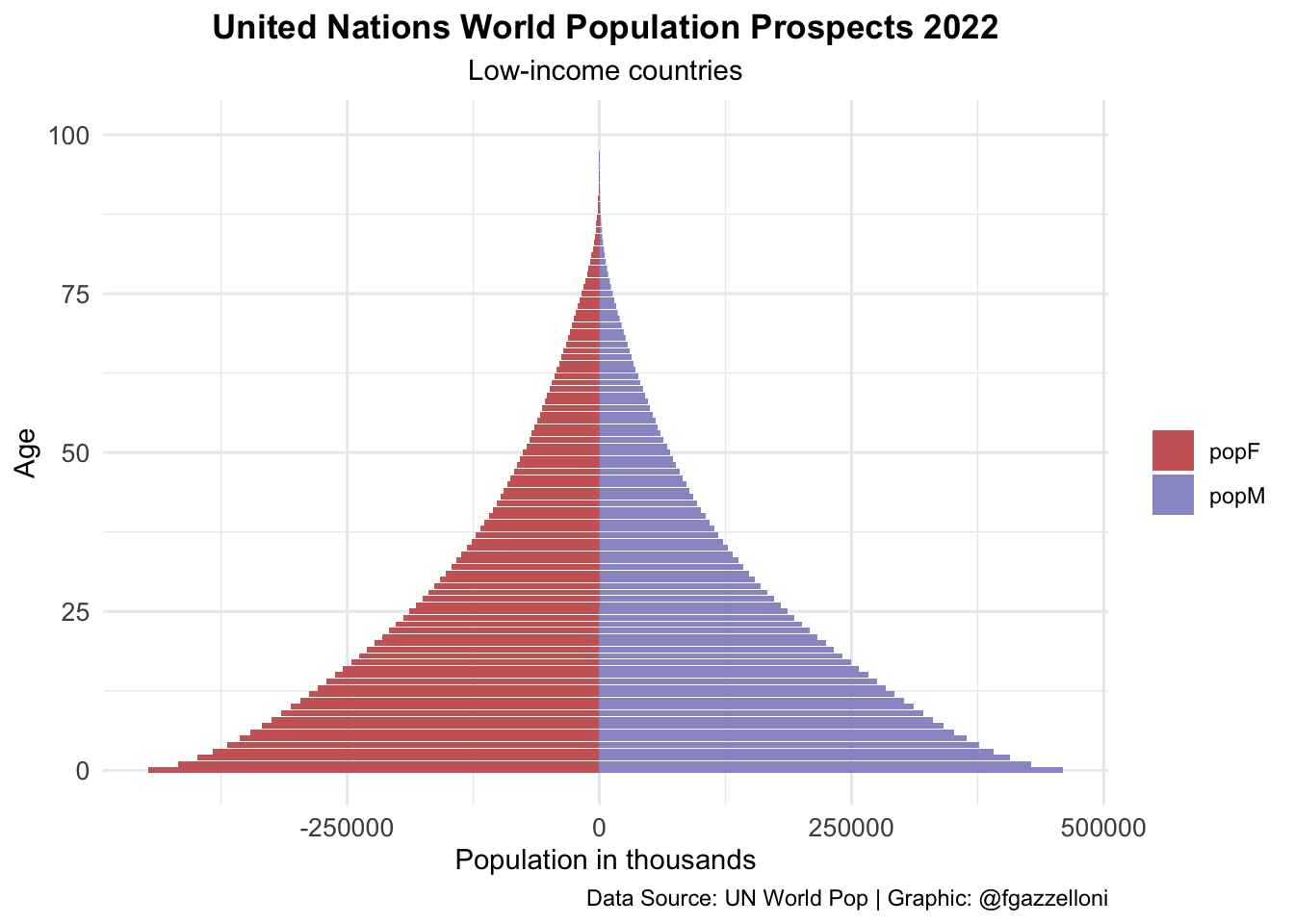

Pyramid plots for High-income, Lower-middle-income, and Low-income countries — (a) High-income countries

pyramid <-
  data %>%
  filter(name == "World") %>%
  ggplot(aes(x = age, y = value, fill = sex)) +
  geom_bar(stat = "identity") +
  scale_fill_manual(values = c("#CC6666", "#9999CC")) +
  coord_flip() +
  labs(title = "UN Pop 2022 - {closest_state}",
       x= "Age", y = "Population in thousands", fill = "",
       caption = "Data Source: UN World Pop | Graphic: @fgazzelloni") +
       theme_minimal() +
       theme(plot.title = element_text(face = "bold",
                                           hjust = 0.5),
            axis.text = element_text(size = 10))

library(gganimate)
pyramid_gif <- pyramid +
  transition_states(year,
                    transition_length = 1,
                    state_length = 2) +
  enter_fade() +
  exit_fade() +
  ease_aes("cubic-in-out")

animate(pyramid_gif,
        fps = 72, duration = 6,
        width = 1200, height = 1400, res = 180,
        renderer = gifski_renderer("images/12_unp_pyramid.gif"))

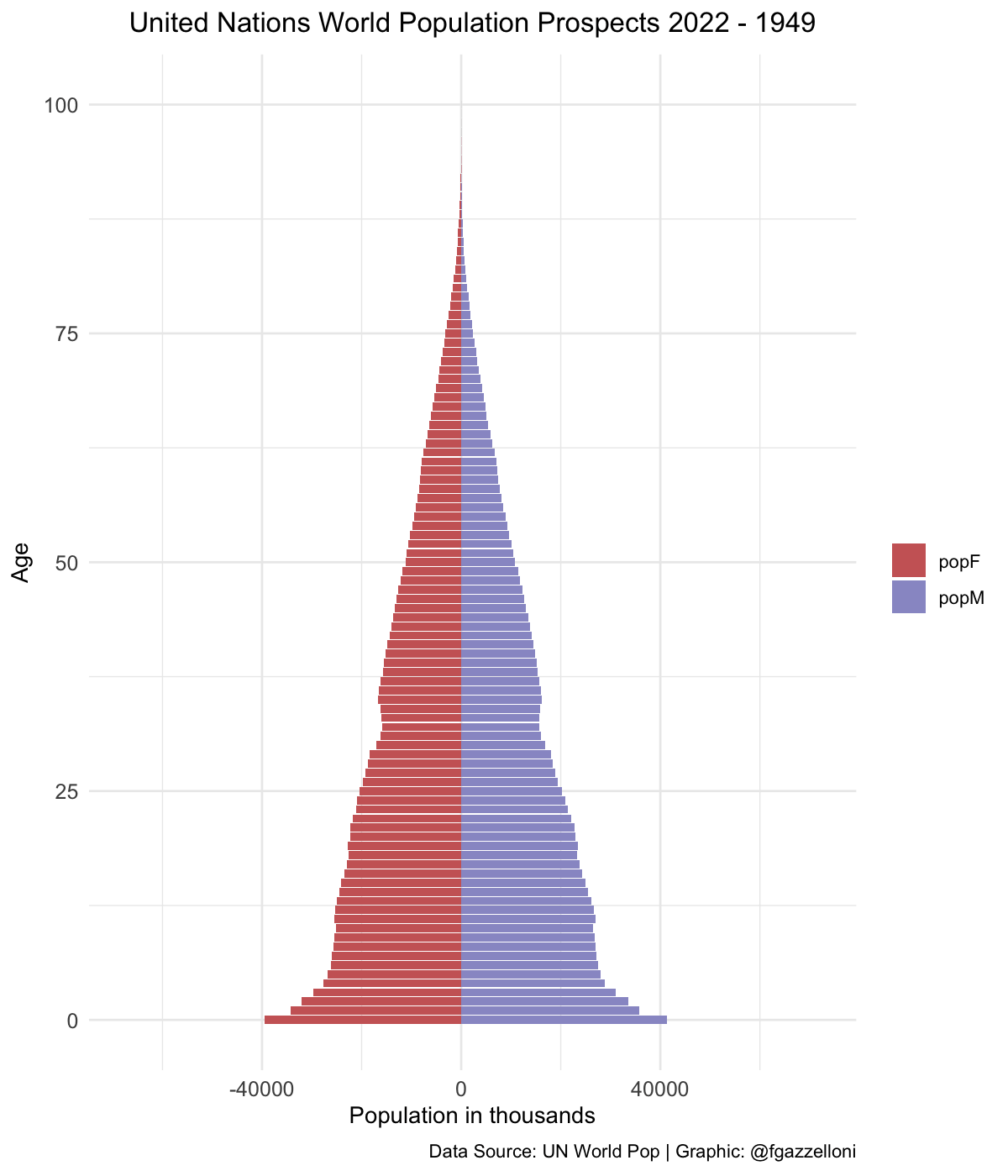

Pyramid plot for the United Nations — Figure 13.5: United Nations World Population Prospects 2022 [1949 - 2021]
