3 R Package: tmdlTools

3.1 What is an R package?

R code is used to run programs that perform helpful tasks on the computer, from performing statistical tests on data to saving files downloaded from the internet. So where do packages fit into these tasks? From Quick-R: “Packages are collections of R functions, data, and compiled code in a well-defined format. The directory where packages are stored is called the library. R comes with a standard set of packages. Others are available for download and installation. Once installed, they have to be loaded into the session to be used.”

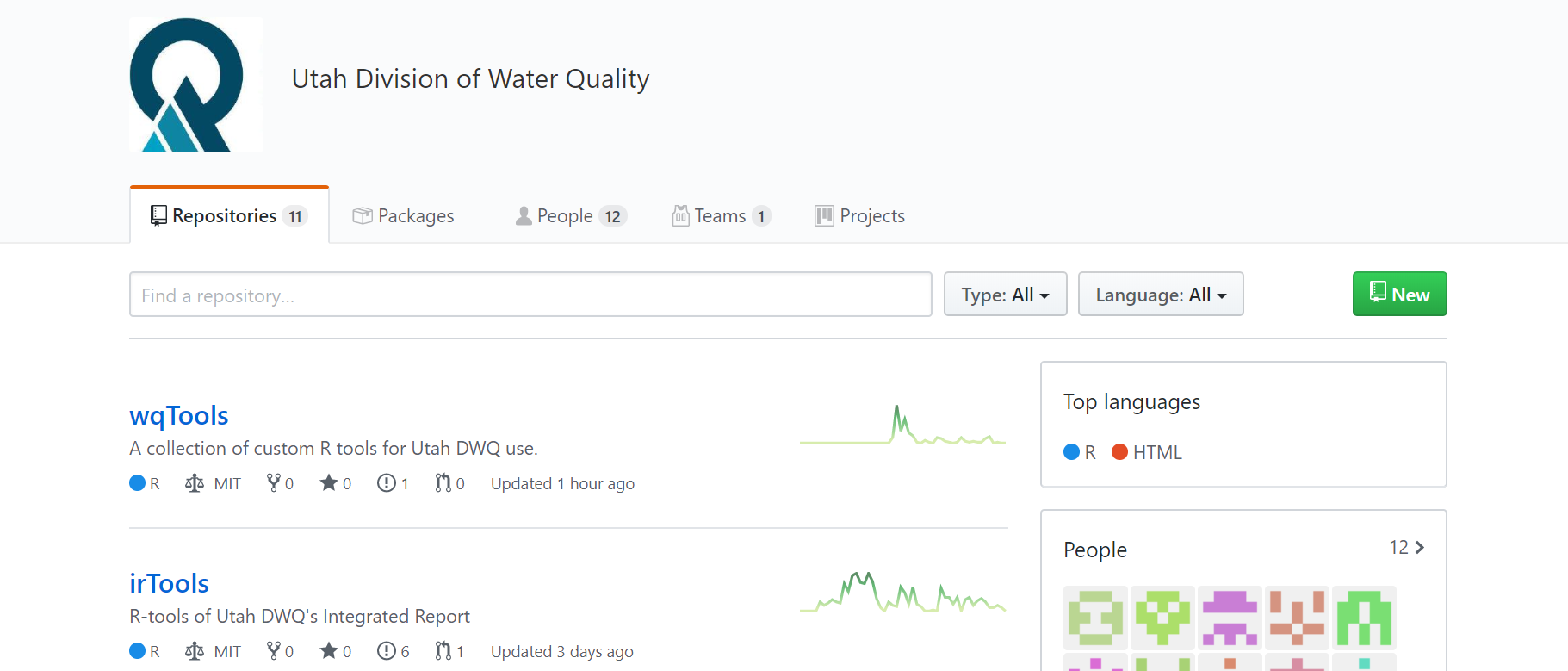

The Integrated Report team has built two R packages to run the 2018/2020 Integrated Report: wqTools and irTools. wqTools contains a set of useful functions that are commonly used and re-used in water quality assessments and other water quality-related analyses (ex. converting units, loading calculations, and downloading data). irTools contains the functions that perform the Integrated Report assessments and the apps you will use in your secondary review. These packages live on the Utah Division of Water Quality’s GitHub. GitHub is an online platform for storing, developing, and sharing a wide variety of computer languages. DWQ’s GitHub page contains a number of repositories of R code used to perform water quality assessments and explore water quality data. Feel free to peruse UDWQ’s repositories on the web, however, we will use the R console to download packages from the internet for use on a computer.

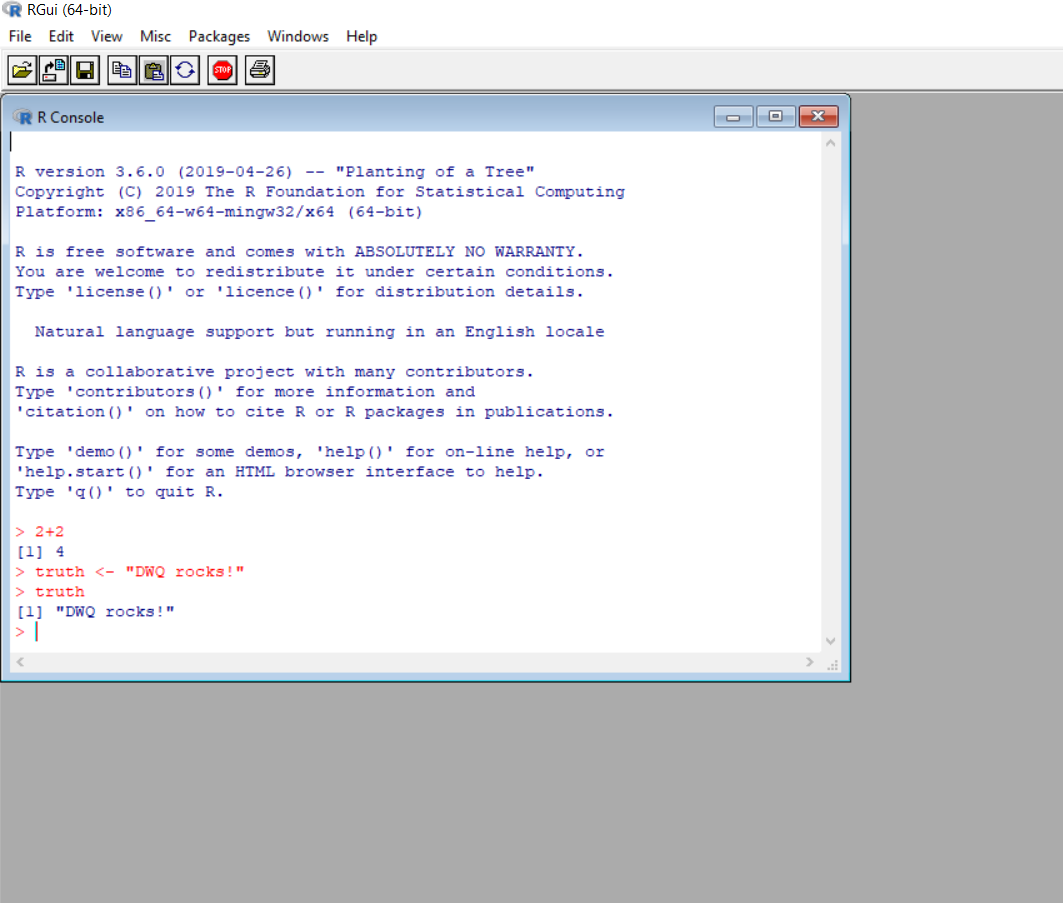

Time to open R! Double click the R icon to run the program. A textbox-like window will open with text about the R version and some disclaimers. This is called a “console”. The console is essentially your command line area. Typing commands into the console and hitting the “ENTER” button will run the command, and R will respond.

3.2 Downloading tmdlTools from GitHub

To download the tmdlTools package from GitHub, we need to first install the devtools package from CRAN in R. Note that installing packages to R will create unique folders within the R library program files on your computer. To install the devtools package, type the code below into the R console and hit enter:

A window may pop up asking you to select a CRAN repository. The “0-Cloud [https]” repository will suffice. Note that to install a package, you must type the package’s name in quotation marks.

Now that we’ve installed the devtools package from CRAN, we need to load it into our R session. Loading it using the library() command will make all of the functions within the devtools package available for use in R or RStudio. Remember to type the code and hit enter. With the library command, the package name does not need quotations:

Next, we will download the tmdlTools packages from DWQ’s GitHub repository online using one of devtools’s functions, install_github():

Hitting enter will cause a wave of processes to occur (and you’ll see a lot of messages as the package is unpacked and dependencies are installed). You’ll notice each line in the console is preceded by a “>”. When R is processing a command, no “>” will be present on the line below your last entry. Wait until a “>” appears at the bottom of the console before performing any other R operations. In RStudio, a red stop sign will be present in the upper right corner of the console when the system is processing. In general, ‘Warning messages’ are not worrisome, but ‘Error…:’ messages that stop the code need attention.

Once you have installed the package into your library, you do not need to perform the install_github() commands each time you wish to run the packages. However, if updates are made to the package, you will need to reinstall tmdlTools from GitHub using the code above before those updates will be reflected in your R session.

3.3 Loading the tmdlTools Package

Just like devtools, we need to load the tmdlTools library into our R session. Note that you will need to use the library() command every time you open up a new R session.

3.4 Revisiting tmdlTools in Another R Session

Closing and re-opening R or RStudio will wipe the R history, and tmdlTools will no longer be “active” within your session. To re-load tmdlTools functions, simply use the library() command outlined in the Loading the tmdlTools Package section of this document.

3.5 Updating tmdlTools

Because tmdlTools is an ever-evolving package, newer version/updates are inevitable. For now, updates will be announced via email. When you are ready to update the package, use the remove.packages() command to remove tmdlTools, and then use the install_github() function contained within devtools to reinstall the package from GitHub.

Often, when you re-install a package, many of its dependencies could use updates as well. When this happens, you’ll see a message similar to the one below:

E. Hinman suggests to type 3 and then hit enter, indicating that you do not wish to update any of the packages. Often, a package in need of updates is one that devtools is using to load the app! R has a tough time updating a package currently in use, so errors will occur. Instead, run tmdlTools without the updates (it should not affect functionality), and then in a separate session, apply all available updates to packages in your library prior to running any of them.

Barring any package updates or errors, your version of the tmdlTools package should be ready to run. Time to roll up the sleeves and do some data review!
