9.2 Creating a Scatter Plot
- Select the cells in the Columns Eruptions and Waiting.
- Go to the
Insert
tab. SelectScatter
in theCharts
ribbon. Select the leftmost chart in the top row by clicking on it (Figure 9.1).

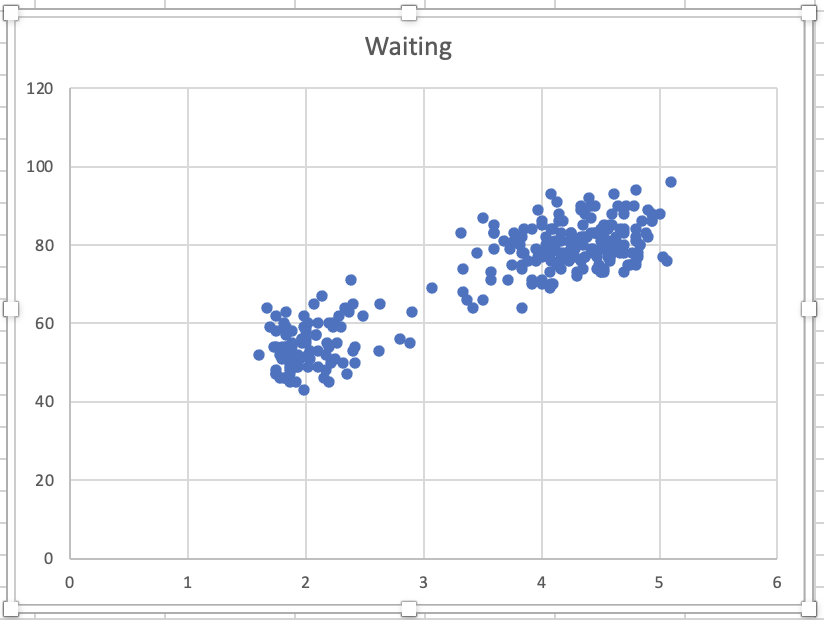

The resulting plot is shown in Figure 9.2. The Chart Design
tab shows that the leftmost diagram style is selected (Style 1).
- For the title, replace Waiting with Old Faithful Data.
- Click
Add Chart Element > Axis Title > More Axis Title Options
. This will add an automatic x-axis title and y-axis title. - Click the x-axis title and replace it with Duration of Eruptions (in Minutes).
- Click the y-axis title and replace it with Time Until the Next Eruption (in Minutes).
RIGHT-click
on the horizontal axis and then selectFormat Axis
to change the axis format in the plot. Set the Minimum Bound as 1. Adjusting the axis removesRIGHT-click
on the vertical axis and then selectFormat Axis
to change the axis format. Set the Minimum Bound as 30 and Maximum Bound as 100.
The adjusted box plot is shown in Figure 9.3.
