Chapter 8 FreeSurfer v6

Log onto the remote computer. Remember you will be using the preprocessed T1 image found under ‘/work/ashley.ware/data/ACAP/prepAnat/’. Make Freesurfer subjects directory.

mkdir -p /work/ashley.ware/data/ACAP/mindboggle/freesurfer_subjects/

8.1 Job Script

Still on remote computer, create two job scripts. The first is for when both T1 and T2 images are available.

vi ~/scripts/ACAP/freesurferT1T2-job.sh

Copy and paste.

#!/bin/bash

#SBATCH --time=30:00:00   # walltime
#SBATCH --ntasks=1   # number of processor cores (i.e. tasks)
#SBATCH --nodes=1   # number of nodes
#SBATCH --mem-per-cpu=16G  # memory per CPU core

# LOAD ENVIRONMENTAL VARIABLES
username=`id -un`
export FREESURFER_HOME=/home/${username}/apps/freesurfer
source $FREESURFER_HOME/SetUpFreeSurfer.sh

# INSERT CODE, AND RUN YOUR PROGRAMS HERE
recon-all \
-subjid ${1} \
-i /work/${username}/data/ACAP/prepAnat/${1}/${1}_T1w.nii.gz \
-T2 /work/${username}/data/ACAP/prepAnat/${1}/${1}_inplaneT2.nii.gz \
-T2pial \
-wsatlas \
-all \
-sd /work/${username}/data/ACAP/mindboggle/freesurfer_subjects/

Create the second job script for when only T1 images are present.

vi ~/scripts/ACAP/freesurferT1-job.sh

Copy and paste.

#!/bin/bash

#SBATCH --time=30:00:00   # walltime
#SBATCH --ntasks=1   # number of processor cores (i.e. tasks)
#SBATCH --nodes=1   # number of nodes
#SBATCH --mem-per-cpu=16G  # memory per CPU core

# LOAD ENVIRONMENTAL VARIABLES
username=`id -un`
export FREESURFER_HOME=/home/${username}/apps/freesurfer
source $FREESURFER_HOME/SetUpFreeSurfer.sh

# INSERT CODE, AND RUN YOUR PROGRAMS HERE
recon-all \
-subjid ${1} \
-i /work/${username}/data/ACAP/prepAnat/${1}/${1}_T1w.nii.gz \
-wsatlas \
-all \
-sd /work/${username}/data/ACAP/mindboggle/freesurfer_subjects/

8.2 Batch Script

First check that your subjid are correct.

for i in $(find /work/ashley.ware/data/ACAP/prepAnat -name "*T1w.nii.gz"); do
  subjid=`echo $i | cut -d "/" -f7`
  echo $subjid
done

If everything is correct then you can create your batch file.

Create batch script.

vi ~/scripts/ACAP/freesurfer-batch.sh

Copy and paste.

#!/bin/bash
curTime=`date +"%Y%m%d-%H%M%S"`
username=`id -un`
mkdir -p ~/logfiles/ACAP/${curTime}
for i in $(find /work/${username}/data/ACAP/prepAnat -name "*T1w.nii.gz"); do
  subjid=`echo $i | cut -d "/" -f7`
  t2image=/work/${username}/data/ACAP/prepAnat/${subjid}/${subjid}_inplaneT2.nii.gz
  if [ -f $t2image ]; then
    sbatch \
    -o ~/logfiles/ACAP/${curTime}/output-${subjid}.txt \
    -e ~/logfiles/ACAP/${curTime}/error-${subjid}.txt \
    ~/scripts/ACAP/freesurferT1T2-job.sh \
    ${subjid}
    sleep 1
  else
    sbatch \
    -o ~/logfiles/ACAP/${curTime}/output-${subjid}.txt \
    -e ~/logfiles/ACAP/${curTime}/error-${subjid}.txt \
    ~/scripts/ACAP/freesurferT1-job.sh \
    ${subjid}
    sleep 1
  fi
done

8.3 Submit Jobs with Batch Script

Submit jobs.

sh ~/scripts/ACAP/freesurfer-batch.sh

You can check the status of your jobs by checking if it is running or pending.

squeue

You can check the outputs.

tail -n 5 ~/logfiles/ACAP/<date>/output*

8.4 Check that FreeSurfer Completed without Errors

When FreeSurfer is finished the last line in your logfiles will tell you if FreeSurfer completed with or without errors. To check for this line specifically, use grep.

cd /home/ashley.ware/logfiles/ACAP/20190126-061608
grep -Ha "recon-all.*finished" output-sub-ACAP*

You should hopefully see an output like this.

output-sub-ACAP1001_ses-BL.txt:recon-all -s sub-ACAP1001_ses-BL finished without error
output-sub-ACAP1001_ses-FU6.txt:recon-all -s sub-ACAP1001_ses-FU6 finished without error
output-sub-ACAP1002_ses-BL.txt:recon-all -s sub-ACAP1002_ses-BL finished without error
output-sub-ACAP1003_ses-BL.txt:recon-all -s sub-ACAP1003_ses-BL finished without error
output-sub-ACAP1003_ses-FU3.txt:recon-all -s sub-ACAP1003_ses-FU3 finished without error
output-sub-ACAP1004_ses-BL.txt:recon-all -s sub-ACAP1004_ses-BL finished without error
output-sub-ACAP1004_ses-FU6.txt:recon-all -s sub-ACAP1004_ses-FU6 finished without error
output-sub-ACAP1005_ses-FU3.txt:recon-all -s sub-ACAP1005_ses-FU3 finished without error
output-sub-ACAP1006_ses-BL.txt:recon-all -s sub-ACAP1006_ses-BL finished without error
output-sub-ACAP1006_ses-FU6.txt:recon-all -s sub-ACAP1006_ses-FU6 finished without error
output-sub-ACAP1009_ses-BL.txt:recon-all -s sub-ACAP1009_ses-BL finished without error

8.5 Download Directory / Sync Directory with Arc

Back on your local computer make sure you have the directory already.

mkdir -p /Volumes/bobo/data/ACAP/mindboggle/freesurfer_subjects

Then sync the data from the remote computer to your local computer.

rsync -rauv \
ashley.ware@arc.ucalgary.ca:/work/ashley.ware/data/ACAP/mindboggle/freesurfer_subjects/ \
/Volumes/bobo/data/ACAP/mindboggle/freesurfer_subjects/

8.6 Quality Control

Before you can run the quality control program, you’ll need to create some scripts locally on your computer. Make sure you have FreeSurfer, Homebrew, and ImageMagick installed on your local computer.

mkdir -p ~/apps/QA/
vi ~/apps/QA/takeshots

Copy and paste the following script.

#!/bin/bash

if [ -z "$1" ]; then
cat <<EOU
Capture some screenshots of surfaces produced by
FreeSurfer in standard orientations.

Usage: takeshots [options]

The options are:
-s <subjid> : Specify one subject ID
-l <listid> : Specify a file list with the subject IDs, one per line
-m <mesh>   : Specify a surface file (pial, white, inflated, sphere, etc.)
-p <parc>   : Specify a parcellation to load (aparc, aparc.a2009s, aparc.a2005s)
-v <volume> : Run also for volumes (0 = FALSE, 1 = TRUE)

_____________________________________
Anderson M. Winkler
Yale University / Institute of Living
Jan/2010
http://brainder.org
EOU
exit 1
fi

DOASEG="N"

# Check and accept the arguments
while getopts 's:l:m:p:v:' OPTION
do
  case ${OPTION} in
    s) SUBJ_LIST="${SUBJ_LIST} ${OPTARG}" ;;
    l) SUBJ_LIST="${SUBJ_LIST} $(cat ${OPTARG})" ;;
    m) MESH_LIST="${MESH_LIST} ${OPTARG}" ;;
    p) PARC_LIST="${PARC_LIST} ${OPTARG}" ;;
    v) VOLUME=${OPTARG} ;;
  esac
done

for s in ${SUBJ_LIST} ; do
mkdir -p ${SUBJECTS_DIR}/${s}/shots
export SUBJECT_NAME=${s}
  for h in lh rh ; do
    for m in ${MESH_LIST} ; do
      for p in ${PARC_LIST} ; do
        export SURF=${m}
        export PARC=${p}
        tksurfer ${s} ${h} ${m} -tcl $(dirname $0)/shots_tksurfer.tcl
      done
    done
  done
  sleep 1
  if [ ${VOLUME} == "1" ]
  then
    tkmedit ${s} T1.mgz -surfs -tcl $(dirname $0)/shots_tkmedit.tcl
  fi
done

You will need to create two more files.

vi ~/apps/QA/shots_tksurfer.tcl

Copy and paste.

# This TCL script is supposed to be called from within tksurfer, by the
# script called 'takeshots'.
# The environment variables that should be present are:
# - SUBJECTS_DIR: regular FS variable.
# - SUBJECT_NAME: name of the current subject.
# - SURF: surface to be loaded, e.g. pial, white, inflated, etc.
# - PARC: parcellation scheme, e.g. aparc, a2005s, a2009s.
#
# _____________________________________
# Anderson M. Winkler
# Yale University / Institute of Living
# Feb/2010
# http://brainder.org

open_window

set lablpth "$env(SUBJECTS_DIR)/$env(SUBJECT_NAME)/label"
set outpth "$env(SUBJECTS_DIR)/$env(SUBJECT_NAME)/shots"

labl_import_annotation "$lablpth/$hemi.$env(PARC).annot"
redraw
UpdateAndRedraw

puts "Taking Snapshots..."

make_lateral_view
redraw
set tiff "$outpth/$env(SUBJECT_NAME)_${hemi}_$env(SURF)_$env(PARC)_lat.tif"
save_tiff $tiff

rotate_brain_x 90
redraw
set tiff "$outpth/$env(SUBJECT_NAME)_${hemi}_$env(SURF)_$env(PARC)_inf.tif"
save_tiff $tiff

rotate_brain_x 180
redraw
set tiff "$outpth/$env(SUBJECT_NAME)_${hemi}_$env(SURF)_$env(PARC)_sup.tif"
save_tiff $tiff

make_lateral_view
rotate_brain_y 180
redraw
set tiff "$outpth/$env(SUBJECT_NAME)_${hemi}_$env(SURF)_$env(PARC)_med.tif"
save_tiff $tiff

exit

Create the last scripts.

vi ~/apps/QA/shots_tkmedit.tcl

Copy and paste.

for { set slice 0 } { $slice < 256 } { incr slice 5 } {
  SetSlice $slice
  RedrawScreen
  set imagepath "$env(SUBJECTS_DIR)/$env(SUBJECT_NAME)/shots/$env(SUBJECT_NAME)_volume_${slice}.tif"
  SaveTIFF $imagepath
}

exit

Now you are ready to run takeshots which will allow you to quickly inspect FreeSurfer aseg, white matter, and cortical surfaces:

# Make output directory
mkdir -p /Volumes/bobo/data/ACAP/mindboggle/freesurfer_subjects/shots

# Set FreeSurfer subjects directory
export SUBJECTS_DIR=/Volumes/bobo/data/ACAP/mindboggle/freesurfer_subjects/

# Change into subjects directory
cd $SUBJECTS_DIR

# Get name of all subjects in FreeSurfer directory
find . -maxdepth 1 -name "sub-ACAP*" | sed 's|^./||' > subjects.txt

# Run program that will grab screenshots of results
~/apps/QA/takeshots \
-l subjects.txt \
-m pial -m inflated -p aparc -v 1

Next create a montage image of the screenshots:

# Set FreeSurfer subjects directory if you haven't already
export SUBJECTS_DIR=/Volumes/bobo/data/ACAP/mindboggle/freesurfer_subjects/

# Change into subjects directory
cd $SUBJECTS_DIR

# Set output directory that you created above
OUTPUT_DIR=/Volumes/bobo/data/ACAP/mindboggle/freesurfer_subjects/shots

# Loop through subjects and combine the screenshots into a single montage image
for i in `cat subjects.txt`; do
    cd $SUBJECTS_DIR/$i/shots

    # Inflated Surface
    montage ${i}_[lr]h_inflated* -tile 1x4  -geometry 800x800+1+1 miff:- |\
    convert - +append ${OUTPUT_DIR}/${i}_inflated.png

    # Pial Surface
    montage ${i}_[lr]h_pial* -tile 1x4  -geometry 800x800+1+1 miff:- |\
    convert - +append ${OUTPUT_DIR}/${i}_pial.png

    # Tissue
    montage ${i}_volume_{20..195..5}.tif -tile 6x1 -geometry 800x800+1+1 miff:- |\
    convert - -append ${OUTPUT_DIR}/${i}_wm.png

done

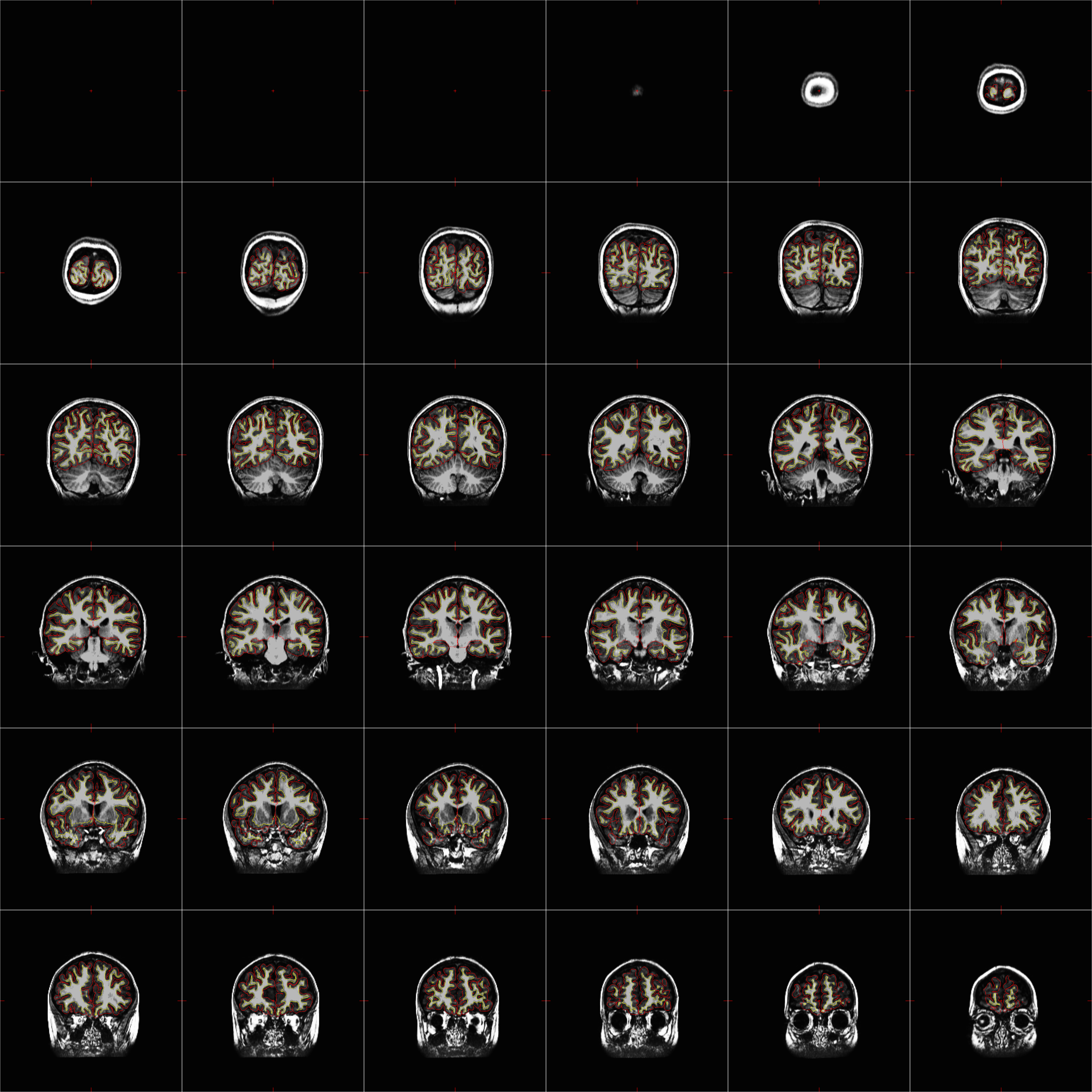

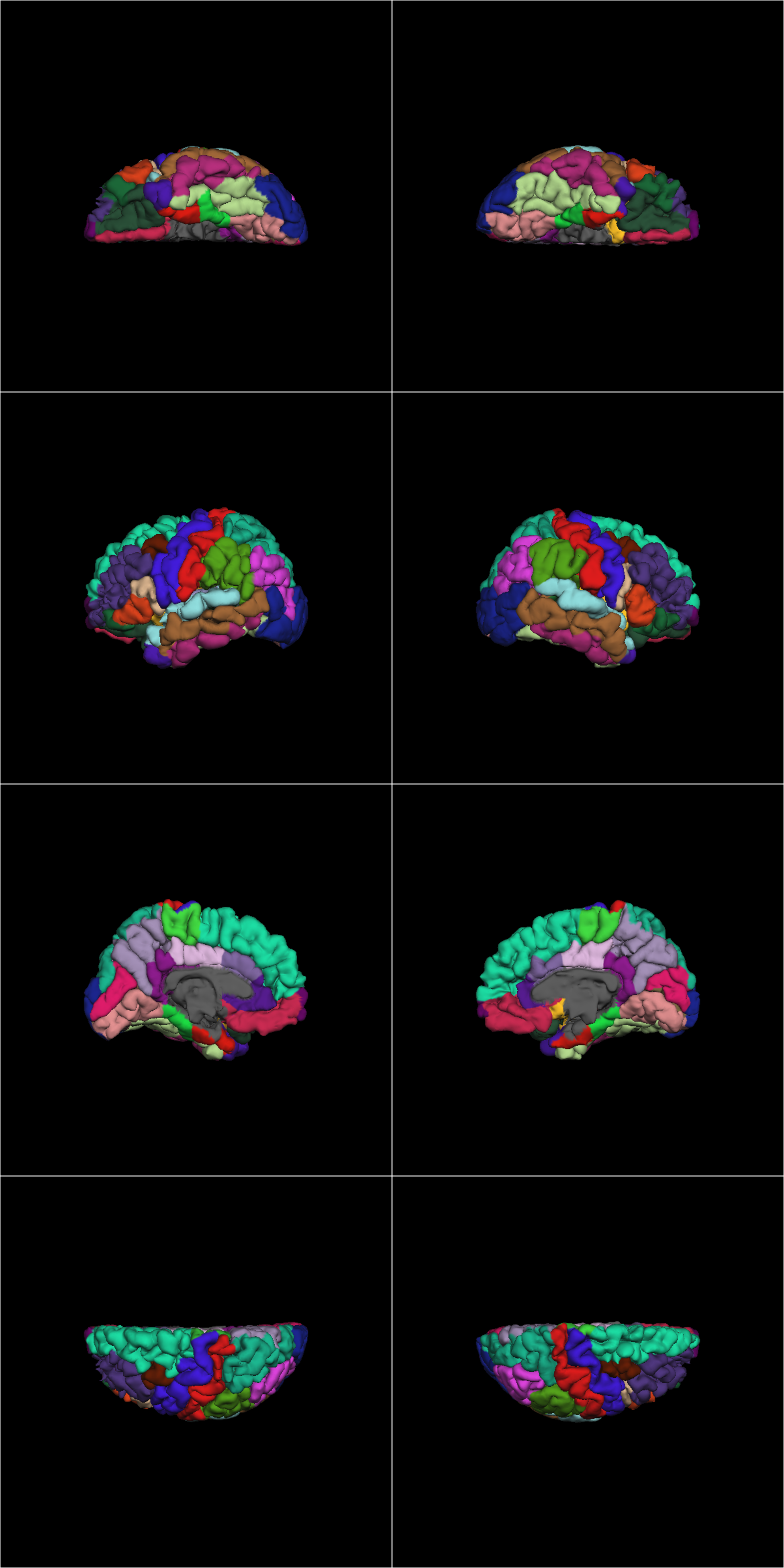

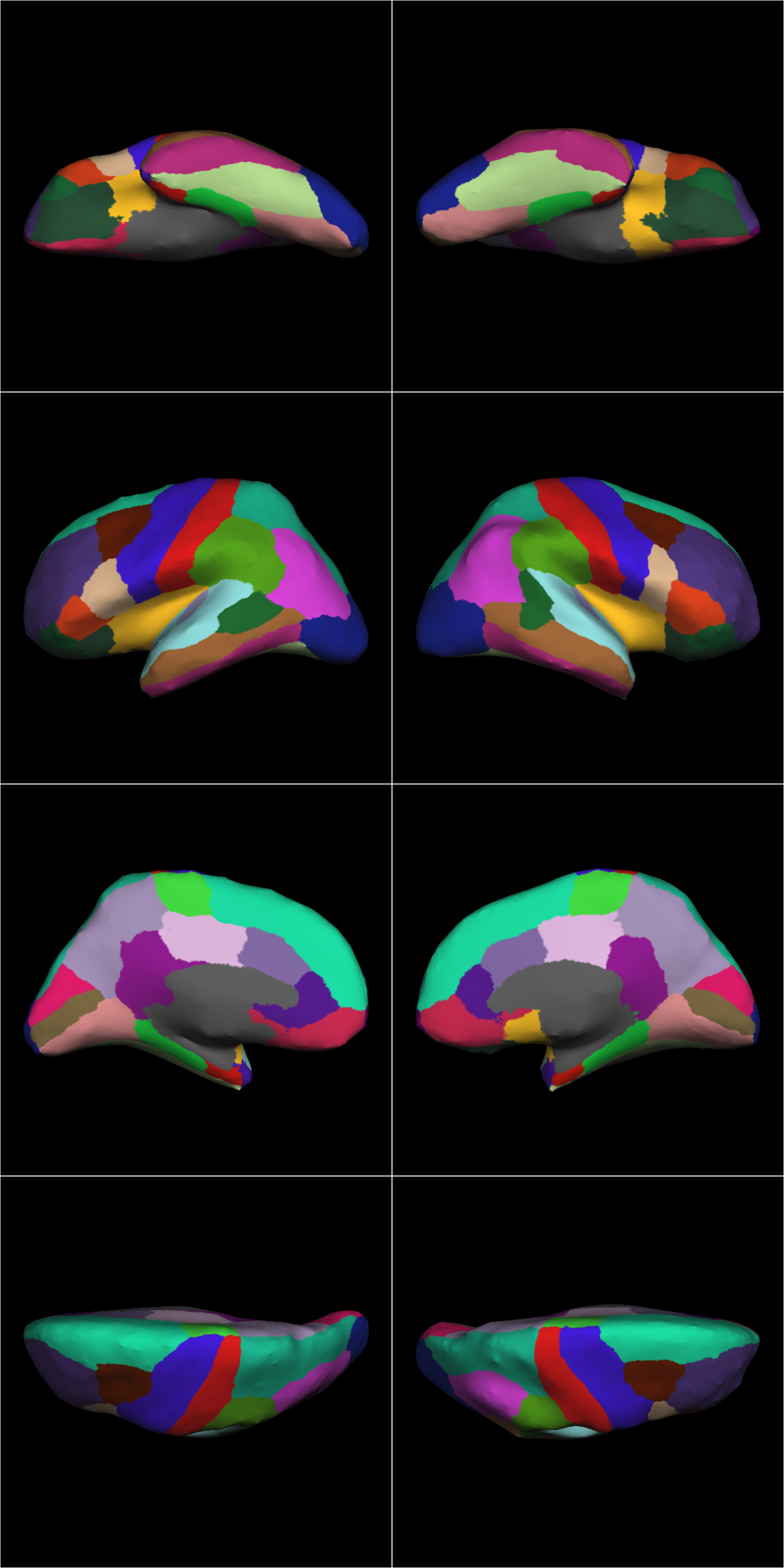

You can review the images afterwards. The montage images are located at /Volumes/bobo/data/ACAP/mindboggle/freesurfer_subjects/shots

The images should look like these:

sub-ACAP1001_ses-BL_inflated

sub-ACAP1001_ses-BL_inflated

sub-ACAP1001_ses-BL_pial

sub-ACAP1001_ses-BL_pial

sub-ACAP1001_ses-BL_wm

sub-ACAP1001_ses-BL_wm

8.7 Generate Tables

If there are any participants that completely fail FreeSurfer, you can remove those directory under /Volumes/bobo/data/ACAP/mindboggle/freesurfer_subjects/ and make sure to remove their name from /Volumes/bobo/data/ACAP/mindboggle/freesurfer_subjects/subjects.txt. Otherwise, any subjects in this diretory will have their data generated and placed into the output tables.

mkdir -p /Volumes/bobo/data/ACAP/mindboggle/freesurfer_subjects/tablefiles

8.7.1 Cortical Parcellation

Converts a cortical stats file created by recon-all and ormris_anatomical_stats (eg, ?h.aparc.stats) into a table in which each line is a subject and each column is a parcellation. The first row is a list of the parcellation names. The first column is the subject name. By default, it looks for the ?h.aparc.stats file based on the Killiany/Desikan parcellation atlas. For more information visit https://surfer.nmr.mgh.harvard.edu/fswiki/aparcstats2table.

8.7.1.1 Area in mm2

SUBJECTS_DIR=/Volumes/bobo/data/ACAP/mindboggle/freesurfer_subjects/
cd ${SUBJECTS_DIR}
for i in lh rh; do
  aparcstats2table \
  --subjectsfile subjects.txt \
  --hemi $i \
  --meas area \
  --skip \
  --delimiter comma \
  --tablefile tablefiles/aparc-area-${i}-stats.csv
done

8.7.1.2 Cortical Thickness

SUBJECTS_DIR=/Volumes/bobo/data/ACAP/mindboggle/freesurfer_subjects/
cd ${SUBJECTS_DIR}
for i in lh rh; do
  aparcstats2table \
  --subjectsfile subjects.txt \
  --hemi $i \
  --meas thickness \
  --skip \
  --delimiter comma \
  --tablefile tablefiles/aparc-thickness-${i}-stats.csv
done

8.7.1.3 Mean Curvature

SUBJECTS_DIR=/Volumes/bobo/data/ACAP/mindboggle/freesurfer_subjects/
cd ${SUBJECTS_DIR}
for i in lh rh; do
  aparcstats2table \
  --subjectsfile subjects.txt \
  --hemi $i \
  --meas meancurv \
  --skip \
  --delimiter comma \
  --tablefile tablefiles/aparc-meancurv-${i}-stats.csv
done

8.7.2 Subcortical Segmentation

This script will generate text/ascii tables of freesurfer aseg stats data, aseg.stats. This can then be easily imported into a spreadsheet and/or stats program. For more information visit https://surfer.nmr.mgh.harvard.edu/fswiki/asegstats2table.

8.7.2.1 Volume in mm3

The hippocampus and amygdala volumes in this file are WRONG. Please verify the ROIs of any other subcortical region before using as these segmentations are often inaccurate. Refer to the seperate hippocampus / amygdala, brainstem, and thalamus pipelines.

SUBJECTS_DIR=/Volumes/bobo/data/ACAP/mindboggle/freesurfer_subjects/
cd ${SUBJECTS_DIR}
asegstats2table \
--subjectsfile subjects.txt \
--meas volume \
--skip \
--delimiter comma \
--tablefile tablefiles/aseg-volume-stats.csv
