Chapter 2 R plot gallery

Multiple 95% Confidence Intervals

set.seed(123)

data.frame(value = rnorm(12, mean = 0, sd = 0.05)) %>%
  mutate(lower = value - runif(12, 0, 0.4),
         upper = value + runif(12, 0, 0.4),
         REG = rep(c("A", "B", "C", "D"), 3),
         est = mean(value),
         index = rep(1:3, each = 4)) %>%
  ggplot(aes(x = lower, xend = upper,
             y = index + rep((0:(length(unique(REG))-1))/10, 3),
             yend = index + rep((0:(length(unique(REG))-1))/10, 3),
             color = REG)) +
  geom_segment(lwd = 1, alpha = 0.5) +
  scale_color_brewer(palette = "Set1") +
  labs(y = "", x = "Reduction Rate") +
  scale_y_continuous(breaks = 1:3,
                     labels = c("method 1", "method 2", "method 3")) +
  geom_segment(aes(x = est, xend = est,
                   y = index - 0.1,
                   yend = index + (length(unique(REG)))/10)) +
  geom_point(aes(x = value,
                 y = index + rep((0:(length(unique(REG))-1))/10,  3))) +
  theme_bw() +
  ggtitle("Reduction Rate of Treatment Compared With Placebo") +
  theme(plot.title = element_text(hjust = 0.5),
        text= element_text(size = 15))

Line Chart

tmp <- data.frame(time = rep(2001:2020, 3),
                  type = rep(c("Corn", "Soybean", "Rice"), each = 20),
                  value = c(cumsum(runif(20)),
                            (1:20)/5 + cumsum(runif(20)),
                            (1:20)/2 + cumsum(runif(20))))

ggplot(data = tmp, aes(y = value, x = time, group = type,  shape = type, linetype = type)) +
  geom_point()+
  geom_line()+
  xlab("Year") + ylab("Price")+
  theme_bw() +
  labs(group = "type")+
  theme(legend.title=element_blank(),legend.position="right") +
  geom_vline(aes(xintercept = 2016), color = "red", linetype = "dashed")

Example 2

dat <- data.frame(year = rep(2001:2021, 4),
                  profit = rnorm(84, sd = 50) + c((1:21) * 5, (1:21) * 10, (1:21) * 15, (1:21) * 20),
                  crop = rep(c("corn", "rice", "soybean", "wheat"), each = 21),
                  impute = sample(c(TRUE, FALSE), size = 84, replace = T, prob = c(0.1, 0.9)))

ggplot(data = dat, aes(y = profit, x = year, group = crop)) +
  geom_point(aes(color = interaction(crop, impute, sep = "_"), shape = impute), size = 2.5) +
  geom_line(aes(color = crop), size = 1) +
  xlab("Year") + ylab("Expected Profit") +
  labs(group = "crop") +
  theme(axis.text.x = element_text(angle = 45, hjust = 1)) +
  theme(legend.title = element_blank(), legend.position = "right") +
  scale_shape_discrete(name = "", labels = c("Corn","Rice","Soybean", "Wheat")) +
  geom_vline(aes(xintercept = 2016), color = "red", linetype = "dashed") +
  geom_hline(aes(yintercept = 0), color = "grey") +
  scale_x_continuous(breaks = seq(2000, 2022, 5)) +
  scale_y_continuous(breaks = seq(-300, 1000, 200)) +
  scale_color_manual(name = "",
                     values = c("corn_FALSE" = "#E69F00", "corn_TRUE" = "black",
                                "rice_FALSE" = "#56B4E9", "rice_TRUE" = "black",
                                "soybean_FALSE" = "#009E73", "soybean_TRUE" = "black",
                                "wheat_FALSE" = "purple", "wheat_TRUE" = "black",
                                "corn" = "#E69F00",
                                "rice" = "#56B4E9",
                                "soybean" = "#009E73",
                                "wheat" = "purple"),
                     labels = c("Corn", "Rice", "Soybean", "Wheat"),
                     breaks = c("corn_FALSE", "rice_FALSE", "soybean_FALSE", "wheat_FALSE")) +
  guides(shape = 'none', # remove the shape legend
         color = guide_legend(override.aes = list(
           color = c("#E69F00", "#56B4E9", "#009E73", "purple"),
           size = 1,
           label = c("Corn", "Rice", "Soybean", "Wheat")
         ))) +
  theme_bw()

Boxplot with Regression Result

d <- Sleuth3::case1402 %>%
  pivot_longer(Forrest:William, names_to = "variety", values_to = "yield")

ggplot(d, aes(x = O3, y = yield, group = O3)) + geom_boxplot() +
  geom_point() +
  geom_smooth(method = lm, aes(group=1)) +
  scale_x_continuous(breaks = c(0, unique(d$O3))) +
  ggtitle("Yield vs O3") + xlab("O3") + ylab("") +
  theme(axis.text.y=element_blank(),
        axis.ticks.y=element_blank())

Pirate Plot

require(yarrr)

yarrr::pirateplot(weight ~ Diet,
           data = ChickWeight,
           main = "Pirate plot",
           inf.method = "ci",
           theme = 2,   # change theme, from 1 to 4
           pal = "decision", # use piratepal(palette = "all") to check available palettes
           bar.f.o = 0.2)

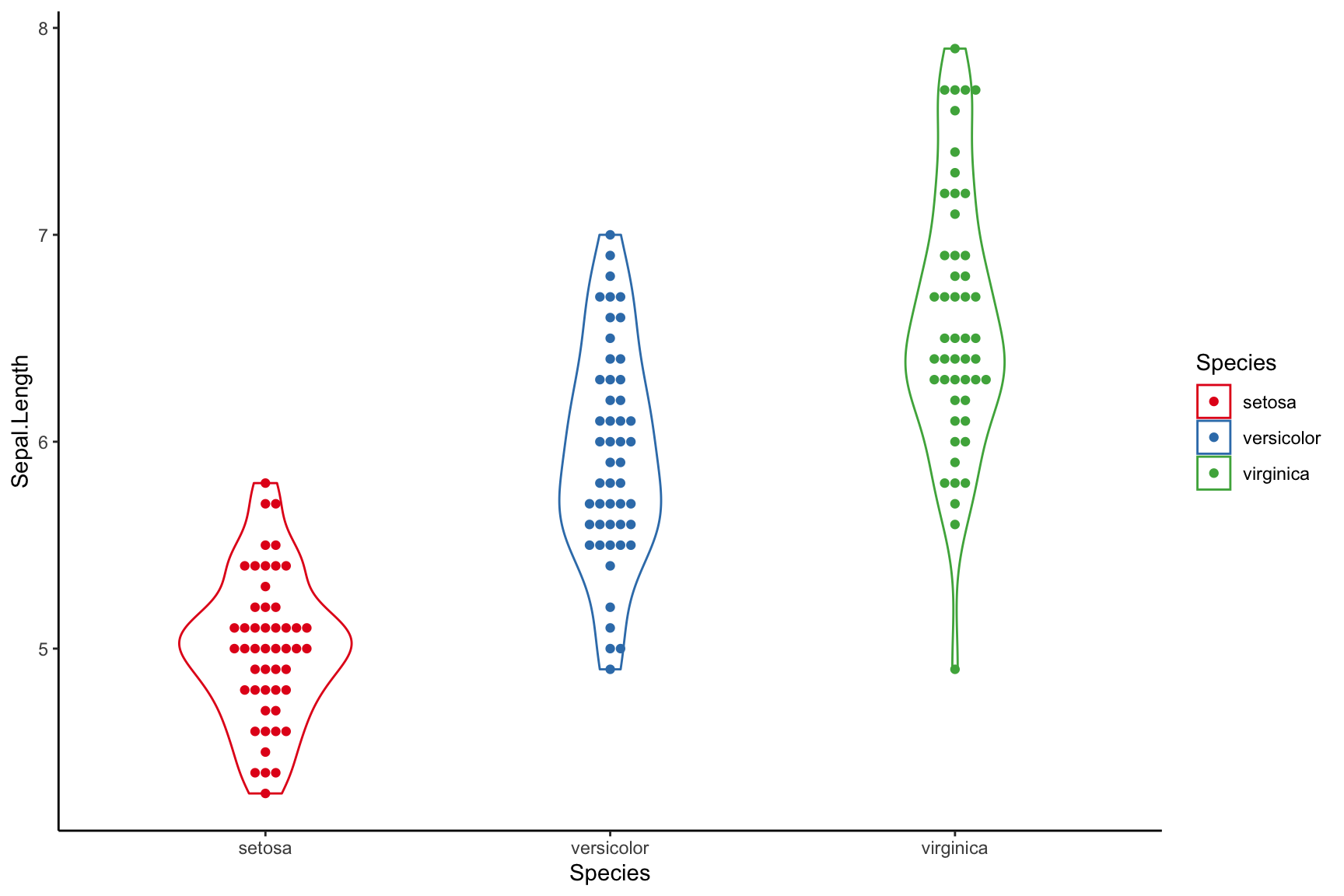

Beeswarm plot

require(ggbeeswarm)

ggplot(iris, aes(Species, Sepal.Length, colour = Species)) +
  geom_violin(width = 0.5) +
  geom_beeswarm() +
  theme_classic() +
  scale_color_brewer(palette = "Set1")

Bar Plot

dat2 <- data.frame(
  categ = rep(c("Roads", "Canals", "Early railways", "Railways"), each = 3) %>% forcats::fct_inorder(),
  group =  rep(c("Maximum", "Mean", "Minimum"), 4),
  fill = as.character(c(1,1,1,1,1,1, 2, 1, 3, 1,1,1)),
  pattern = c(rep("N", 6), "D", rep("N", 5)),
  record = c(NA, 5, NA, 11.5, 3.77, 1.4, 14.3, 6, 2.3, NA, 1.4, NA)
)


dat2 %>% dplyr::filter(is.na(record) == FALSE) %>%
ggplot() +
  geom_bar_pattern(aes(x = categ, y = record, fill = fill, group = group, pattern = pattern),
                   width=0.4, position = position_dodge2(width=0.5, preserve = "single"),
                   color = "black",
                   stat = "identity",
                  pattern_density = 1.0,
                  pattern_fill = 'grey',
                  pattern_key_scale_factor = 0.5) +
  scale_fill_manual(values = c("#1B4264","#D3CEC7","#5A6065"),
                    labels = c("Mean", "Maximum", "Minimum")) +
  scale_pattern_manual(values = c(D = "stripe", N = "none"), guide = "none") +
  guides(fill = guide_legend(override.aes = list(pattern = "none"),
                             title = NULL)) +
  scale_y_continuous(breaks = c(0, 2, 4, 6, 8, 10, 12, 14)) +
  labs(x = NULL, y = "Pence") +
  theme_bw() +
  theme(text = element_text(size = 15), axis.text.y = element_text(angle = 30, hjust = 1))

getrank <- function(data)
{
  group <- nrow(data)/4
  rankvalue <- NULL
  for(i in 1:group)
  {
    rankvalue <- c(rankvalue, rank(ifelse(data$stat[i*4] %in% c("n_over", "risk"), 1, -1) *
                                     data$value[((i-1)*4+1):(i*4)], ties.method = "min"))
  }
  data$rank <- as.character(rankvalue)
  return(data)
}

data.frame(curve = rep(1:4, each = 4),
           design = rep(paste("D", 1:4, sep = ""), 4),
           correct = runif(16, max = 100),
           OBD = runif(16, max = 100),
           noOBD = runif(16, max = 100),
           risk = runif(16, max = 100)) %>%
  gather(key = "stat", value = "value", -curve, -design) %>%
  getrank() %>%
  mutate_if(is.numeric, ~round(., 1)) %>%
  mutate(ifbest = as.character(rank == "1")) %>%
  ggplot(aes(x = curve, y = value, fill = design, pattern = ifbest)) +
  geom_bar_pattern(
                   width=0.75, position = position_dodge2(width=0.7, preserve = "single"),
                   color = "black",
                   stat = "identity",
                   pattern_fill = NA,
                  pattern_density = 1.0,
                  pattern_key_scale_factor = 0.5) +
  scale_fill_manual(values = c("#EC8F76","#37BAEB", "#A2E265","#E8EC76" ),
                    labels = c("D1", "D2", "D3", "D4")) +
  scale_pattern_manual(values = c("TRUE" = "stripe", "FALSE" = "none"), guide = "none") +
   guides(fill = guide_legend(override.aes = list(pattern = "none"),
                             title = NULL)) +
  facet_wrap(~factor(stat, levels = c("OBD", "noOBD", "correct", "risk")),
             nrow = 2, scales = "free") +
  geom_text(aes(label=value), position=position_dodge(width=0.7), vjust=-0.25, size = 3) +
  theme_bw()

conser <- data.frame(type = rep(c("A", "B", "C", "D"), each = 3),
                     ratio = c(0.1, 0.2, 0.7,
                               0.2, 0.3, 0.5,
                               0.3, 0.1, 0.6,
                               0.5, 0.2, 0.3),
                     answer = rep(c("a", "b", "c"), 4))
conser %>%
  ggplot( aes(x = type, y = ratio, fill = answer)) +
  geom_col(color = "black", size = 0.2)+
  theme_bw()+
  xlab("") +
  ylab("Percent (%)") +
  theme(legend.title=element_blank(),legend.position="bottom") +
  scale_fill_manual(values = c("#AED6F1", "#3498DB","#21618C"), labels = c("Not Used", "Not sure", "Used"))+
  scale_x_discrete(labels = function(x) stringr::str_wrap(x, width = 10))+
  theme(axis.text.x = element_text(size = 11))

Multi-row x-axis labels

set.seed(1)
df=data.frame(year=rep(2009:2013,each=4),
              quarter=rep(c("Q1","Q2","Q3","Q4"),5),
              sales=40:59+rnorm(20,sd=5))

ggplot(data = df, aes(x = interaction(year, quarter, lex.order = TRUE),
                      y = sales, group = 1)) +
  geom_line(colour = "blue") +
  annotate(geom = "text", x = seq_len(nrow(df)), y = 34, label = df$quarter, size = 4) +
  annotate(geom = "text", x = 2.5 + 4 * (0:4), y = 32, label = unique(df$year), size = 6) +
  coord_cartesian(ylim = c(35, 65), expand = FALSE, clip = "off") +
  theme_bw() +
  theme(plot.margin = unit(c(1, 1, 4, 1), "lines"),
        axis.title.x = element_blank(),
        axis.text.x = element_blank(),
        panel.grid.major.x = element_blank(),
        panel.grid.minor.x = element_blank())

ggplot(mtcars, aes(wt, mpg)) +
  geom_point() +
  labs(x = paste0("<span style='font-size: 11pt'>This is the axis of</span><br>
                  <span style='font-size: 7pt'>wt</span>"),
       y = paste0("<span style='font-size: 11pt'>This is the axis of</span><br>
                  <span style='font-size: 7pt'>mpg</span>")) +
  theme(axis.title.x = ggtext::element_markdown(),
        axis.title.y = ggtext::element_markdown())

Calendar

require(sugrrants)
require(lubridate)

data.frame(date = lubridate::ymd(strtrim(seq(ISOdate(2017,10,1), ISOdate(2018,2,28), "DSTday"),10)),
           # or as.Date("2017-10-1") + 0:150
           n = sample(1:100, size = 151, replace = T)) %>%
  sugrrants::frame_calendar(x = 1, y = 1, date = date) %>%
  ggplot(aes(x = .x, y = .y)) +
  ggtitle("Daily sold units") +
  theme_bw() +
  theme(legend.position = "bottom",
        plot.title = element_text(hjust = 0.5)) +
  geom_tile(aes(x = .x+(1/13)/2, y = .y+(1/9)/2, fill = n), colour = "grey50") +
  scale_fill_distiller(name = "", palette = "RdYlBu") -> p2.sale
  sugrrants::prettify(p2.sale, label = c("label", "text", "text2")) # label: month and year; text: weekday at the bottom; text2: day of month

Correlation Plot

Example 1:

require(corrplot)

cor(mtcars) %>%
  corrplot::corrplot(., type = "upper", order = "hclust")

Example 2:

library(ggcorrplot)
library(patchwork)

mydata <- ggplot2::diamonds[, c(1, 5:10)]
my_corr <- cor(mydata)

ggcorrplot(my_corr,
           method = "square",
           type = "lower",
           ggtheme = theme_minimal(),
           show.legend = TRUE,
           legend.title = "Correlation coefficients",
           show.diag = TRUE, # 是否显示对角线相关系数
           colors = c("darkblue", "white", "#C44E52"), # 相关系数中低高所对应颜色
           outline.color = "grey50",
           hc.order = FALSE,
           lab = T, # 是显示相关系数
           lab_col = "black", # 相关系数的颜色
           lab_size = 4,# 系数大小
           tl.cex = 12, # 修饰变量名
           tl.srt = 30, # 变量名旋转角度
           digits = 3, # 小数点展示几位
           title = "Correlation Matrix of Diomonds Dataset") +
  theme(legend.position = c(0.3, 0.75),
        panel.grid = element_blank())

Survival Analysis

library(survival)
library(survminer)

surv_model <- survfit(Surv(time, status) ~ sex, data = lung)
p1 <- ggsurvplot(surv_model, data = lung,
           conf.int = TRUE, # 添加置信区间
           pval = TRUE, # 添加p值 (can customize pval)
           fun = "pct", # 将y轴转变为百分比的格式
           size = 1, # 修饰线条的粗细
           linetype = "strata", # 改变两条线条的类型
           palette = c("lightseagreen", "goldenrod1"), # 改变两条曲线的颜色
           legend = c(0.8, 0.85), # 改变legend的位置
           legend.title = "Gender", # 改变legend的题目
           legend.labs = c("Male", "Female"), # 改变legend的标签
           risk.table = TRUE,    # add risk table
           tables.height = 0.2,
           tables.theme = theme_cleantable(),
           surv.median.line = "hv",
           ggtheme = theme_bw())

p1$plot <- p1$plot + annotate("text", x = 750, y = 70, # 注明x和y轴的位置
           label = "Chisq = 10.3 on 1 degrees of freedom") # 添加文本信息
p1

library(ggsurvfit)
mymodel <- survfit2(Surv(time, status) ~ surg, data = df_colon)

ggsurvfit(mymodel) +
  add_confidence_interval() + # 添加置信区间
  scale_color_manual(values = c('#54738E', '#82AC7C')) + # 修改颜色
  scale_fill_manual(values = c('#54738E', '#82AC7C')) + # 修改颜色
  add_risktable() + # 添加风险表格
  theme_minimal() +
  theme(legend.position = "bottom")

cox_model <- coxph(Surv(time, status) ~ sex + ph.ecog, data = lung)
ggforest(cox_model)

Table Visualization

require(formattable)
require(DT)

df <-
  data.frame(id = 1:10,
             name = c("Bob", "Ashley", "James", "David", "Jenny",
                      "Hans", "Leo", "John", "Emily", "Lee"),
             age = c(28, 27, 30, 28, 29, 29, 27, 27, 31, 30),
             grade = c("C", "A", "A", "C", "B", "B", "B", "A", "C", "C"),
             test1_score = c(8.9, 9.5, 9.6, 8.9, 9.1, 9.3, 9.3, 9.9, 8.5, 8.6),
             test2_score = c(9.1, 9.1, 9.2, 9.1, 8.9, 8.5, 9.2, 9.3, 9.1, 8.8),
             final_score = c(9, 9.3, 9.4, 9, 9, 8.9, 9.25, 9.6, 8.8, 8.7),
             registered = c(TRUE, FALSE, TRUE, FALSE, TRUE, TRUE, TRUE, FALSE, FALSE, FALSE),
             stringsAsFactors = FALSE)

formattable(df,
            list(age = color_tile("white", "orange"),
                 grade = formatter("span",
                                   style = x ~ ifelse(x == "A", style(color = "green", font.weight = "bold"), NA) ),
                 area(col = c(test1_score, test2_score)) ~ normalize_bar("pink", 0.4),
                 final_score = formatter("span",  style = x ~ style(color = ifelse(rank(-x) <= 3, "green", "gray")),
                                         x ~ sprintf("%.2f (rank: %02d)", x, rank(-x))),
                 registered = formatter("span", style = x ~ style(color = ifelse(x, "green", "red")),
                                        x ~ icontext(ifelse(x, "ok", "remove"), ifelse(x, "Yes","No")))
                 )
            )

id	name	age	grade	test1_score	test2_score	final_score	registered
1	Bob	28	C	8.9	9.1	9.00 (rank: 06)	Yes
2	Ashley	27	A	9.5	9.1	9.30 (rank: 03)	No
3	James	30	A	9.6	9.2	9.40 (rank: 02)	Yes
4	David	28	C	8.9	9.1	9.00 (rank: 06)	No
5	Jenny	29	B	9.1	8.9	9.00 (rank: 06)	Yes
6	Hans	29	B	9.3	8.5	8.90 (rank: 08)	Yes
7	Leo	27	B	9.3	9.2	9.25 (rank: 04)	Yes
8	John	27	A	9.9	9.3	9.60 (rank: 01)	No
9	Emily	31	C	8.5	9.1	8.80 (rank: 09)	No
10	Lee	30	C	8.6	8.8	8.70 (rank: 10)	No

Heatmap

ggplot(airquality, aes(Day, Month, fill = Temp)) +
  geom_tile() +
  scale_x_continuous(breaks = seq(1:31)) +
  theme_bw() +
  scale_fill_viridis_c(option = "A")

# Example 2
set.seed(1234)
mydata <- matrix(rnorm(5*10), ncol = 10)
colnames(mydata) <- letters[1:10]
heatmap(mydata,
        # Colv = NA, # Rowv = NA,   # hide the clustering
        main = "heatmap", col = cm.colors(256))

Compare Two Group Means

require(dabestr)

mydata <- iris[iris$Species %in% c("setosa", "versicolor"), ] %>%
  mutate(Class = ifelse(Sepal.Length > 5.5, "Long", "Short"))

mytest <- dabest(mydata, Species, Petal.Width,    # Compare Petal.Width for Species
                 idx = c("setosa", "versicolor"), # setosa is the control group
                 paired = FALSE)

mymean_diff <- mean_diff(mytest)

plot(mymean_diff, color.column = Class)

Add p-value

ggplot(iris, aes(Species, Sepal.Length)) +
  geom_boxplot() +
  ggsignif::geom_signif(comparisons = list(c(1, 2)), # group 1 vs group 2
              y_position = 8,
              tip_length = 0) +
  ggsignif::geom_signif(comparisons = list(c(1, 3)),
              y_position = 8.6,
              tip_length = 0) +
  ggsignif::geom_signif(comparisons = list(c(2, 3)),
              y_position = 8.3,
              tip_length = 0)

Missing Data in Time Series

Soure link

library(imputeTS)
ggplot_na_distribution(tsAirgap)

data_imputation <- na_interpolation(tsAirgap, option = "linear")
# linear interpolation; we can also try spline, stine
ggplot_na_imputations(tsAirgap, data_imputation, tsAirgapComplete)

Sankey Diagram

library(networkD3)
library(htmlwidgets)

# Create a data frame for the nodes
nodes <- data.frame(name = c("Stage 1", "Stage 2", "Stage 3",
                             "Stage 1", "Stage 2", "Stage 3"))

# Create a data frame for the links (the transition matrix)
links1 <- data.frame(source = c(0, 0, 0, 1, 1, 1, 2, 2, 2),
                    target = c(3, 4, 5, 3, 4, 5, 3, 4, 5),
                    value = c(0.650, 0.305, 0.045, 0.228, 0.601, 0.170, 0.054, 0.132, 0.814),
                    color = factor(c(3, 4, 5, 3, 4, 5, 3, 4, 5)))

# Generate the Sankey diagram
sankey1 <- sankeyNetwork(Links = links1, Nodes = nodes, Source = "source",
                        Target = "target", Value = "value", NodeID = "name",
                        LinkGroup = "color", units = "TWh", width = 600, height = 400)

# Customize node (stage) font size and node colors
sankey1_fig <- htmlwidgets::onRender(
  sankey1,
  '
  function(el) {
    // Customize font size
    d3.select(el).selectAll(".node text").style("font-size", "20px");

    // Customize node colors
    d3.select(el).selectAll(".node").filter(function (d) { return d.name == "Not used & No plan to use"; }).select("rect").style("fill", "#F74D31");
    d3.select(el).selectAll(".node").filter(function (d) { return d.name == "Not used & Might use it"; }).select("rect").style("fill", "#F5ED21");
    d3.select(el).selectAll(".node").filter(function (d) { return d.name == "Used the practice"; }).select("rect").style("fill", "#78F521");

    // Customize link colors
    var colors = ["#78F521", "#F74D31", "#F5ED21", "#F5ED21", "#F74D31", "#78F521", "#F5ED21", "#F74D31", "#78F521"];
    d3.select(el).selectAll(".link").style("stroke", function(d, i) { return colors[i]; });
  }
  '
)

sankey1_fig

State Map with Fill-in Color

Example 1

library(usmap)
library(sf)

d <- us_map("counties") %>% dplyr::filter(abbr == "IA")
d$county <- substr(d$county, 1, nchar(d$county) - 7)   # remove string " county"
d$group <- d$county
d <- d %>% arrange(group)

database <- data.frame(county = d$county %>% unique(),
                       erosion = rbeta(99, 2, 4) * 14) %>%
  mutate(erolv = cut(erosion, breaks = c(0, 0.5, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5:13, 100),
                     labels = c(paste0("C", 1:19))))

# color code
colorvalues <- c("C1" = "#83858c", "C2" = "#6d7985", "C3" = "#62807c", "C4" = "#4b734c",
                 "C5" = "#4a734c", "C6" = "#667c3e", "C7" = "#748036", "C8" = "#5f7824",
                 "C9" = "#978e24", "C10"= "#977f17", "C11"= "#90651b", "C12"= "#8a4c1b",
                 "C13"= "#82341a", "C14"= "#781e1a", "C15"= "#571528", "C16"= "#3a132b",
                 "C17"= "#2e1739", "C18"= "#1a0b1d", "C19"= "#110a16")
# polygon
USS <- lapply(split(d, d$county), function(x) {
  if(length(table(x$piece)) == 1)
  {
    st_polygon(list(cbind(x$x, x$y)))
  }
  else
  {
    st_multipolygon(list(lapply(split(x, x$piece), function(y) cbind(y$x, y$y))))
  }
})

tmp  <- st_sfc(USS, crs = usmap_crs()@projargs)
tmp  <- st_sf(data.frame(database, geometry = tmp))
tmp$centroids <- st_centroid(tmp$geometry)

ggplot() + geom_sf(data = tmp) +
  geom_sf(aes(fill = erolv), color = "white",  data = tmp) +
  geom_sf_text(aes(label = county, geometry = centroids), colour = "black", size = 3.5, data = tmp) +
    scale_fill_manual(values = colorvalues,
                    labels = c("[0, 0.5)", "[0.5, 1)", "[1, 1.5)", "[1.5, 2)", "[2, 2.5)",
                               "[2.5, 3)", "[3, 3.5)", "[3.5, 4)", "[4, 4.5)", "[4.5, 5)",
                               "[5, 6)", "[6,7)", "[7, 8)", "[8, 9)", "[9, 10)", "[10, 11)",
                               "[11, 12)", "[12, 13)", ">= 13")) +    # change legend names and colors
  ggtitle("Iowa") +
  guides(fill = guide_legend(title = NULL)) +   # remove legend title
  theme_void() + theme(plot.title = element_text(hjust = 0.5))

Example 2 (Add extra polygons)

library(usmap)
library(sf)
huc8 <- readRDS("data/huc8.rds")

d <- us_map("counties") %>% dplyr::filter(abbr == "IA")
d$county <- substr(d$county, 1, nchar(d$county) - 7)   # remove string " county"
d$group <- d$county
d <- d %>% arrange(group)

set.seed(123)
database <- data.frame(county = d$county %>% unique(),
                       countyid = 1:99,
                       num = 0)

for(i in 1:99)
{
  database$num[i] <- sample(c(0, round(100 * rbeta(1, 2, 10))), 1)
}

database <- database %>%
  mutate(numrange = cut(num, breaks = c(-1, 1, 3, 10, 20, 300),
                     labels = c(paste0("C", 1:5))))

colorvalues <- c("C1" = "#FFFFFF", "C2" = "#e7f9e0", "C3" = "#d0f3c1",
                 "C4" = "#a1e784", "C5" = "#5bd629")

# polygon
USS <- lapply(split(d, d$county), function(x) {
  if(length(table(x$piece)) == 1)
  {
    st_polygon(list(cbind(x$x, x$y)))
  }
  else
  {
    st_multipolygon(list(lapply(split(x, x$piece), function(y) cbind(y$x, y$y))))
  }
})

tmp  <- st_sfc(USS, crs = usmap_crs()@projargs)
tmp  <- st_sf(data.frame(database, geometry = tmp))
tmp$centroids <- st_centroid(tmp$geometry)


huc8$centroids <- st_centroid(huc8$geometry)

ggplot() + geom_sf(data = tmp, aes(fill = numrange), color = "grey") +
  geom_sf(data = huc8, color = "#1660CF", fill = "#FFFFFF00") +
  geom_sf_text(aes(label = SUBBASIN, geometry = centroids), colour = "#0563F0",
               size = 2.5, data = huc8, fontface = "bold") +
  scale_fill_manual(values = colorvalues,
                    labels = c("0", "1 ~ 3", "4 ~ 10", "11 ~ 20", ">20")) +
  guides(fill = guide_legend(title = "Count")) +
  theme_void() +
  theme(plot.title = element_text(hjust = 0.5), legend.position="bottom")

Example 3 (Polygon Clusters)

library(usmap)
library(sf)
library(survey)
data(api)
d <- us_map("counties") %>% dplyr::filter(abbr == "CA")
d$county <- substr(d$county, 1, nchar(d$county) - 7)
d$group <- d$county
# combine some counties together
d$group[d$county %in% c("Del Norte", "Trinity")] <- "Humboldt"
d$group[d$county %in% c("Siskiyou", "Modoc", "Lassen")] <- "Shasta"
d$group[d$county %in% c("Lake")] <- "Mendocino"
d$group[d$county %in% c("Tehama", "Glenn", "Colusa", "Yuba", "Sierra", "Plumas")] <- "Butte"
d$group[d$county %in% c("Sutter", "Nevada")] <- "Placer"
d$group[d$county %in% c("Napa")] <- "Yolo"
d$group[d$county %in% c("Amador")] <- "Sacramento"
d$group[d$county %in% c("Calaveras")] <- "San Joaquin"
d$group[d$county %in% c("Tuolumne", "Alpine", "Mono", "Mariposa")] <- "Stanislaus"
d$group[d$county %in% c("Kings", "Madera")] <- "Fresno"
d$group[d$county %in% c("Inyo")] <- "San Bernardino"
d$group[d$county %in% c("San Benito")] <- "Monterey"


USS <- lapply(split(d, d$county), function(x) {
  if(length(table(x$piece)) == 1)
  {
    st_polygon(list(cbind(x$x, x$y)))
  }
  else
  {
    st_multipolygon(list(lapply(split(x, x$piece), function(y) cbind(y$x, y$y))))
  }
})

USSgroup <- list()
mygroup <- unique(d$group)
for(i in 1:length(mygroup))
{
  element <- d %>% dplyr::filter(group == mygroup[i]) %>% "$"(county) %>% unique()
  if(length(element) == 1)
  {
    USSgroup[[i]] <- USS[element][[1]]
  }
  else
  {
    tmp <- st_union(USS[element[1]][[1]], USS[element[2]][[1]])
    if(length(element) > 2)
    for(j in 3:length(element))
    {
      tmp <- st_union(tmp, USS[element[j]][[1]])
    }
    USSgroup[[i]] <- tmp
  }
}

names(USSgroup) <- mygroup

# school data:
data(api)
df <- apipop %>% group_by(cname) %>% summarise(num = n()) %>%
  add_row(., cname = "Alpine", num = 0) %>%
  arrange(cname) %>% "colnames<-"(c("county", "num"))

df$group <- df$county
df$group[df$county %in% c("Del Norte", "Trinity")] <- "Humboldt"
df$group[df$county %in% c("Siskiyou", "Modoc", "Lassen")] <- "Shasta"
df$group[df$county %in% c("Lake")] <- "Mendocino"
df$group[df$county %in% c("Tehama", "Glenn", "Colusa", "Yuba", "Sierra", "Plumas")] <- "Butte"
df$group[df$county %in% c("Sutter", "Nevada")] <- "Placer"
df$group[df$county %in% c("Napa")] <- "Yolo"
df$group[df$county %in% c("Amador")] <- "Sacramento"
df$group[df$county %in% c("Calaveras")] <- "San Joaquin"
df$group[df$county %in% c("Tuolumne", "Alpine", "Mono", "Mariposa")] <- "Stanislaus"
df$group[df$county %in% c("Kings", "Madera")] <- "Fresno"
df$group[df$county %in% c("Inyo")] <- "San Bernardino"
df$group[df$county %in% c("San Benito")] <- "Monterey"

dfgroup <- df %>% group_by(group) %>% summarise(num = sum(num))

CA  <- st_sfc(USS, crs = usmap_crs()@projargs)
CA  <- st_sf(data.frame(df, geometry = CA))
CA$centroids <- st_centroid(CA$geometry)

CAgroup  <- st_sfc(USSgroup, crs = usmap_crs()@projargs)
CAgroup <- st_sf(data.frame(dfgroup, geometry = CAgroup))
CAgroup$centroids <- st_centroid(CAgroup$geometry)

# show the number of schools in each county group
ggplot() + geom_sf(data = CA) +
  geom_sf(aes(fill = group, alpha = 0.4), color = "white",  data = CAgroup) +
  geom_sf_text(aes(label = num, geometry = centroids), colour = "black", size = 4.5, data = CAgroup) +
  # scale_fill_manual(values = c("#67b5e3",  "#ffada2","#1155b6",
  #                              "#ed4747", "#cccccc"), guide = guide_none()) +
  theme_void() + theme(legend.position='none')

Example 4 (Provide Legend with different patterns)

library(usmap)
library(sf)
library(ggpattern)
d <- us_map("counties") %>% dplyr::filter(abbr == "IA")
d$county <- substr(d$county, 1, nchar(d$county) - 7)
d$group <- d$county
d <- d %>% arrange(group)
set.seed(12345)
database <- data.frame(county = d$county %>% unique(),
                       Mul = rnorm(99, mean = 0, sd = 2))
database$Mul[database$Mul > 6] <- 6
database$Mul[database$Mul < -6] <- -6

database <- database %>%
  mutate(MulLv = cut(Mul, breaks = c(-6, -3, -2, -1.5, -1, -0.5, -0.1, 0.1, 0.5, 1, 1.5, 2, 3, 6),
                     labels = c(paste0("B", 6:1), "N", paste0("R", 1:6))))

colorvalues <- c(c("B6" = "#0000ff", "B5" = "#3737f1", "B4" = "#4a4aec",
                   "B3" = "#5c5ce7", "B2" = "#8181de", "B1" = "#a6a6d5",
                   "N" = "#FFFFFF"),
                 c("R6" = "#ff0000", "R5" = "#f13737", "R4" = "#ec4a4a",
                   "R3" = "#e75c5c", "R2" = "#de8181", "R1" = "#d5a6a6")[6:1])

USS <- lapply(split(d, d$county), function(x) {
  if(length(table(x$piece)) == 1)
  {
    st_polygon(list(cbind(x$x, x$y)))
  }
  else
  {
    st_multipolygon(list(lapply(split(x, x$piece), function(y) cbind(y$x, y$y))))
  }
})

tmp  <- st_sfc(USS, crs = usmap_crs()@projargs)
tmp  <- st_sf(data.frame(database, geometry = tmp))
tmp$centroids <- st_centroid(tmp$geometry)

g4 <- ggplot() + geom_sf(data = tmp) +
  geom_sf_pattern(aes(fill = MulLv, pattern = MulLv), color = "black",  data = tmp,
                  pattern_key_scale_factor = 0.5) +
  geom_sf_text(aes(label = county, geometry = centroids), colour = "black", size = 3, data = tmp) +
  scale_fill_manual(values = colorvalues,
                    labels = c(" >= 3", "[2, 3)", "[1.5, 2)", "[1, 1.5)", "[0.5, 1)", "[0.1, 0.5)", "[-0.1, 0.1)",
                               "[-0.5, -0.1)", "[-1, -0.5)", "[-1.5, -1)", "[-2, -1.5)", "[-3, -2)", "<= -3")[13:1]) +
 scale_pattern_manual(values = c(rep("stripe", 6), rep("none", 7)), guide = "none") +
  guides(fill = guide_legend(title = NULL, override.aes = list(pattern = c(rep("stripe", 6), rep("none", 7))))) +
  theme_void() + theme(plot.title = element_text(hjust = 0.5), legend.text = element_text(size=10))

g4

Animation plot

invisible(capture.output(
  lapply(c("sf", "usmap", "gganimate", "gifski"), require, character.only = TRUE)
))

rawd <- us_map("counties") %>% dplyr::filter(abbr == "IA")
rawd$county <- substr(rawd$county, 1, nchar(rawd$county) - 7)
rawd$group <- rawd$county
d <- rawd %>% arrange(group)


database <- data.frame(county = rep(d$county %>% unique(), 20),
                       year = rep(2001:2020, each = 99),
                       Value = round(rbeta(99 * 20, 2, 20) * 100, 1)) %>%
    mutate(level = cut(Value, breaks = c(0, 3, 5, 7, 9, 100), labels = c("VeryLow", "Low", "Medium", "High", "VeryHigh")))

colorvalues <- c("VeryHigh" = "#ed4747", "High" = "#ffada2", "Medium" = "#cccccc", "Low" = "#67b5e3", "VeryLow" = "#1155b6")


database <- database %>% arrange(year, county)

USS <- lapply(split(d, d$county), function(x) {
  if(length(table(x$piece)) == 1)
  {
    st_polygon(list(cbind(x$x, x$y)))
  }
  else
  {
    st_multipolygon(list(lapply(split(x, x$piece), function(y) cbind(y$x, y$y))))
  }
})

spdata  <- st_sfc(USS, crs = usmap_crs()@projargs)
tmp <- data.frame()
for(yr in 2001:2020)
{
  tmp <- rbind(tmp, st_sf(data.frame(database %>% dplyr::filter(year == yr), geometry = spdata)))
}
tmp$centroids <- st_centroid(tmp$geometry)

tmp <- cbind(tmp, do.call(rbind, st_geometry(tmp$centroids)) %>%
               as_tibble() %>% setNames(c("lon","lat")))

originplot = ggplot() +
  geom_sf(aes(fill = level, alpha = 0.4), color = "white",  data = tmp) +
  scale_fill_manual(values = colorvalues, guide = guide_none()) +
  theme_void() + theme(legend.position='none', plot.title = element_text(hjust = 0.5))

animateplot = originplot +
  geom_text(aes(y = lat, x = lon, label = Value),
            colour = "black", size = 4.5, data = tmp) +
  geom_text(data = tmp,
            aes(x = median(lon), y = min(lat) - abs(max(lat) - min(lat))/4,
                label = paste("UR In", "Iowa", "In", year)),
            colour = "black", size = 5) +
  transition_states(states = year)

animate(animateplot, renderer = gifski_renderer(), fps = 5, duration = 10)

Dumbbell Chart

library(ggalt)
library(hrbrthemes)

mydata <- data.frame(type = LETTERS[1:6],
                      pre = c(20, 40, 10, 30, 50, 60),
                      post = c(70, 50, 30, 60, 80, 80))

ggplot(mydata, aes(y = type, x = pre, xend = post)) +
  geom_dumbbell(size = 3,
                colour = "grey85", # 连接两点的条带颜色
                colour_x = "firebrick", # pre的颜色
                colour_xend = "forestgreen", # post的颜色
                dot_guide = TRUE,
                dot_guide_size = 0.5) +
  labs(x = "",
       y = "",
       title = "Dumbbell charts") +
  theme_ipsum() +    # from hrbrthemes package
  theme(panel.grid.major.y = element_blank())

Encircle Points

ggplot(iris, aes(Sepal.Length, Sepal.Width)) +
  geom_point() +
  geom_encircle(data = subset(iris, Sepal.Width < 2.5 & Sepal.Length > 5.5), s_shape = 0) +  # encircle points
  geom_point(data = subset(iris, Sepal.Width < 2.5 & Sepal.Length > 5.5),   # mark as blue
             colour = "steelblue", size = 2.5)

R Outout Gallery

Chapter 2 R plot gallery

Contents

Multiple 95% Confidence Intervals

Line Chart

Boxplot with Regression Result

Pirate Plot

Beeswarm plot

Bar Plot

Multi-row x-axis labels

Calendar

Correlation Plot

Survival Analysis

Table Visualization

Heatmap

Compare Two Group Means

Add p-value

Missing Data in Time Series

Sankey Diagram

State Map with Fill-in Color

Animation plot

Dumbbell Chart

Encircle Points
