# 1 Supervised and unsupervised learning

## 1.1 Introduction

The methods in machine learning can be broadly divided into supervised and unsupervised learning methods.

In supervised learning, we have an outcome variable $$Y$$ (also called output, response, dependent variable) and a set of predictors $$\mathbf{X}$$ (also called features, dependent variables, covariates). The objective is to estimate the function $$f(\mathbf{X})$$ that connects $$Y$$ and $$\mathbf{X}$$. For example,

$Y = f(\mathbf{X}) + \varepsilon$

(if $$Y$$ is categorical we generally consider the association of $$\mathbf{X}$$ and the $$Pr(Y=k)$$)

Having a dataset with observations of $$Y$$ and $$X$$ (called training set), we can use these data to find an estimate $$\hat f(\mathbf{X})$$ according to some optimisation principle.

If we specify a functional for $$f(\mathbf{X})$$, such as the linear regression model:$$f(\mathbf{X}) = \beta_0 + \beta_1X_1 + ... + \beta_p X_p$$, we say that we are using a parametric method. If instead we allow the data to estimate the functional form of $$f(\mathbf{X})$$, such as k-nearest neighbourhood regression, we call the method non-parametric.

In unsupervised learning , the goal is to model the underlying structure or distribution in the data without having the outcome $$Y$$. In other words, we want to analyse how the features $$\mathbf{X}$$ are clustered or associated. Examples of these methods are principle components analysis and k-means clustering.

Read the following chapters of An introduction to statistical learning:

If you are using R for the first time, I encourage you to complete the section

## 1.3 R review

### Task 1 - Read a dataset and create a new variable

bmd.data <- read.csv("https://www.dropbox.com/s/7wjsfdaf0wt2kg2/bmd.csv?dl=1")

If you have downloaded the file, you need to substitute the url above by the path to file in your computer, e.g., “c:\my files\bmd.csv”

The variable id is the identification of the subjects in the dataset, and the variable age is their age. What is the age of the subject id=197?

bmd.data$age is the vector with the ages of all the subjects. Within that vector we need to find the one where bmd.data$id == 197. Notice that double equal sign “==” is a logic statement.

If we write bmd.data$id = 197 we are assigning the value 197 to the variable id and every subject in the dataset gets a new value 197 for that variable. bmd.data$age[bmd.data$id == 197] ## [1] 69.72845 #or equivalent bmd.data[bmd.data$id == 197, "age"]
## [1] 69.72845
#or
bmd.data[bmd.data$id == 197, 2] #age is the second variable ## [1] 69.72845 Let’s now create a new variable age.months which is age in months (the original is in years). # we just need to multiply the original by 12 bmd.data$age.months <- bmd.data$age * 12 # we can use = instead of <- bmd.data$age.months = bmd.data$age * 12 Finally, let’s recode the variable age into age categories <=50, (50,60], (60,70] and >60. # we can use the function cut() to #create the categories bmd.data$age.cat <- cut(bmd.data$age, c(0,50,60,70, 100)) # alternative bmd.data$age.cat2[bmd.data$age<50] <- 1 bmd.data$age.cat2[bmd.data$age>=50 & bmd.data$age<60] <- 2
bmd.data$age.cat2[bmd.data$age>=60 & bmd.data$age<70] <- 3 bmd.data$age.cat2[bmd.data$age>=70] <- 4 #frequencies of the categories table(bmd.data$age.cat)
##
##   (0,50]  (50,60]  (60,70] (70,100]
##       24       45       48       52

TRY IT YOURSELF:

1. Get the ages for all the male subjects, i.e., bmd.data$sex == "M". See the solution code bmd.data$age[bmd.data$sex == "M"]  1. What is the length of the vector above? Or, in other words, how many subjects are male? See the solution code length(bmd.data$age[bmd.data$sex == "M"]) #or table(bmd.data$sex)

1. Using the variables weight_kg and height_cm, compute the body mass index? $$\frac{\text{weight in Kg}}{(\text{heigh in m})^2}$$
See the solution code
bmd.data$bmi <- bmd.data$weight_kg /(bmd.data$height_cm/100)**2 ### Task 2 - Histogram There are several packages specific to graphs ggplot2, lattice, plotly, highcharter, sunburstR, dygraphs, rgl,… The R Graph Gallery is an excellent learning resource for complex plots and visualisation We will start with basic functions. Let’s produce the histogram of the variable bmi created in task 1 hist(bmd.data$bmi)

Let’s edit the title and x-axis label

    hist(bmd.data$bmi, main = "My 1st histogram", xlab = "Body Mass Index") And we can also plot the distribution for males and females, separately #histogram for males hist(bmd.data$bmi[bmd.data$sex=="M" ], breaks = 10, # number of cutoff for the bars main= "My 1st histogram", xlab= "Body Mass Index", col=rgb(0,0,1,.5)) # color of the bars #histogram for females hist(bmd.data$bmi[bmd.data$sex=="F" ], breaks = 10, main= "My 1st histogram", xlab= "Body Mass Index", col=rgb(1,0,0,.5), add=T) # superimposes the histograms # Add legend legend("topright", legend=c("Males","Females"), col=c(rgb(0,0,1,0.5), rgb(1,0,0,0.5)), pt.cex=2, pch=15 ) ### Task 3 - Scatter and boxplot To see the relation between bone mineral density (BMD) and age we can produce a scatter plot: # BMD plot(bmd.data$age,bmd.data$bmd) Or a boxplot between bone mineral density (BMD) by categories of age created in task 1 # BMD boxplot(bmd.data$bmd ~ bmd.data$age.cat) And with a bit more work: # BMD boxplot(bmd.data$bmd ~ bmd.data$age.cat, main = "A nice boxplot (at least for a colorblind)", xlab = "Age categories", ylab = "Bone Mineral Density", col = terrain.colors(4) ) # Add data points mylevels <- levels(bmd.data$age.cat)
levelProportions <- summary(bmd.data$age.cat)/nrow(bmd.data) for(i in 1:length(mylevels)){ thislevel <- mylevels[i] thisvalues <- bmd.data[bmd.data$age.cat == thislevel, "bmd"]
#take the x-axis indices and add a jitter,
#proportional to the N in each level
myjitter   <- jitter(rep(i, length(thisvalues)),
amount=levelProportions[i]/2)
points(myjitter, thisvalues,
pch=20, col=rgb(0,0,0,.9))
}

TRY IT YOURSELF:

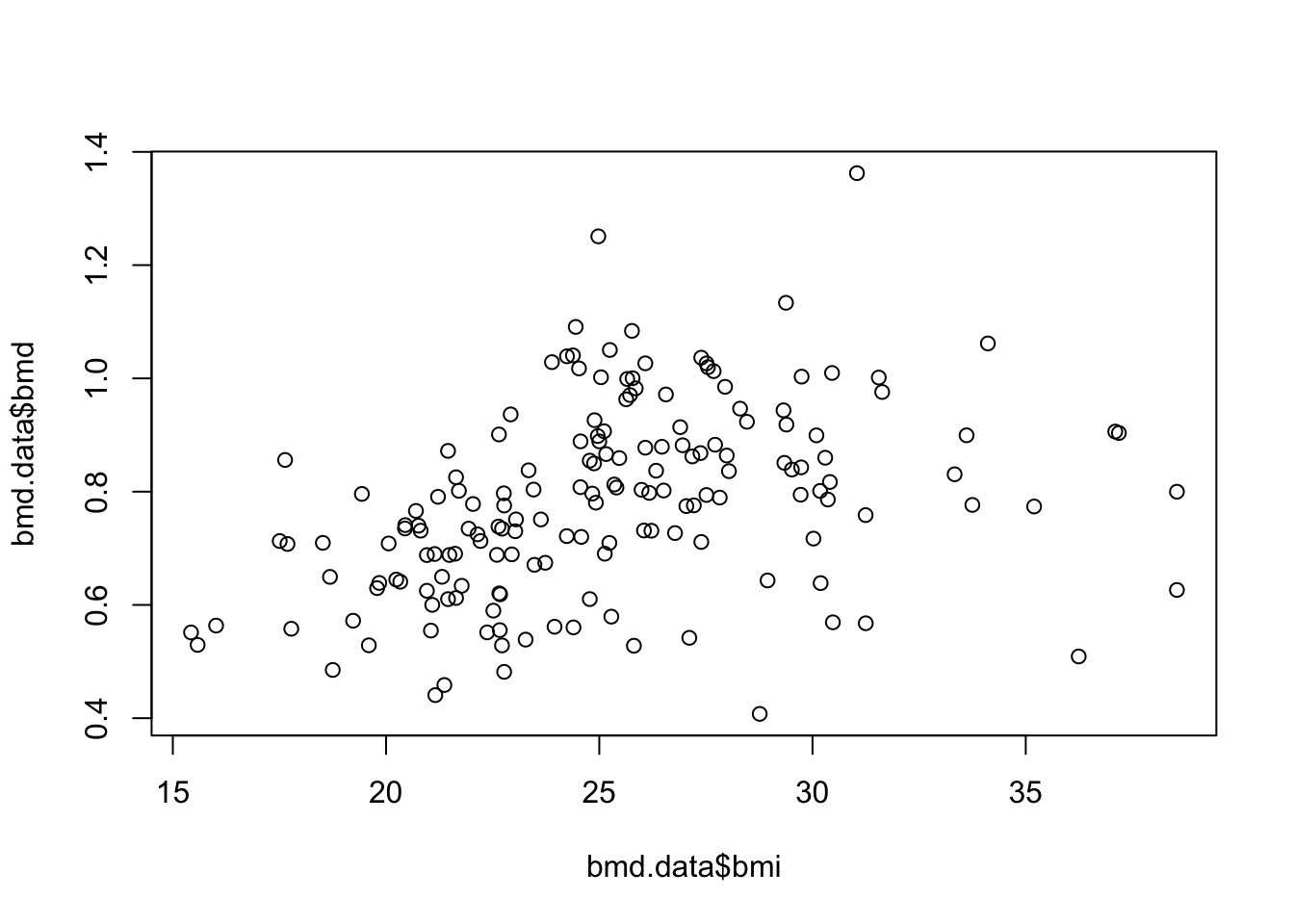

1. Plot a scatter for the relation of bmi and bmd.
See the solution code
plot(bmd.data$bmi,bmd.data$bmd)

1. Plot a scatter for the relation of bmi and bmd with the dots painted by the variable sex.
See the solution code
plot(bmd.data$bmi,bmd.data$bmd,
pch=20,
col= ifelse(bmd.data\$sex=="M",  #blue for males
"blue",             #red for females
"red")
)

pt.cex=3, pch=20 )
